7 Inch LVDS Security LCD Display 650 Nits 1024×600 for Industrial Use

1024×600 Landscape TFT-LCD Module with LVDS 8-Bit, 40-Pin Connector, 650 cd/m² Brightness, and No-Touch Industrial Integration

A 7 Inch LVDS Security LCD Display is a landscape 1024×600 TFT-LCD module for security monitors, industrial HMI panels, vehicle displays, agricultural machinery instruments, medical devices, and ship navigation equipment. It combines 650 cd/m² brightness, LVDS 8-bit signaling, a 40-pin interface, WLED backlight, 16.7M colors, no-touch integration, and a -20°C to 70°C operating temperature range for embedded equipment that needs stable display output without capacitive or resistive touch.

At a Glance: 7 Inch LVDS Industrial Display Highlights

• 7-inch landscape TFT-LCD module with 1024 × 600 resolution for security and equipment interface layouts.
• 650 cd/m² typical brightness supports better readability than many low-brightness indoor modules.
• LVDS 8-bit signal interface with 40 pins supports embedded industrial controller integration.
• No-touch configuration is suitable for devices using buttons, keypads, rotary controls, or external input panels.
• Active area is listed as 154.21 × 85.92 mm, supporting compact enclosure planning.
• EWV / TN soft-screen family with 12 o’clock viewing direction should be reviewed against mounting position.
• Application direction includes security displays, industrial HMI, vehicle displays, agricultural machinery instruments, medical equipment, and ship navigation displays.

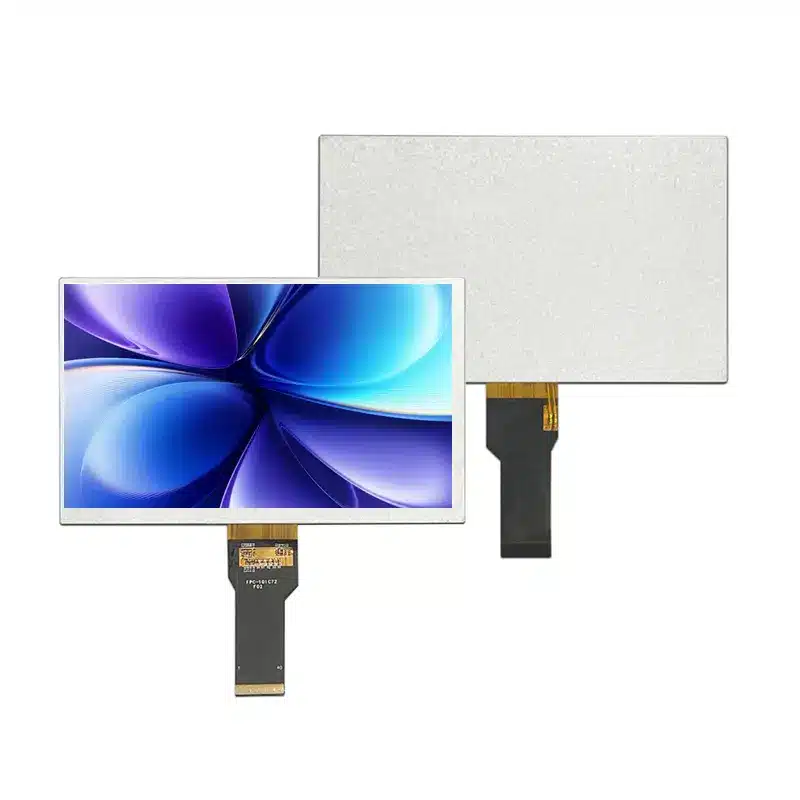

Product Overview of the 7 Inch LVDS Security LCD Display

The 7 Inch LVDS Security LCD Display is built for equipment projects that need a compact landscape screen, stable LVDS signal transmission, and moderate high-brightness visibility. It is not positioned as a touch-first module; instead, it fits systems where display output is separated from user input, such as security monitoring panels, machine dashboards, vehicle instruments, navigation screens, and control equipment using physical keys or external controls.

The 1024 × 600 resolution gives product teams enough screen space for multi-window monitoring, status pages, warning messages, navigation information, and basic graphical interfaces. Compared with lower-resolution 7-inch modules, this format can display more useful information while remaining compact enough for small industrial enclosures. The 650 cd/m² brightness level supports visibility in workshops, vehicle cabins, security rooms, and equipment panels exposed to moderate ambient light.

For integration teams, the important details are the LVDS 8-bit signal interface, 40-pin connection, 154.21 × 85.92 mm active area, 164.9 × 100 × 5.56 mm outline, WLED backlight, 16.7M colors, 600:1 typical contrast ratio, and -20°C to 70°C operating temperature. These parameters provide a clear starting point for controller-board matching, enclosure design, cable routing, front-frame planning, and sample validation.

Key Features of the 7 Inch LVDS Security LCD Display

The 7 Inch LVDS Security LCD Display gives OEM teams a compact no-touch display platform for security, vehicle, navigation, medical, and industrial equipment projects.

Technical Specifications of the 7 Inch Industrial LVDS Display Module

The 7-inch industrial LVDS display module provides a confirmed 1024×600 landscape format, 650 cd/m² brightness, LVDS 8-bit interface, and no-touch structure for embedded display projects.

These specifications should be reviewed as an integrated engineering package. LVDS compatibility affects controller-board design and cable routing. The active area and outline dimensions affect front-frame size, gasket placement, and enclosure structure. The 12 o’clock viewing direction and TN soft-screen family should be checked carefully against the final mounting position because viewing performance can depend on installation orientation.

Why Choose This 7 Inch LVDS Industrial Display Module?

This 7 inch LVDS industrial display module is suitable when the project needs a no-touch landscape screen, stable signal routing, compact mechanics, and moderate high-brightness performance.

1024×600 Landscape TFT-LCD for Security and Equipment Interfaces

The 1024 × 600 landscape format works well for security monitoring screens, access-control interfaces, vehicle auxiliary displays, industrial status panels, and instrument screens. It provides enough horizontal space for menus, camera feeds, alarm lists, measurement values, and navigation information. For equipment that does not require a touchscreen, the no-touch structure can also simplify the front panel and reduce unnecessary touch-controller integration work.

The 7-inch size helps keep the system compact. It can be used in small enclosures, instrument housings, mobile equipment, and control panels where larger displays may create mechanical or power constraints. The display should be evaluated with the real UI layout, expected viewing distance, and final mounting angle before bulk procurement.

650 cd/m² Brightness, LVDS 8-Bit, and 40-Pin Integration

The 650 cd/m² typical brightness level makes the module more suitable for industrial rooms, vehicle cabins, monitoring stations, and moderate high-ambient-light environments than a basic low-brightness screen. It should not be treated as a full sunlight-readable outdoor display unless the finished product design, cover lens, optical stack, and brightness target are validated.

The LVDS 8-bit interface and 40-pin signal connection are important for industrial integration. LVDS is commonly used where stable signal transmission and embedded display compatibility matter. Engineers should request the detailed pinout, timing, connector drawing, backlight electrical data, and cable recommendations before PCB layout or controller matching.

Display Performance of the 7 Inch High-Visibility LVDS Screen for Industrial Equipment

The display performance of this 7 inch high-visibility LVDS screen is strongest when used in controlled equipment environments that need readable status output, moderate brightness, and stable image transmission.

650 cd/m² Readability for Security Monitoring and Vehicle Cabins

The confirmed 650 cd/m² brightness supports display readability in security monitoring equipment, access-control systems, industrial workshops, vehicle cabins, and navigation panels. It is a practical level for equipment that faces stronger lighting than a typical office device but does not necessarily require extreme outdoor sunlight performance.

Brightness should still be reviewed with the final enclosure and cover material. If the finished equipment uses protective glass, anti-glare film, waterproof sealing, or a recessed bezel, visible brightness and reflection behavior can change. A sample test under the intended lighting condition is recommended.

EWV / TN Soft-Screen Viewing Behavior and 12 O’clock Direction

The source materials list EWV, TN soft screen, 80/80/60/70 viewing angles, and 12 o’clock viewing direction. These are important engineering details because the display’s best viewing behavior depends on how the module is mounted. A screen used in a vehicle dashboard may have different viewing requirements than one used in a wall-mounted security controller or a ship navigation panel.

Product teams should check the final viewing direction during prototype assembly. If operators view the screen from below, above, or from a steep side angle, the mechanical orientation should be validated before tooling.

16.7M Colors, WLED Backlight, and 600:1 Contrast for Interface Screens

The display supports 16.7M colors and uses WLED backlight technology. These confirmed features are useful for alarm colors, status indicators, camera thumbnails, menu graphics, and dashboard-style visual interfaces. The 600:1 typical contrast ratio gives engineers a reference for UI design, especially when selecting text size, background colors, and warning-state contrast.

Integration and Mounting Options for LVDS 8-Bit Embedded Display Systems

LVDS 8-bit embedded display integration should begin with pinout confirmation, timing review, cable routing, backlight electrical data, and viewing-direction validation.

LVDS 8-Bit Interface and 40-Pin Connector Planning

The module uses an LVDS 8-bit display interface with 40 pins. This makes it suitable for many embedded controllers, industrial display boards, and equipment platforms that support LVDS output. Engineers should confirm whether the host board supports the required LVDS mapping, voltage levels, timing format, and backlight control method.

The display chip is listed as EK79001HE + EK93215BCGA. This provides a useful reference for engineering review, but it should not replace a formal datasheet. Before production, request the complete interface drawing, initialization requirements if applicable, connector model, cable direction, and backlight connection data.

Mechanical Mounting, Enclosure, and Bezel Planning

The active area is listed as 154.21 × 85.92 mm in the configuration image and 154 × 85 mm in the table. The outline is listed as 164.9 × 100 × 5.56 mm in the configuration image and 164 × 100 mm with 5 mm maximum thickness in the table. Because both versions appear in the readable materials, a formal mechanical drawing should be used before enclosure tooling.

For security and vehicle equipment, front-frame design, mounting bosses, vibration environment, cable strain relief, and service access should be reviewed together. If the display is used behind protective glass, optical and thermal behavior should also be validated.

Power, Thermal, and System-Level Review

Input voltage and power consumption are not confirmed in the readable source materials, so they should be requested before electrical design. The operating temperature is listed as -20°C to 70°C and storage temperature as -30°C to 80°C, which supports industrial and vehicle-equipment evaluation. The finished product should still be tested under expected internal heat, duty cycle, brightness setting, and enclosure conditions.

Recommended Applications for Security Monitoring and Industrial HMI Displays

Security monitoring and industrial HMI displays need reliable screen output, practical brightness, stable interface behavior, and mechanical fit for long-term equipment installation.

Security and Access-Control Screens with Moderate High-Brightness Needs

Security display equipment often needs a compact screen for camera previews, access records, alarms, menus, and operating status. This module’s 1024×600 resolution and 650 cd/m² brightness make it suitable for monitoring panels where a no-touch display is preferred and user control is handled through buttons or an external input device.

Industrial Human-Machine Interaction Panels Without Touch Input

Industrial HMI equipment does not always require touch. Some systems use physical controls for reliability, safety, or environmental reasons. The 7 Inch LVDS Security LCD Display can serve as a display-only module for machine status, process information, alarms, and diagnostic screens when LVDS integration is required.

Vehicle, Agricultural Machinery, and Instrument Display Systems

Vehicle cabins, agricultural machinery instruments, and portable navigation equipment need displays that can handle compact installation space and changing viewing conditions. The landscape 7-inch size, LVDS interface, and 12 o’clock viewing direction should be evaluated against dashboard angle, operator position, and enclosure geometry.

Medical Equipment and Ship Navigation Panels

Medical devices and ship navigation displays can benefit from a compact screen with confirmed 1024×600 resolution, 16.7M colors, and wide-temperature operation. For regulated or safety-related projects, buyers should request full electrical, environmental, and compliance documents before procurement or mass production.

Customization Options for 7 Inch LVDS Display Projects

Customization for 7 inch LVDS display projects can include brightness validation, cover glass, anti-glare surface evaluation, optical bonding, housing design, LVDS cable and control-board matching, mounting review, bezel opening verification, and IP-rated enclosure evaluation for the finished device. These should be treated as project-level engineering options, not default module features.

Because this module is no-touch, buyers should also confirm whether the final device will use buttons, keypad input, rotary controls, or a separate touch overlay. If a touch function is required, touch-panel feasibility should be evaluated as a custom stack rather than assumed from the base module.

Procurement and Engineering Checklist for 7 Inch LVDS Display Selection

A reliable procurement decision should confirm the display, interface, mounting, and application environment before moving from sample testing to bulk purchase.

• Confirm whether 1024 × 600 landscape resolution matches the UI layout and viewing distance.
• Verify that 650 cd/m² brightness is suitable for the actual lighting environment.
• Confirm LVDS 8-bit compatibility with the target control board.
• Request the 40-pin pinout, connector drawing, and recommended cable information.
• Check the 12 o’clock viewing direction against final mounting orientation.
• Confirm active area, outline size, and thickness using a formal mechanical drawing.
• Validate the no-touch control plan, including buttons, keypad, or external input method.
• Test operating temperature, enclosure heat, display readability, and sample stability before bulk order.

Brightness / LVDS / Mounting Selection Guide for 7 Inch Industrial LCD Projects

For brightness selection, test the module in the final enclosure and under the expected ambient light. For LVDS integration, confirm timing, pinout, cable length, and host-board compatibility before PCB finalization. For mounting, check the 12 o’clock viewing direction, bezel opening, active area, cable exit, enclosure clearance, and service access. For outdoor-facing equipment, evaluate protective glass, sealing, reflections, and thermal behavior at finished-device level.
