8 Inch IPS Portrait HMI Touch Panel MIPI DSI Capacitive Touch Module

800×1280 IPS TFT LCD with MIPI DSI 31-Pin Connector, JD9365DA Driver, and GT911 I2C Touch

An 8 Inch IPS Portrait HMI Touch Panel is an 800×1280 TFT LCD touch module for embedded terminals, smart panels, handheld HMIs, POS devices, and compact industrial controllers that need vertical UI space with MIPI DSI integration. It combines IPS normally black transmissive display technology, 300 cd/m² luminance, 500:1 contrast, MIPI DSI 31-pin connector, JD9365DA display driver, GT911 I2C projected capacitive touch, G+G structure, 5 touch points, and a 124.64 × 189.23 × 5.4 mm LCM+touch stack.

At a Glance: 8-Inch Portrait MIPI HMI Highlights

• 8.0-inch 800×1280 portrait format supports vertical menus, smart terminal dashboards, and control interfaces.
• IPS normally black transmissive TFT provides 80/80/80/80 viewing for multi-angle readability.
• MIPI DSI 31-pin connector gives embedded system teams a compact high-speed display input path.
• JD9365DA display driver provides a defined controller target for firmware bring-up.
• GT911 I2C projected capacitive touch supports 5 touch points for tap and gesture-based operation.
• G+G touch structure, ≥85% transparency, and ≥6H surface hardness support frequent front-panel use.
• 124.64 × 189.23 × 5.4 mm LCM+touch module size helps enclosure teams plan the stack height.

Designed For

This module is designed for embedded HMI terminals, smart home panels, handheld devices, POS terminals, medical instruments, industrial control panels, security terminals, kiosks, and compact portrait control interfaces that need 800×1280 IPS visuals with MIPI DSI input and capacitive touch.

Product Overview of the 8 Inch IPS Portrait HMI Touch Panel

The 8 Inch IPS Portrait HMI Touch Panel is built for products where a vertical interface is more useful than a landscape layout. Its 800×1280 resolution gives UI teams space for status cards, menu lists, icons, configuration screens, numeric controls, device settings, and operating prompts in a compact embedded format.

The product’s strongest value is the combination of portrait IPS display, MIPI DSI 31-pin interface, and integrated projected capacitive touch. MIPI DSI supports compact display signal routing for modern embedded platforms, while the GT911 I2C touch controller gives system developers a familiar touch-communication path. This makes the module suitable for products that require a clean front interface without using a larger tablet-style assembly.

Because this is a component-level display and touch module, final integration should validate the MIPI host, 31-pin connector, JD9365DA initialization, GT911 I2C touch routing, touch FPC option, cover lens, optional bonding, backlight drive, and enclosure stack. Brightness, touch performance, and mechanical fit should always be tested with the actual product housing.

Key Features of the 8 Inch IPS Portrait HMI Touch Panel

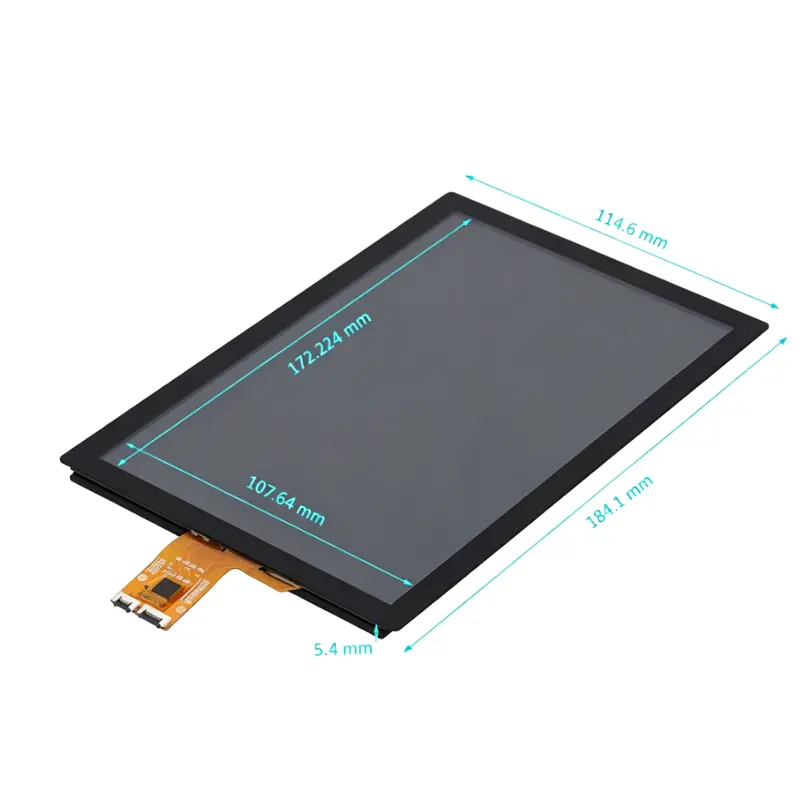

Technical Specifications of the 800×1280 MIPI DSI Touch LCD

These confirmed values define the major engineering checks: portrait UI scaling, MIPI DSI host compatibility, 31-pin pinout, JD9365DA driver initialization, GT911 I2C routing, touch FPC selection, cover-lens stack, optional bonding, backlight drive, and thermal behavior inside the finished enclosure.

Why Choose an 8-Inch Portrait HMI Touch Panel?

A portrait HMI touch panel is useful when the product interface needs more vertical space for menus, data fields, prompts, or list-style controls. Compared with smaller 5-inch modules, this 8-inch format gives more room for touch targets and status information. Compared with larger panels, it still remains compact enough for handheld terminals, wall-mounted smart panels, and embedded equipment.

800×1280 Layout for Vertical User Interfaces

The 800×1280 format is well matched to portrait applications such as access terminals, POS displays, smart home panels, medical instrument screens, and industrial menu systems. UI teams can place status areas at the top, controls in the center, and navigation at the bottom without compressing content into a small landscape view.

IPS Viewing for Shared and Mounted Screens

The IPS normally black transmissive display supports 80/80/80/80 viewing. This matters when the panel is mounted in a wall interface, kiosk, handheld device, or control unit where users may approach from different angles. Final viewing performance should still be checked with the selected cover lens and UI color scheme.

300 cd/m² Brightness for Indoor Terminals

The confirmed luminance is 300 cd/m² typical. This is suitable for many indoor and controlled-light applications, including smart panels, medical instruments, POS terminals, and compact control systems. If the application faces strong ambient light, evaluate brightness adjustment, cover reflection, bonding, and enclosure angle during sample testing.

MIPI DSI 31-Pin and GT911 Touch Integration

This module should be reviewed as a display-plus-touch assembly. The display signal path uses MIPI DSI, while the touch path uses I2C. Both must be validated before PCB release.

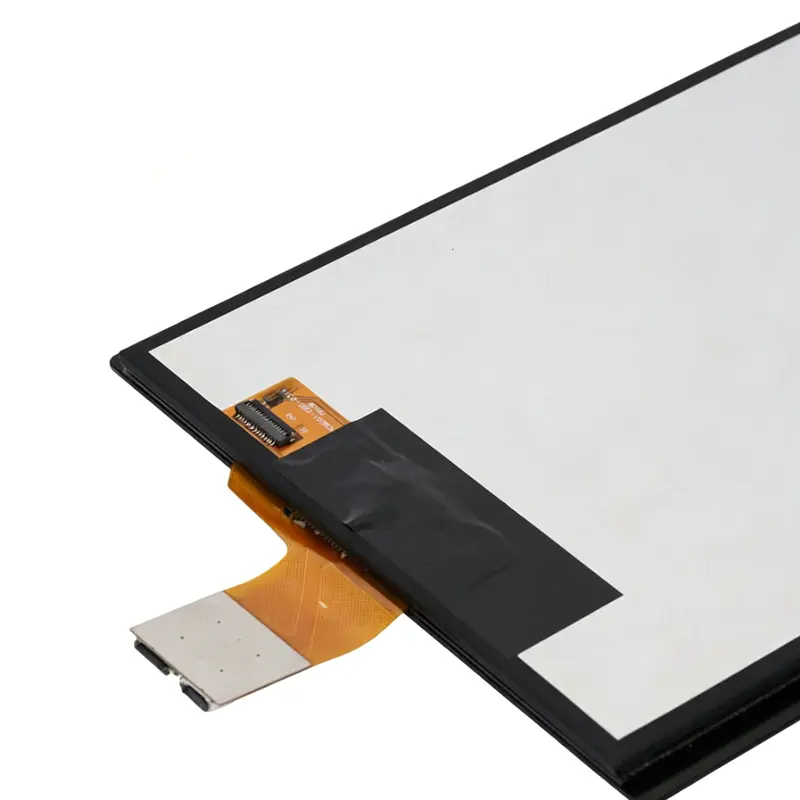

MIPI DSI 31-Pin Host Matching

Engineering teams should confirm the MIPI DSI lane configuration, 31-pin connector definition, voltage levels, clock timing, reset sequence, FPC direction, and JD9365DA initialization data. A mismatch in pinout or timing can cause blank screen, unstable display, color errors, or delayed bring-up.

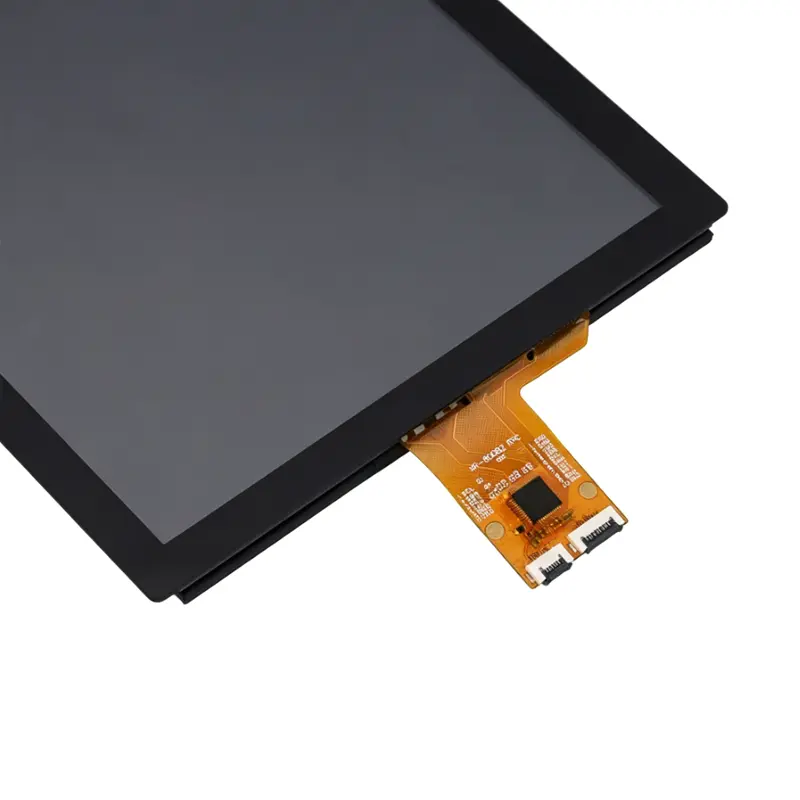

GT911 I2C PCAP Touch Routing

The projected capacitive touch panel uses GT911 with I2C communication and supports 5 touch points. Engineers should confirm SDA, SCL, reset, interrupt, VDD, grounding, shielding, and firmware support. Sample testing should include edge accuracy, tap response, gesture behavior, and touch stability after assembly into the enclosure.

G+G Touch Stack and Optional Bonding

The touch panel uses G+G structure with ≥85% transparency and ≥6H surface hardness. Bonding is listed as optional, so optical bonding should not be assumed as standard. Project teams should confirm whether air bonding or optical bonding is required for the target environment, cover lens, and viewing condition.

Recommended Applications for Portrait Embedded Interfaces

The module fits compact products that need a portrait screen, touch operation, and embedded MIPI DSI integration.

Smart Home and Wall Control Panels

Smart home panels can use the 8-inch portrait layout for room controls, device status, settings, icons, and scene menus. The 5-point PCAP touch layer supports a familiar interaction style for consumer-facing interfaces.

POS, Kiosk, and Payment Terminals

POS terminals and compact kiosks can use the vertical screen for transaction prompts, product menus, customer confirmation pages, QR code display, and service workflows. The 800×1280 layout gives enough room for clear buttons and content hierarchy.

Handheld HMI and Industrial Terminals

Handheld terminals, logistics devices, inspection tools, and industrial controllers can use the panel for operating data, prompts, alarms, and configuration menus. The MIPI DSI interface supports modern embedded platform designs.

Medical Instruments and Security Panels

Medical instruments and security terminals can use the display for structured prompts, monitoring screens, access workflows, and status feedback. Final product validation should include cleaning method, cover material, touch response, and readability under real use conditions.

Customization Options for 8-Inch MIPI HMI Projects

Project evaluation can include backlight type and brightness adjustment, touch panel stack selection, cover lens design, optional bonding review, MIPI DSI 31-pin host matching, JD9365DA driver bring-up, GT911 I2C touch tuning, FPC 6-pin or 10-pin touch routing, mechanical drawing adaptation, packaging, and sample validation. Any waterproofing, outdoor certification, anti-glare treatment, or medical-grade requirement must be confirmed at finished-system level.

Procurement and Engineering Checklist for 8-Inch Portrait TFT Selection

• Confirm the 800×1280 portrait UI layout, button size, icon spacing, and viewing distance.
• Check MIPI DSI host support, lane configuration, 31-pin pinout, and FPC direction.
• Validate JD9365DA initialization, reset sequence, and display test procedure.
• Confirm GT911 I2C touch routing, interrupt/reset pins, grounding, and firmware support.
• Review active area, LCM size, LCM+touch stack, touch outline, cover lens, and bonding plan.
• Test 300 cd/m² brightness with the final cover lens and ambient-light condition.
• Confirm 21-chip WLED backlight drive at 9.9V / 140mA and dimming strategy.
• Validate operating temperature, sample performance, quantity, and application environment.
