RGB Outdoor TFT Module 1000 Nits LCD for 7 Inch Sunlight Readable HMI

800×480 TN TFT LCD with RGB 50-Pin FPC, 1000 cd/m² Brightness, and Optional RTP/CTP Touch

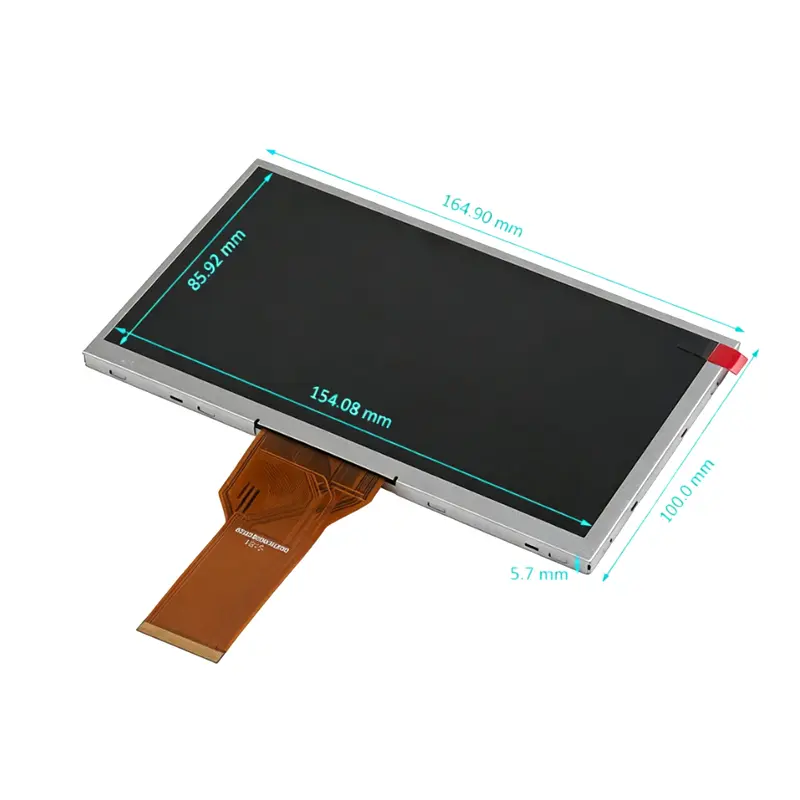

An RGB Outdoor TFT Module is a 7-inch 800×480 TN TFT LCD component for outdoor equipment HMIs, machinery controls, kiosks, and embedded terminals that need 1000 cd/m² brightness with RGB 50-pin FPC integration. It combines normally white transmissive display mode, 154.08 × 85.92 mm active area, 27-chip WLED backlight, EK9713 + EK73002 driver ICs, optional RTP or CTP touch, and -20°C to +70°C operation for OEM display projects.

At a Glance: 7-Inch RGB High-Brightness Module Highlights

• 1000 cd/m² typical luminance supports readability in bright outdoor or high-ambient-light equipment.
• 800×480 resolution fits HMI menus, monitoring pages, status displays, and embedded control screens.
• RGB FPC 50-pin interface supports direct integration with compatible embedded controller boards.
• 27-chip WLED backlight with 50,000-hour typical lifetime supports long-service equipment designs.
• TN normally white transmissive mode provides a cost-efficient display platform for fixed-view interfaces.
• Optional RTP or CTP touch allows buyers to choose glove/stylus input or capacitive operation by project.
• -20°C to +70°C operating range fits machinery, terminals, and outdoor-facing industrial products.

Designed For

This module is designed for outdoor equipment HMIs, agricultural machinery displays, construction equipment interfaces, kiosks, smart transportation terminals, marine equipment interfaces, embedded monitoring systems, and industrial control panels that need high-brightness 7-inch visualization with RGB 50-pin signal input.

Product Overview of the RGB Outdoor TFT Module

The RGB Outdoor TFT Module is intended for engineers who need a compact display that is brighter than a standard indoor 7-inch TFT panel but still simple enough for RGB-based embedded integration. Its 1000 cd/m² typical luminance gives equipment designers a stronger optical starting point for outdoor-facing cabinets, vehicle-mounted panels, and machine interfaces exposed to changing ambient light.

Unlike many 7-inch records that use LVDS, MIPI, or standard indoor brightness, this module is centered on RGB 50-pin FPC integration and a 7-inch 800×480 landscape display format. That makes it relevant for controller platforms already designed around RGB timing, parallel RGB display output, or cost-sensitive HMI architectures where a full video-interface conversion is not preferred.

The module uses TN normally white transmissive TFT technology. This supports practical embedded display use, but the 6 o’clock viewing direction and 50/70/70/70 viewing specification should be validated against the final mounting angle. For dashboards, outdoor machines, and kiosks, the physical installation height and operator eye position can strongly affect user experience.

Key Features of the RGB Outdoor TFT Module

Technical Specifications of the 7-Inch 1000 cd/m² RGB TFT Module

These specifications make the module most suitable for projects where the buyer needs high brightness, RGB interface matching, and optional touch flexibility. Before production, confirm RGB timing, FPC pinout, backlight driving conditions, touch selection, viewing direction, and cover-lens requirements with the actual host board and enclosure.

Why Choose This 1000 cd/m² RGB Display for Outdoor HMI?

A 7-inch outdoor HMI display must remain readable while fitting inside compact equipment. This module’s 1000 cd/m² luminance gives it a stronger brightness profile than many standard indoor TFT modules, while the 800×480 layout remains familiar for embedded GUI development.

1000 cd/m² Brightness for Machinery and Terminal Screens

The 1000 cd/m² typical brightness is the primary optical advantage. It supports equipment that may be used in sunlight, vehicle cabins, construction sites, agricultural fields, marine control areas, or semi-outdoor kiosks. Final readability still depends on cover glass, surface reflection, UI colors, installation angle, and enclosure shading.

TN 6 O’clock Viewing Direction Requires Mounting Review

The module uses a TN display mode with 6 o’clock viewing direction. This is acceptable for many fixed-position control screens, but it should not be treated like an IPS full-view panel. For best results, buyers should define whether the operator looks from above, below, left, right, or straight ahead, then validate the viewing direction with a sample.

800×480 Landscape UI for Embedded Controls

The 800×480 format is useful for compact interface screens that display menus, gauges, icons, alarm messages, machine status, and basic monitoring information. It is not intended for ultra-dense text or smartphone-style portrait UI, but it works well for practical industrial and equipment dashboards.

RGB 50-Pin FPC Integration and Backlight Planning

The middle-stage engineering value of the RGB Outdoor TFT Module comes from its RGB 50-pin FPC interface and defined backlight structure. This reduces uncertainty for projects that already use RGB display controllers.

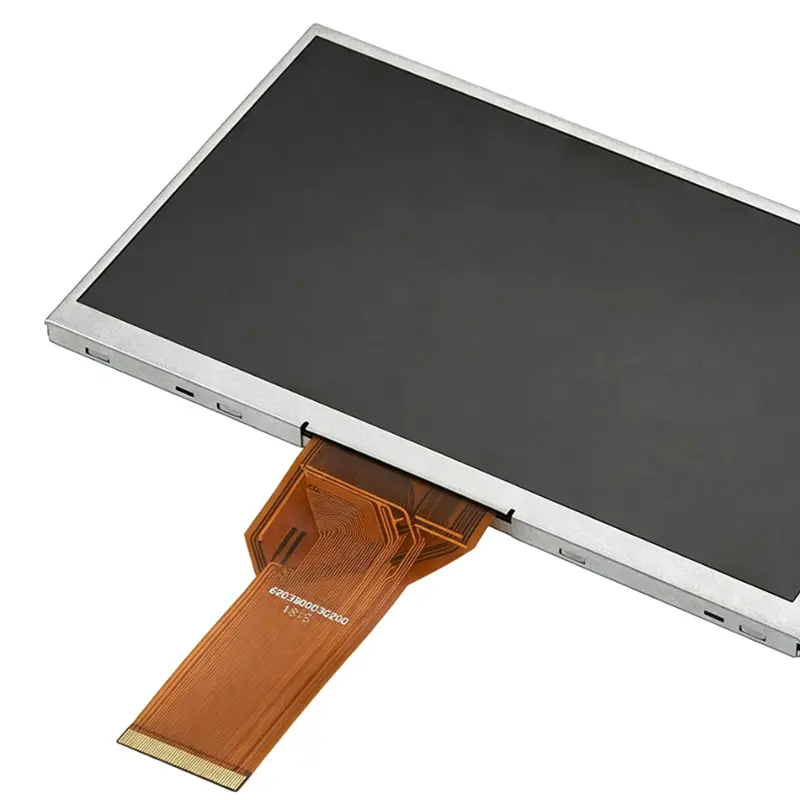

RGB Timing and 50-Pin Pinout Confirmation

Before PCB release, confirm RGB timing, FPC pinout, signal voltage, clock, sync signals, data width, FPC direction, connector pitch, and controller compatibility. Incorrect RGB timing or pin mapping can produce color errors, unstable images, flicker, or no display output.

EK9713 + EK73002 Driver IC Review

The confirmed driver ICs are EK9713 and EK73002. Engineering teams should verify initialization requirements, supported timing, and compatibility with the selected MCU, processor, or display controller. If a control board is already selected, the display timing table should be checked before sample approval.

27-Chip WLED Backlight Drive

The backlight is listed as 27-chip WLEDs with 9.6V / 180mA. Backlight drive, dimming method, thermal path, and power budget should be reviewed during system design. For outdoor equipment, brightness is only useful when heat is controlled and the backlight driver remains stable.

Recommended Applications for High-Brightness RGB HMI Projects

Agricultural and Construction Machinery

Agricultural machines, excavators, loaders, and field equipment can use this display for status, navigation prompts, control menus, and warning messages. The 1000 cd/m² brightness and -20°C to +70°C operation support harsh working conditions, while RGB integration can fit embedded controller platforms.

Outdoor Kiosks and Smart Terminals

Outdoor kiosks, ticketing terminals, queue systems, and self-service devices can use the 7-inch format where space is limited but readability matters. Buyers should validate cover glass reflection, touch method, and waterproofing at finished-system level because the module itself is not specified as waterproof.

Marine and Transportation Interfaces

Marine equipment, vehicle terminals, smart transportation displays, and embedded monitoring panels can use the module for compact visualization. The 6 o’clock viewing direction should be checked carefully because mounting angle may vary across dashboards and control consoles.

Industrial Monitoring Systems

Factory and outdoor-adjacent monitoring systems can use the display for equipment status, process values, alarms, and simple graphical interfaces. The RGB 50-pin input helps teams using direct embedded display control rather than LVDS or MIPI architectures.

Customization Options for RGB Outdoor TFT Module Projects

Project evaluation can include FPC and RGB 50-pin interface design, brightness tuning, backlight type review, RTP or CTP touch selection, cover glass, mechanical drawing adaptation, controller-board matching, packaging, and sample validation. Optional touch should be selected based on the use environment: RTP may be preferred for glove or stylus input, while CTP may be preferred for modern finger-touch interaction.

Procurement and Engineering Checklist for 7-Inch RGB Outdoor Display Selection

• Confirm the 800×480 UI layout and whether landscape format fits the final product.
• Check RGB timing, 50-pin FPC pinout, signal voltage, and controller-board compatibility.
• Validate 1000 cd/m² brightness with final cover glass, UI colors, and ambient-light condition.
• Review TN 6 o’clock viewing direction against the actual mounting angle.
• Confirm EK9713 + EK73002 driver requirements before firmware or PCB release.
• Select no touch, RTP, or CTP according to glove use, stylus use, water exposure, and UI type.
• Review 27-chip WLED backlight drive, dimming, heat path, and power budget.
• Confirm module size, active area, front-window opening, sample quantity, and application environment.
