DV860FBM-N11 Outdoor Bar Signage Panel V-by-One LCM

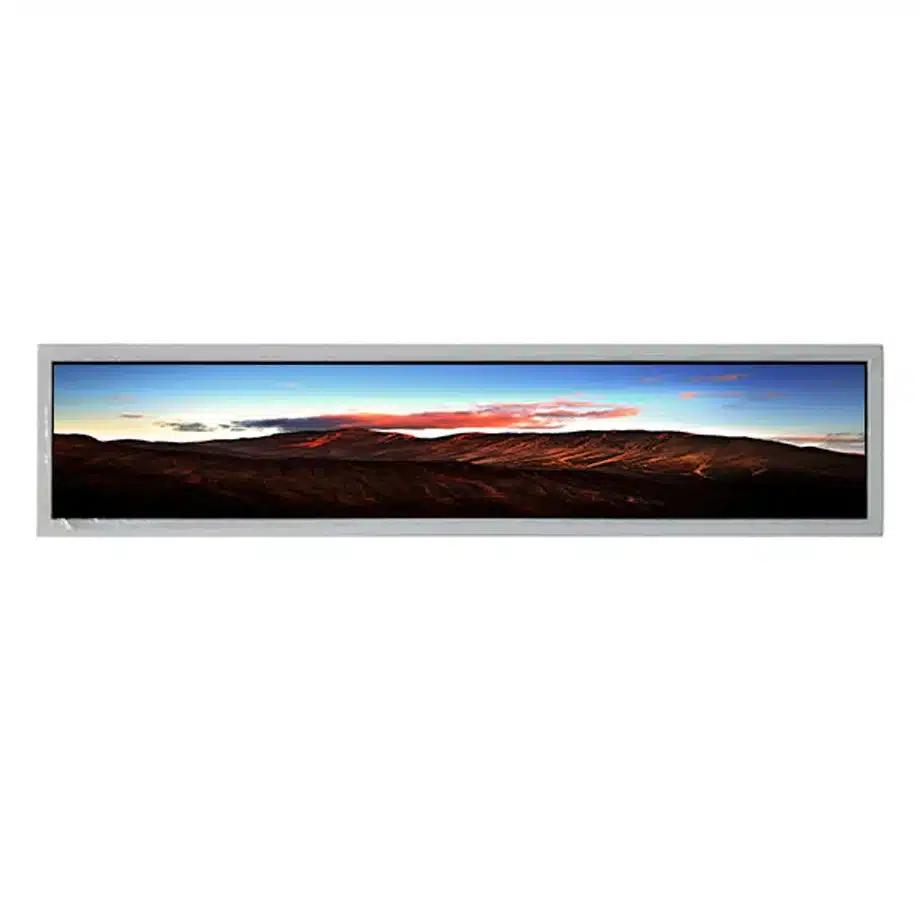

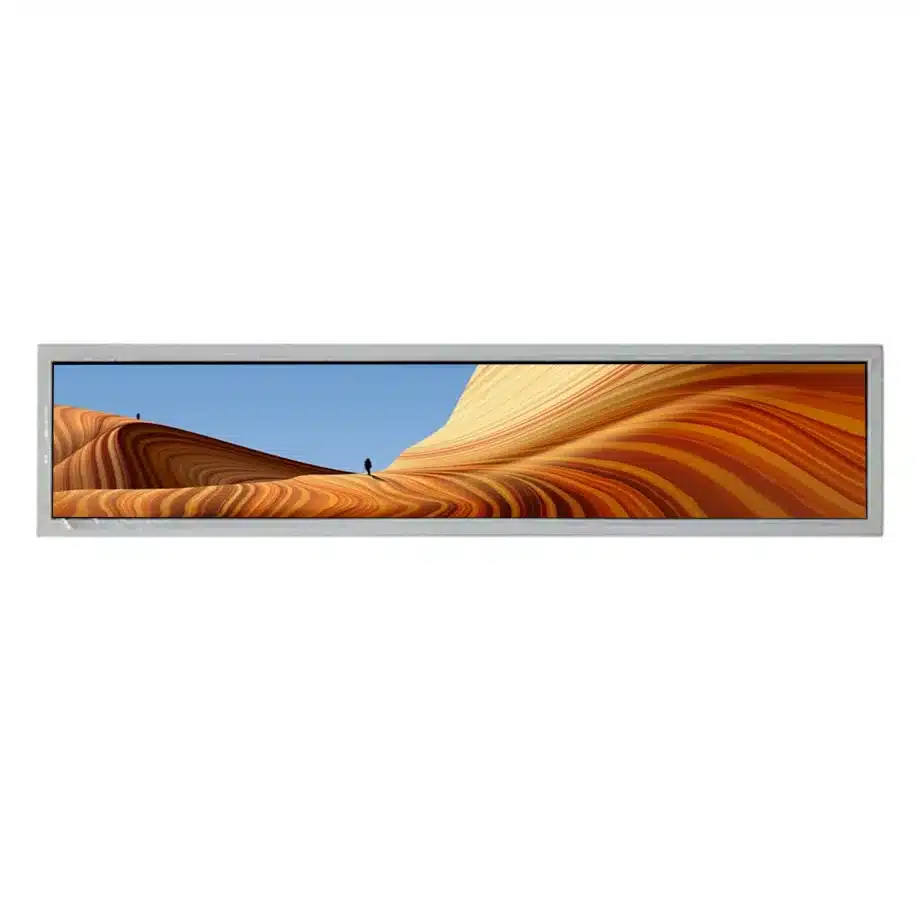

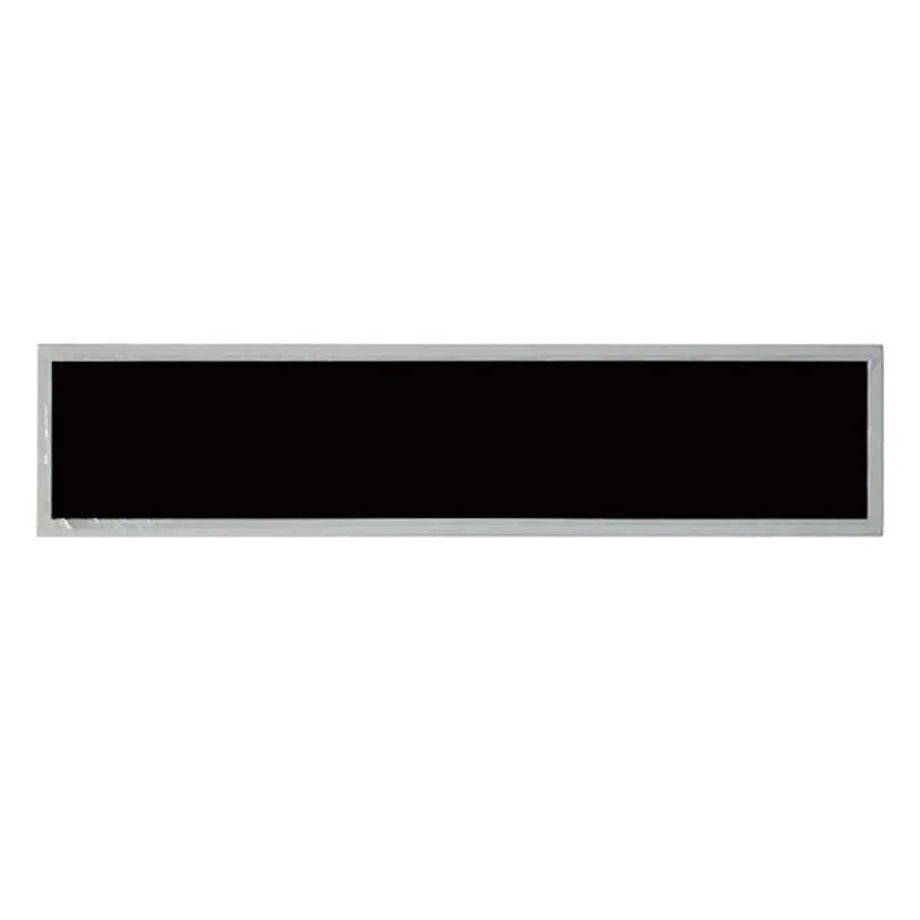

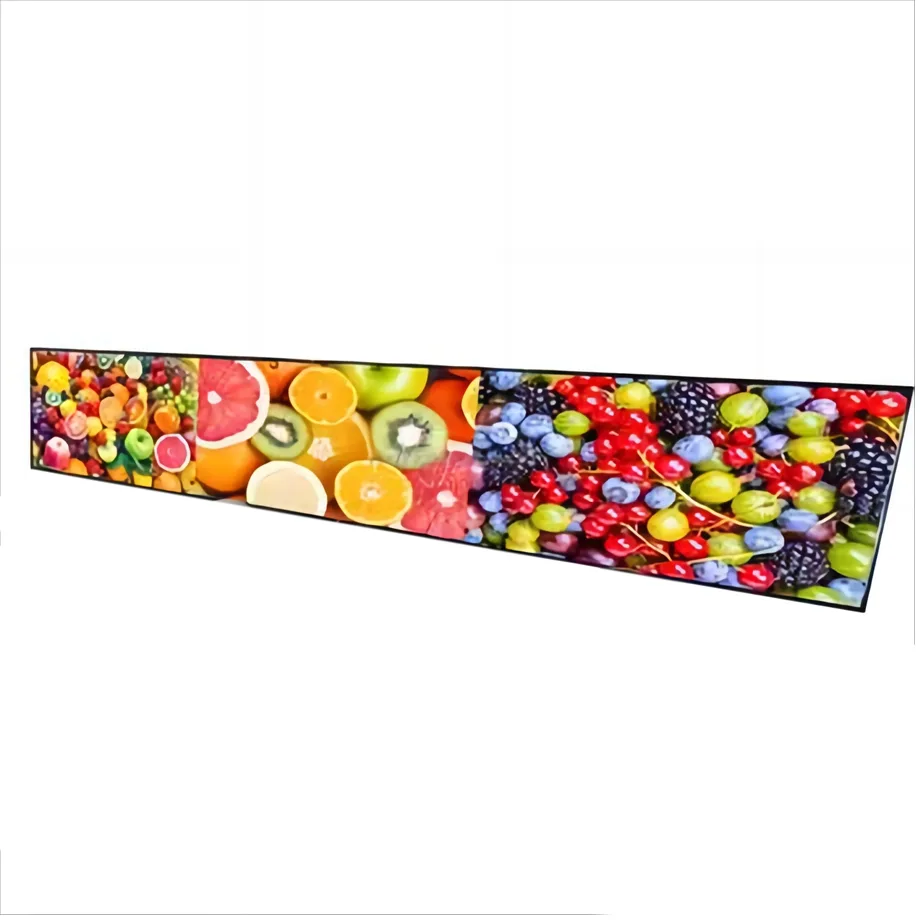

DV860FBM-N11 Outdoor Bar Signage Panel is an 86-inch BOE stretched-bar TFT-LCD module with a native 3840×600 canvas. Its 2148.48×335.7 mm active area, 1000 cd/m² typical luminance and explicit outdoor-high-brightness application positioning make it fundamentally different from a conventional large-format 16:9 panel. The design case is therefore an ultra-wide signage system: content geometry, structural mounting, thermal behavior and the eight-lane V-by-One link should be reviewed as one engineering package.

At up to 13.5 kg and 228 W maximum module power, this display also changes the mechanical and electrical assumptions that work for smaller bar screens. The 12 V supply and integrated LED driver simplify some subsystem choices, but they do not remove the need for power-distribution margin, cooling analysis or field-service access.

Three buyer value propositions

Native 3840×600 geometry for ultra-wide content

The panel is built around a >3:1 bar format rather than a cropped television image. That lets a player or scaler target the real native canvas and helps enclosure designers work from the actual 2171.08×359.5 mm footprint. The benefit is most relevant for shelf-edge-scale concepts, transport-information bands, building directories and other elongated signage where conventional 16:9 proportions waste space.

1000-nit outdoor-signage starting point

The exact-model data lists 1000 cd/m² typical luminance together with outdoor-high-brightness and digital-signage application evidence. That is a stronger outdoor design starting point than brightness alone. It is still a component-level statement: cover glass, reflected sunlight, solar heating, ambient-temperature extremes and automatic dimming determine whether the finished sign remains readable and thermally stable.

Integrated WLED driver with 50K-hour backlight rating

The WLED system is specified with an integrated LED driver and a 50,000-hour life figure. Buyers can use that to frame service planning and power architecture, while avoiding an unsupported lifetime guarantee for the completed product. Operating temperature, brightness setting and enclosure cooling can materially affect real field behavior.

Key Specifications at a Glance

Signal-chain planning for an eight-lane V-by-One module

DV860FBM-N11 Outdoor Bar Signage Panel uses eight V-by-One lanes through a 51-pin, 0.5 mm connector. The controller must support the panel's 3840×600 native timing, correct lane distribution and the exact connector mapping. For a physically long installation, cable routing deserves its own signal-integrity review: harness length, shielding, grounding, bend radius and connector retention can all influence link robustness.

A scaler board that accepts HDMI or DisplayPort at its external input is only one part of the system. The panel-facing output must still generate the correct V-by-One electrical behavior. During first article, test cold boot, repeated power cycles, source switching and long-duration playback using the final cable set rather than a bench jumper.

Outdoor use: what the panel evidence supports and what it does not

The module is specified to operate from -20 to 60 °C and to store from -30 to 70 °C. Those limits are useful for enclosure thermal modeling, but they are not an ingress-protection rating, a UV-resistance certificate or proof that the finished sign can sit in direct sun without additional thermal control. A sealed enclosure may run far above ambient because of solar load and the display's own power dissipation.

For a real outdoor program, measure internal temperature at maximum brightness, verify reflected-light performance through the final cover material, and confirm condensation management. DV860FBM-N11 Outdoor Bar Signage Panel can be an appropriate display component for such a design only after those system-level checks are complete.

Mechanical release criteria for the 86-inch bar format

The active area is 2148.48×335.7 mm and the overall outline is 2171.08×359.5 mm, with a maximum listed depth of 41.29 mm. Rear mounting-hole locations, frame stiffness and service access should be taken from the exact drawing. The elongated structure can be more sensitive to torsion and uneven support than a smaller panel, so mounting design should avoid localized stress and preserve cable clearance.

Because the panel mass is specified at 13.5 kg maximum, the finished product needs a structural load path that remains stable during installation, shipping and service. Do not infer mounting compatibility from another 86-inch BOE panel or from diagonal size alone.

Power-budget and thermal checklist

Use the 228 W maximum module figure as one load in the overall sign budget. Add controller electronics, media player, network hardware, fans or heaters and any auxiliary lighting before sizing the supply. The 12 V distribution should be checked for voltage drop across long internal harnesses, connector current capacity and startup behavior.

Thermal validation should be performed at the highest intended brightness and with the final enclosure airflow. If the system uses ambient-light dimming, document the minimum and maximum operating points rather than assuming the backlight always runs at the datasheet test condition.

Procurement decision record

For approval, record BOE DV860FBM-N11, the 3840×600 native timing, V-by-One lane architecture, 12 V input, mechanical drawing revision and the exact production cable. Retain sample test results for luminance, thermal behavior and signal stability. Current marketplace stock or production-state labels should not be converted into long-term availability, MOQ, lead-time or lifecycle guarantees.

Quick engineering answers

BOE DV860FBM-N11 is an 86-inch native stretched-bar TFT-LCD with a 3840×600 format and 1000 cd/m² typical luminance.

The panel-facing interface is eight-lane V-by-One, not a generic external video connector.

DV860FBM-N11 Outdoor Bar Signage Panel is explicitly associated with stretched-bar digital signage and outdoor-high-brightness use, while the finished enclosure still requires independent weather and thermal qualification.

The panel operating range is -20 to 60 °C and storage range is -30 to 70 °C.

Engineering and sourcing review

Provide the target installation, enclosure drawing, controller architecture, expected ambient-light conditions, cable length, thermal strategy, sample quantity and annual demand. That information allows DV860FBM-N11 Outdoor Bar Signage Panel to be qualified as a controlled component rather than purchased as a generic “86-inch outdoor screen.”
