G121XCE-LM2 XGA Wide-Temp Operator Display Retrofit

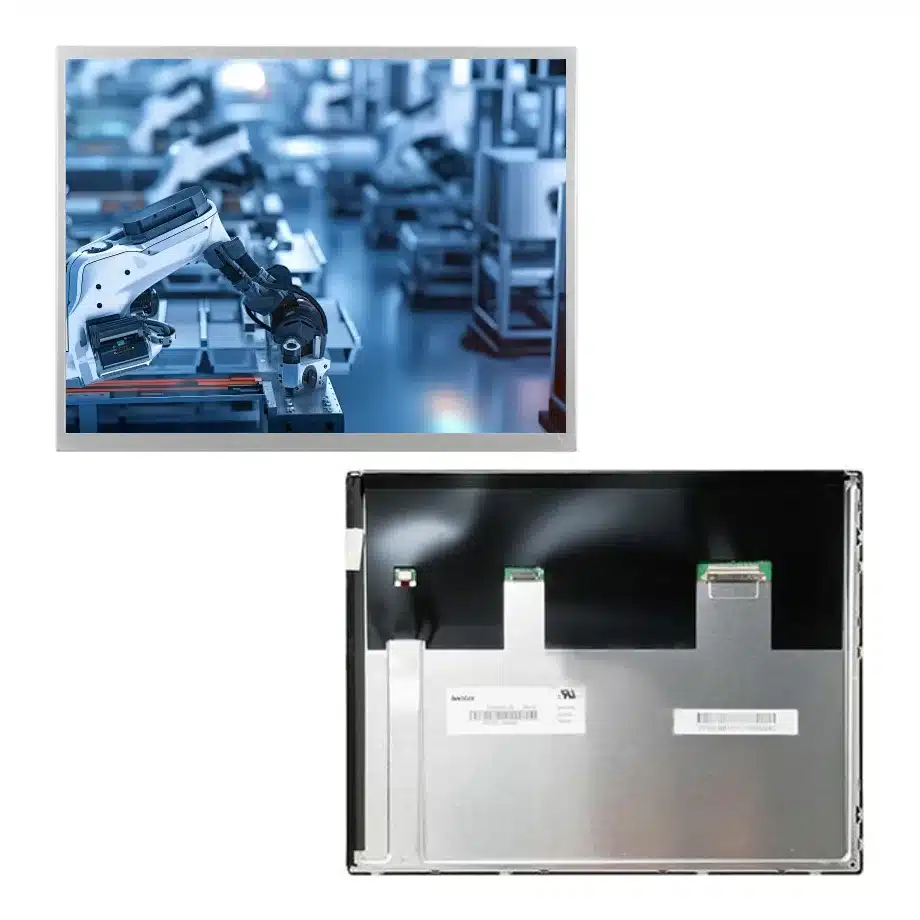

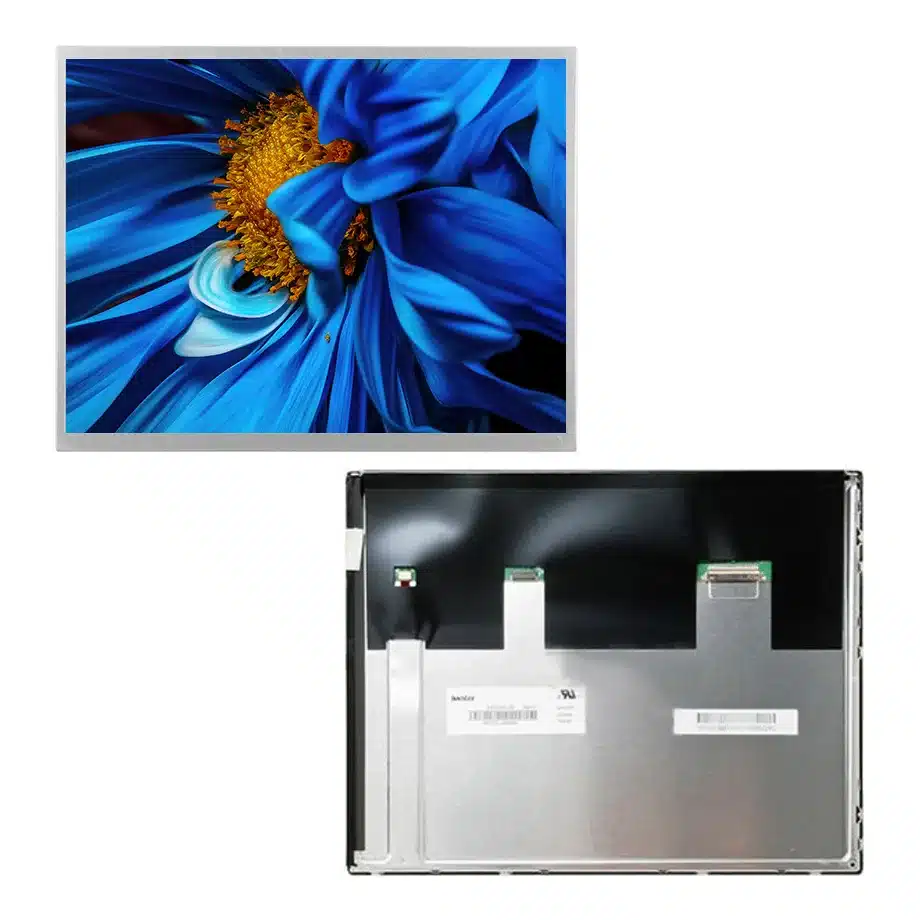

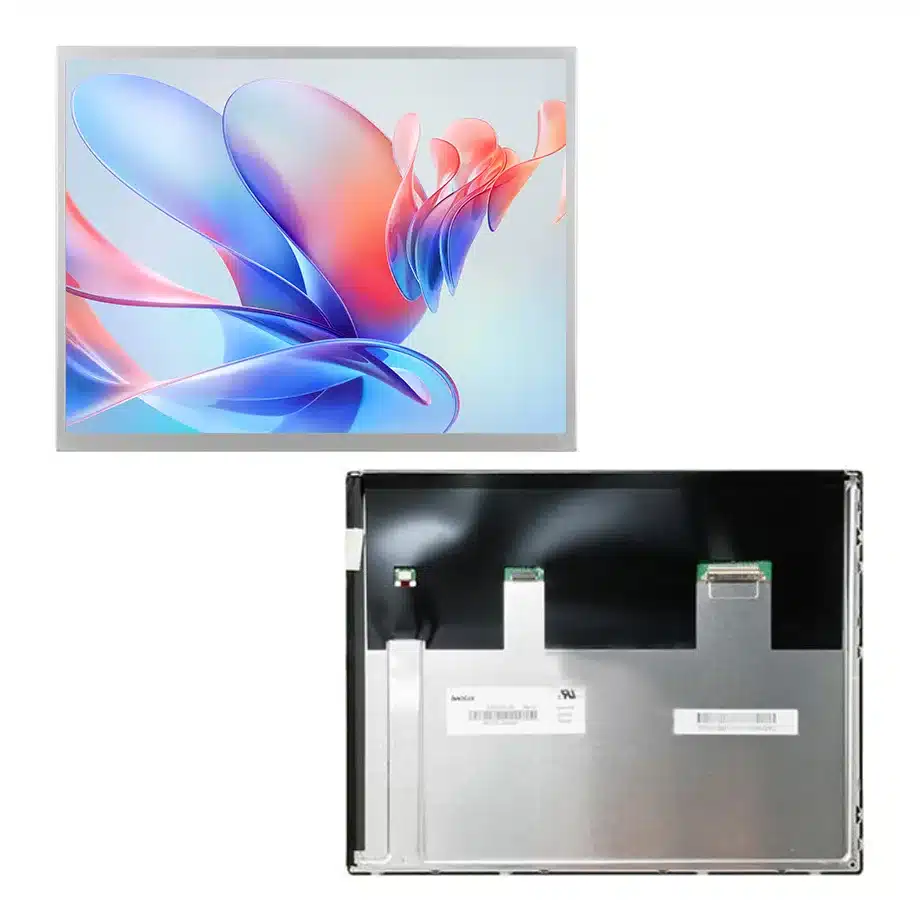

G121XCE-LM2 XGA Wide-Temp Operator Display Retrofit is a 12.1-inch Innolux industrial a-Si TFT-LCD designed around the long-established XGA 4:3 format. The exact-model evidence gives engineers a practical modernization target: 1024×768 resolution, 500 cd/m² typical luminance, single-channel 6/8-bit LVDS, a 20-pin 1.25 mm connector and a -30 to 70 °C operating range. Those facts are especially relevant when an older machine must retain its 4:3 user-interface geometry while the display BOM is refreshed.

The panel should still be treated as a new component qualification. An older XGA module may use different LVDS pin mapping, bit depth, connector location, backlight control or mechanical thickness even when its resolution matches exactly.

Three buyer value propositions

Wide-temperature evidence for industrial HMI design

The model is explicitly positioned for industrial use and is specified from -30 to 70 °C operating, with -40 to 80 °C storage. That gives project teams a documented thermal envelope for cold-start and hot-soak planning instead of inferring ruggedness from generic marketing language.

500-nit antiglare operator-viewing baseline

The 500 cd/m² typical luminance, antiglare surface and 3H hard coat support evaluation in machine-control and operator-terminal environments where ambient reflections matter. The figure does not by itself establish direct-sunlight readability; the enclosure window and room lighting still affect perceived contrast.

Conventional XGA/LVDS architecture for retrofit work

Single-channel LVDS and a 1024×768 canvas can reduce software-layout disruption in installed equipment that was built around 4:3 panels. The benefit depends on exact electrical and mechanical matching, so it is a retrofit starting point rather than a drop-in guarantee.

Key Specifications at a Glance

Retrofit comparison: inspect the old panel before ordering

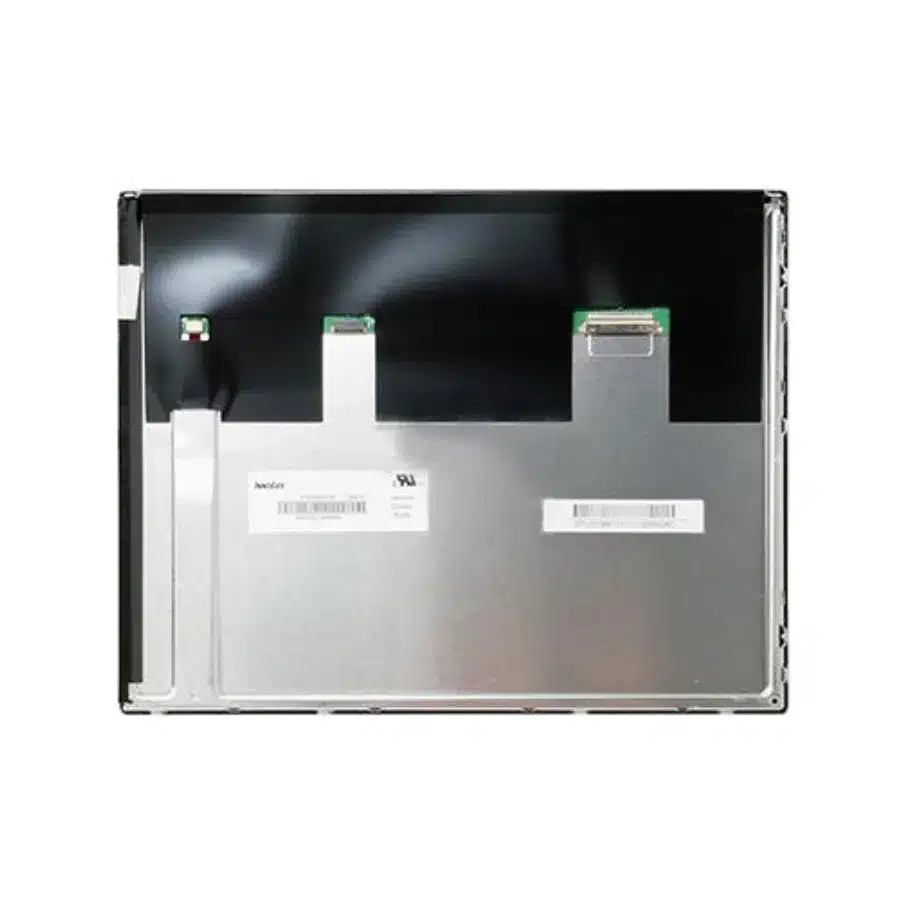

G121XCE-LM2 XGA Wide-Temp Operator Display Retrofit uses a 20-pin, 1.25 mm LVDS connector and a 3.3 V panel supply. Capture the original machine's panel model, cable part number, pin assignment, LVDS mapping, bit-depth setting and backlight-control method before creating a substitute BOM. A generic “12.1-inch XGA LVDS” description is too broad for a controlled replacement.

The Innolux outline is 260.5×204×8.95 mm and the active area is 245.76×184.32 mm. Compare standoff positions, bezel opening, connector exit and cable bend with the installed display. Mechanical interchangeability should be proven from drawings or a fitted sample, not inferred from diagonal size.

Cold start, hot cabinet and vibration planning

The specified operating range extends from -30 to 70 °C, and the exact-model evidence also lists a maximum vibration level of 1.5G (14.7 m/s²). These are component references. The assembled HMI still needs to meet the machine builder's own thermal and vibration profile because enclosure resonance, mounting stiffness and internal heat can change the stress seen by the panel.

For cold-start validation, power the real controller and backlight at the low-temperature boundary and observe startup time, image stability and brightness behavior. For hot-cabinet testing, measure the panel environment rather than relying on room ambient.

Backlight and brightness-control considerations

The WLED system is listed with an integrated LED driver and a 50,000-hour life rating. That simplifies the high-level BOM, but the system must still confirm how the exact module expects enable and brightness control. If the legacy machine uses a different dimming method, a cable or controller change may be required.

G121XCE-LM2 XGA Wide-Temp Operator Display Retrofit is specified with AAS, normally-black, transmissive operation and a 1000:1 typical contrast ratio. Those characteristics are useful for operator-viewing assessment, but final readability should be verified through the actual protective window and at the real viewing distance.

Color-depth and controller compatibility

The panel supports 262K/16.7M color wording through a 6/8-bit LVDS path. Controller settings should match the selected mode; do not assume the old system's data mapping or color-depth configuration is identical. During first article, verify gradients, color order, EDID or timing configuration where applicable, and resume behavior after machine power cycles.

Controlled replacement record

Preserve Innolux G121XCE-LM2, the approved mechanical drawing, 20-pin cable, timing parameters, 3.3 V input, backlight-control implementation and qualification temperatures with the equipment BOM. A future replacement proposal should be compared against this controlled record field by field.

Quick engineering answers

Innolux G121XCE-LM2 is a 12.1-inch XGA industrial TFT-LCD with 500 cd/m² typical luminance.

Its native image interface is single-channel 6/8-bit LVDS through a 20-pin connector.

G121XCE-LM2 XGA Wide-Temp Operator Display Retrofit is specified for -30 to 70 °C operation and includes an integrated WLED driver.

The 1.5G vibration figure is a component reference, not a complete-machine certification.

Qualification request

Send the installed panel model, controller output, LVDS cable, enclosure drawing, operating-temperature target and machine vibration requirement. Those inputs let G121XCE-LM2 XGA Wide-Temp Operator Display Retrofit be screened as an HMI retrofit candidate without assuming that all 12.1-inch XGA panels are interchangeable.
