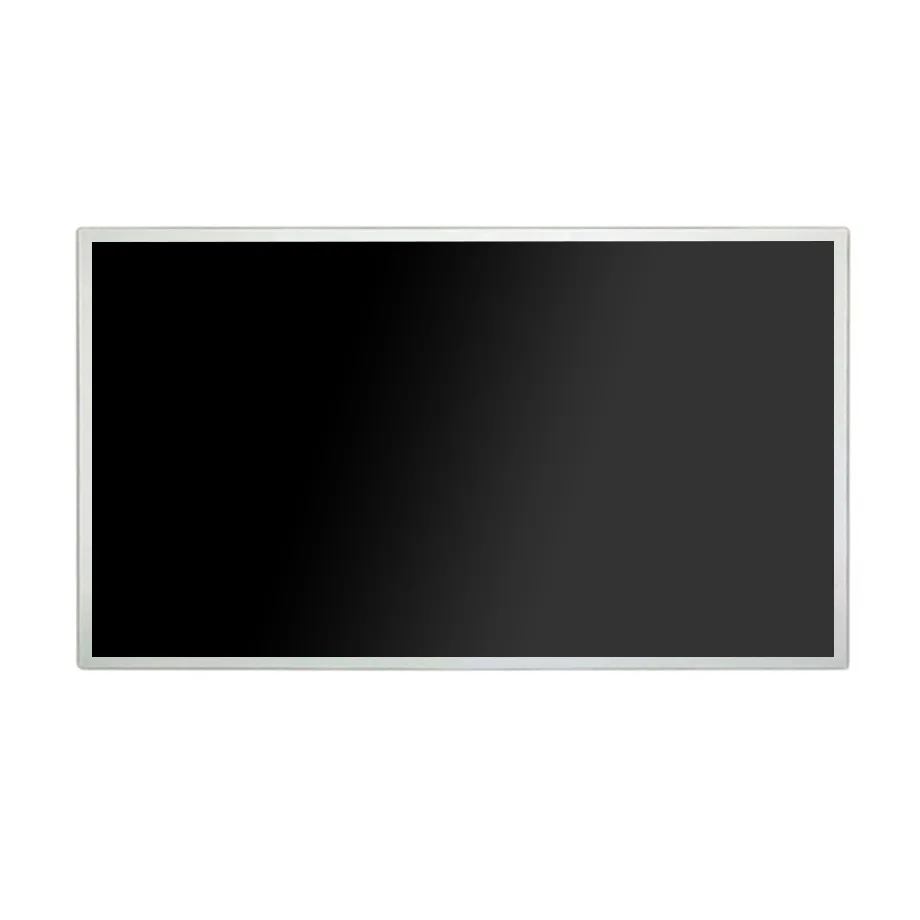

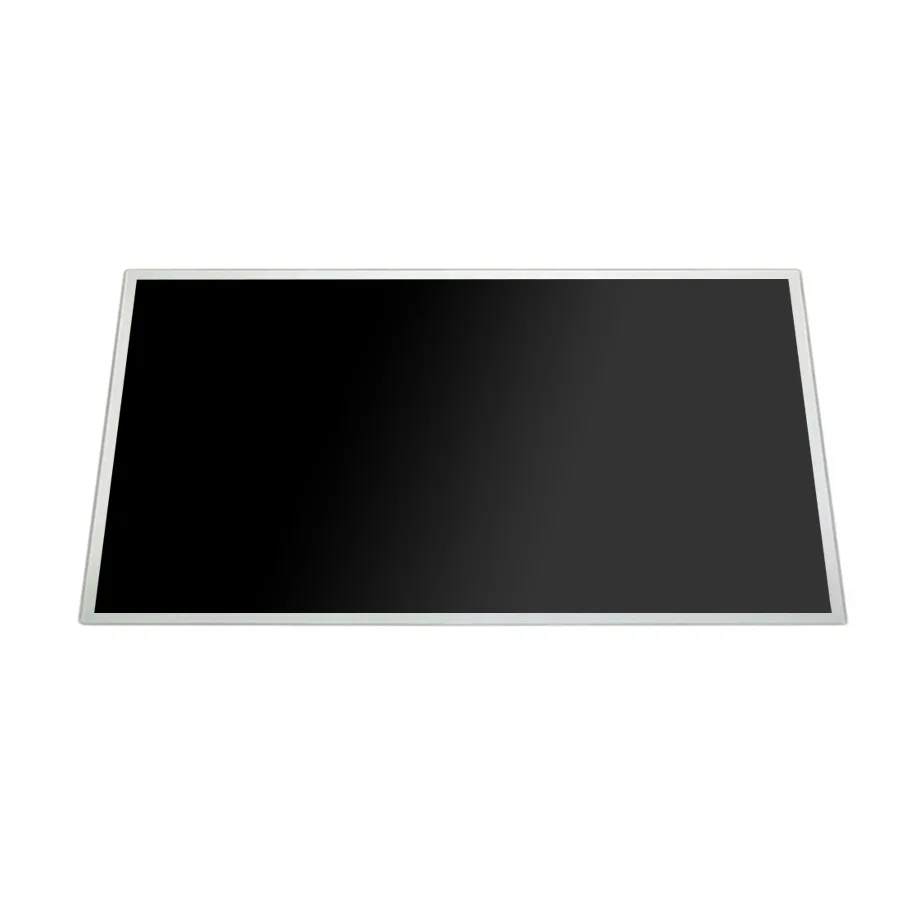

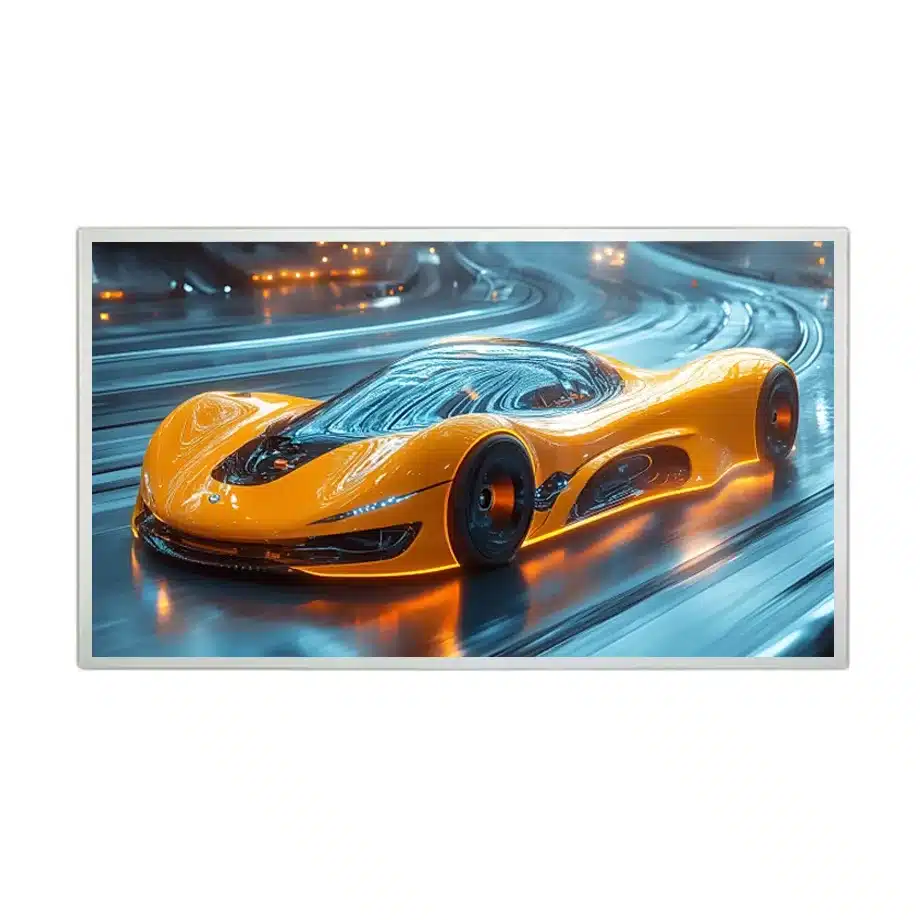

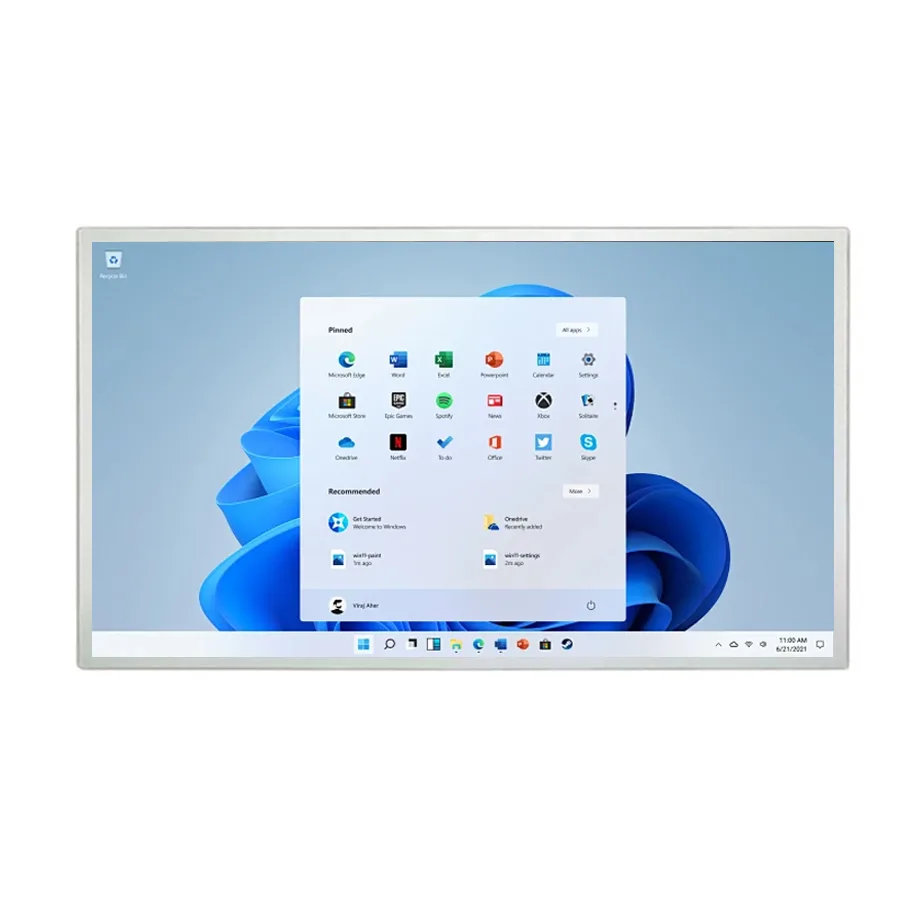

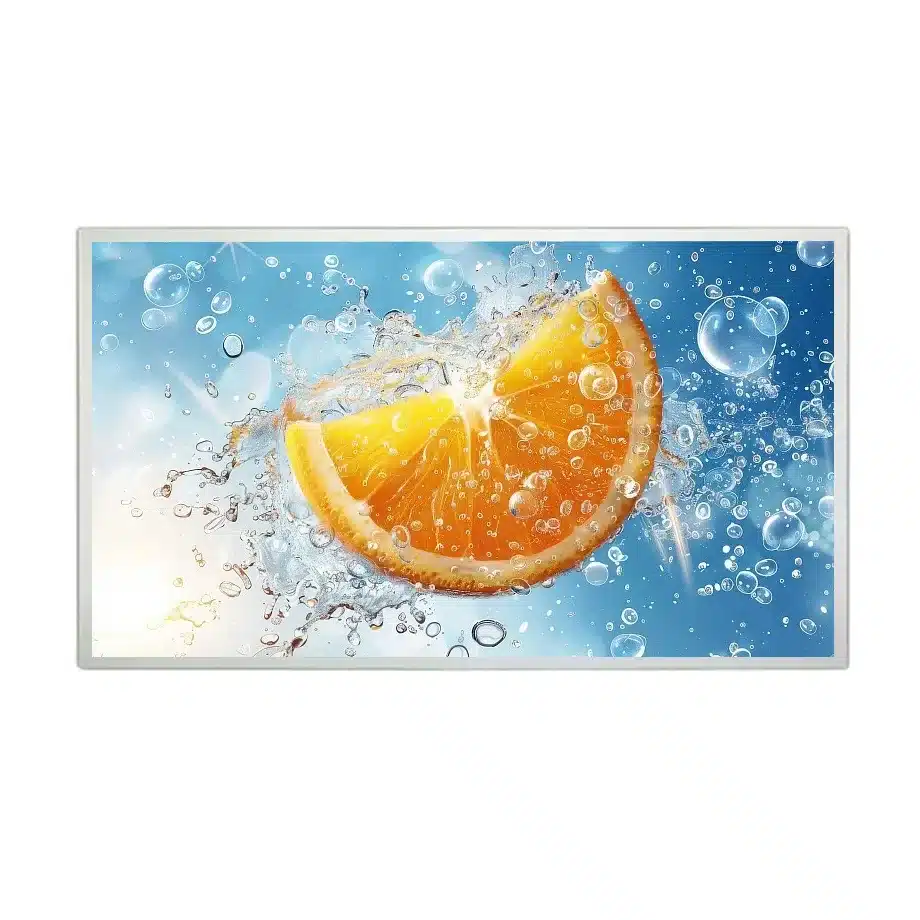

C2380FHF1ME01 SFT Digital Signage LVDS Display

C2380FHF1ME01 SFT Digital Signage is a 23.8-inch Tianma a-Si TFT-LCD module for digital-signage integration. The approved exact-model data combines 1920(RGB)×1080, FHD, 16:9, 350 cd/m² typical luminance, 100 Hz refresh and a two-channel 8-bit LVDS interface. The panel is explicitly associated with landscape and portrait signage use and a 7×24-hour application profile, but those component facts still need to be qualified inside the final controller, enclosure and thermal design.

The design should be reviewed as a complete display subsystem rather than as a generic FHD replacement. Its 535×313×12.7 mm outline, 30-pin connector, 5.0 V panel supply and external backlight-driver requirement all affect interchangeability. A matching 23.8-inch diagonal is not enough.

Three buyer value propositions

Portrait-ready signage geometry

The supplied application notes support both landscape and portrait use, allowing integrators to evaluate menu boards, information terminals and other vertically oriented signage without inventing a new use category. Mechanical support, cooling and cable strain relief must still be checked in the chosen orientation.

100 Hz native refresh path

The 100 Hz specification offers a defined timing target for motion-heavy signage or UI transitions. It is useful only when the host scaler and LVDS link can generate the exact model timing; FHD output capability alone is not proof of compatibility.

Antiglare SFT optical baseline

A 350 cd/m² typical luminance, 1300:1 typical contrast ratio and antiglare Haze 25% surface provide a concrete indoor-signage optical baseline. They should not be translated into outdoor-readability or high-brightness claims.

Key Specifications at a Glance

How should the LVDS link be qualified?

C2380FHF1ME01 SFT Digital Signage uses dual-channel 8-bit LVDS through a 30-pin 1.0 mm connector. Validate channel mapping, clock polarity, native 1920×1080 timing, cable orientation and the controller's 5.0 V panel power path. The image interface is separate from backlight driving, so the controller or power board must also provide the exact WLED drive and dimming implementation required by the model.

What does 7×24-hour signage positioning mean?

The exact-model application evidence for C2380FHF1ME01 SFT Digital Signage includes signage-oriented 7×24-hour use. That supports continuous-duty evaluation, not an unconditional lifetime guarantee. Enclosure temperature, brightness setting, ventilation, image-retention policy, power quality and controller reliability can all influence field performance. A production program should run endurance testing in the final mechanical and thermal configuration.

Mechanical and optical review

The active area is 527.04×296.46 mm (W×H) within a 535×313 mm outline. The antiglare surface and symmetric viewing-angle specification support broad viewing positions, while the operating range of 0 to 50 °C sets the panel-level thermal boundary. Measure the receiving chassis, connector exit and bezel pressure points before assuming another 23.8-inch panel shares the same fit.

Procurement and first-article checklist

• Confirm the exact manufacturer and model: Tianma C2380FHF1ME01.
• Use the exact model drawing and connector definition; do not borrow family-model dimensions or pinout.
• Validate native timing, interface mapping and power sequencing on the production controller.
• Compare the full mechanical envelope, connector location and cable routing with the target enclosure.
• Verify brightness, surface behavior and viewing performance in the assembled optical stack.
• Check operating/storage limits against the real deployment profile and avoid inferring unsupported certification.
• Preserve the approved sample, cable, controller settings and drawing with the BOM for later replacement screening.

C2380FHF1ME01 SFT Digital Signage should be released only after the actual host and enclosure have passed first-article checks. Current stock, supplier count or marketplace production-status labels are not treated here as lifecycle guarantees, MOQ commitments or expected long-term availability.

Quick engineering answers

Tianma C2380FHF1ME01 is a 23.8-inch a-Si TFT-LCD, LCM with 1920(RGB)×1080, FHD, 16:9.

The native interface is LVDS (2 ch, 8-bit), 30 pins 1.0 mm connector; exact pin mapping and timing must be checked before substitution.

C2380FHF1ME01 SFT Digital Signage is specified for Digital signage; landscape and portrait display integration; 24/7 signage-oriented use where the system is qualified, while any finished-system certification or guaranteed compatibility requires separate evidence.

The approved operating range is 0 to 50 °C and storage is -20 ~ 60 °C; those are panel limits, not a system qualification certificate.

Engineering and sourcing review

For a project review, provide the target application, original panel model where applicable, mechanical drawing or enclosure envelope, controller/interface details, cable definition, required brightness, sample quantity and annual demand. Those inputs allow C2380FHF1ME01 SFT Digital Signage to be evaluated against a defined host rather than selected only from diagonal size or resolution.
