M315WAN01.R Wide-Gamut AHVA Display Module 32 Inch AUO

Product Overview

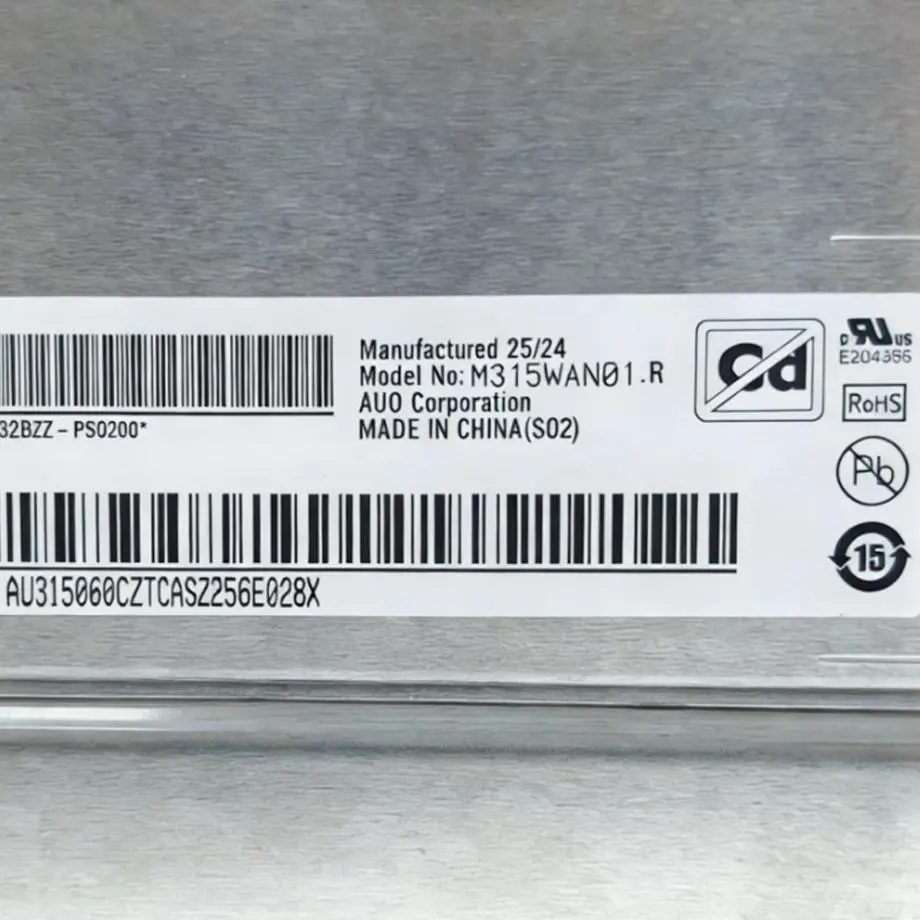

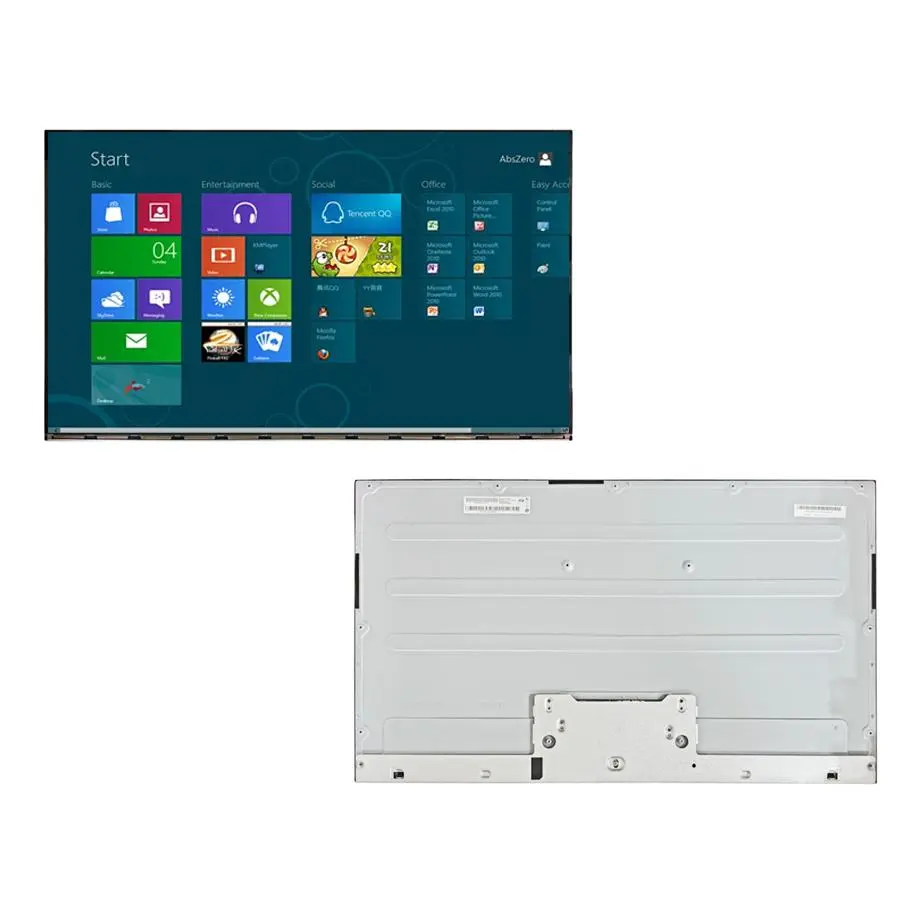

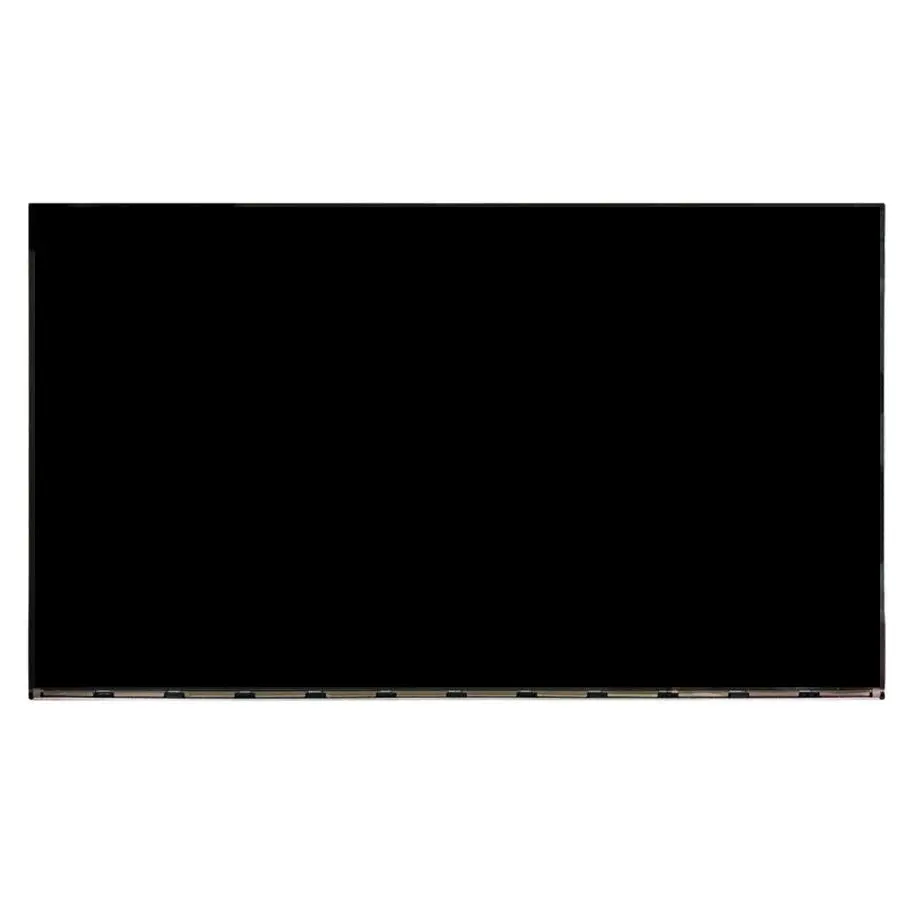

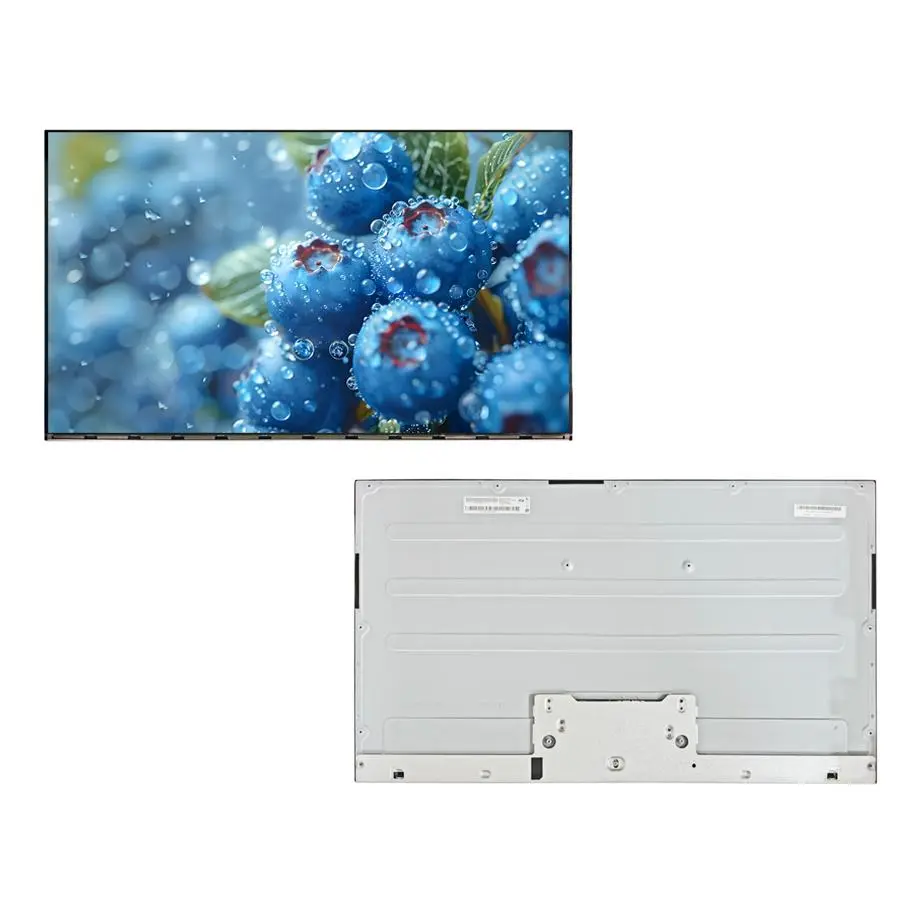

The M315WAN01.R Wide-Gamut AHVA Display Module is a 32.0-inch AUO a-Si TFT-LCD module for high-resolution desktop-monitor integration. Its native image format is 6016(RGB)×3384 in a 16:9 aspect ratio, giving the controller and graphics subsystem a substantially larger pixel workload than a conventional UHD panel. The module is specified with 400 cd/m² typical luminance, 1500:1 typical contrast, AHVA normally-black transmissive operation, 1.07 billion colors and 99% DCI-P3 coverage.

This is an internal LCM rather than a finished 6K monitor. The panel-side signal is listed as eDP with 16 lanes at HBR2 5.4 Gbit/s per lane through a 102-pin connector, with a 10.0 V typical panel supply. The supplied facts are authoritative for this product record; system designers still need the exact timing, lane organization, connector pinout, backlight-driving requirements and controller capability before treating any host or scaler as compatible.

Three Core Buyer Value Propositions

6016×3384 resolution gives the integration team a defined 6K-class target

The 6016×3384 native raster provides a high pixel count for detailed desktop interfaces, image-heavy workflows and large-format monitor layouts. That lets an OEM evaluate the display around the real panel timing instead of assuming that “6K” means the same electrical requirement across products. The boundary is important: native resolution does not prove that a specific GPU, bridge board or cable can sustain the required transport mode, so the complete eDP path must be verified.

99% DCI-P3 and 1.07B colors create a useful color-performance baseline

The module is specified for 1.07 billion colors and 99% DCI-P3, with AHVA wide-view operation and 89/89/89/89 typical viewing-angle values at CR≥10. Those facts are valuable when the monitor project needs broad-gamut content presentation. They do not establish factory calibration, a particular Delta E target or professional reference-display accuracy; calibration method, graphics pipeline and final optical stack remain system-level decisions.

Mechanical and power facts help screen a large-panel design before samples

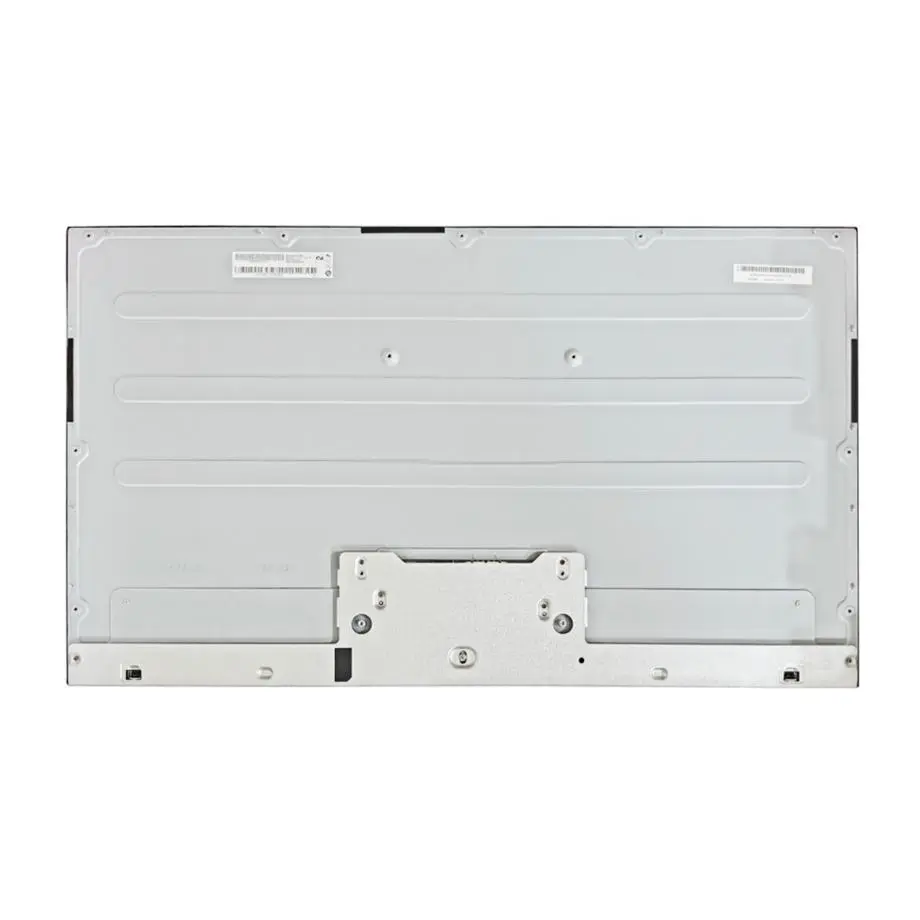

The active area is 697.194 × 392.172 mm, while the module outline is 709.4 × 411.9 × 14.9 mm and the typical weight is 3.36 kg. The listed total power is 38.53 W typical. These values allow enclosure, mounting and thermal teams to estimate visible opening, structural support, cabinet depth and heat load early. Exact mounting points, tolerances, connector clearance and backlight electrical limits still require the current model drawing and specification.

Key Specifications at a Glance

How Should a 6016×3384 eDP Path Be Qualified?

The first design question is whether the source electronics can sustain the panel’s required native timing. The M315WAN01.R Wide-Gamut AHVA Display Module is specified with an eDP connection and a high-resolution 6016×3384 image format. VESA describes eDP as the embedded electrical interface used to transport video data from graphics hardware to an internal display and notes its use for high resolutions and color depths (VESA eDP overview). That general capability does not replace the exact AUO timing table.

Lane count, link rate and connector mapping must be treated as one design problem

The current product facts list eDP with 16 lanes, HBR2 at 5.4 Gbit/s per lane and a 102-pin connector. Preserve those values when reviewing the model; do not silently substitute the lane counts of another eDP implementation. The controller design should be checked against the exact module documentation for link arrangement, AUX/sideband functions, connector mapping, power-up requirements and any compression or timing assumptions. A host advertised only as “eDP capable” is not sufficient evidence of compatibility.

Qualification should use native 6016×3384 content at 60 Hz, then include repeated cold and warm starts, resolution changes, extended operation and cable movement. Check for link training failures, blanking, artifacting or mode fallback. If a bridge or custom FPGA is used, approve the panel together with that hardware and firmware rather than treating the module test as independent from the signal chain.

What Do 99% DCI-P3 and HDR600 Mean for the Finished Monitor?

The supplied data identifies 99% DCI-P3 color coverage, 1.07B colors and HDR600 alongside 400 cd/m² typical luminance. These facts can guide a monitor project toward broad-gamut and HDR-oriented workflows, but they should not be collapsed into an unsupported claim that the completed monitor is certified or calibrated. VESA’s DisplayHDR program defines HDR performance through a broader test methodology that includes luminance, color gamut, bit depth and other performance criteria (VESA DisplayHDR information).

For procurement, the practical implication is that the panel-level feature notation needs to be carried into system qualification. The graphics pipeline, backlight control, final brightness configuration, calibration, cover materials and firmware all affect what the user sees. If a finished product is intended to carry a particular DisplayHDR certification, that certification applies to the tested finished display configuration and should be verified separately rather than inferred from this panel page.

AHVA and antiglare behavior should be assessed through the final front stack

The panel uses AHVA normally-black transmissive operation with symmetric viewing and a 50% haze antiglare surface with 2.9% typical reflection. Those properties help define off-axis image behavior and reflection management. A protective layer or decorative glass can change apparent contrast, sharpness and reflection. The standard module is supplied without touch, so any touch or cover solution becomes a separate optical and mechanical integration item.

Why Do Backlight and Thermal Design Need Separate Attention?

The module contains a WLED backlight with a 30,000-hour reference but no integrated backlight driver. That means the final monitor must provide the driver and its control interface. The 38.53 W typical total-power figure is useful for an initial system budget, yet driver losses, controller electronics and power-conversion losses need to be added when selecting the external supply and estimating enclosure temperature.

Do not convert a backlight-life reference into a service-life guarantee

The supplied 30,000-hour figure does not include the test conditions or end-of-life criterion in this packet. LED current, temperature and brightness configuration can affect the interpretation of that number. Use the current AUO electrical specification to select the driver and to establish brightness-control behavior. No dimming method is asserted here beyond what the project can document.

The module operating range is 0 to 50 °C, with storage from -20 to 60 °C. Thermal qualification should measure the local temperature around the display after the high-resolution graphics path, controller, power conversion and backlight have reached steady state. The limits apply to the module and do not constitute a complete equipment environmental rating.

Can a 32-Inch UHD Panel Be Treated as a Mechanical Substitute?

No. The 32-inch diagonal is only one geometric descriptor. M315WAN01.R has a 697.194 × 392.172 mm active area and a 709.4 × 411.9 × 14.9 mm module outline, with a typical mass of 3.36 kg. A different 32-inch panel can have another active-area position, connector location, thickness, frame construction or mounting pattern. The controller requirement can also change completely when the target moves from UHD to a 6016×3384 panel.

A replacement review for the M315WAN01.R Wide-Gamut AHVA Display Module should therefore compare the drawing, interface, power and backlight architecture. Keep the 102-pin eDP connector and 10.0 V typical module supply distinct from the external connectors and system power input of a finished monitor. If the legacy design expects another native interface, a conversion route must be engineered and qualified rather than assumed from the external input connectors.

What Should Procurement Confirm Before a Sample or Volume Order?

The supporting reference currently describes the model as in production, but status information is not a supply-duration guarantee. Reconfirm the exact revision, current production state, available quantity, traceability and applicable PCN/EOL information with AUO or an authorized channel. Current stock or a marketplace listing should not be converted into expected long-term availability.

For a high-resolution monitor program, procurement should also make the controller and qualification package part of the sourcing record. Record the graphics/controller hardware, firmware, 102-pin cable, 10.0 V panel power implementation, backlight-driver configuration and mechanical drawing used for the approved sample. This makes later deliveries easier to compare and reduces the risk of approving a visually similar panel with a different electrical architecture.

Engineering Answers in Brief

M315WAN01.R is a 32-inch 6016×3384 AUO AHVA LCM with a native eDP interface and 60 Hz refresh.

The module is specified for 1.07B colors and 99% DCI-P3, but finished-monitor calibration and certification remain system-level responsibilities.

The panel supply is 10.0 V typical, while the external controller and backlight driver can have different power requirements.

The WLED light source has a 30,000-hour reference and no integrated driver, so driver selection and thermal validation remain part of the monitor design.

Procurement Checklist

• Specify AUO M315WAN01.R and confirm the exact revision offered.
• Obtain the current 6016×3384 timing table, 102-pin mapping and mechanical drawing.
• Verify the supplied eDP lane/rate arrangement and native 60 Hz operation with the intended controller.
• Keep the 10.0 V module supply separate from system and backlight-driver input rails.
• Qualify the external WLED driver, brightness control and thermal result.
• Check 709.4 × 411.9 × 14.9 mm outline, active-area alignment, mounting features and 3.36 kg typical weight.
• Evaluate 99% DCI-P3, HDR-oriented behavior and antiglare performance in the final monitor stack.
• Confirm production status, traceability, current quantity and change/EOL information before volume commitment.

The M315WAN01.R Wide-Gamut AHVA Display Module is best approached as a high-resolution panel platform whose controller bandwidth, color pipeline, backlight electronics and mechanical integration must be qualified together. Its 6K-class raster, broad-gamut specification and defined package provide a strong technical starting point, while finished-monitor performance remains dependent on the rest of the system.
