10.3 Inch High Brightness Stretched LCD Controller Kit for USB Media

10.3 Inch High Brightness Stretched LCD Controller Kit for USB Media

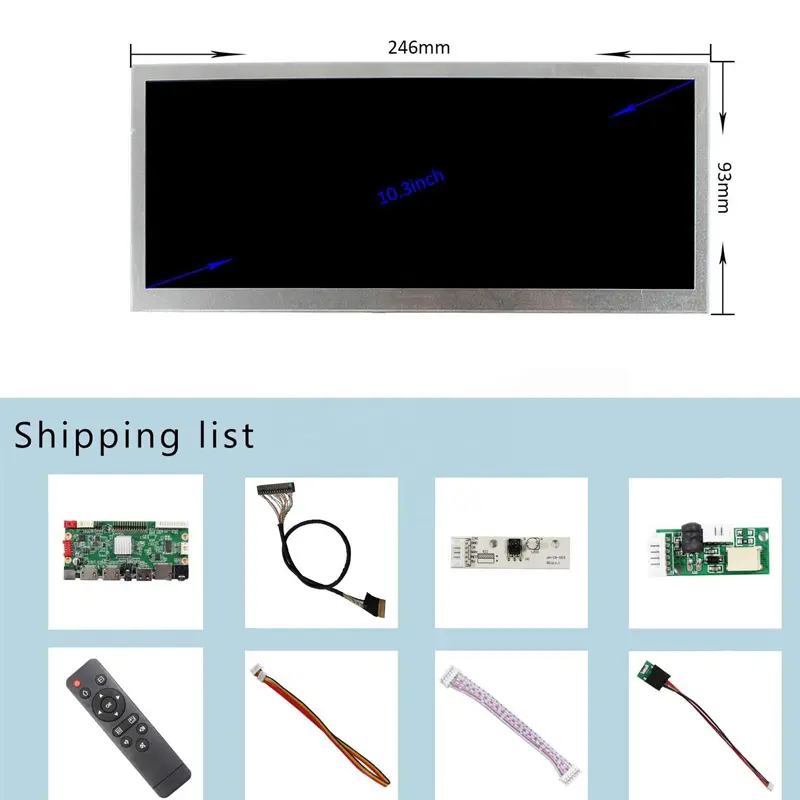

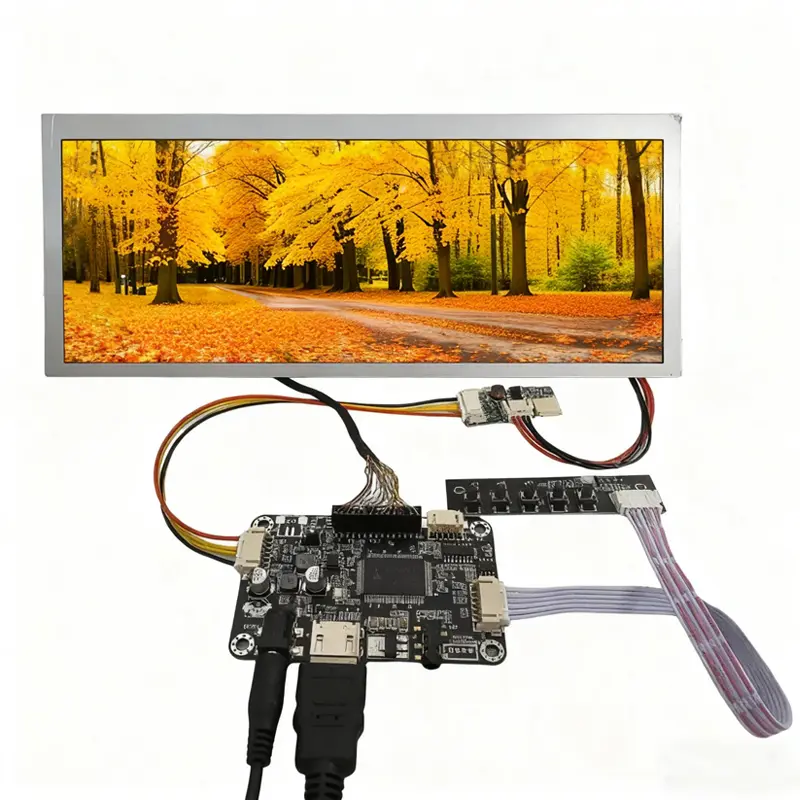

This 10.3-inch panoramic display kit combines a wide 1920 × 720 image area with local multimedia control for compact commercial equipment. The High Brightness Stretched LCD Controller Kit pairs an 850 cd/m² IPS Pro panel with a 50-pin LVDS connection and a VS-56S2 controller that supports USB, SD card and AV media paths. It is designed for projects that need a narrow-format screen and straightforward local playback without building a separate media computer into the product.

Product Summary

The display uses a Normally Black, Transmissive IPS Pro structure with 1000:1 typical contrast and 85° / 85° / 85° / 85° viewing performance for left, right, up and down at CR ≥ 10. Its 243.6 × 91.4 mm image area gives interface designers a long horizontal canvas while keeping the complete panel within a 259.8 × 112 × 15.7 mm envelope.

Native 1920 × 720 Panoramic Layout

The 1920 × 720 raster is better suited to wide banners, segmented product information, horizontal navigation, promotional graphics and status zones than a conventional small 16:9 screen.

850 cd/m² for Bright Commercial Interiors

The panel provides 850 cd/m² typical luminance. This supports stronger visibility in bright indoor locations and public-facing equipment, but final readability still depends on cover-glass transmission, reflections and installation lighting.

Key Specifications

Native Content for a Stretched 1920 × 720 Screen

A stretched screen performs best when artwork is created for its native aspect ratio rather than adapted from standard video layouts.

Build Wide Content Instead of Cropping 16:9 Artwork

Product teams can divide the screen into zones for branding, product information, menu content or live status data. Preparing graphics directly at 1920 × 720 helps avoid unnecessary scaling and keeps text and icons consistent across the wide canvas.

Validate Playback Files Before Deployment

The controller's multimedia table lists multiple movie containers and codecs, including MPEG-family formats, H.264 and other supported formats. Resolution and data-rate limits vary by file type. Production content should therefore be tested using the exact encoding workflow planned for deployment rather than assuming that every file with the same extension will behave identically.

USB and SD Local Media Playback

The controller architecture is useful when content needs to be loaded and played locally without a networked content-management platform.

USB, SD Card and AV Paths

USB and SD storage provide a practical route for local promotional or information media. AV input adds another controller path for projects using an external analog video source.

Audio and OSD Control

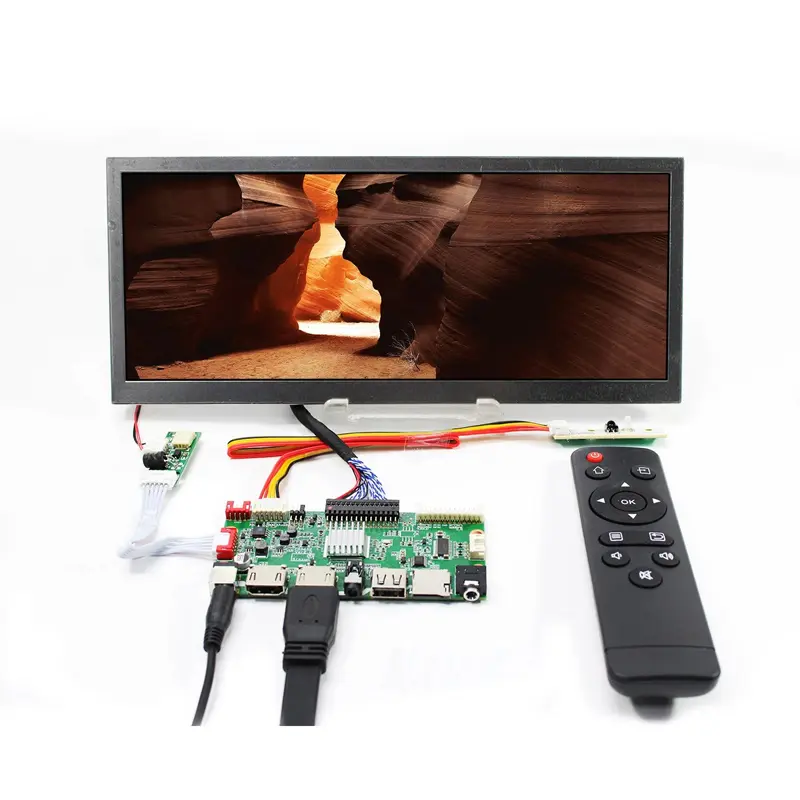

Speaker and earphone outputs allow the kit to support media that includes sound. The controller also provides OSD control for menu, contrast and brightness adjustments, while the wired keypad and remote control give installers local access to operating functions.

High Brightness Stretched LCD Controller Kit Integration

The screen and controller should be treated as a matched electrical system rather than as a universally interchangeable 50-pin package.

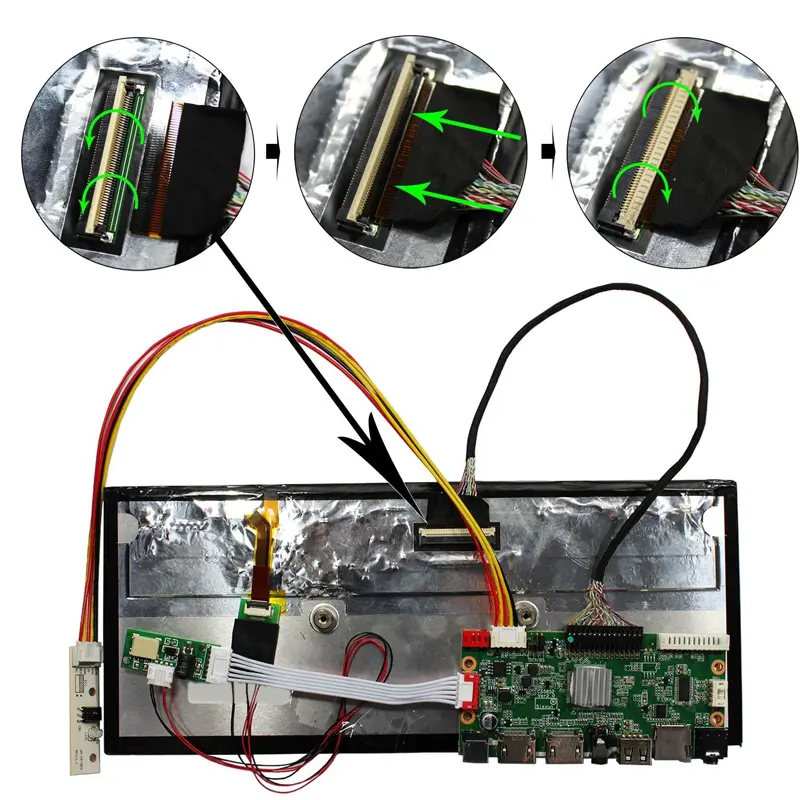

50-Pin LVDS Compatibility Requires More Than Pin Count

The panel uses a 50-pin, two-channel, 8-bit LVDS interface. Replacing the supplied controller requires verification of native timing, voltage levels, channel mapping, connector orientation, pin assignment and controller configuration. A matching connector count alone is not sufficient for compatibility.

Panel and Controller Use Separate Power Requirements

The LCD identifies a 3.3 V typical panel input, while the controller requires 12 V DC with more than 2 A available. These are separate electrical requirements. The controller's <0.3 W figure applies to standby mode and should not be interpreted as maximum operating power.

Mechanical Integration

Mechanical planning needs to accommodate both the long LCD body and the controller electronics.

Panel and Board Envelopes

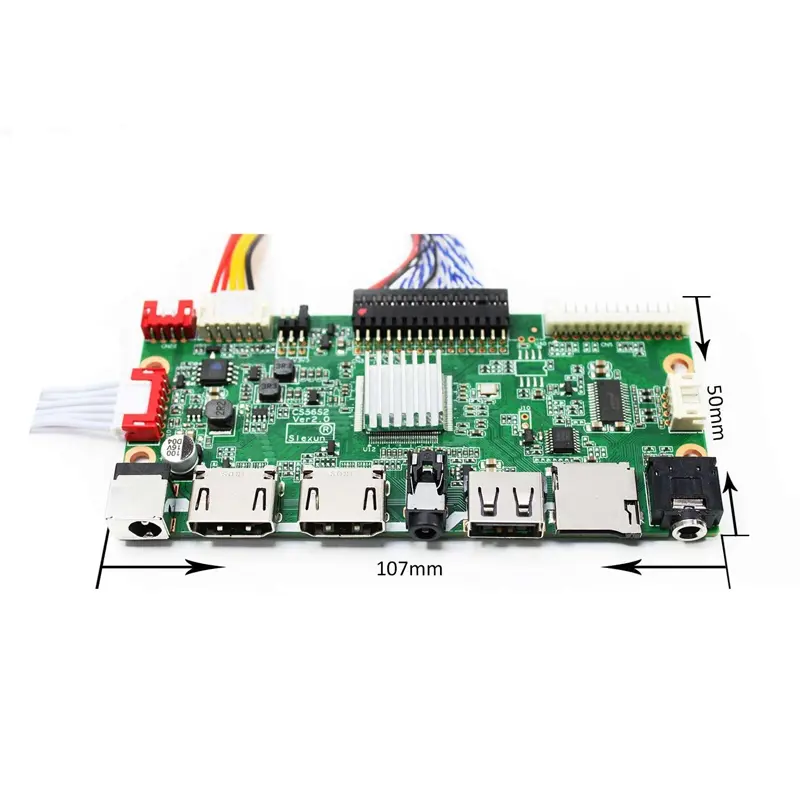

The LCD measures 259.8 × 112 × 15.7 mm, while the controller board measures 107 × 50 × 15 mm. Enclosure drawings should allow space for the converter board, signal cable, cable bend radius and ventilation around the controller.

Maintain Access to Media and Controls

If USB or SD media will be changed after installation, the enclosure should provide service access to those ports. The same applies to the keypad receiver and remote-control operating path.

Application Fit

The High Brightness Stretched LCD Controller Kit is a good match for compact retail media strips, promotional bands, product-information displays, menu bars, branded counters and embedded commercial playback terminals that need a panoramic screen with local media control.

It should not automatically be treated as a weatherproof outdoor display, an Android signage terminal or a touchscreen system. Those functions require separately qualified hardware.

Configuration and Customization

Project review can cover controller revision, LVDS cable definition, media workflow, enclosure adaptation, cover glass, optical treatment, mounting, cable length, audio integration, touch development, networked alternatives, branding and packaging.

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Sample and standard-kit quantities are confirmed separately.

Procurement Checklist

Confirm the exact HSD103KPW2-A10 production label; native 1920 × 720 timing; 850 cd/m² luminance target; 50-pin two-channel 8-bit LVDS mapping; 3.3 V panel input; WLED requirements; VS-56S2 controller revision; 12 V DC supply above 2 A; USB/SD/AV workflow; required media containers and codecs; audio output; panel and controller dimensions; cable orientation; front optics; enclosure access; touch or network requirements; sample quantity and annual demand.
