An Outdoor In-Cell Touch Bar LCD Display gives smart-retail and embedded-device teams a 10.3-inch panoramic interface with native 1920 × 720 graphics, 700 cd/m² typical luminance and direct touch interaction. The 24:9 format provides a 243.64 × 91.36 mm active area inside a 255.75 × 106.07 × 10.66 mm outline, making the module suitable for narrow front panels where conventional 16:9 screens use more vertical space. The assembly also includes a compact Type-C controller-board path for system evaluation.

Product Summary

This display combines a wide-format IPS screen, in-cell touch and controller-board support. The panel image interface is LVDS, using a 60-pin FPC with two channels and 8-bit signaling, while the touch interface is I²C. The LCD input is 3.3 V typical. These paths should be qualified separately.

Native 1920 × 720 Content for a 24:9 Layout

The 1920 × 720 raster matches the 24:9 panoramic shape and should be used as the native UI target. Smart-retail software can divide the long screen into product information, navigation, promotional content and status areas without forcing a standard widescreen layout into a shorter display window.

700 cd/m² for Bright Commercial Environments

The panel is rated at 700 cd/m² typical luminance with a 1000:1 typical contrast ratio. This gives useful optical headroom for brightly lit retail interiors, service counters and protected outdoor-facing installations. A 700 cd/m² panel rating does not by itself establish direct-sun readability or weatherproof outdoor operation.

Key Specifications

In-Cell Touch and Wide-View Interaction

The in-cell structure integrates touch sensing into the display architecture rather than adding a separate touch panel over the LCD. For narrow commercial equipment, that supports a compact interaction stack.

Separate LVDS Image and I²C Touch Paths

The LCD image path uses 60-pin LVDS, while touch communication is identified as I²C. A matching display connector therefore does not establish touch compatibility. The host design needs the approved LVDS definition plus the touch-controller requirements, including I²C voltage, address, reset, interrupt and cable routing where applicable.

Wide Viewing for Shared Customer Interfaces

Viewing-angle data is 89° / 89° / 89° / 89° for left, right, up and down at CR ≥ 10, consistent with the separate 178° horizontal and vertical summary. This is useful for counters, shelf fixtures and customer-facing interfaces viewed from different positions.

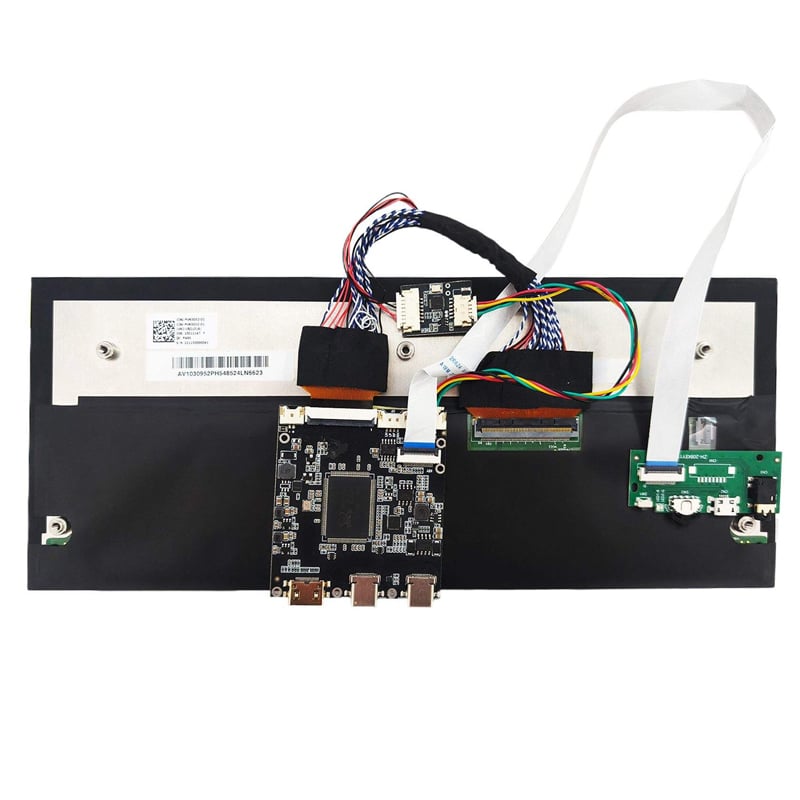

Outdoor In-Cell Touch Bar LCD Display Integration

The Outdoor In-Cell Touch Bar LCD Display should be qualified as a complete signal, touch and controller assembly rather than treated as a generic plug-and-play panel. The panel and controller descriptions use different interface terms, so the approved production interconnect must control the design.

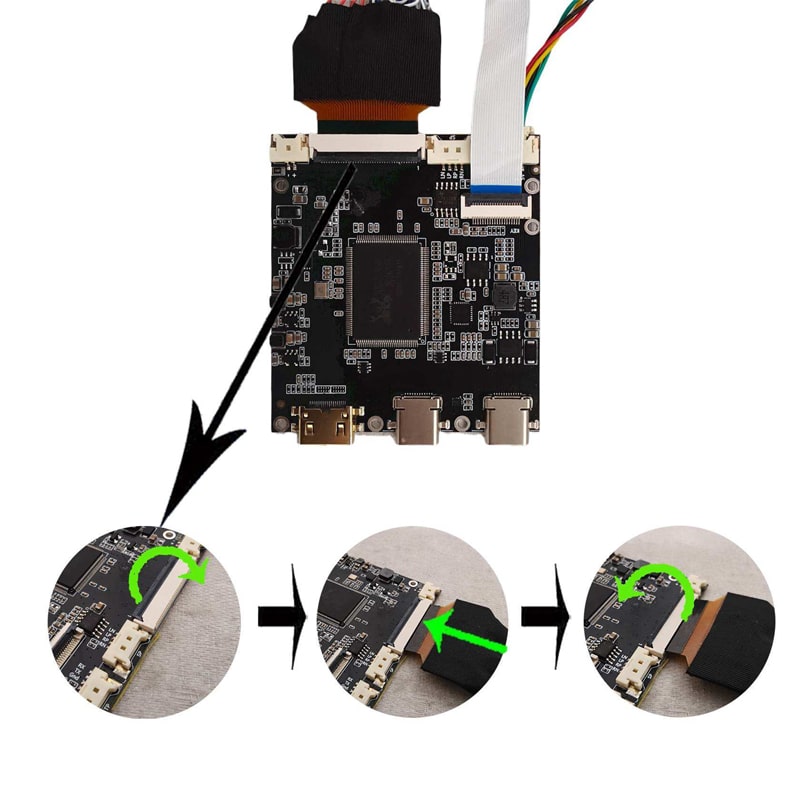

60-Pin LVDS Panel Versus 40-Pin eDP Controller Wording

The LCD is identified as a 60-pin, two-channel, 8-bit LVDS panel. The Type-C controller description refers to operation with a 40-pin eDP LCD screen and identifies eDP/USB output. That wording does not prove a direct connection to this LVDS panel. Confirm the signal cable, any required adapter stage, pin mapping and controller firmware before release.

Type-C Does Not Define the Required System Voltage

Type-C is confirmed as the controller input connector, but controller input voltage and maximum system power are not defined. The LCD itself uses 3.3 V typical input, and the board has a standby value below 0.3 W. The standby figure is not a maximum operating-power value.

Mechanical Fit for Smart Retail Hardware

The visible area is 243.64 × 91.36 mm, while the complete screen outline is 255.75 × 106.07 × 10.66 mm. The controller board adds a separate 60.8 × 60.2 × 4.0 mm space requirement.

Active Area, Outline and Board Clearance

A bezel opening should use the approved visible-area and mechanical drawing, not the diagonal size alone. Enclosure planning should reserve room for the display connection, touch cable, signal cable, Type-C controller and keyboard cable.

The product table also gives a 0.12445 mm pixel-pitch figure, but this value does not align cleanly with the active area and 1920 × 720 raster. Confirm pixel pitch before using it for optical or mechanical calculations.

Smart Retail and Advertising Applications

This configuration fits interactive product-information strips, branded counter interfaces, digital shelf systems, compact navigation bands and embedded commercial terminals. The Outdoor In-Cell Touch Bar LCD Display is particularly relevant when a narrow 24:9 screen must combine visual content and direct user input without increasing enclosure height.

For outdoor-facing advertising or kiosk projects, qualify the front window, reflections, sealing, operating temperature, humidity, thermal path and mounting structure at finished-system level. The panel description alone does not establish an IP rating, direct-sun visibility or exposed-weather performance.

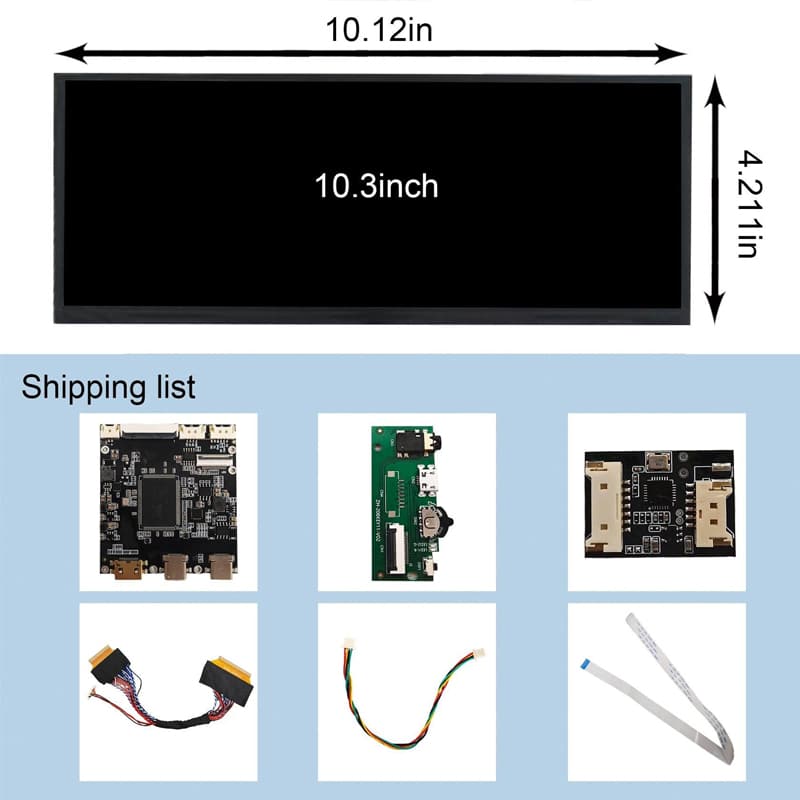

Included Components and Customization

The kit includes the Type-C LCD controller board, 10.3-inch touch LCD screen, signal cable, touch-panel cable and a keyboard with cable. A built-in speaker is not included, although the controller description includes a speaker/audio output path.

Controller firmware, interconnect definition, cable length, enclosure geometry, cover glass, touch tuning, front-surface treatment and brightness targets can be evaluated by project. Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Sample and standard-kit quantities are confirmed separately.

Procurement Checklist

Confirm the production revision; native 1920 × 720 timing; complete 60-pin LVDS mapping; two-channel 8-bit mode; 3.3 V LCD input; I²C touch-controller electrical requirements; FPC and cable orientation; Type-C controller input requirements; the actual path between the controller's eDP/USB output description and the LVDS panel; 700 cd/m² luminance tolerance; 1000:1 contrast; 89°/89°/89°/89° viewing condition; 4 ms response-time test method; active area and outline; controller-board clearance; WLED electrical data; net product weight; operating/storage temperature; cover-stack reflection target; outdoor enclosure requirements; sample quantity and annual demand.
