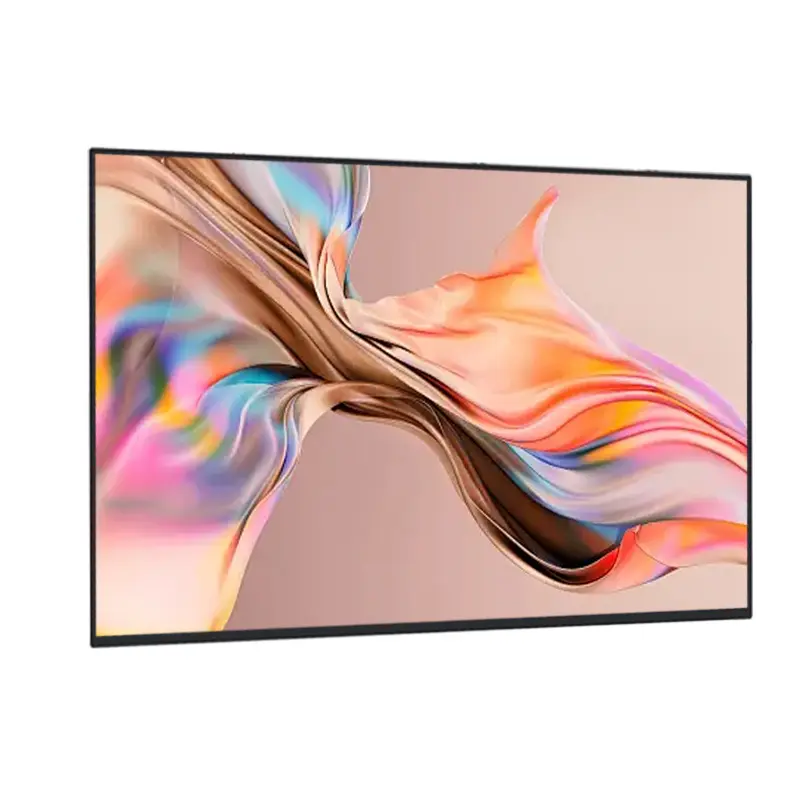

105 Inch Large Format Outdoor Airport Information Display Module

105 Inch Large Format Outdoor Airport Information Display Module

This Large Format Outdoor Airport Information Display uses a 5120 × 2160 ultra-wide raster, an IPS transmissive TFT-LCD structure, 1500 cd/m² minimum luminance, and V-by-One signaling to support large public-information layouts. The 21:9 format offers a wide canvas for multi-column information. It is supplied as a non-touch LCD module, so controller, enclosure, front protection, thermal design, and any interactive layer must be qualified as part of the finished system.

Product Summary

The 105-inch format provides a very large visual area. Its 2449 × 1033 mm active area gives content teams room to separate schedules, directional information, service notices, and promotional zones while supporting long-distance viewing. The 5120 × 2160 resolution should be used as the native design canvas so that graphics and information blocks are not unnecessarily rescaled.

A 1500 cd/m² minimum luminance rating gives the module a stronger optical starting point for bright concourses, covered transport areas, and other high-ambient-light locations. It does not establish weatherproofing or fully exposed outdoor suitability. The final system still needs reflection control, enclosure protection, solar-load review, and thermal validation for the actual installation.

Key Specifications at a Glance

Ultra-Wide 5120 × 2160 Layout for Airport Information

21:9 Workspace for Multi-Zone Content

A 21:9 screen can allocate more horizontal space to parallel information zones than a conventional 16:9 display. That is useful for departure information, route guidance, service alerts, maps, advertising, and public messaging that need to remain visible at the same time. The native 5120 × 2160 raster also supports high-detail typography and graphics across the full 105-inch diagonal.

IPS Viewing for Large Public Areas

The IPS structure and 89°/89°/89°/89° viewing specification support wide-angle visibility for viewers approaching from different directions. This gives system designers more flexibility in mounting height and sightline planning. Final readability still depends on character size, viewing distance, content contrast, ambient light, and the front optical stack.

Engineering the Large Format Outdoor Airport Information Display

V-by-One Host and Controller Qualification

V-by-One identifies the panel signal class, but the interface name alone does not prove compatibility with a specific controller. The approved controller design must match the native 5120 × 2160 timing, lane configuration, connector definition, electrical levels, and any panel-specific control requirements. A controller should not be released only because it also carries a V-by-One output.

Mechanical Envelope for Enclosure Design

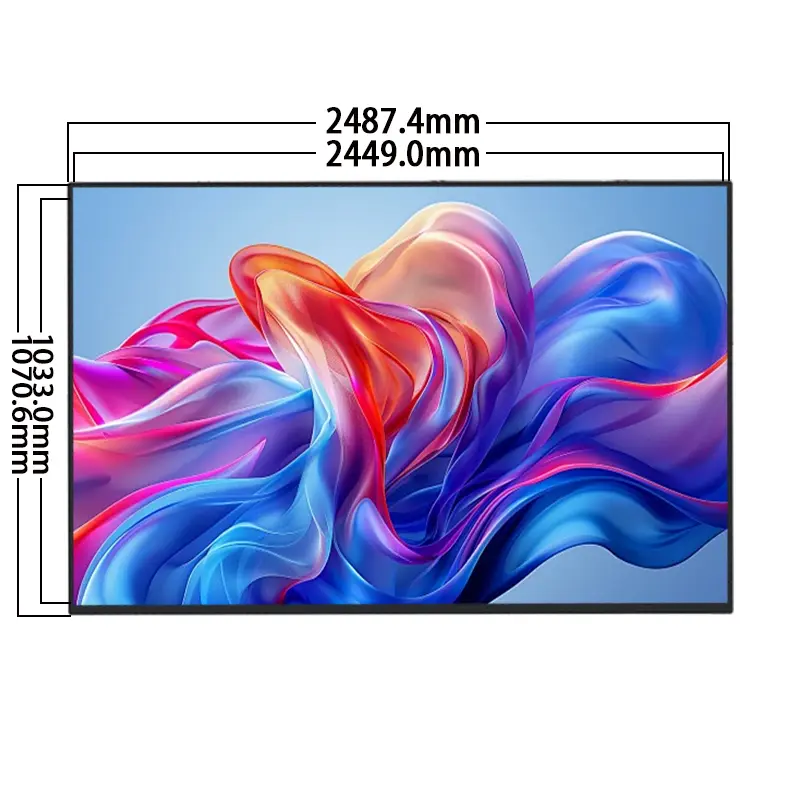

The active area is 2449 × 1033 mm, while the module outline is 2487 × 1070 mm and the maximum thickness is 98 mm. These dimensions serve different functions: the active area controls visible content placement, while the outline and depth control the structural opening, support frame, service clearance, and transport plan. A production drawing should be approved before cabinet tooling or mounting hardware is finalized.

Brightness and Outdoor-System Boundaries

1500 cd/m² Minimum Luminance

The selected configuration is specified at 1500 cd/m² minimum, so the public specification should not rewrite this value as typical or as a variable 1500–3000 cd/m² range. Other luminance versions must be handled as separate variants. Optical approval should be based on the fixed ordered brightness, final cover material, reflection level, display orientation, and expected ambient light.

The panel is not automatically a finished outdoor display. No product-specific ingress-protection rating, protective-glass grade, heater, cooling system, humidity specification, or weatherproof enclosure is confirmed for the standard module. Direct-rain or fully exposed outdoor deployment therefore requires a separately engineered enclosure and environmental qualification.

Integration and Interaction Planning

Non-Touch Standard Configuration

The standard module is non-touch. Projects that need interactive wayfinding, check-in assistance, or public-service input require a separate touch sensor, controller, cover-glass stack, mechanical tolerance review, and optical evaluation.

Electrical Data That Must Be Confirmed

The available product data identifies V-by-One signaling and a WLED backlight, but it does not confirm the panel input voltage, backlight voltage and current, power consumption, connector pin count, refresh rate, or backlight lifetime. Those values must come from the approved production specification before the controller, power architecture, cooling system, or cable set is released.

Applications and Selection Direction

A Large Format Outdoor Airport Information Display is most relevant when the project needs an ultra-wide 105-inch information surface for airport boards, passenger guidance, large digital signage, or electronic smart bus-stop displays. The combination of 5120 × 2160 resolution, 21:9 geometry, wide IPS viewing, and 1500 cd/m² minimum luminance supports high-information-density layouts in bright public environments.

This module is best integrated into a purpose-built structure. For exposed outdoor installations, the enclosure, front glass, thermal design, sealing, and service access need to be engineered around the module rather than assumed from the panel specification.

Customization and System Integration

Project evaluation can cover a matched V-by-One controller, cable definition, enclosure adaptation, front glass, anti-reflective or anti-glare treatment, optical bonding, separate touch integration, thermal design, mounting support, and brightness-version selection. Alternative luminance versions are separate configurations requiring their own validation.

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability, and the requested specification. Sample and standard-module quantities are confirmed separately.

Procurement Checklist

Before sample or production approval, confirm the assigned product revision, native 5120 × 2160 timing, complete V-by-One interface definition, panel input requirements, WLED backlight voltage/current/control data, 2449 × 1033 mm active area, 2487 × 1070 mm outline, 98 mm maximum thickness, 1500 cd/m² minimum luminance and tolerance, 1200:1 typical contrast, viewing geometry, non-touch status, operating and storage temperatures, final cover-glass stack, enclosure protection target, mounting/support drawing, thermal plan, sample criteria, quantity, and annual demand.
