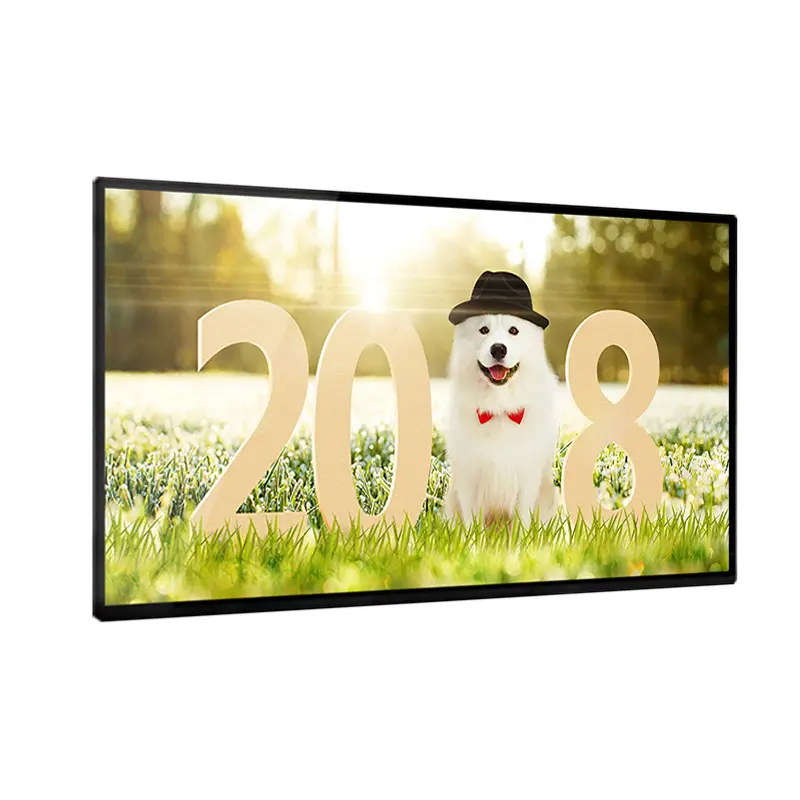

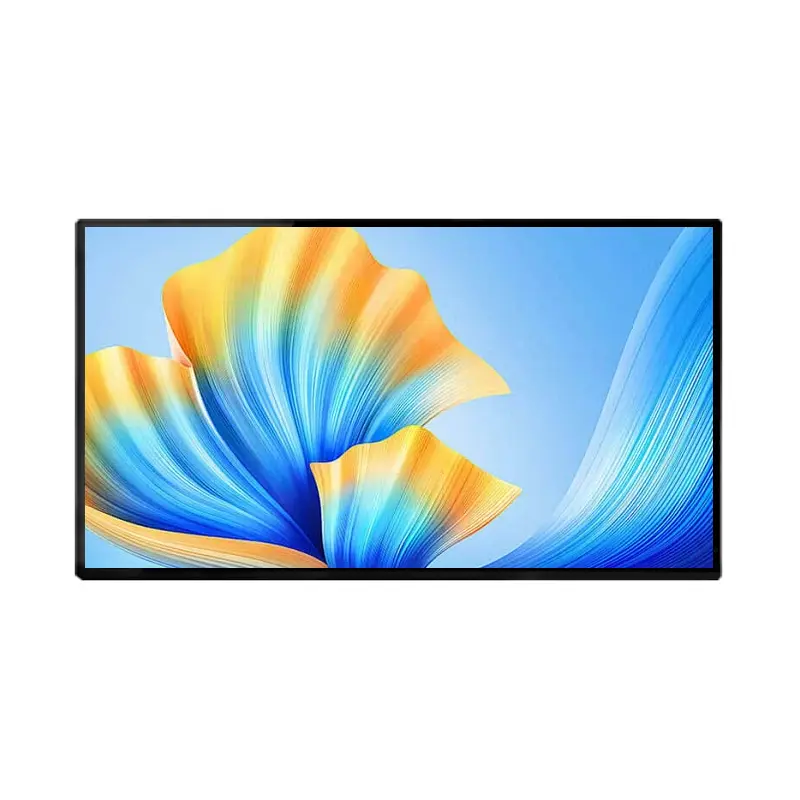

12.1 Inch High Brightness LVDS LCD Module for Vehicle HMI

WXGA 1500-Nit IPS TFT Module with 20-Pin LVDS for Outdoor and In-Vehicle Displays

A 12.1 Inch High Brightness LVDS LCD Module is a WXGA industrial display module for vehicle terminals, outdoor HMI panels, and compact signage systems that need 1500-nit readability, IPS wide viewing, 20-pin LVDS integration, no-touch front-panel flexibility, and -20~70°C operation. Its value is strongest where a standard indoor LCD may lose visibility under glare, vehicle glass reflection, or high-ambient-light working conditions.

At a Glance: 12.1-Inch WXGA Vehicle and Outdoor Display Highlights

• 12.1-inch 16:10 display size supports compact equipment without reducing useful interface area.
• 1280 × 800 WXGA resolution fits dashboards, vehicle terminals, industrial menus, and outdoor service screens.
• 1500 nits typical brightness improves visibility in bright cabins, industrial workshops, and outdoor-facing equipment.
• IPS hard-screen viewing supports consistent readability from multiple operator or passenger positions.
• 20-pin LVDS input gives OEM developers a practical panel-level integration path.
• 278 × 184 × 11 mm outline helps engineers evaluate dashboard, kiosk, and panel-housing fit.
• No-touch structure allows protective glass, separate touch design, or non-interactive signage use.

Product Overview of the 12.1 Inch High Brightness LVDS LCD Module

The 12.1 Inch High Brightness LVDS LCD Module is designed for compact systems that need more optical performance than a general-purpose indoor screen. With 1500 nits typical brightness, a 1000:1 contrast ratio, and IPS wide viewing, it supports clearer display of operating data, navigation information, public notices, and outdoor service content in bright environments.

Its 1280 × 800 resolution and 16:10 aspect ratio are useful for both industrial and vehicle interfaces. Compared with lower-resolution modules, WXGA gives designers more space for icons, data tables, maps, status alerts, and instruction panels. Compared with larger signage screens, the 12.1-inch format is easier to integrate into vehicle dashboards, compact terminals, control boxes, and wall-mounted equipment.

For procurement teams, the important selection point is integration readiness. The confirmed LVDS 20-pin interface is useful for controller-board matching, but it must be verified against the final host board, timing table, cable route, and backlight-control design before approval. The no-touch configuration also gives system teams more freedom to choose protective glass, optical bonding, or an external capacitive touch stack according to the final product.

Key Features of the 12.1 Inch High Brightness LVDS LCD Module

Technical Specifications of the 12.1-Inch WXGA Industrial TFT Module

These confirmed parameters make the module suitable for compact industrial and vehicle display integration. Buyers should treat brightness, LVDS compatibility, front protection, thermal behavior, and enclosure structure as one engineering package rather than separate purchasing items.

Why Choose a 1500-Nit WXGA LVDS Module for Vehicle and Outdoor HMI?

1500-Nit Readability for Cabins, Workshops, and Outdoor Terminals

The biggest reason to select this module is visibility. A 1500-nit display can help maintain readable menus, navigation pages, equipment status screens, and signage content in bright environments. For vehicle installations, glare from windows can reduce screen readability; for industrial terminals, strong overhead lighting can create the same problem. The brightness level gives product teams a stronger baseline for real-world display performance.

16:10 WXGA Layout for Compact Interface Design

The 1280 × 800 format gives system designers a practical layout for data-rich user interfaces. It can support horizontal dashboards, route information, parameter panels, service instructions, and alert zones without forcing a very large enclosure. This is useful for fleet terminals, CNC control displays, production-line monitors, and compact outdoor information equipment.

20-Pin LVDS Matching for Embedded Control Boards

The 20-pin LVDS interface is a key procurement and engineering checkpoint. Before mass production, confirm the LVDS timing, pin assignment, connector orientation, cable length, backlight-control method, and electrical compatibility. This step is especially important for vehicle systems or outdoor terminals where vibration, EMI, and cable routing can affect long-term reliability.

Mechanical Fit and No-Touch Front-Structure Planning

The 278 × 184 × 11 mm outline helps engineers evaluate enclosure depth, front-frame opening, mounting clearance, and cable routing early in development. The 261.12 × 163.2 mm active area gives a clear reference for visible-window design and UI scaling.

Because the confirmed touch screen status is no touch, the module is flexible for different front-panel strategies. Passive signage or operator-only screens may use a protective cover lens. Interactive kiosks, vehicle terminals, or industrial panels may require a separate touch solution, optical bonding, or anti-glare glass. These choices should be reviewed with the final installation angle and lighting environment.

Recommended Applications for Vehicle, Industrial, and Outdoor Equipment

Vehicle Terminals and In-Car Displays

The module fits in-car navigation screens, fleet-management terminals, and vehicle information displays where compact size, glare resistance, and readable WXGA content are important. Final validation should include viewing angle, sunlight exposure, vibration environment, and dashboard temperature.

Industrial Control Panels and Production Monitoring

Industrial HMI systems need readable machine status, alarms, charts, and operating menus. The 1500-nit brightness and IPS viewing make the display useful for factory equipment, production-line terminals, CNC interfaces, and MES display points.

Outdoor Digital Signage and Service Terminals

For outdoor-facing signage, scenic guide terminals, charging-pile interfaces, and compact public-service equipment, the screen offers strong brightness in a manageable size. The complete product should still be evaluated for weather protection at the enclosure level.

Customization Options for 12.1-Inch LVDS Display Projects

Project evaluation can include brightness adjustment, anti-glare or AR cover glass, optical bonding, external capacitive touch, driver-board development, cable matching, enclosure design, full-machine industrial design, and application-specific mechanical adaptation. These options should be selected based on target brightness, expected glare, operating temperature, user interaction, and project volume.

Procurement and Engineering Checklist for 12.1-Inch LVDS LCD Selection

• Confirm whether 1500 nits fits the real viewing environment.
• Verify LVDS 20-pin timing, pin assignment, and controller-board support.
• Match 261.12 × 163.2 mm active area to the visible window.
• Check 278 × 184 × 11 mm outline against enclosure depth.
• Decide whether no-touch, cover glass, or external touch is required.
• Validate cable routing, vibration exposure, and EMC risk for vehicle use.
• Test thermal behavior inside the final housing.
• Approve samples with real UI content before bulk procurement.
