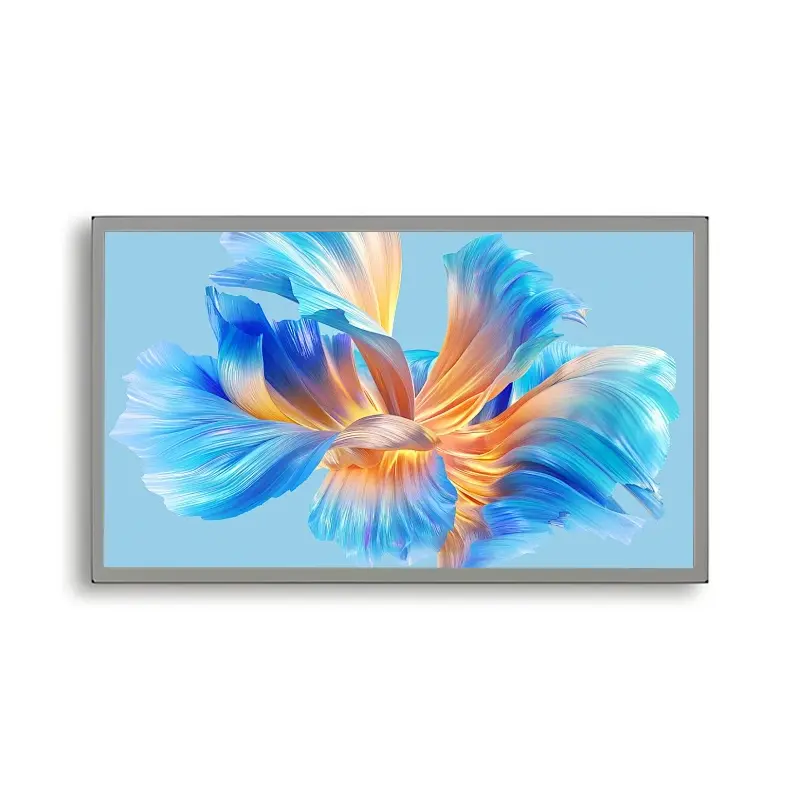

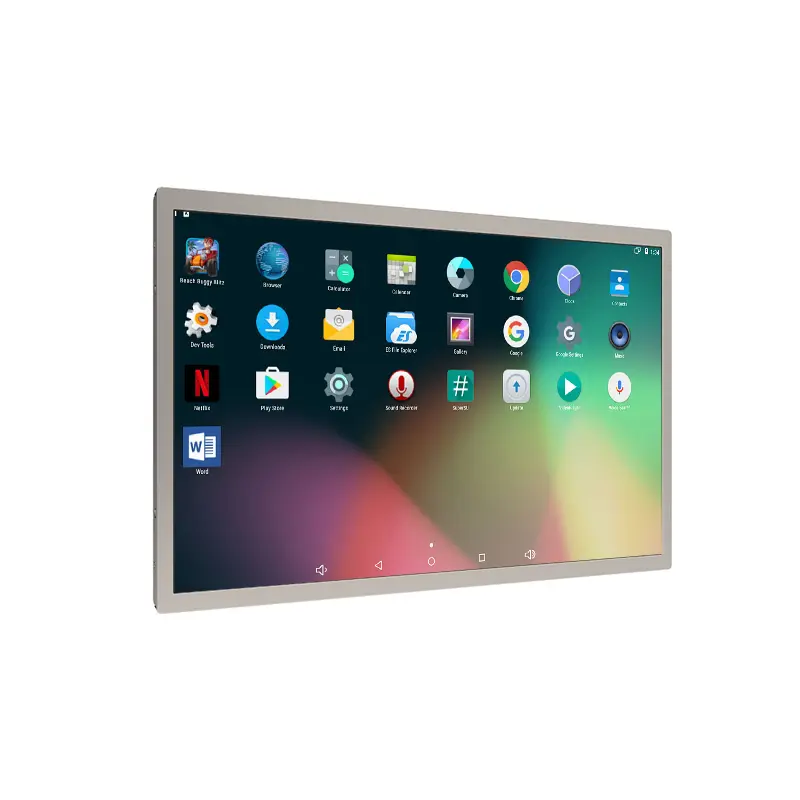

13.3 Inch Sunlight Readable LCD Screen for Slim Outdoor HMI

FHD 500–1500 Nits eDP Display for Compact Kiosks, EV Charging Terminals, and Industrial Interfaces

A 13.3 Inch Sunlight Readable LCD Screen is a compact FHD display module for outdoor HMI, kiosk, and information-terminal projects that need stronger readability without moving to a larger panel. It combines 1920 × 1080 resolution, 500–1500 nits brightness options, 166 PPI detail, anti-glare 3H surface treatment, 30-pin eDP integration, and a slim structure for space-limited embedded equipment. It is best suited for OEM designs where brightness, interface matching, and enclosure fit must be confirmed before sampling.

At a Glance: 13.3-Inch FHD Outdoor-HMI Screen Highlights

• 13.3-inch compact screen size supports outdoor HMI, kiosk, and information-terminal designs without requiring a large front panel.
• 1920 × 1080 FHD resolution and 166 PPI help display sharper menus, icons, maps, instructions, and status prompts.
• 500 / 1000 / 1500-nit brightness family gives engineers a practical selection path for different ambient-light conditions.
• Anti-glare 3H surface treatment helps reduce reflection risk in bright indoor, window-facing, and outdoor-facing equipment.
• 30-pin eDP 2-lane interface supports modern embedded platforms that need a digital display signal path.
• 3.3 V typical input and slim ≤3.0 mm panel structure support thin enclosure and compact device planning.
• No touch function is confirmed, so touch, cover glass, and optical bonding should be evaluated as project-level options.

Product Overview of the 13.3 Inch Sunlight Readable LCD Screen

The 13.3 Inch Sunlight Readable LCD Screen is designed for compact systems where a standard indoor panel may not provide enough readability under stronger ambient light. Its main value is not only brightness; it is the combination of FHD detail, anti-glare surface treatment, eDP integration, and a slim mechanical profile in a size class that fits many embedded front panels.

For outdoor HMI terminals, EV charging interfaces, ticketing devices, gas pump displays, and compact passenger information systems, a 13.3-inch screen can provide enough room for instructions, payment prompts, maps, warning messages, and operating status while staying easier to integrate than a larger signage panel. The 166 PPI pixel density is useful when the UI contains small text, icons, and multi-zone information.

This product fits buyers who need a compact readable screen and want to select brightness based on the real environment. The 500-nit version may suit controlled bright indoor equipment, while the 1000-nit and 1500-nit options are more relevant for window-facing or outdoor-facing systems. For direct sunlight exposure, engineers should still review front glass, optical bonding, heat dissipation, enclosure sealing, and system-level protection.

Before sample approval, confirm the selected brightness version, eDP host compatibility, 3.3 V power plan, mechanical drawing, and whether the project needs a separate touch panel or protective cover glass.

Key Features of the 13.3 Inch Sunlight Readable LCD Screen

Technical Specifications of the Compact FHD eDP LCD Screen

These specifications should be reviewed as an integrated selection set. Brightness affects power and thermal planning, the 30-pin eDP interface affects controller-board matching, and the slim panel structure affects enclosure stack-up. The public specification table shows confirmed values only, so items such as touch interface, waterproof rating, and final installation method should be confirmed at project level.

Why Choose a 13.3-Inch FHD Screen for Outdoor HMI?

A 13.3-inch sunlight-readable screen is valuable when the equipment needs a clear interface but cannot accommodate a large display. It gives designers more visual space than small handheld displays while staying compact enough for kiosks, EV charging panels, machine interfaces, and information terminals.

500–1500 Nits Selection for Real Ambient-Light Conditions

The brightness family gives procurement and engineering teams a practical way to avoid over-specification. A lower brightness version can be used where the screen is only exposed to bright indoor light, while higher-brightness versions can be evaluated for window-facing and outdoor-facing equipment. The correct choice should be made together with cover glass, anti-glare treatment, optical bonding, and thermal design.

1920 × 1080 Detail for Compact Information Screens

FHD resolution on a 13.3-inch panel is useful when the interface includes small fonts, icon groups, menu tabs, QR-code prompts, or multi-language instructions. In payment terminals, outdoor service kiosks, and passenger information devices, a sharper interface can reduce user hesitation and improve operating clarity.

Slim eDP Panel Structure for Space-Limited Enclosures

The slim panel form, 30-pin eDP interface, and 3.3 V supply are practical for thin equipment stacks. Designers should review the active area, connector location, cable route, controller board position, and backlight thermal path before confirming the mechanical layout.

FHD Readability and Anti-Glare Surface for Bright-Terminal Use

The display’s readability value comes from the combination of brightness, resolution, viewing angle, and surface treatment. A high brightness number alone does not guarantee outdoor usability, especially when the enclosure includes thick cover glass or faces strong direct sunlight. This 13.3-inch FHD screen should be evaluated as part of the complete optical stack.

166 PPI for Clear Menus, Prompts, and Status Data

The 166 PPI density allows the panel to show more detailed interface elements than lower-resolution compact screens. For outdoor HMI terminals, this supports screen layouts with operating instructions, status icons, warning messages, and service prompts without making the interface feel crowded.

Anti-Glare 3H Surface for Front-Panel Design

The anti-glare hard coating helps reduce reflection risk when the display is used in bright environments. For projects with a protective cover lens, engineers should confirm whether additional anti-reflective treatment, optical bonding, or cover-glass hardness is required at system level.

Viewing Angle for Multi-Position Operation

The 85° viewing angles help maintain usability when the screen is not viewed perfectly straight on. This matters for kiosks, EV charging terminals, and public-service equipment where users may stand at different heights or approach from an angle.

30-Pin eDP and Slim Mechanical Integration Checks

The 13.3 Inch Sunlight Readable LCD Screen should be integrated only after eDP timing, connector pinout, cable routing, and power requirements are confirmed. A compact screen can still create engineering risk if the interface and enclosure are not validated early.

eDP 2-Lane Host Matching and 3.3 V Power

The source data confirms a 30-pin eDP interface with 2 lanes and 3.3 V typical supply. Controller-board developers should confirm the eDP version, signal lane support, cable length, pin assignment, backlight enable, PWM dimming method, and power sequencing before PCB or cable tooling.

Slim Panel Fit for Thin Outdoor HMI Enclosures

The slim structure is helpful for narrow device bodies, but final integration depends on the metal frame, cover glass, gasket, PCB, heat path, and connector clearance. Engineers should not rely on diagonal size alone; they should validate active area, enclosure opening, and available internal depth.

Touch and Cover Glass as Project-Level Decisions

No built-in touch interface is confirmed from the provided data. This gives OEM projects flexibility to keep a no-touch design, add a separate cover lens, or evaluate a capacitive touch stack. Touch selection should be reviewed with cover thickness, bonding method, controller IC, glove-use expectations, and environmental exposure.

Recommended Applications for Compact Outdoor-HMI Systems

This display is best used where compact equipment needs a brighter interface and FHD clarity. It is not a finished waterproof monitor; it is a panel-level screen that should be designed into a complete system.

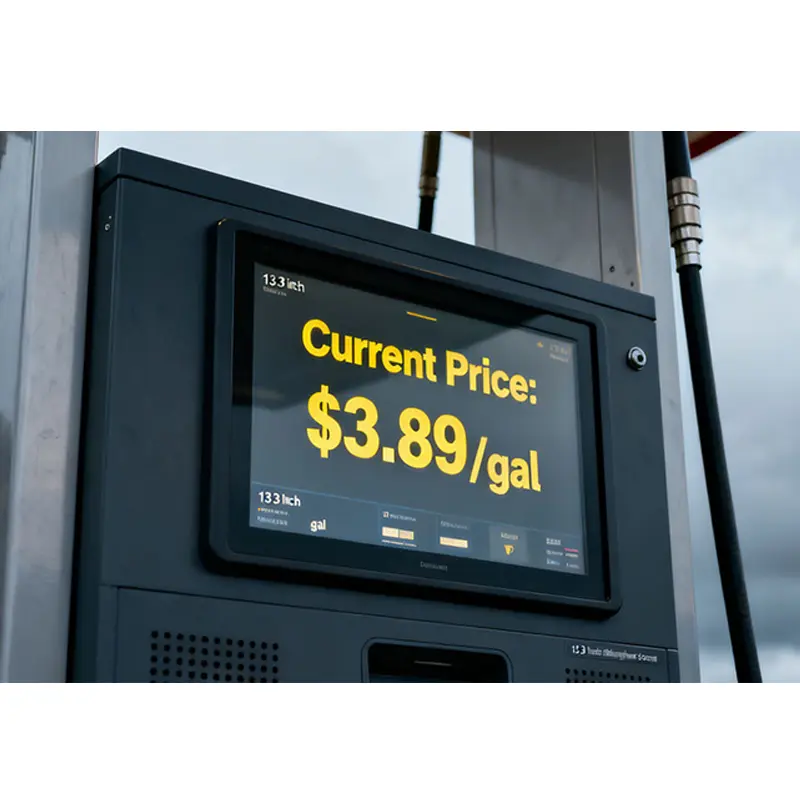

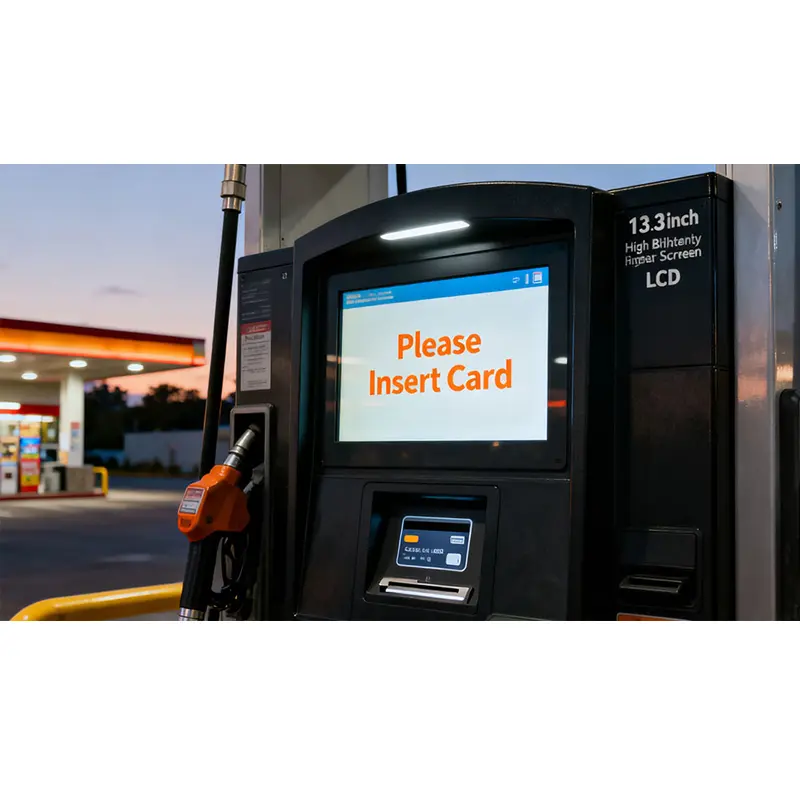

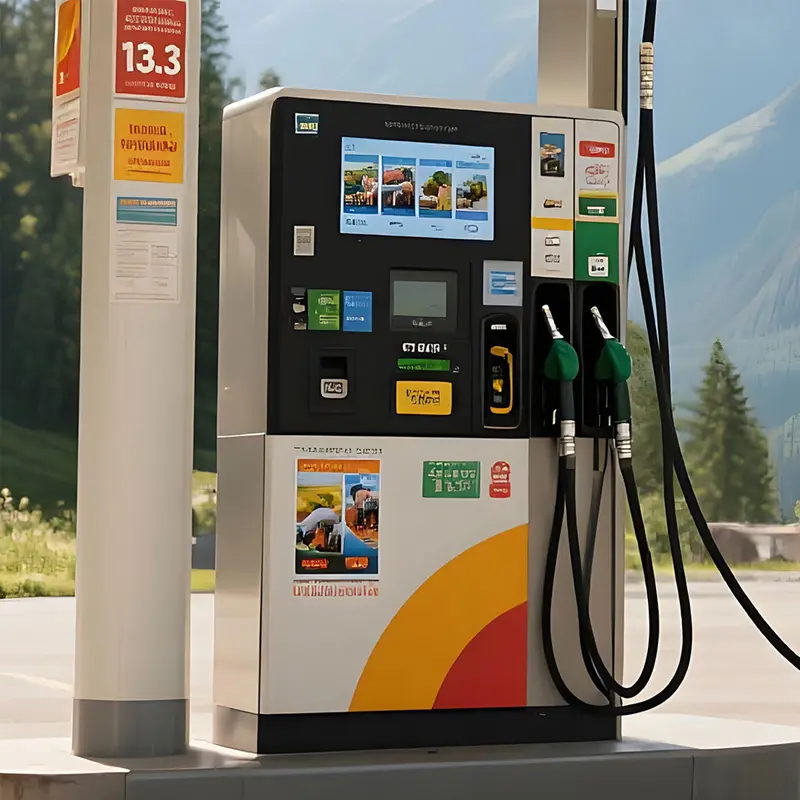

EV Charging and Gas Pump Interface Screens

EV charging and fuel-service equipment often needs clear status prompts, payment instructions, and operating guidance. The 13.3-inch FHD format provides enough display area for service workflows, while brightness-version selection helps match different site conditions.

Smart Kiosks and Outdoor Service Terminals

For ticketing, check-in, vending, and public-service kiosks, the screen can support visible instructions and multi-step user flows. Engineers should confirm cover glass, touch method, sealing, and thermal dissipation before using it in exposed environments.

Passenger Information and Retail Information Panels

Compact information terminals may need bright text and clean graphics in transportation or retail environments. The FHD resolution and anti-glare surface help improve display presentation, while the eDP interface supports integration with modern control boards.

Industrial HMI and Equipment Control Panels

Industrial equipment can use this screen for operator prompts, dashboard pages, alarms, and system status. The -20°C to 70°C operating range gives useful temperature coverage, but vibration, enclosure protection, and certification requirements should be confirmed separately.

Customization Options for 13.3-Inch Sunlight Readable LCD Projects

Project evaluation can include brightness version selection, cover glass, anti-glare or anti-reflective treatment, optical bonding, touch panel add-on, eDP cable matching, controller-board support, FPC or connector review, mechanical drawing review, and enclosure-level optical design. These options should be confirmed against MOQ, drawing feasibility, sample testing, and the final application environment.

For outdoor-facing equipment, customization should focus on the complete front-stack design rather than the panel alone. Brightness, heat, glass reflection, touch performance, mounting pressure, and enclosure sealing should be reviewed together.

Procurement and Engineering Checklist for 13.3-Inch Screen Selection

• Confirm whether the project needs 500, 1000, or 1500 nits based on real ambient light.
• Verify the 30-pin eDP pinout, lane configuration, timing, cable length, and controller compatibility.
• Review 3.3 V power, backlight driving, PWM dimming, and thermal behavior before sample approval.
• Match the 293.76 × 165.24 mm active area with the enclosure window and UI layout.
• Decide whether the final device needs no touch, external capacitive touch, cover glass, or optical bonding.
• Check whether anti-glare 3H is sufficient or whether additional AR treatment is needed.
• Validate the operating temperature, storage temperature, and enclosure heat path.
• Confirm sample quantity, production forecast, drawing files, and target application before quotation.
