12.1 Inch Sunlight Readable LCD Screen with XGA resolution and 20-pin LVDS interface

Compact XGA AAS Display Module with Matte 3H Surface and 20-Pin LVDS

A 12.1 Inch Sunlight Readable LCD Screen is a compact XGA display module for outdoor HMI, kiosks, charging terminals, passenger information systems, and industrial equipment that need 1000-nit-class readability, AAS wide viewing, matte 3H surface treatment, 20-pin LVDS integration, 3.3V input, and no-touch front-panel flexibility. It gives OEM teams a practical panel platform for equipment that must remain readable in brighter environments without moving to a larger display format.

At a Glance: Compact XGA AAS Highlights

• 12.1-inch XGA 1024 × 768 format supports compact 4:3 HMI layouts.
• NE10 version is listed in the 1000-nit position within a 500–1500-nit series.
• AAS IPS-type normally black structure supports 89° viewing in all directions.
• Matte surface with 3H hard coating helps reduce reflection and surface wear.
• 20-pin LVDS, 1-channel, 6/8-bit interface supports embedded controller matching.
• 3.3V typical power input simplifies compact system integration.
• Designed For: outdoor HMI, kiosks, EV charging, gas pump displays, passenger information, and factory equipment.

Product Overview of the 12.1 Inch Sunlight Readable LCD Screen

The 12.1 Inch Sunlight Readable LCD Screen is designed for compact equipment where screen space is limited but visibility still matters. Its 1024 × 768 XGA resolution and 105 PPI density make it suitable for menu-based operator interfaces, charging instructions, service prompts, passenger information layouts, and factory status screens. Compared with larger widescreen panels, the 12.1-inch 4:3 format can reduce enclosure size while still giving users enough area for readable text and control graphics.

The optical value comes from its 1000-nit model position, AAS IPS-type normally black operation, and 89/89/89/89 viewing performance. In public terminals or industrial equipment, users may approach the screen from the side, above, or below. Wide viewing helps keep content readable across those positions. The matte 3H hard-coated surface also matters because brightness alone cannot solve glare. A practical outdoor-facing HMI display must control reflections and tolerate daily contact with the surrounding mechanical structure.

For engineering teams, the display is a component-level module rather than a finished monitor. The 20-pin LVDS interface, 3.3V typical power supply, 260.5 × 204 × 8.9 mm outline, and 245.76 × 184.32 mm active area provide useful references for controller selection, cable planning, front-window design, and enclosure fit.

Key Features of the 12.1 Inch Sunlight Readable LCD Screen

Technical Specifications of the 12.1-Inch XGA AAS Module

These confirmed values make the module suitable for compact embedded design. Temperature should be verified during sample approval because the readable page text and supplied screenshots show different temperature ranges.

Why Choose a 12.1-Inch XGA AAS Screen for Outdoor HMI?

XGA 4:3 Format for Compact Control Interfaces

A 12.1-inch XGA screen is a practical fit for compact control interfaces that use buttons, status panels, alarms, menus, and operating prompts. The 4:3 layout can be easier to apply in legacy and industrial UI designs than a widescreen format, especially when the equipment cabinet already has a defined front-window shape.

AAS 89° Viewing for Public and Industrial Users

AAS IPS-type viewing is valuable for equipment used by multiple users or viewed from different heights. In EV charging terminals, gas pump displays, kiosks, and passenger information systems, the user is not always centered in front of the display. The 89° viewing specification helps protect readability across more realistic installation angles.

Matte 3H Surface for Bright-Site Readability

The matte 3H surface improves the practical usability of the 12.1 Inch Sunlight Readable LCD Screen. For outdoor-facing and semi-outdoor projects, surface reflection can reduce readability even when brightness is sufficient. Matte treatment and hard coating help the module perform better in public-use equipment where lighting, viewing angle, and daily handling vary.

20-Pin LVDS, 3.3V Power, and Slim Mechanical Fit

This module is straightforward to evaluate for embedded controller systems because it uses LVDS, 1-channel, 6/8-bit signaling through a 20-pin connector. Before production, engineers should confirm the pin assignment, LVDS timing, cable route, grounding, and controller compatibility. The 3.3V typical input should also be checked against the host power design and backlight-control strategy.

Mechanically, the 260.5 × 204 × 8.9 mm outline is useful for compact terminals and equipment cabinets. The 245.76 × 184.32 mm active area and 249.0 × 187.5 mm view area should be reviewed against the cover window, bezel, gasket, and final display opening. Since touch is not included, the front design can remain non-touch or be customized with separate touch glass.

Recommended Applications for Compact Outdoor HMI Systems

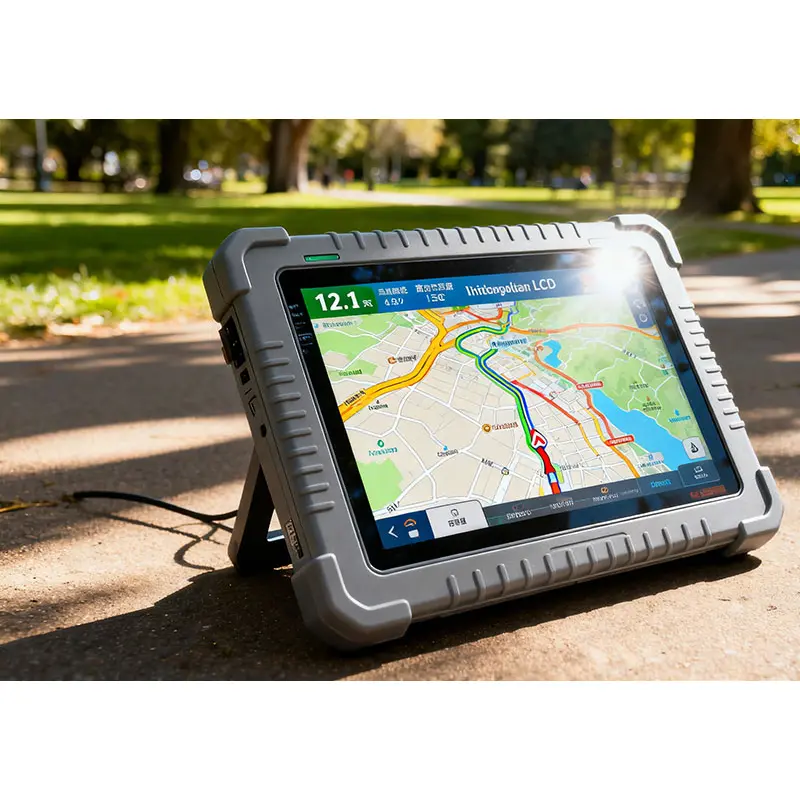

The 12.1 Inch Sunlight Readable LCD Screen is a strong fit for passenger information displays, gas pump display modules, POS and self-service kiosks, EV charging pile displays, outdoor HMI equipment, and factory high-brightness industrial terminals. These applications benefit from compact size, XGA readability, 1000-nit-class brightness, and wide viewing.

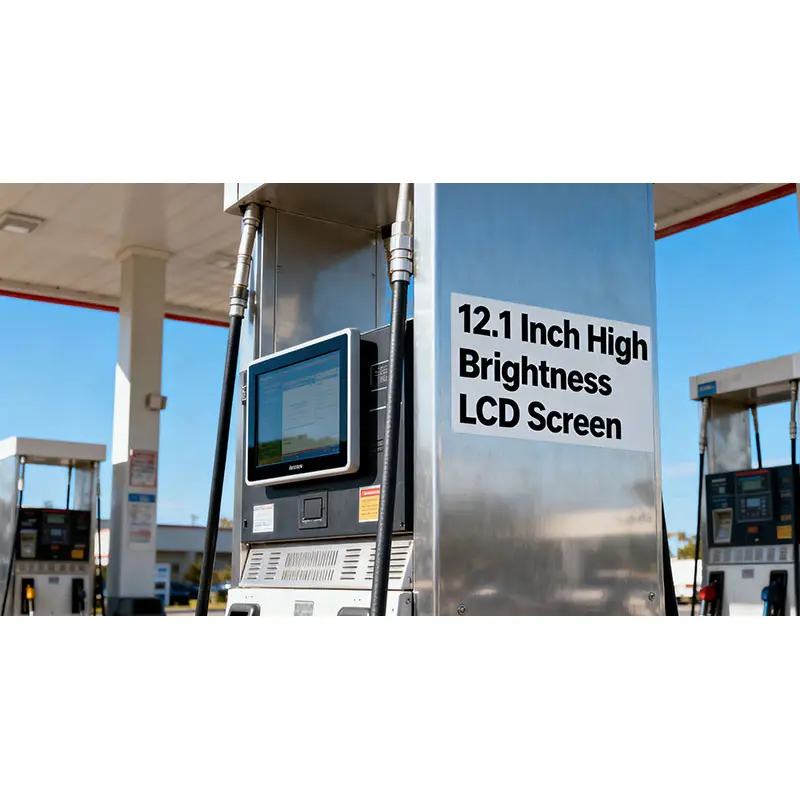

For gas pump and EV charging systems, the module can present transaction information, instructions, warnings, and service prompts. For passenger information systems, it can support route data, status updates, and public notices. For factory equipment, it can show machine status, operating menus, and process feedback in brighter working conditions.

Customization Options for 12.1-Inch XGA LCD Projects

Project evaluation can include 500 / 1000 / 1500-nit brightness selection, matte or cover-glass review, optical bonding, add-on capacitive touch, LVDS cable and control-board matching, 3.3V power validation, front-window fit, gasket and enclosure planning, thermal testing, and optional MEMC/high-refresh review where dynamic UI content is required.

Procurement and Engineering Checklist for 12.1-Inch Screen Selection

• Confirm whether the project needs 500, 1000, or 1500 nits.
• Verify that XGA 1024 × 768 matches the software interface.
• Check 20-pin LVDS timing, cable length, and pinout.
• Confirm 3.3V input and backlight-driver control requirements.
• Review 260.5 × 204 × 8.9 mm outline against the enclosure.
• Decide whether the design needs touch, cover glass, or optical bonding.
• Validate operating and storage temperature with samples.
• Test readability under the real mounting angle and light environment.
