19 Inch Legacy Industrial SXGA LCD Display Kit for Control Systems

19 Inch Legacy Industrial SXGA LCD Display Kit for Control Systems

A Legacy Industrial SXGA LCD Display Kit is a practical replacement path for equipment that still depends on a 19-inch 1280 × 1024 interface rather than a modern widescreen layout. This configuration combines a 1000 cd/m² TN LCD, 30-pin two-channel 8-bit LVDS signaling and a matched controller board. It is especially relevant to industrial controls, process terminals and other installed systems where changing the original screen geometry could create unnecessary software, enclosure and validation work.

Product Summary

The 19-inch panel uses a native 1280 × 1024 SXGA raster with a 376.32 × 301.056 mm active area. The display mode is TN, Normally White and Transmissive, with 1000 cd/m² typical luminance and a 1000:1 typical contrast ratio.

Native 1280 × 1024 Is a 5:4 Workspace

The native raster and active-area geometry define a 5:4 display format. This matters in retrofit projects because older control applications often place menus, process graphics and status windows around the original SXGA layout.

Driving the screen at its native resolution helps preserve text geometry and interface proportions without unnecessary scaling.

19-Inch Mechanics for Existing Equipment

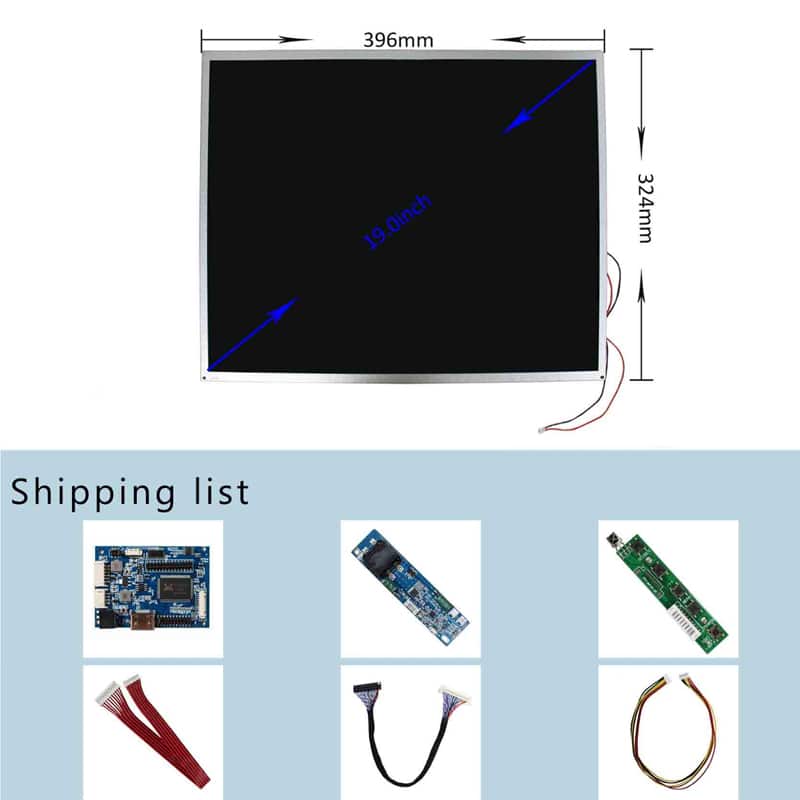

The panel outline is 396 × 324 × 11.7 mm. Those dimensions should be checked against the existing bezel opening, brackets, cable route and internal clearance before replacement approval.

Key Specifications

Optical Performance for Bright Industrial Locations

The panel provides 1000 cd/m² typical luminance, giving it substantially more panel-level output than a conventional office display.

1000 cd/m² Still Requires Front-Window Validation

Panel brightness is only one part of finished-system readability. Protective glass, reflections, air gaps, coatings, enclosure angle and ambient lighting can all change effective contrast.

For a control cabinet or outdoor-facing installation, evaluate the LCD behind the actual front window before releasing the optical specification.

TN Viewing Geometry Should Match the Operator Position

The listed viewing performance is 85° / 85° / 80° / 80° for left, right, up and down at CR ≥ 10. Equipment designers should compare the normal operator position with the final panel orientation before locking the enclosure.

Legacy Industrial SXGA LCD Display Kit Integration

The controller-board package makes this configuration more useful for replacement evaluation than a bare panel alone, but electrical matching still has to be controlled.

30-Pin LVDS Requires Complete Signal Qualification

The LCD uses a 30-pin, two-channel, 8-bit LVDS interface.

A matching 30-pin connector does not guarantee compatibility. Native timing, voltage, channel mapping, bit convention, pin assignment, connector orientation and controller configuration all need to match the approved panel.

Panel and Controller Have Separate Power Requirements

The LCD panel identifies a 5.0 V typical input, while the supplied controller configuration calls for 12 V DC with more than 5 A available.

These are separate power domains. The <1 W controller figure refers to standby mode and should not be interpreted as maximum operating consumption.

Controller Board and Included Integration Parts

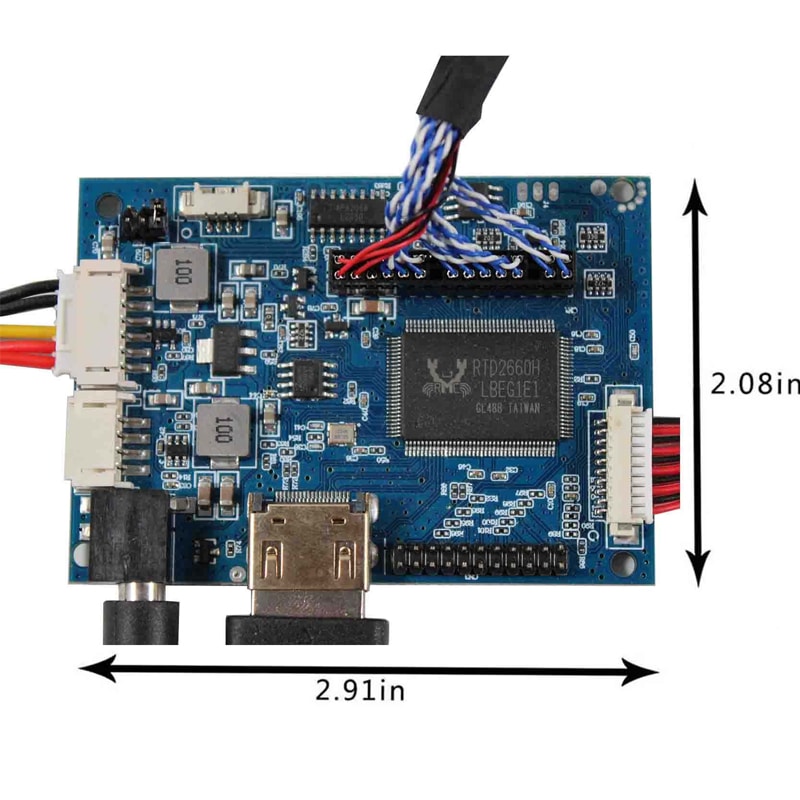

The controller is identified as VS-TY2660H-V661. The detailed controller information gives an envelope of 74 × 53 × 12 mm.

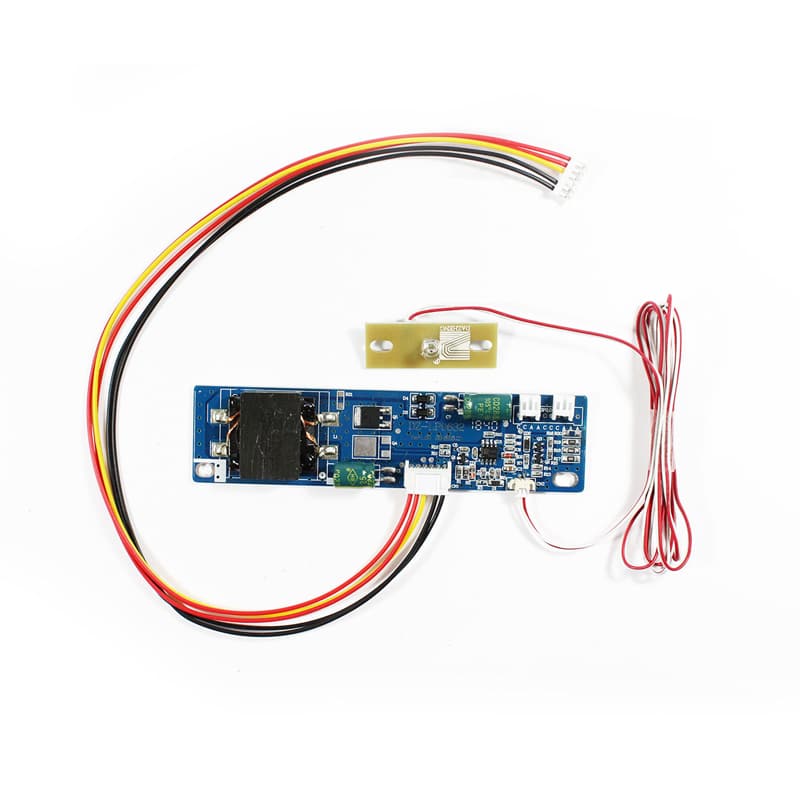

The kit also includes an LVDS cable, backlight cable and wired keypad, making it suitable for bench testing and replacement qualification without sourcing every connection part separately.

Lock the Controller Revision Before Production

Controller firmware and cable configuration can be panel-specific. Record the approved controller label, firmware revision, cable pinout and panel revision during sample approval so that production units do not drift from the qualified combination.

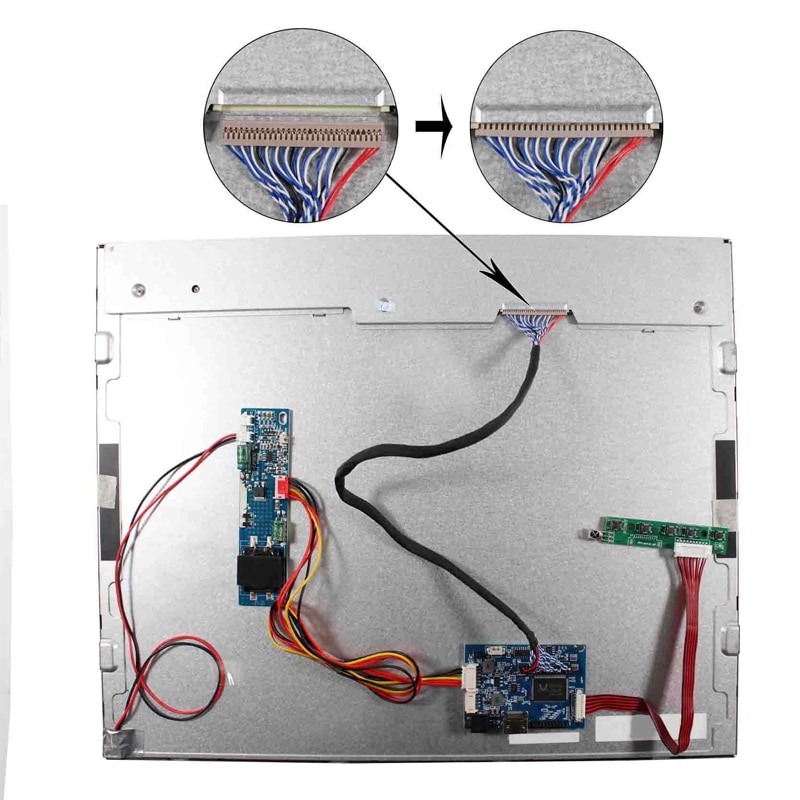

Mechanical Fit and Cable Planning

The 396 × 324 × 11.7 mm LCD envelope and the separate controller board both need dedicated installation space.

Check More Than the Front Opening

Replacement approval should include panel thickness, rear-component clearance, LVDS cable direction, backlight wiring, board location and keypad access. A screen can match the visible opening but still fail installation because the rear hardware or cable bend radius conflicts with the original enclosure.

Temperature Qualification Before Release

Industrial display families are often offered in several environmental grades, but the ordered production revision should control the specification.

For this configuration, confirm the exact operating temperature, storage temperature and humidity limits for the approved panel before publishing or qualifying a wide-temperature claim. Do not substitute the temperature range of another panel revision simply because the core model family is similar.

Best-Fit Applications

The Legacy Industrial SXGA LCD Display Kit is most relevant to equipment that benefits from preserving an existing 19-inch SXGA interface, including process-control terminals, industrial operator stations, control cabinets, factory equipment displays and replacement-oriented commercial terminals.

Its key procurement value is continuity: the buyer can evaluate an established 1280 × 1024 layout together with the controller and cable architecture instead of immediately redesigning the equipment around a widescreen format.

Configuration and Customization

Project review can cover controller revision and firmware, complete LVDS mapping, cable orientation, front glass, AR/AG treatment, optical bonding, enclosure changes, mounting, separately engineered touch, brightness requirements and branding.

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Sample and standard-kit quantities are confirmed separately.

Procurement Checklist

Confirm the approved panel and controller labels; native 1280 × 1024 timing; 5:4 interface layout; 30-pin two-channel 8-bit LVDS mapping; connector orientation; 5.0 V panel requirement; WLED electrical requirements; 12 V controller supply; maximum operating power; panel and controller dimensions; front-window optical conditions; exact operating and storage temperature limits; touch requirement; sample criteria; order quantity and annual demand.
