19 Inch Outdoor Advertising LCD Display Driver Board Kit for Retrofits

19 Inch Outdoor Advertising LCD Display Driver Board Kit for Retrofits

This 19-inch high-brightness LCD kit pairs a 30-pin LVDS panel with M.NT68676 DVI/VGA control for retrofit-oriented advertising systems.

Product Summary

The Outdoor Advertising LCD Display Driver Board Kit for Retrofits gives commercial display integrators a practical way to combine a 19-inch TFT LCD with an external video controller instead of sourcing the screen, driver board and basic control hardware separately. The kit uses a 1000 cd/m² typical panel, 30-pin two-channel 8-bit LVDS connection and M.NT68676 controller architecture with DVI and VGA input positioning.

Its 376.32 × 301.056 mm active area and 396 × 324 × 11.7 mm panel outline are useful for replacement-oriented installations where existing cabinet geometry must be preserved.

One engineering item must be locked before production: the current configuration contains both 1024 × 768 and 1280 × 1024 resolution references. The exact ordered panel revision and controller firmware therefore need confirmation before artwork, timing or replacement compatibility is approved.

Key Specifications

Why This 19 Inch Kit Fits Advertising Retrofits

A controller-equipped LCD kit is useful when a project requires more than a replacement bare panel. It gives the engineering team a defined path from the incoming video source to the panel interface while retaining the mechanical flexibility of an open display assembly.

1000 cd/m² Brightness and Front-Stack Planning

The panel is specified at 1000 cd/m² typical luminance, giving it substantially more output than a conventional low-brightness office display.

That brightness can be valuable for advertising systems installed in bright interiors, storefront-adjacent positions and protected outdoor-facing enclosures. It should not, however, be treated as a complete outdoor-readability specification.

The finished front window, reflection level, optical treatment, ambient illumination and enclosure design all affect the image users actually see. Weatherproofing and direct-sun performance must therefore be qualified at the finished-system level.

DVI and VGA Inputs for Legacy Sources

DVI and VGA make the controller direction relevant to retrofit projects where an existing computer, industrial source or commercial media device still provides conventional wired video.

These ports belong to the controller side of the system. The panel itself does not accept DVI or VGA directly; the controller converts the incoming video into the panel-side LVDS path.

That separation is important when replacing an older display because matching the external connector alone does not prove that the LCD and controller are electrically compatible.

Integration Planning for the Outdoor Advertising LCD Display Driver Board Kit for Retrofits

The most important integration work is matching the controller firmware, LVDS definition, power architecture and actual ordered panel revision.

30-Pin LVDS and Controller Firmware Matching

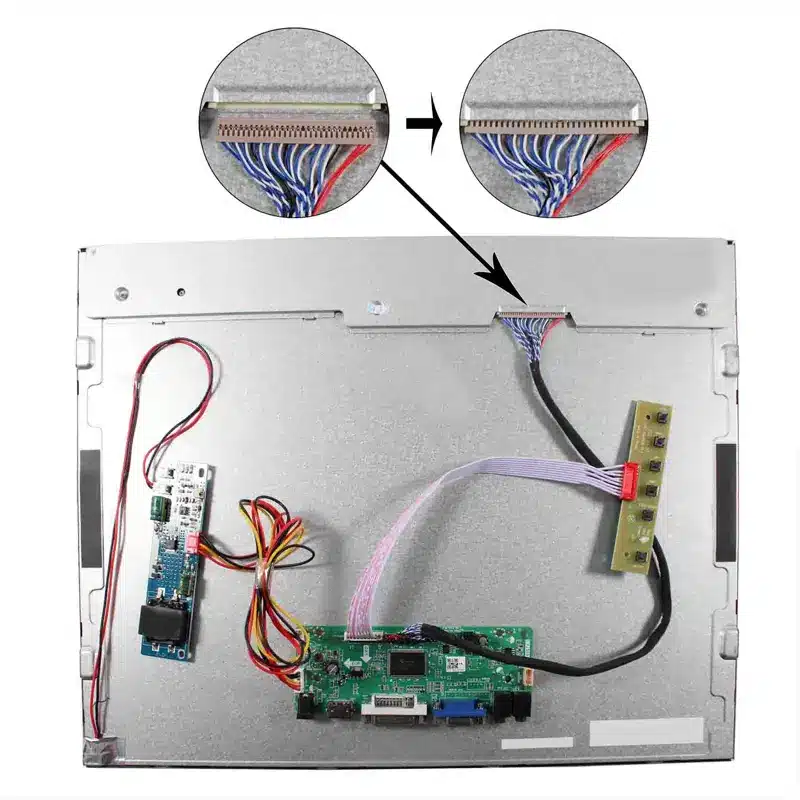

The LCD connection is identified as 30-pin, two-channel, 8-bit LVDS.

A matching 30-pin physical connector is only the beginning of compatibility checking. Engineering should confirm pin assignment, connector orientation, LVDS channel mapping, bit convention, native timing and the firmware configured on the M.NT68676 board.

Using an incorrect cable or firmware image can result in no image, incorrect colors, unstable timing or electrical damage even when the connector physically fits.

Separate Panel and Controller Power Domains

The LCD panel uses a 5.0 V typical input, while the controller assembly requires a 12 V DC supply with an adapter rating above 2 A.

These are separate system requirements.

The listed standby level below 1 W should also remain clearly separated from maximum operating power. Final supply sizing needs to consider the active controller, panel electronics, backlight system and any additional hardware inside the enclosure.

Resolution Qualification Before Production

Resolution is the main specification that must be resolved before this kit enters a production BOM.

The current configuration identifies 1024 × 768 in one product-selection path, while the detailed panel specification identifies 1280 × 1024. Both cannot be treated as the same native timing.

Before purchasing production quantity, lock the exact panel label, controller firmware and native input timing. The approved resolution then needs to flow into the video-source setup, scaling rules, artwork design, cable qualification and replacement documentation.

This check is particularly important for retrofit work because an existing host may be configured around a fixed legacy resolution.

Mechanical and Enclosure Planning

Panel Opening and Outline

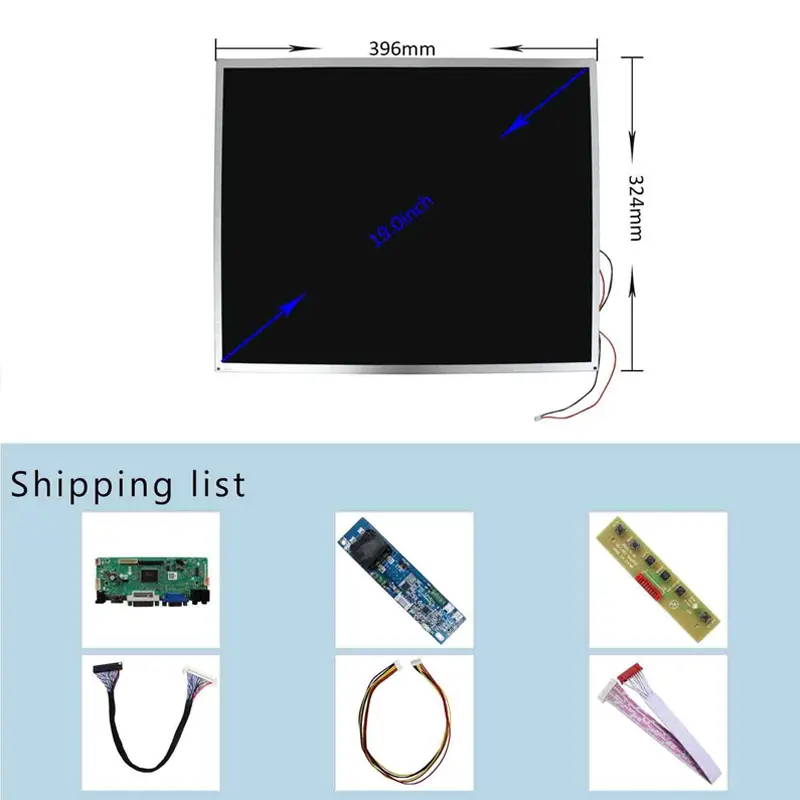

The display uses a 376.32 × 301.056 mm active area inside a 396 × 324 × 11.7 mm panel outline.

The active area should control the visible front-window design, while the larger outline is used for mechanical retention and enclosure clearance.

Existing installations should be checked for bezel overlap, cable exit direction, mounting features and backlight wiring before the replacement is approved.

Controller and Cable Clearance

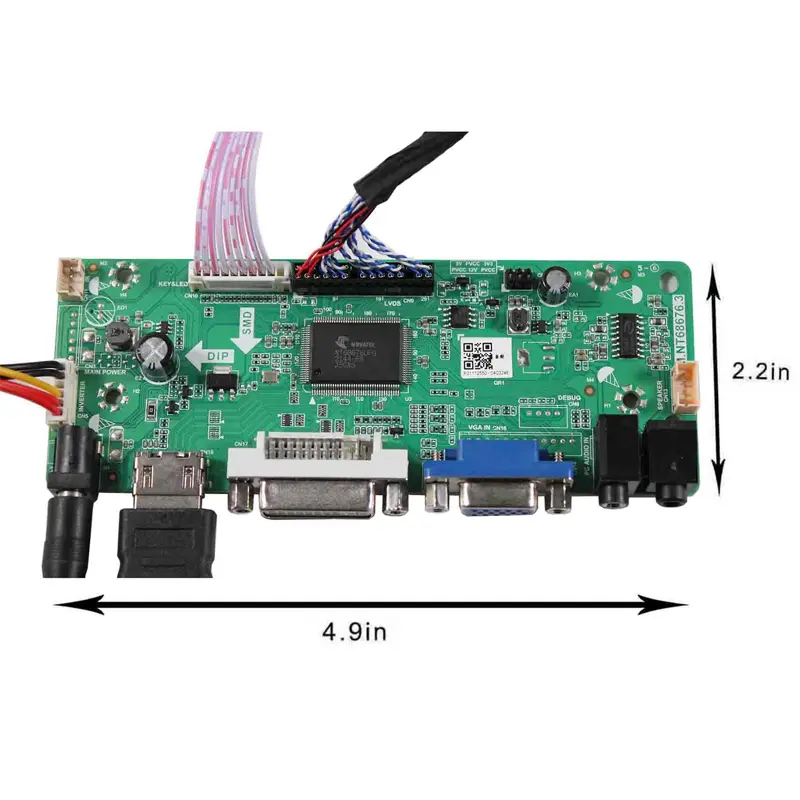

The M.NT68676 controller is listed at 125 × 53 × 17 mm.

That board requires its own internal mounting volume as well as clearance for the DVI/VGA connectors, power input, keypad cable, panel connection and backlight electronics.

The kit should therefore be treated as an integration assembly rather than a finished monitor. Cabinet structure, protective front optics and external mounting hardware need to be designed separately.

Outdoor Advertising Use and Environmental Boundaries

The Outdoor Advertising LCD Display Driver Board Kit for Retrofits is best used as an engineering base for protected advertising and information-display equipment.

Possible environments include outdoor-facing advertising cabinets, sheltered kiosks, indoor promotional displays, commercial information screens and legacy signage replacements where higher panel brightness and conventional DVI/VGA inputs are useful.

Outdoor terminology does not automatically mean the open kit is waterproof, IP-rated, condensation protected or qualified for direct solar exposure. The enclosure, front window, sealing system, ventilation, temperature range and optical performance should be approved for the finished installation.

Best-Fit Applications

The kit can support retrofit-oriented commercial projects such as advertising displays, menu and information screens, legacy kiosk displays, retail communication systems and externally driven commercial LCD equipment.

It is especially relevant when the buyer needs a 19-inch mechanical format together with a driver-board path rather than a bare LCD panel.

Projects requiring touch, HDMI, integrated media playback, sealed outdoor construction or a documented environmental grade should specify those requirements separately rather than assuming they are included in the standard configuration.

Customization and Procurement

Controller revision and firmware, approved resolution, complete LVDS mapping, cable configuration, front glass, AR/AG treatment, optical bonding, enclosure adaptation, mounting, separately engineered touch, branding and packaging can be reviewed according to project requirements.

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Sample and standard-kit quantities are confirmed separately.

Procurement Checklist

Before releasing the Outdoor Advertising LCD Display Driver Board Kit for Retrofits, confirm the exact M.NT68676 and panel production revisions and resolve the 1024 × 768 versus 1280 × 1024 discrepancy.

Also approve native timing, 1000 cd/m² luminance, 376.32 × 301.056 mm active area, 396 × 324 × 11.7 mm panel outline, complete 30-pin two-channel 8-bit LVDS assignment, connector orientation, 5.0 V panel input, WLED requirements, DVI/VGA source timing, 125 × 53 × 17 mm board clearance, 12 V DC power plan, maximum operating power, front optics, operating environment, sample criteria, annual quantity and project schedule.
