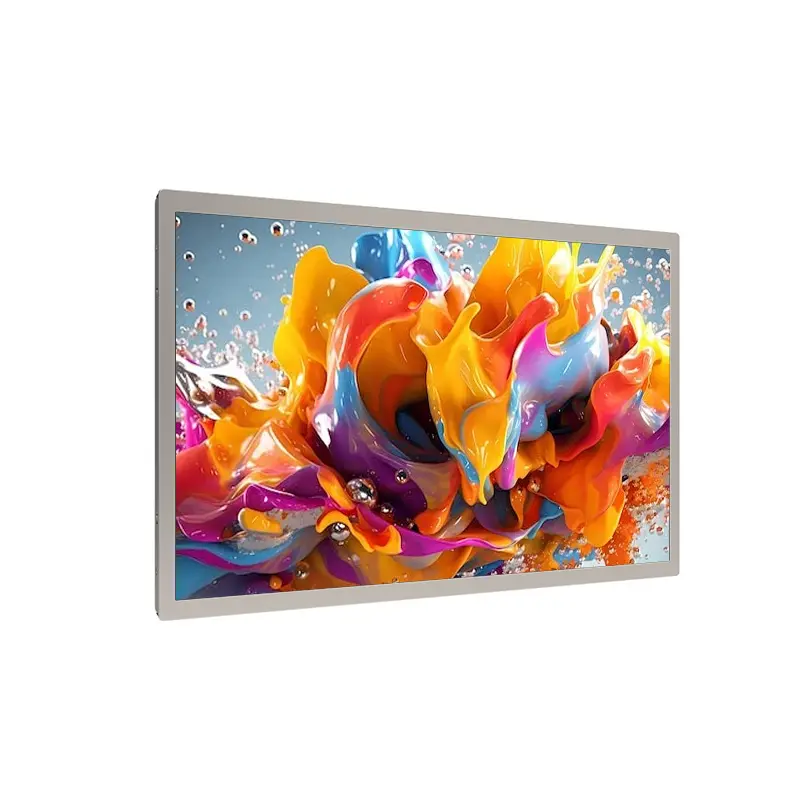

The Industrial High Luminance Sunlight Readable Panel is a 12.1-inch TFT-LCD component for machine interfaces, instrumentation, factory terminals and protected outdoor-facing equipment. Its selected configuration combines a native 1280 × 800 workspace, 1500 cd/m² luminance, AAS normally-black optics, an anti-glare 3H surface and a standard non-touch architecture.

The module uses a 30-pin, one-channel LVDS interface with 6-bit or 8-bit operation and a 3.3 V typical panel rail. Those characteristics provide a practical starting point for embedded HMI development, but timing, mapping, power and cable details must be qualified against the exact host and approved production documentation.

Key Specifications

These values define the selected component configuration used for engineering evaluation.

WXGA Workspace for Industrial HMI

Native 16:10 Content Planning

The 1280 × 800 raster provides a 16:10 workspace for status graphics, alarms, process trends, menus, numeric data and service screens. Native-resolution assets should be used whenever possible so text, icons and thin graphical elements remain clear.

Before the HMI layout is frozen, verify the usable active area, required font size, operator distance and whether the final equipment will use landscape or portrait orientation. Rotation performed by the host does not change the native timing or pixel geometry.

AAS Viewing for Shared Equipment

The AAS normally-black architecture is specified with 89° viewing in four directions at a contrast-ratio threshold of at least 10. This supports equipment that may be viewed from standing, seated or offset positions.

Viewing performance should still be evaluated through the final cover window. Glass reflectance, printed borders, air gaps, bonding adhesive and enclosure angle can materially change the usable viewing result.

Optical Performance in Bright Ambient Light

Selected 1500 cd/m² Configuration

The selected 1500 cd/m² version provides a substantially stronger optical output than a conventional indoor panel. It is suitable for evaluation in bright factories, sheltered outdoor terminals, transport equipment and other high-ambient installations.

A 1500 cd/m² panel does not by itself guarantee readability in every direct-sun condition. Final performance depends on surface reflection, front-window transmission, viewing angle, solar loading, content contrast and the distance between the user and the display.

Anti-Glare 3H Surface

The anti-glare, hard-coated surface helps manage reflections at the panel level and provides a defined 3H surface specification. A separate cover glass may still be required by the finished product.

When cover glass is added, evaluate anti-reflective treatment, optical bonding, printed borders, edge finish, environmental sealing and touch requirements together. Adding an untreated front window can reduce the benefit of a high-luminance panel.

Integrating the Industrial High Luminance Sunlight Readable Panel

LVDS Timing and Connector Qualification

The module uses a 30-pin, one-channel LVDS interface with selectable 6-bit or 8-bit operation. A matching 30-pin connector does not prove LVDS timing, voltage, channel, bit mapping or pin compatibility.

Engineering approval should include:

• Native 1280 × 800 timing
• Pixel-clock range
• Horizontal and vertical timing
• LVDS mapping convention
• Selected 6-bit or 8-bit mode
• Complete pin assignment
• Connector pitch and contact side
• Cable length and orientation
• Panel-enable and reset behavior, when applicable

Choosing 6-Bit or 8-Bit Operation

The listed 262K and 16.7M color modes correspond to different color-depth configurations. The host, cable mapping and panel mode must use the same bit-depth convention.

Do not assume that changing the software framebuffer alone converts a 6-bit LVDS link into an 8-bit link. Confirm the physical mapping and ordered panel configuration before controller-board release.

Panel and Backlight Power Planning

3.3 V Logic Rail

The panel input is listed as 3.3 V typical. The host design must confirm voltage tolerance, current demand, sequencing and connector assignment before power is applied.

The 3.3 V panel rail does not define the WLED backlight voltage, current, enable or dimming requirements. Those values require approved electrical documentation for the ordered luminance configuration.

WLED Driver and Lifetime Reference

The module is described with a WLED backlight, an included LED driver and a 30,000-hour reference. Lifetime depends on operating current, temperature, brightness setting, duty cycle and the supplier’s test criterion.

Any alternate luminance or high-frame option requires a new review of backlight power, heat dissipation, optical output and lifetime expectations.

Mechanical Integration

Active Area and Bezel Opening

The active display area is 261.12 × 163.20 mm, while the bezel opening is 264.12 × 166.20 mm. These dimensions help define the visible window but do not replace the full mechanical drawing.

The complete outline, thickness, mounting points, connector location, tolerances and cable keep-out zone must be confirmed before an enclosure is released.

Weight and Structural Support

The module is listed at 470 g typical and 490 g maximum. Brackets and front-panel structures should support the maximum value with appropriate allowance for cable load, optional glass, bonding and any engineered touch assembly.

Temperature and Non-Touch Architecture

Environmental Range

The operating range is −20°C to +70°C, with storage from −30°C to +80°C. Finished-equipment qualification should include cold start, hot operation, enclosure heat rise, direct solar load and backlight thermal conditions.

A panel temperature rating does not establish the weather resistance, humidity tolerance or IP grade of the final equipment.

Standard Non-Touch Configuration

The standard configuration is non-touch. Interactive use requires a separately qualified touch sensor, controller, interface, cover glass and bonding stack.

Touch integration can change optical transmission, reflection, overall thickness, bezel dimensions, grounding and environmental performance. These effects should be evaluated before mechanical and optical approval.

Application Fit

The panel is suitable for project evaluation in:

• Industrial HMI and control panels
• Factory automation terminals
• Instrumentation and measurement equipment
• Protected outdoor-facing kiosks
• Transportation information equipment
• Vending and ticketing interfaces
• Service and diagnostic terminals
• High-ambient equipment displays

The application must remain within the electrical, optical and environmental limits of the approved module and completed enclosure.

Customization and Configuration Control

Project review may cover:

• Fixed luminance selection
• LVDS cable and controller matching
• 6-bit or 8-bit mapping
• Alternate surface treatment
• Cover glass
• Optical bonding
• PCAP or resistive-touch integration
• Ambient-light sensor and dimming logic
• High-frame or MEMC options
• Enclosure adaptation
• IP-rated finished housing
• Mounting support
• Thermal design
• Branding and packaging
• Communications and embedded-system integration

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Sample and standard-module quantities are confirmed separately.

Procurement Checklist

• Confirm the HuiSoar and supplier model references.
• Lock the selected 1500 cd/m² output and tolerance.
• Obtain approved native 1280 × 800 timing.
• Confirm the complete 30-pin assignment.
• Select one-channel 6-bit or 8-bit mapping.
• Confirm connector pitch, contact side and cable orientation.
• Confirm the 3.3 V panel rail and current requirement.
• Obtain WLED voltage, current, enable and dimming data.
• Confirm the included LED-driver scope.
• Approve the 261.12 × 163.20 mm active area.
• Approve the 264.12 × 166.20 mm bezel opening.
• Obtain the complete outline drawing and tolerances.
• Confirm the 470 g typical / 490 g maximum weight scope.
• Define the final cover-window optical stack.
• Confirm whether touch or automatic dimming is required.
• Validate operating and storage temperatures.
• Define sample tests, quantity, annual demand and schedule.
