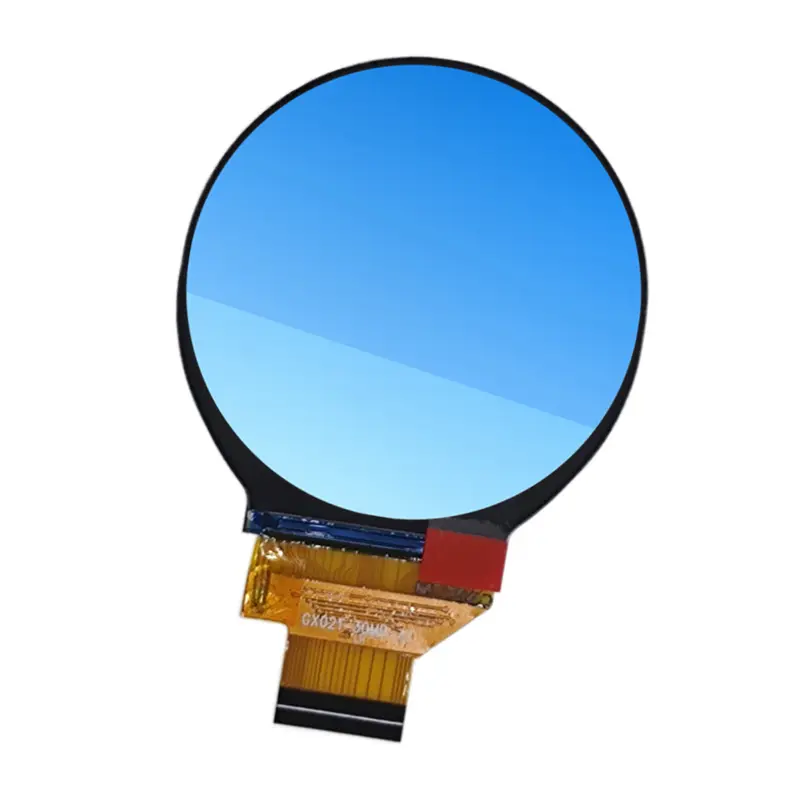

2.1 Inch Round Wearable Screen with 480×480 MIPI TFT LCD module for MIPI Devices

480×480 Circular TFT LCD with 30-Pin MIPI, ST7701S Driver, and 350 cd/m² Brightness

A 2.1 Inch Round Wearable Screen is a compact 480×480 MIPI TFT LCD for smart watches, smart bracelets, compact instruments, medical/health devices, and small appliance interfaces. It combines a circular display format, 350 cd/m² typical luminance, 600:1 typical contrast, 80-degree all-direction viewing, 16.7M colors, ST7701S driver support, and a 30-pin MIPI connection. With a 56.18 × 59.71 × 2.3 mm outline and no-touch structure, it is designed for OEM projects that need a slim round display module rather than a rectangular screen.

At a Glance: 2.1-Inch Circular TFT Highlights

• 2.1-inch round display format supports watch faces, instrument dials, menu icons, and compact status screens.
• 480(RGB) × 480 resolution provides a square pixel canvas optimized for circular UI masking.
• 350 cd/m² typical luminance supports readable indoor and bright ambient use.
• 80-degree viewing in all directions helps users read data from natural wrist and handheld angles.
• 30-pin MIPI interface and ST7701S driver support embedded device integration.
• 56.18 × 59.71 × 2.3 mm outline supports compact casing and slim enclosure planning.
• Without CTP / no-touch structure lets integrators decide whether to add cover glass or a separate touch stack.

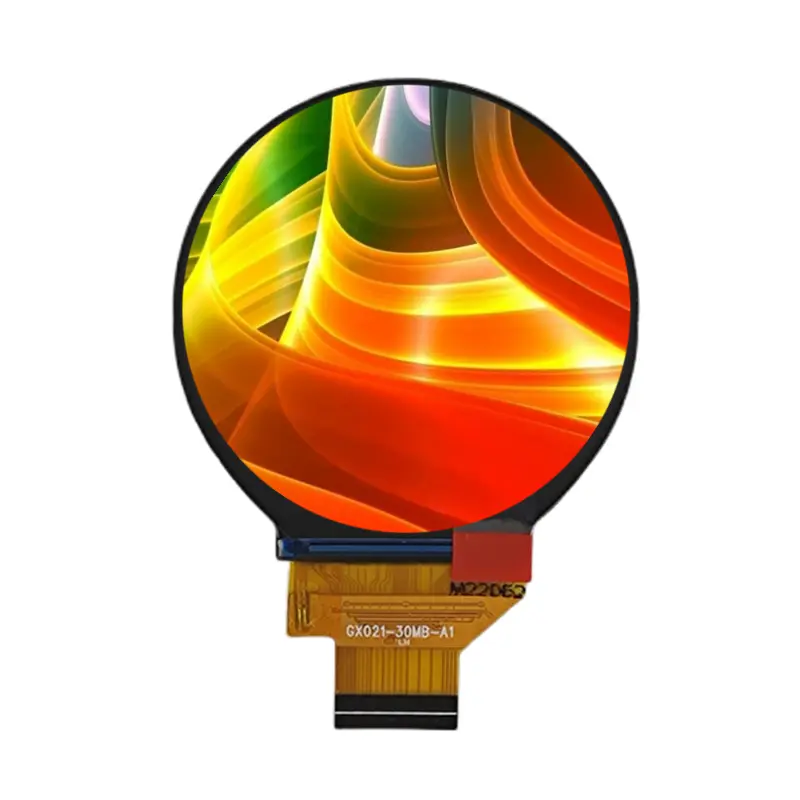

Product Overview of the 2.1 Inch Round Wearable Screen

The 2.1 Inch Round Wearable Screen is built for projects where the display shape is part of the product identity. A round interface is common in smart watches, bracelets, portable instruments, compact medical readers, and small control devices because it gives the product a softer, dial-like appearance while keeping the UI focused.

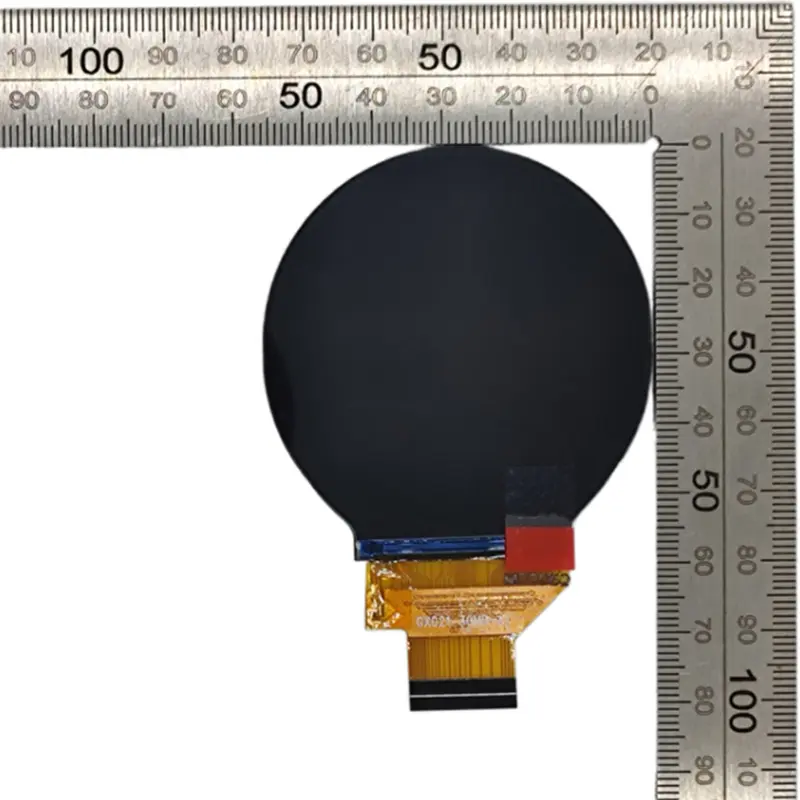

The module uses 480×480 resolution, which gives designers a clean square coordinate system for circular UI design. Icons, progress rings, health metrics, battery status, gauge graphics, and menu elements can be mapped into the circular view without relying on a stretched rectangular layout. The confirmed active area is 53.28 × 53.28 mm, while the outline is 56.18 × 59.71 × 2.3 mm, so mechanical engineers can evaluate the front window, circular mask, FPC route, and housing depth early.

For embedded teams, the integration route is also clear. The module uses MIPI signaling through a 0.5-pitch 30-pin connector and lists ST7701S as the driver IC. Before sample approval, buyers should confirm the MIPI host, pin assignment, initialization code, display timing, power rails, backlight driving, and mechanical stack.

Key Features of the 2.1 Inch Round Wearable Screen

Technical Specifications of the 480×480 Round MIPI TFT LCD

These confirmed specifications define the main engineering questions: round UI fit, MIPI compatibility, driver initialization, mechanical window design, power rail planning, backlight drive, and no-touch front construction. Values not confirmed in the source materials are not used in the public table.

Why Choose a 480×480 Round Screen for Wearable Devices?

A round wearable screen gives product designers a display shape that matches watches, bands, handheld meters, and compact circular controls. Instead of forcing a rectangular panel behind a circular lens, this module supports a circular product concept from the beginning.

480×480 UI Mapping for Circular Interfaces

The 480×480 pixel grid is useful for round UI design because it gives equal horizontal and vertical pixel count. Developers can create watch faces, dial graphics, progress rings, instrument scales, and menu icons without stretching content. For small interfaces, this helps keep text and icons balanced around the center.

53.28 mm Active Area for Front-Window Design

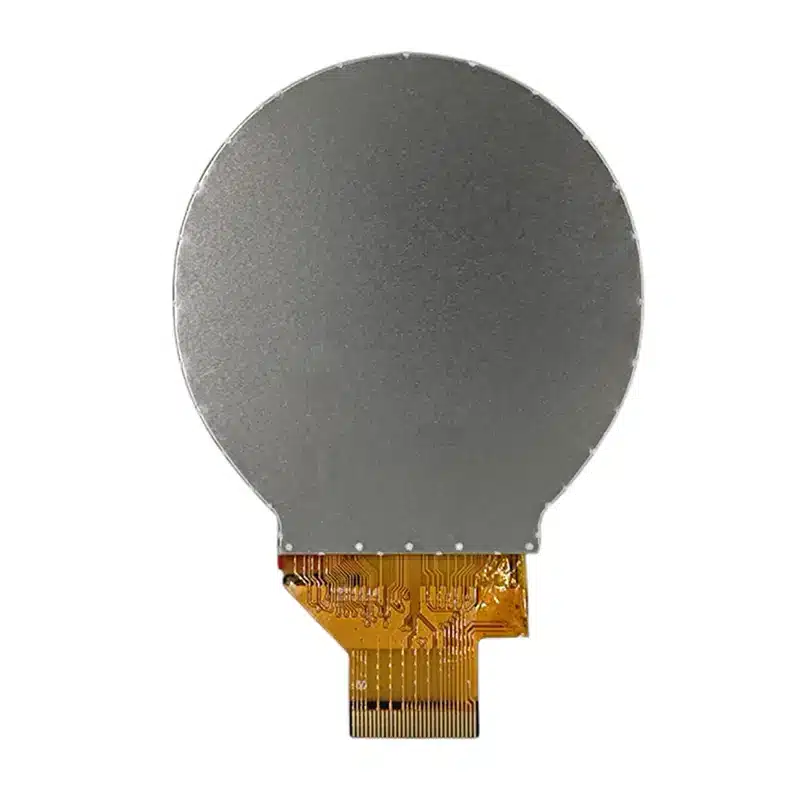

The active area of 53.28 × 53.28 mm should be compared with the visible circular window, cover lens, adhesive area, and casing tolerance. Mechanical teams should confirm whether the circular mask hides unused edges cleanly and whether the FPC tail has enough bend space inside the housing.

No-Touch Structure for Flexible Front Design

The confirmed module is without CTP. That gives OEM teams two choices: keep a simple display-only structure or evaluate a separate cover glass or touch stack. For smart watches and portable instruments, the cover design should consider thickness, reflection, scratch resistance, bonding method, and service requirements.

Display Performance for Small Round Interfaces

The display performance is balanced for compact wearable and instrument applications. A 350 cd/m² typical luminance level is suitable for many indoor, office, workshop, and general portable-device environments. If the product will be used outdoors, the finished system should be tested under real lighting with the selected cover lens.

350 cd/m² Luminance and 600:1 Contrast

The module lists 350 cd/m² typical luminance and 600:1 typical contrast. This combination supports small text, status icons, basic graphics, and circular dashboard-style UI. For best readability, UI designers should use adequate font size, strong contrast, and simple icon shapes.

80-Degree Viewing for Wrist and Handheld Angles

Wearable users rarely view a screen from a perfectly fixed angle. The 80-degree all-direction viewing specification helps preserve readability when the wrist turns, the instrument is tilted, or a technician checks data from the side.

16.7M Colors for Watch Faces and Status Graphics

The 16.7M color depth supports colorful watch faces, health metrics, warning indicators, and compact instrument screens. It is especially useful when the interface needs color-coded status rather than monochrome readouts.

MIPI, ST7701S, and 30-Pin Mechanical Integration

A 2.1 Inch Round Wearable Screen should be validated as both an optical component and an embedded electrical component. The MIPI interface, 30-pin connector, ST7701S driver, 2.8 V typical operating voltage, and white LED backlight all affect system design.

30-Pin MIPI Host Matching

Before PCB layout, engineers should confirm the 30-pin assignment, 0.5-pitch connector, MIPI lane configuration, reset and control pins, power sequence, and FPC orientation. The host processor must support the selected MIPI display mode and initialization sequence.

ST7701S Driver and Firmware Setup

The listed driver IC is ST7701S. Firmware teams should request the initialization code, timing parameters, gamma settings, and test pattern procedure before sample testing. This reduces risk during bring-up and helps identify whether issues come from signal routing, code, power, or panel handling.

Backlight and 2.8 V Power Planning

The datasheet lists VDD 2.8 V typical, 30 mA maximum supply current, and white LED backlight parameters including 80 mA typical forward current and 3.2 V forward voltage. Power engineers should confirm regulator capacity, backlight drive method, dimming control, and thermal margin inside the final wearable enclosure.

Recommended Applications for Compact Round Display Projects

The module is suitable for projects where a circular screen improves both product appearance and user interaction.

Smart Watches and Smart Bracelets

Wearable devices can use the display for watch faces, fitness data, notifications, health metrics, and battery status. The round format supports familiar watch-style UI while the slim 2.3 mm structure helps with compact casing design.

Compact Smart Instruments and Meters

Small instruments can use the screen for readings, gauge-style graphics, mode indicators, and status alerts. The MIPI interface and ST7701S driver route make it suitable for embedded systems that need a compact color display.

Medical, Health, and Portable Diagnostic Devices

Portable health devices can use the circular display for simple results, prompts, icons, and operating status. Designers should validate cleaning requirements, cover glass, brightness, and viewing distance for the actual use case.

Home Appliance and Small Industrial Controls

Appliance knobs, smart controllers, and sensor devices can use the display for mode selection, progress rings, timer graphics, and compact dashboards. The no-touch standard configuration allows button-controlled or external-control interfaces.

Customization Options for Round Wearable Screen Projects

Project evaluation can include round UI layout review, cover glass design, glare or AR surface review, touch add-on assessment, MIPI cable and control-board matching, FPC route planning, enclosure fit, backlight and power validation, logo or packaging requirements, and sample-based customization. Touch, cover hardness, and bonding should be treated as project-specific options unless confirmed in the final specification.

Procurement and Engineering Checklist for 2.1-Inch Round TFT Selection

• Confirm 480×480 circular UI layout, font size, and icon geometry.
• Check active area, outline size, circular window, and FPC bend space.
• Confirm MIPI host support, 30-pin pinout, and connector orientation.
• Validate ST7701S initialization code, timing, and display test procedure.
• Review 2.8 V VDD rail, backlight current, and dimming method.
• Decide whether no-touch is sufficient or whether cover glass/touch is needed.
• Test brightness and viewing angle with the final lens or cover stack.
• Confirm operating temperature, sample validation plan, quantity, and application environment.
