21.5 Inch EV Charging Station Display for Outdoor Charging Hubs

FHD Outdoor Charger HMI Display with LVDS Integration and IP66 System Option

A 21.5 Inch EV Charging Station Display is a sunlight-readable FHD display platform for charger cabinets that need clear charging status, payment guidance, user prompts, advertising content, 30-pin LVDS panel integration, and optional system-level outdoor protection. The 21.5-inch format gives EV charging equipment a practical front-screen area: large enough for real-time power and session data, yet compact enough for parking-lot chargers, commercial charging hubs, and smart mobility terminals.

At a Glance: Charger-Facing FHD Display Highlights

• 21.5-inch 16:9 screen size supports charging status, payment flow, QR instructions, and media content.
• 1920 × 1080 FHD resolution provides a familiar UI canvas for charger software and advertising layouts.
• 1000–5000-nit brightness range supports sunlight-readable outdoor display planning.
• 3000:1 typical contrast and 16.7M colors support clear graphics and interface elements.
• 30-pin LVDS interface provides a structured panel-level integration path.
• Structured SKU block lists non-touch; touch interaction should be confirmed as a project configuration.
• Designed For: public EV charging stations, parking-lot chargers, smart mobility hubs, and outdoor HMI cabinets.

Product Overview of the 21.5 Inch EV Charging Station Display

The 21.5 Inch EV Charging Station Display is built for one specific user problem: outdoor charger screens must communicate quickly in bright, public environments. A charger user needs to see battery level, estimated cost, charging power, session time, payment instructions, fault prompts, and safety notices without struggling through glare or a crowded layout. The 21.5-inch FHD format gives equipment designers enough screen area to organize that information into clear zones while keeping the charger cabinet manageable.

This product is not only a media display. The source page places it directly in EV charging station display applications and describes use in outdoor charging stations, parking lots, and smart mobility hubs. That makes the screen especially relevant for charger OEMs that need the display area to work as an HMI, an information surface, and a communication channel for advertising or site instructions. The page lists 1000–5000 nits in the structured product block and 5000 nits in the system-level technical section, so brightness should be selected according to the final installation site.

From an engineering perspective, the structured data block is important. It confirms a 478.656 × 260.28 mm display area, 495.6 × 292.2 mm overall size, 11.2 mm maximum thickness, LVDS signal interface, and 30 signal pins. These values help teams evaluate panel fit, cable route, controller matching, and front-window design before committing to a charger cabinet.

Key Features of the 21.5 Inch EV Charging Station Display

Technical Specifications of the 21.5-Inch Charger Display Platform

The public specifications above use confirmed high-value values only. System-level items such as IP66 protection, AC power input, remote management, and multi-interface options should be treated as configured outdoor display solution items unless the final project BOM confirms them for the ordered version.

Why Choose a 21.5-Inch Display for EV Charger Cabinets?

21.5-Inch FHD Layout for Charging Status and Payment Guidance

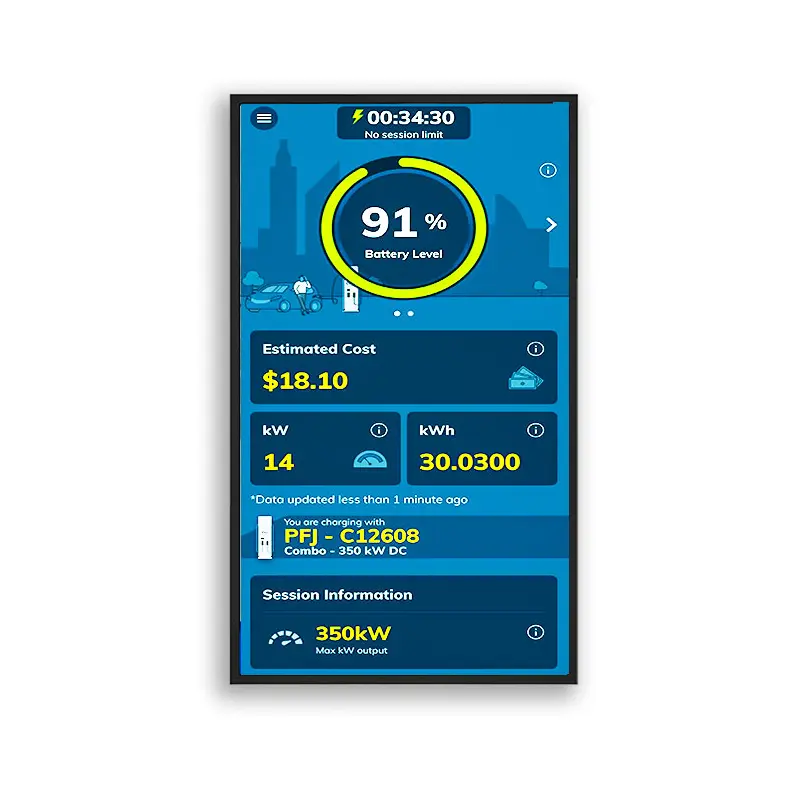

A 21.5-inch FHD display gives charger software teams room to separate the most important information: charging progress, kW output, kWh delivered, session time, estimated cost, payment steps, user instructions, and warning messages. Smaller displays may force dense layouts, while larger screens can increase cabinet size and mechanical cost. This size is a practical midpoint for public chargers.

1000–5000 Nits for Outdoor Charging Locations

Outdoor charging stations operate in highly variable light conditions. Some units sit under canopies, some face parking-lot daylight, and some may be exposed to stronger ambient light. The 1000–5000-nit brightness range lets buyers evaluate the screen against the actual deployment environment rather than using one brightness level for every site.

Structured Non-Touch Base with Project Touch Flexibility

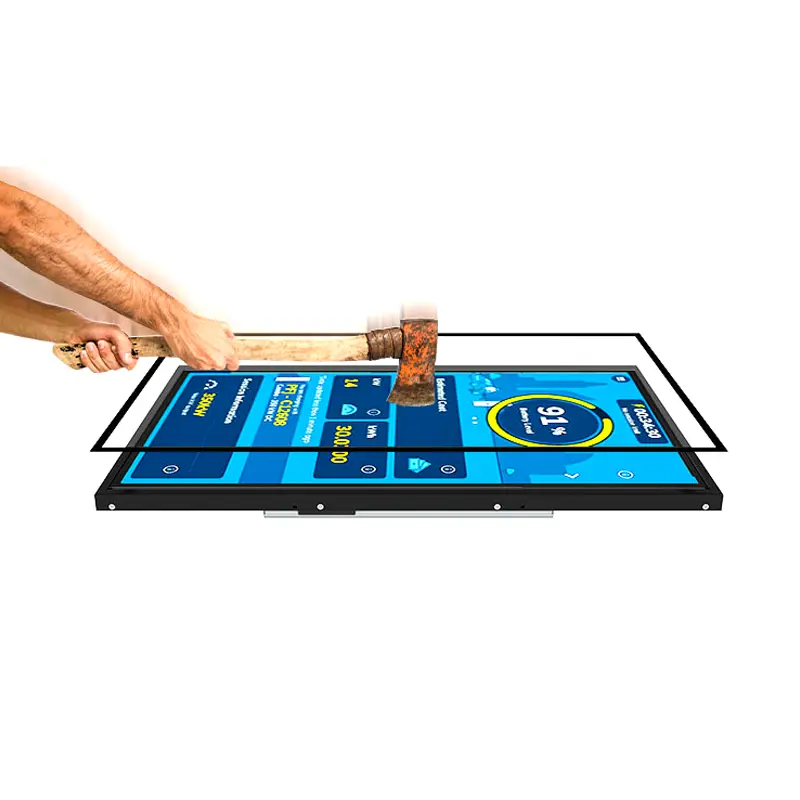

The structured parameter block identifies touch support as non-touch, while other page content references touch interaction. For procurement, the safest approach is to treat the base display as non-touch and confirm any touchscreen, cover glass, optical bonding, or IK-rated front protection as a project-specific configuration. This protects both cost control and mechanical design clarity.

LVDS Integration, Cabinet Fit, and Outdoor System Planning

The 30-pin LVDS interface is the core panel-level integration point for this 21.5 Inch EV Charging Station Display. Before sample approval, engineering teams should confirm LVDS timing, cable length, connector orientation, grounding, EMI strategy, and controller-board compatibility. If the final system requires HDMI, RJ45, USB, RS485, Wi-Fi, 4G, API, CMS, or OCPP-related functions, those should be validated at the display-system or controller level, not assumed from the bare panel interface alone.

Mechanical planning should start with the 478.656 × 260.28 mm display area and 495.6 × 292.2 mm overall size. Charger designers should confirm the front opening, gasket stack, protective glass, sealing structure, mounting bracket, thermal path, and service access. If the project requires IP66 outdoor protection, confirm whether the rating applies to the finished enclosure, front panel, or full display assembly.

Recommended Applications for Outdoor Charging Infrastructure

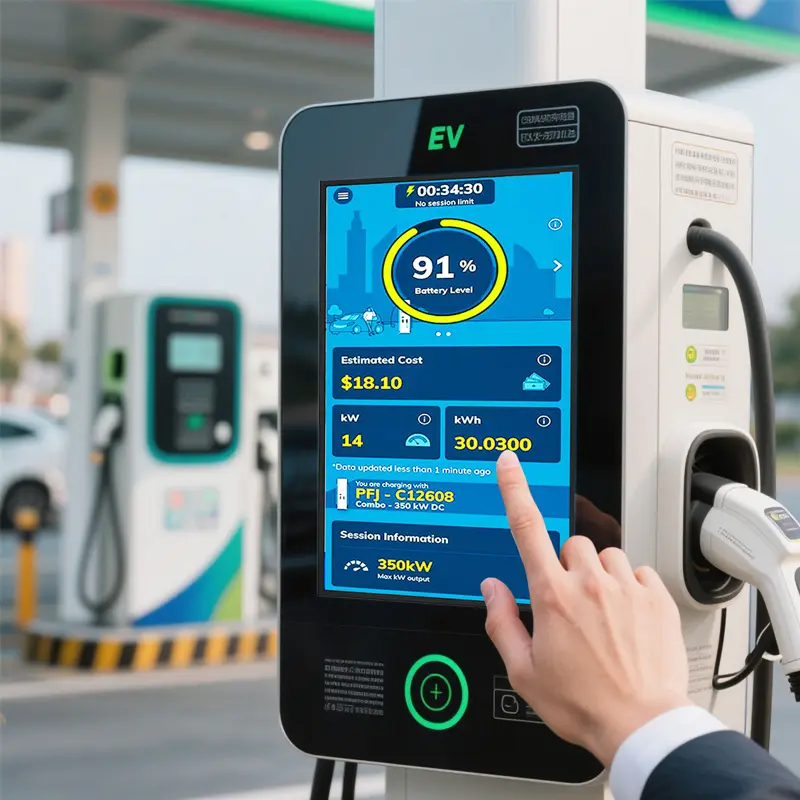

This display is especially suitable for public fast-charging stations, parking-lot chargers, commercial charging hubs, community charging points, and smart mobility sites. In public chargers, the screen can show live charging data, payment prompts, connector instructions, and service notices. In commercial parking lots, it can combine charger status with retail advertising, parking guidance, or site branding.

For smart mobility hubs, the same display area can support transportation information, charging queue guidance, safety reminders, and operator messages. Its 21.5-inch size makes it large enough for visual communication but still practical for embedded charger cabinet design.

Customization Options for 21.5-Inch EV Charger Display Projects

Project evaluation can include brightness level selection, non-touch or touch front design, anti-glare cover glass, optical bonding, IP-rated enclosure integration, LVDS control-board matching, HDMI/RJ45/USB/RS485 system interface planning, CMS or cloud-content workflow review, mounting bracket development, thermal design, and charger-specific UI layout support.

Procurement and Engineering Checklist for 21.5-Inch Charger Display Selection

• Confirm whether the project needs 1000 nits, 5000 nits, or another brightness target.
• Verify 1920 × 1080 UI layout for payment, status, advertising, and fault prompts.
• Check 30-pin LVDS timing, pinout, controller compatibility, and cable routing.
• Confirm non-touch, touch, cover glass, or optical bonding requirements.
• Review the 495.6 × 292.2 mm overall size against the charger cabinet drawing.
• Clarify IP66 scope: front panel, enclosure, or complete outdoor assembly.

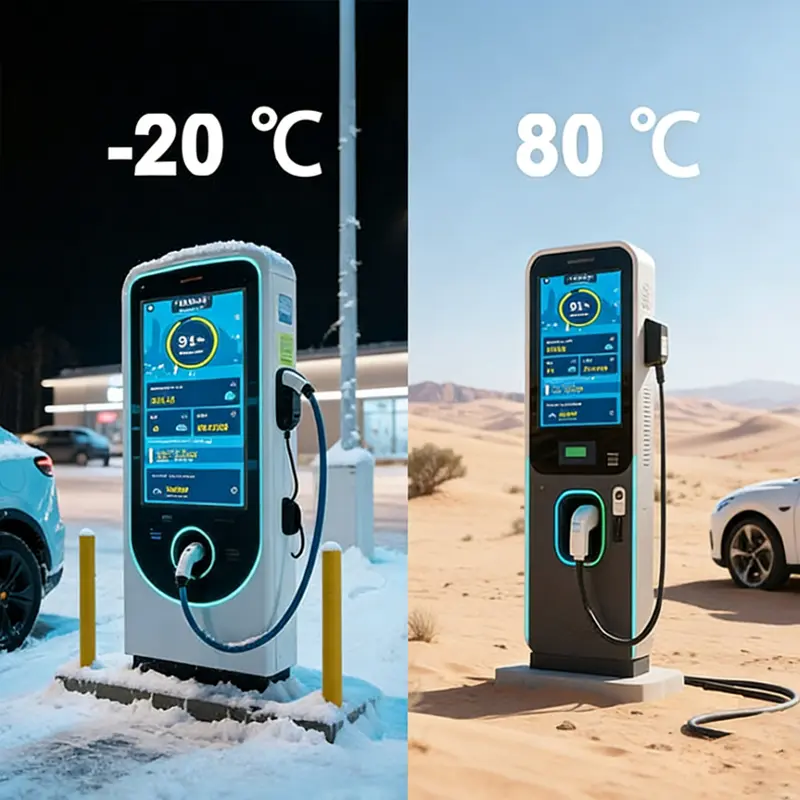

• Validate operating temperature, humidity, and thermal management.
• Confirm whether HDMI, RJ45, USB, RS485, Wi-Fi, 4G, CMS, API, or OCPP-related functions are needed in the final system.
