21.5 Inch LCD Panel Controller Board Kit Outdoor Display for Digital Signage

21.5 Inch LCD Panel Controller Board Kit Outdoor Display for Digital Signage

This Full HD 2000 cd/m² panel pairs with selectable LVDS controller-board bundles for bright commercial signage and embedded display projects.

Product Summary

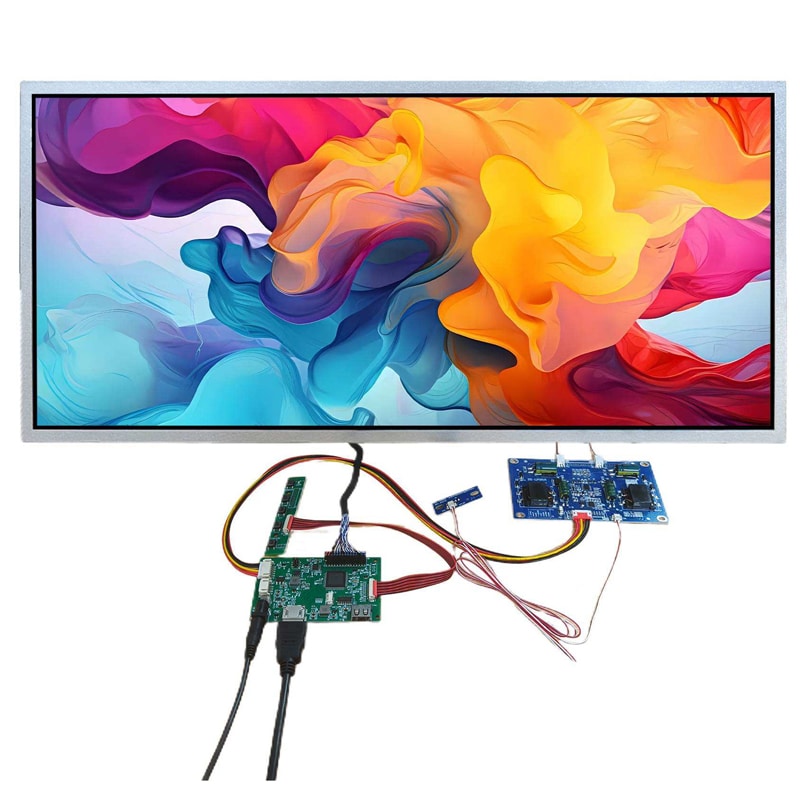

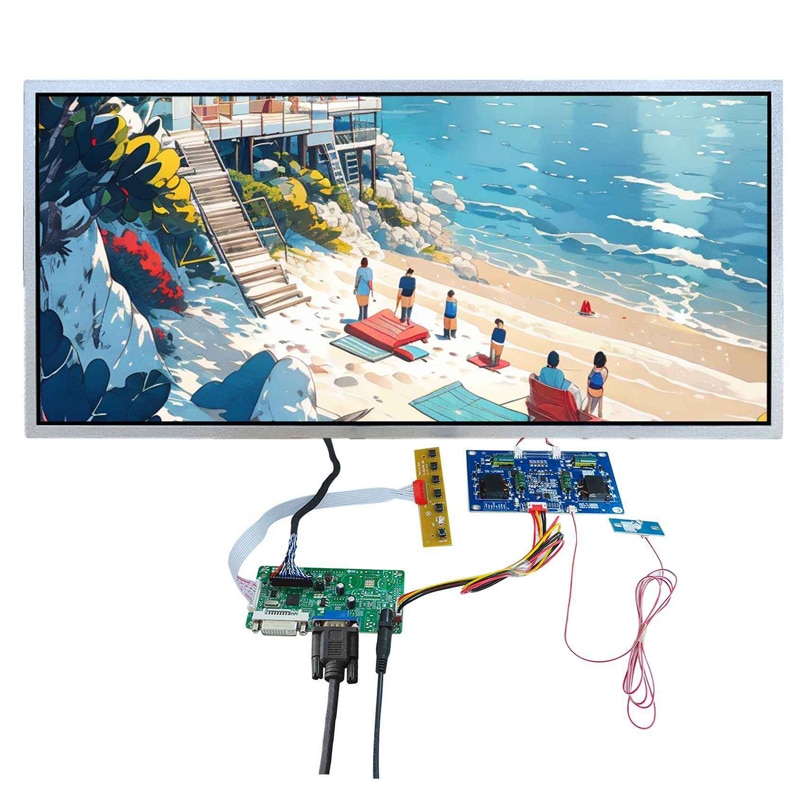

The LCD Panel Controller Board Kit combines a 21.5-inch Full HD panel with one selected video-input controller, an LVDS cable, a backlight board and an OSD keyboard. It gives signage integrators a more direct route from an external video source to the panel’s native two-channel, 8-bit LVDS connection.

The panel provides 1920 × 1080 resolution, a 476.064 × 267.786 mm active area and 2000 cd/m² luminance. Its 16:9 format suits advertising layouts, product information, menu graphics and public-information content prepared in the standard Full HD canvas.

A 30-pin LVDS connector does not guarantee panel timing, mapping, voltage or firmware compatibility. The ordered board SKU, cable, firmware and panel specification must be treated as one matched configuration.

Key Specifications at a Glance

2000 cd/m² Full HD Panel for Bright Signage

Native Full HD Content Preparation

The 1920 × 1080 raster is widely supported by media players, PCs and signage systems. Prepare content at the native resolution to avoid avoidable scaling, soft text or black borders. The 21.5-inch format offers enough area for promotional graphics and information while remaining practical for compact cabinets.

AHVA and TN Configuration Control

The technical configuration identifies AHVA, normally black and transmissive operation, while a separate summary attribute uses TN. Treat the panel mode as an order-approval item. The signed production specification should define the actual optical mode, viewing performance and matching model before mechanical or controller release.

Optical Performance Behind Front Glass

The fixed panel luminance is 2000 cd/m². This provides substantial optical headroom for window-facing and high-ambient-light use, but finished visibility also depends on cover-glass transmission, surface reflections, bonding, enclosure temperature and content contrast.

A 2000 cd/m² panel is not a weatherproof outdoor display without a qualified enclosure, front glass and thermal system. Fully exposed outdoor use requires separate environmental and mechanical engineering.

LCD Panel Controller Board Kit Integration

30-Pin LVDS Panel Qualification

The controller must produce the panel’s native 1920 × 1080 timing and match its two-channel, 8-bit LVDS mapping, 30-pin assignment and 5.0 V input requirement. Confirm the LVDS cable orientation and board firmware before applying power.

A controller supporting another 21.5-inch Full HD panel is not automatically compatible. Pin mapping, power pins, backlight control and firmware may differ even when size, resolution and connector count appear identical. LCD-controller manufacturers similarly recommend matching the panel model, datasheet, firmware, interface, voltage and pinout rather than relying on connector count alone.

5 V Panel and 12 V Controller Power

The 5.0 V value applies to the LCD panel input. The controller-board bundles specify a 12 V DC adapter above 2 A and use a separate backlight board.

The 12 V adapter rating must not be rewritten as the panel voltage. Engineering review should confirm controller consumption, panel current, backlight-board input and output, cable loading and the required power margin.

Selecting the Correct Board Bundle

Controller-board variants are alternative kit configurations, not one package containing every board. Select the bundle according to the required video source, media-playback method, audio route and control functions, then confirm the exact board code and firmware.

Mechanical and System Design

Active Area and Outline Approval

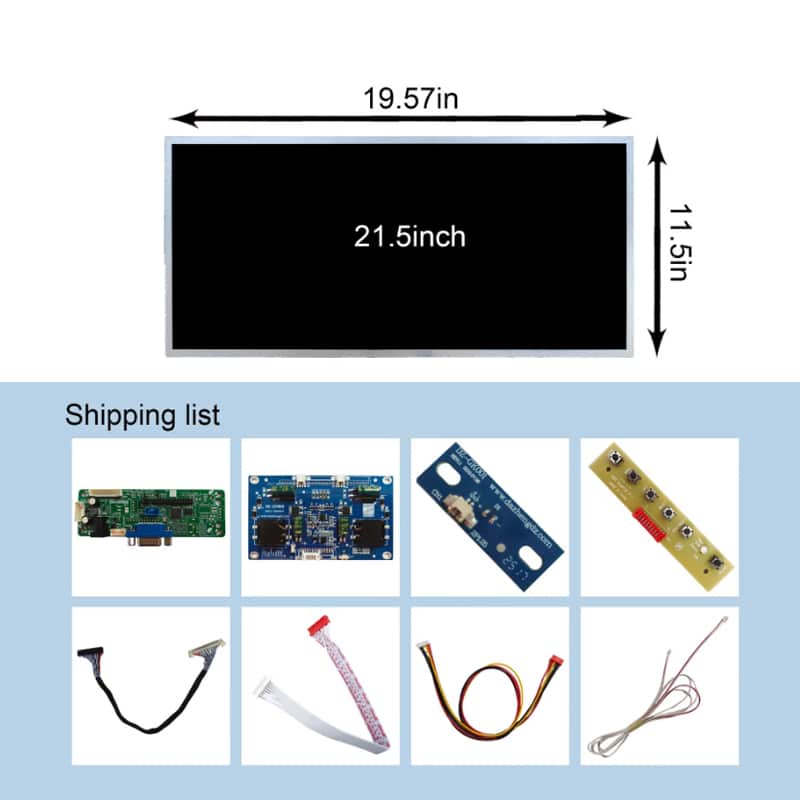

The active image area is 476.064 × 267.786 mm. The technical outline is 487.664 × 279.286 × 1.29 mm, while an approximate dimensional illustration uses 19.57 × 11.5 inches. Obtain the approved drawing before releasing the bezel opening, mounting supports or cable routing.

Backlight-Board and Cooling Requirements

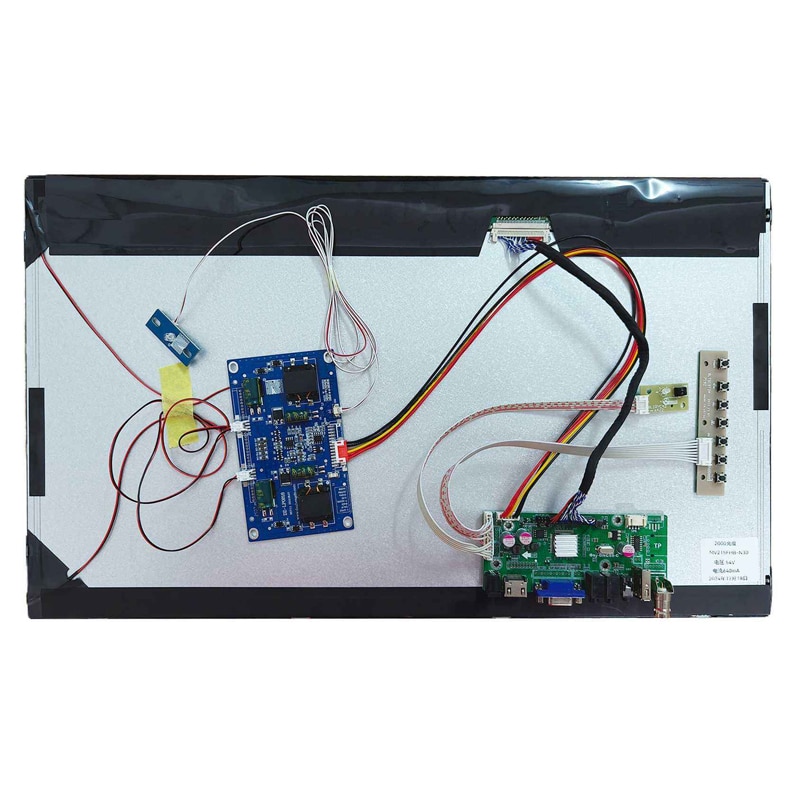

A WLED backlight and separate backlight board are included in the shown kit structures, but output voltage, current, dimming method and lifetime are not defined. The controller enclosure should allow access to the backlight board, LVDS cable and OSD keyboard while preventing cable strain.

High luminance increases the importance of thermal planning. Outdoor-signage guidance consistently treats cooling, solar loading, front-glass performance and environmental sealing as system-level requirements rather than consequences of panel brightness alone.

Bare Kit Versus Outdoor Enclosure

This is a component kit, not a sealed outdoor monitor. A finished outdoor or semi-outdoor assembly may require:

• a weather-resistant enclosure;
• front glass with controlled transmission and reflection;
• ventilation, fan cooling or another thermal path;
• protected power and signal connections;
• service access;
• condensation and drainage control;
• project-specific environmental testing.

Applications for Digital Signage and Commercial Equipment

This LCD Panel Controller Board Kit is suited to window-facing retail displays, sheltered kiosks, transportation-information panels, bright commercial signage and custom monitor assemblies.

The alternative board bundles allow the panel to be paired with computer, legacy-video or USB-media workflows. Final application approval should consider viewing conditions, front-glass loss, thermal load, source resolution, controller firmware and service access.

No touch functionality, waterproof rating, impact rating, environmental certification or continuous-operation grade is assumed for the standard kit.

Customization and Procurement

Project evaluation can cover:

• controller-board input selection;
• board firmware;
• LVDS cable and 30-pin definition;
• backlight-board matching;
• cover glass and printed border;
• anti-glare or anti-reflective treatment;
• optical bonding;
• touch-overlay development;
• enclosure and cooling design;
• mounting;
• branding and packaging.

Logo and packaging customization is generally offered from 1,000 sets for this commercial configuration. Technical customization scope and minimum quantity are quoted separately. Standard kit and sample quantities should be reconfirmed with the selected controller-board SKU.

Procurement Checklist

Confirm the approved panel specification and drawing; HS215FHB-2000 mapping; selected K003604–K003608 kit; exact controller model and firmware; native 1920 × 1080 timing; two-channel, 8-bit LVDS mapping; complete 30-pin assignment; 5.0 V panel rail; 12 V controller input and current requirement; backlight-board electrical data; LVDS cable orientation; AHVA or TN optical mode; active area; total outline; cover-glass stack; cooling plan; enclosure protection; touch requirement; sample criteria; quantity and annual demand.
