The 21.5inch High Brightness Sunlight Readable LCD combines a Full HD AHVA panel, 2000 cd/m² luminance and a controller-accessory package for elevator advertising, lift information displays and bright commercial equipment. Its 1920 × 1080 image area supports promotional media, building notices and information content, while the 30-pin LVDS panel connection provides a defined integration route for the supplied controller system.

This product is an open panel kit rather than a finished advertising machine. The enclosure, front cover, mounting structure, cooling system, media source and environmental protection must be designed around the final installation.

Product Summary

The 21.5-inch display uses AHVA normally black transmissive technology. It provides a 3000:1 typical contrast ratio and a viewing specification of 89° in four directions.

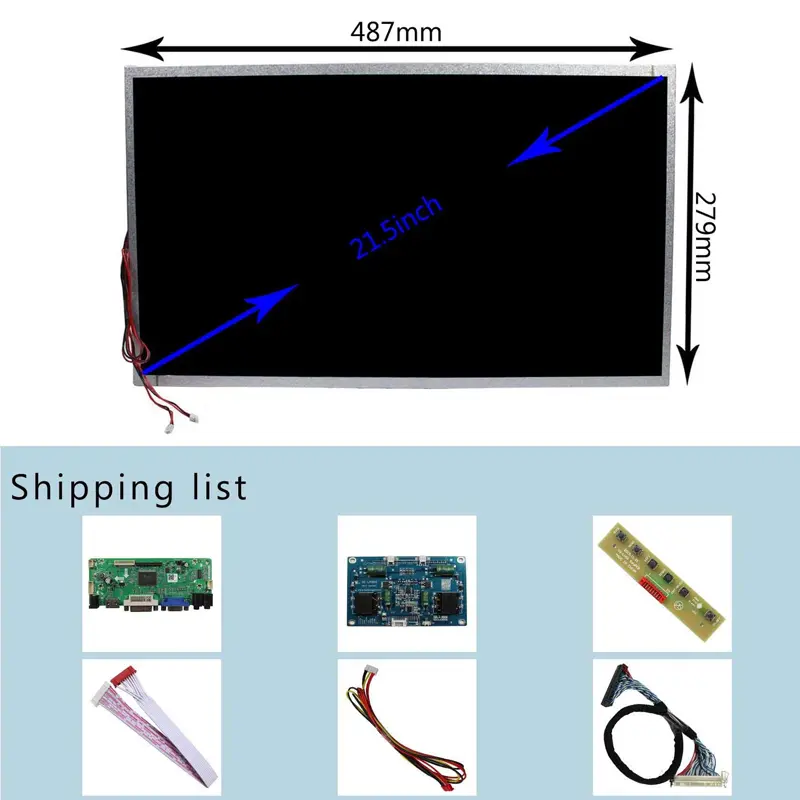

The active image area is 476.064 × 267.786 mm. The panel outline is 487.664 × 279.286 × 1.29 mm, giving enclosure designers a defined Full HD footprint for elevator walls, lobby fixtures and custom commercial equipment.

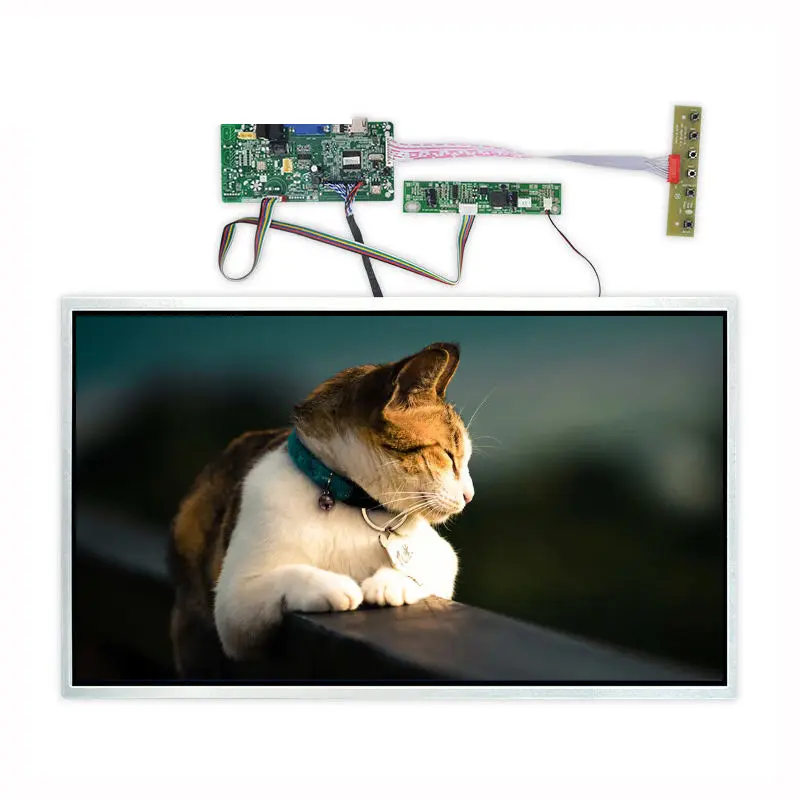

The kit includes a controller route and core connection accessories for engineering evaluation. It does not eliminate the need to confirm LVDS mapping, power distribution, backlight connections, source timing, cable orientation and thermal performance.

The confirmed luminance is 2000 cd/m². The conflicting 1000 cd/m² draft value is not used.

Product Main Parameters

Full HD Content for Elevator Displays

Preparing Native 1920 × 1080 Media

Content should be created at the panel’s native 1920 × 1080 resolution.

Native Full HD media helps preserve:

• sharp text;
• clean logo edges;
• correct image proportions;
• detailed promotional graphics;
• QR-code readability;
• consistent split-screen layouts;
• stable video scaling.

The media source and controller must both support the required Full HD timing. A lower-resolution source may produce soft text, while an unsupported timing can cause unstable synchronization or no image.

The representative source device should be tested with the actual controller and LCD kit before enclosure release.

Designing for Short Viewing Time

Elevator content is normally seen for a limited period. The visual hierarchy should communicate the primary message quickly.

Suitable layouts use:

• one clear headline;
• a dominant product or brand image;
• limited supporting text;
• a visible call to action;
• strong foreground/background contrast;
• readable building or service information;
• restrained animation.

The panel can render fine Full HD text, but technical resolution does not guarantee practical readability during a short elevator ride. Test content at the final viewing distance and mounting height.

Optical Design for Sunlight-Readable Performance

Applying 2000 cd/m² Luminance

The 2000 cd/m² panel offers a high-luminance basis for elevator lobbies, glass-adjacent installations, illuminated lift interiors and commercial equipment exposed to strong ambient light.

The finished optical result also depends on:

• front-cover transmission;
• surface reflection;
• optical bonding or air gap;
• installation depth;
• content contrast;
• viewing position;
• backlight adjustment;
• internal temperature.

The 21.5inch High Brightness Sunlight Readable LCD should therefore be evaluated as part of a complete optical system rather than by luminance alone.

Managing Reflections and Front-Cover Losses

A front cover protects the panel but can reduce practical readability if its reflection or transmission is not controlled.

Engineering review should consider:

• clear-glass transmission;
• anti-glare treatment;
• anti-reflective treatment;
• air-gap reflections;
• optical bonding;
• black-border printing;
• cleaning requirements;
• installation angle;
• direct light sources.

High luminance does not establish an IP rating, weather resistance or unrestricted outdoor suitability. Outdoor deployment requires a sealed enclosure, environmental protection, solar-load management and thermal qualification.

LVDS Integration for the 21.5inch High Brightness Sunlight Readable LCD

Separating Panel and Controller Power

The LCD panel electronics use a 5.0 V typical input.

The M.T68676 controller requires a separate 12 V DC supply rated above 2 A. These specifications apply to different system components and must not be merged into one general voltage statement.

Before powering the system, confirm:

• controller-input polarity;
• adapter current capacity;
• panel-voltage rail;
• backlight-board supply;
• common grounding;
• cable orientation;
• keypad connection;
• enable behavior.

The controller standby statement is below 1 W when no signal is present. The complete kit’s operating power remains subject to the final backlight and controller configuration.

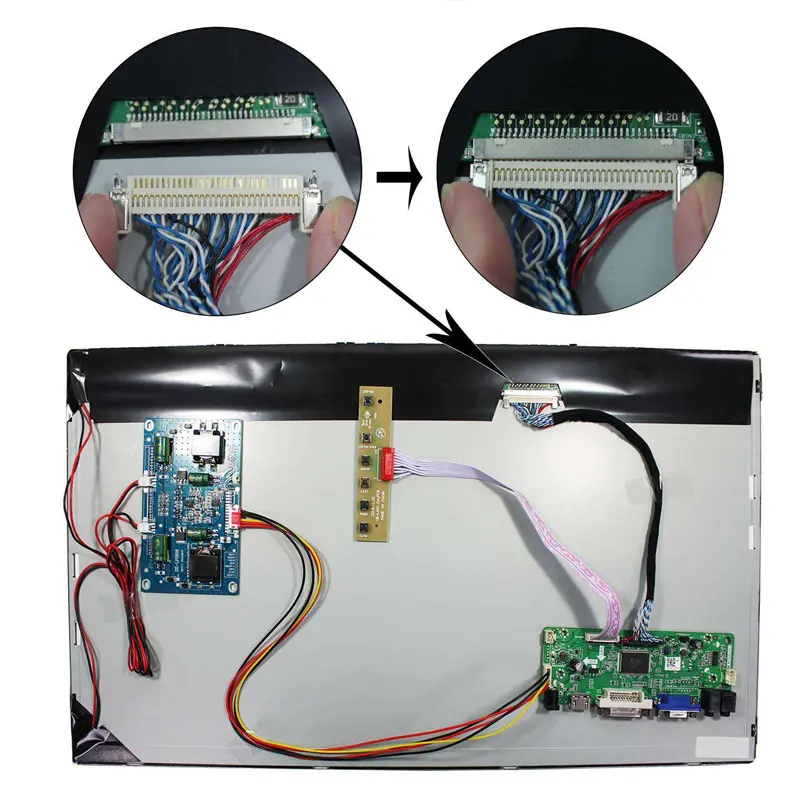

Qualifying the 30-Pin LVDS Connection

The panel uses a 30-pin, two-channel, 8-bit LVDS connection.

Compatibility requires verification of:

• native Full HD timing;
• pixel clock;
• channel assignment;
• bit mapping;
• LVDS-pair polarity;
• connector pitch;
• pin-1 location;
• panel-power pins;
• ground distribution;
• backlight controls;
• cable contact direction.

A matching 30-pin connector does not guarantee electrical or timing compatibility.

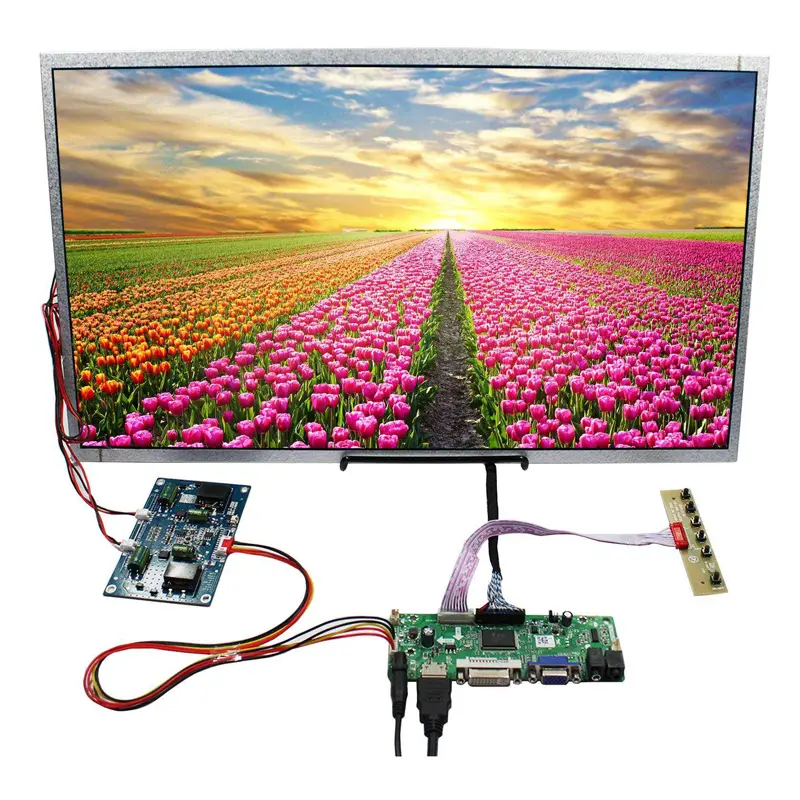

Controller Inputs and OSD Controls

The supplied controller route identifies VGA and DVI inputs.

Its OSD controls include:

• brightness;
• contrast;
• language;
• related picture settings.

The kit also identifies a keypad and remote-control route. The remote-control battery is not included.

Sample testing should verify power-on behavior, source detection, Full HD output, input switching, OSD access, standby recovery and signal reconnection.

Mechanical and Thermal Integration

The panel dimensions do not represent the complete installed assembly.

The enclosure must also provide space for:

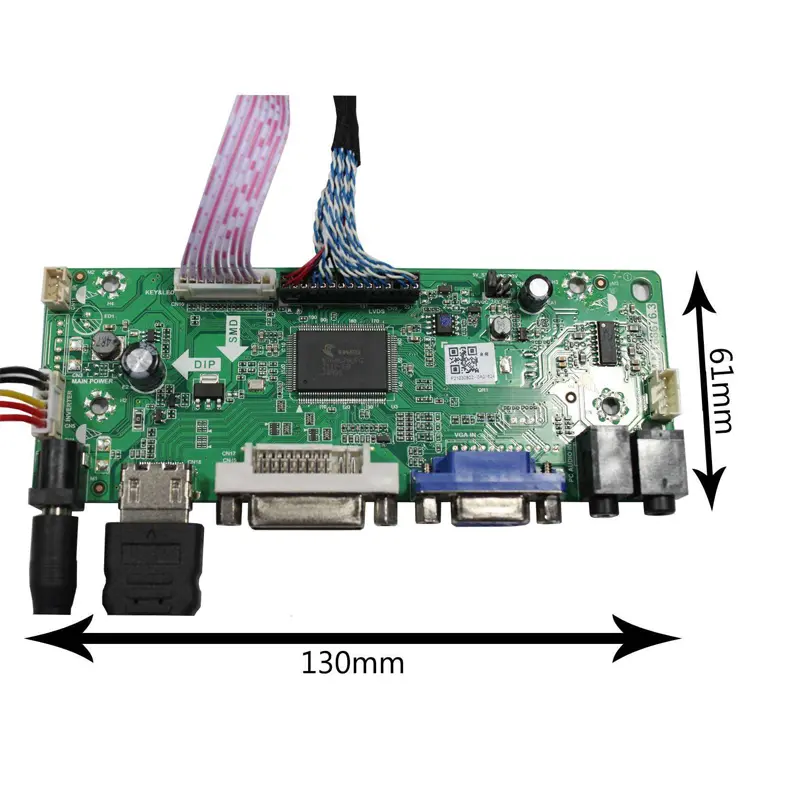

• the 125 × 58 × 17 mm controller board;

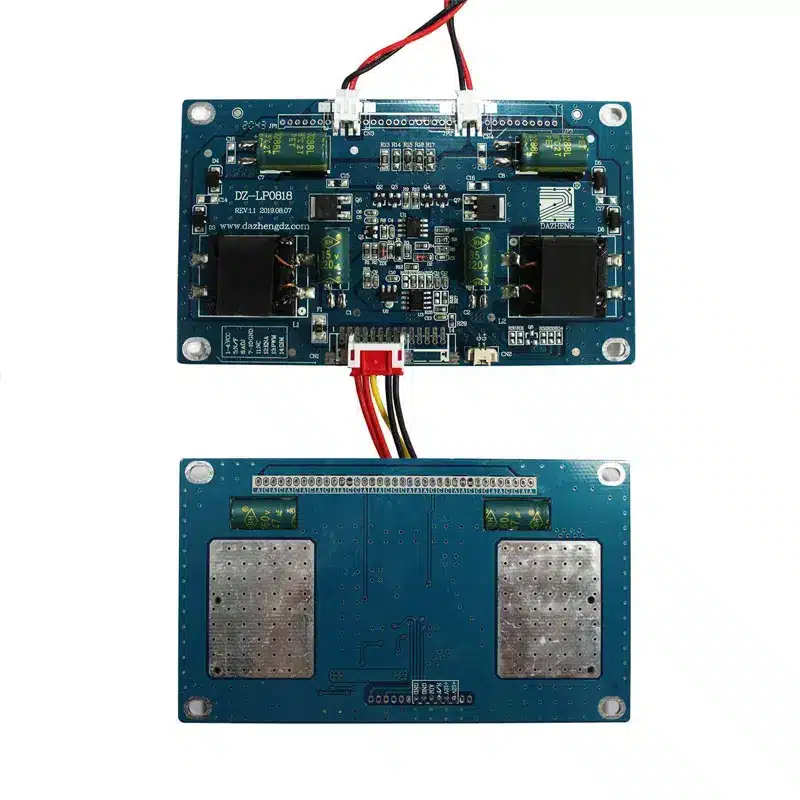

• the backlight board;
• the keypad;
• VGA and DVI connectors;
• power input;
• cable bends;
• ventilation;
• mounting supports;
• front protection;
• service access.

The bezel opening should be based on the approved active-area position and panel drawing, not solely on the nominal 21.5-inch diagonal.

Continuous 2000 cd/m² operation can increase thermal demand. Panel, controller and backlight-board temperatures should be measured inside the final enclosure under the intended ambient condition and brightness setting.

Recommended Application Routes

This panel kit may be evaluated for:

• elevator advertising displays;
• lift-information panels;
• lobby advertising systems;
• bright indoor digital signage;
• window-adjacent sheltered displays;
• vending-machine screens;
• commercial information terminals;
• embedded promotional equipment.

In late-stage integration, the 21.5inch High Brightness Sunlight Readable LCD should be assessed as a complete optical, electrical, mechanical and thermal system.

These application routes do not establish environmental certification, universal compatibility or weatherproof performance.

Customization and Sample Qualification

Project-specific review may cover:

• controller-input selection;
• LVDS cable and mapping;
• backlight board;
• keypad layout;
• remote-control functions;
• front-cover glass;
• anti-glare treatment;
• anti-reflective treatment;
• optical bonding;
• enclosure structure;
• mounting design;
• ventilation and cooling;
• packaging.

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Samples and standard-kit quantities are confirmed separately.
