23.8 Inch LCD Display Kit for Digital Menus with LVDS Control

23.8 Inch LCD Display Kit for Digital Menus with LVDS Control

Built for bright indoor menu and information systems, this Full HD kit pairs a 1500 cd/m² panel with a matched LVDS controller, backlight driver, cable, and keypad.

Product Summary

The LCD Display Kit for Digital Menus combines a 23.8-inch Full HD panel with the electronics required for initial system evaluation. Its 1920 × 1080 resolution supports menu pricing, product photography, promotional graphics, and operational information in a familiar content format. Typical luminance is 1500 cd/m², giving the panel more visibility headroom than a standard indoor office display when installed near entrances, bright counters, or other high-ambient-light areas.

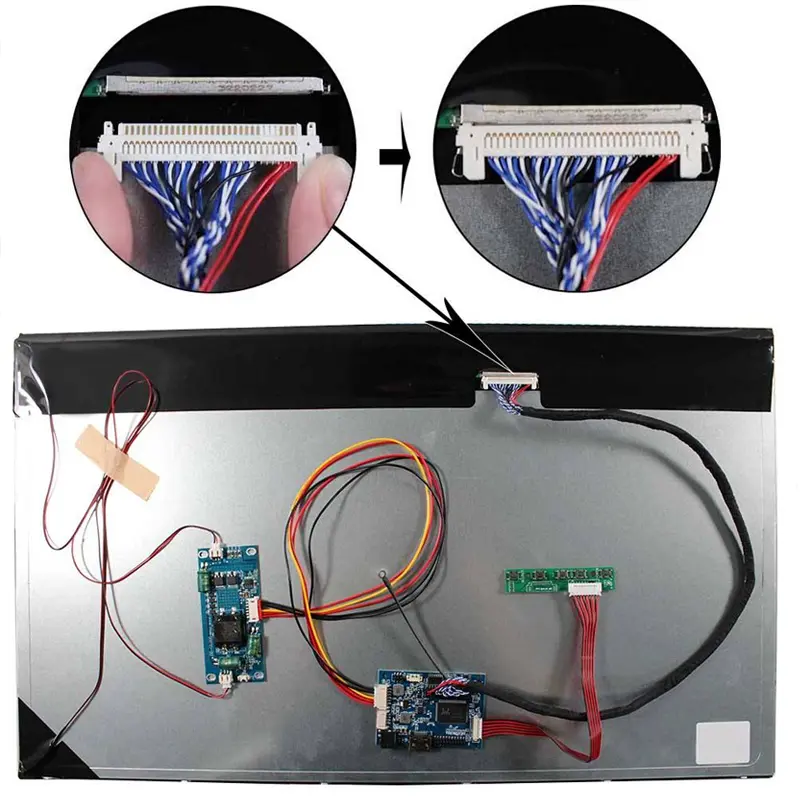

The kit includes the LCD controller board, LED backlight driver board, LVDS cable, and wired keypad. It is intended for integration into a buyer-designed enclosure rather than use as a finished monitor. Mechanical, electrical, optical, and environmental qualification should therefore be completed before production release.

Key Specifications

Bright-Interior Performance for Menu and Information Systems

1500 cd/m² luminance for high ambient light

A menu display must preserve text contrast and product-image clarity under the actual lighting at the installation point. The 1500 cd/m² typical luminance is suitable for bright indoor locations and protected high-ambient-light positions where lower-luminance panels may appear subdued. Final readability still depends on the front window, reflections, viewing distance, content colors, and enclosure geometry.

The panel does not establish direct-sunlight performance or outdoor protection by brightness alone. A front glass stack, reflection control, thermal design, and environmental enclosure must be evaluated separately when the display faces daylight or is installed near an exterior opening.

Full HD content planning

The 1920 × 1080 native format simplifies content preparation for landscape menus, promotional panels, queue information, and branded presentation. Designers can organize pricing, item names, images, and notices without unusual scaling. Small text should still be validated at the intended viewing distance, especially when a single screen carries several menu columns.

TN optical mode and viewing validation

The panel is identified as TN, normally white, and transmissive. Four 89° viewing-angle values are listed, but the contrast-ratio criterion differs between available parameter tables. Engineering approval should therefore use the current panel datasheet and an optical sample rather than assuming a directional viewing specification from the four numbers alone.

Integrating the LCD Display Kit for Digital Menus

Panel-to-controller signal path

The panel uses a 30-pin, dual-channel, 8-bit LVDS interface. The supplied controller must be matched to the native 1920 × 1080 timing, LVDS mapping, connector orientation, cable definition, and panel voltage. Matching only the diagonal size and resolution is not sufficient for compatibility.

A 30-pin LVDS connector does not establish compatibility without verified mapping, timing, voltage, cable orientation, and firmware.

The controller board and supplied LVDS cable create a practical starting point for evaluation, but the approved board revision and firmware should be recorded before moving from sample testing to repeat production.

Separate panel and controller power domains

The panel logic input is 5.0 V typical, while the controller board requires 12 V DC above 5 A. These values describe separate parts of the system and must not be treated as interchangeable supply requirements.

The 5.0 V panel logic rail and 12 V controller supply are separate power domains.

The power design should confirm connector polarity, current capacity, grounding, cable gauge, backlight-driver wiring, startup behavior, and the intended dimming method. The listed controller also supports on-screen adjustments through the wired keypad, including brightness, contrast, automatic adjustment, and language selection.

Board and enclosure planning

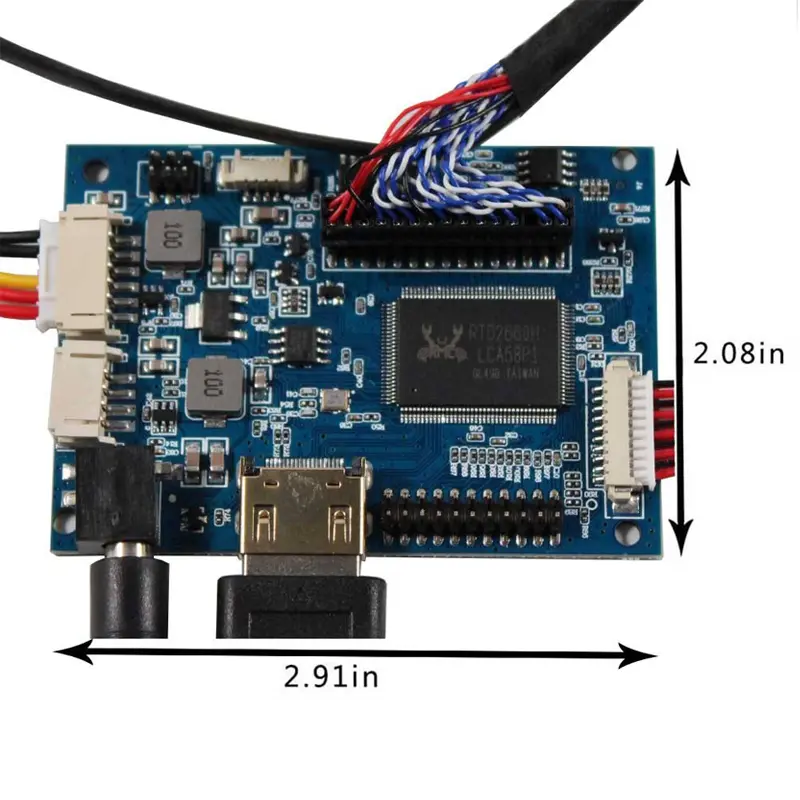

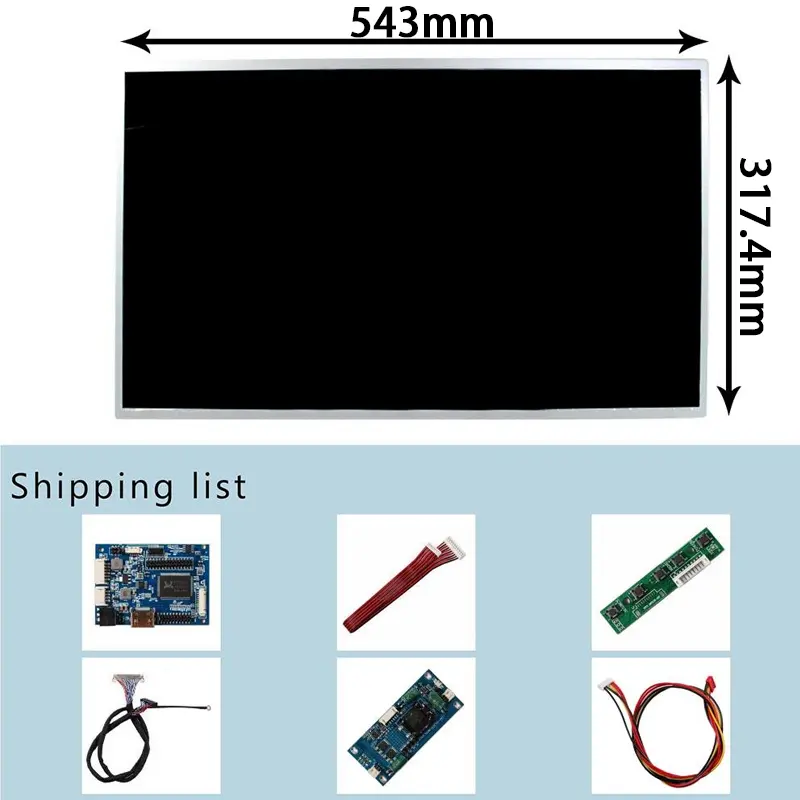

The panel outline is 543 × 317.4 × 11.7 mm, and the active area is 527.04 × 296.46 mm. The controller board measures 74 × 53 × 12 mm. These dimensions help define the visible opening, panel support, board standoffs, cable bend space, ventilation path, and service access.

The panel, controller, driver board, and cables should be fixed so that connectors are not used as structural supports. Keep-out zones, grounding points, front-window clearance, and cable strain relief should be included in the enclosure drawing.

Application Fit and Qualification Boundaries

The kit is well aligned with restaurant menu displays, bright indoor information points, retail counters, sheltered signage housings, and custom commercial interface systems. Its Full HD format supports standard media workflows, while the supplied controller and accessories shorten the path to functional prototype testing.

The LCD Display Kit for Digital Menus is a component-level integration package. No weatherproof housing, protective glass, touch sensor, mounting frame, media player, speakers, or finished-product certification is confirmed as part of the standard kit.

A 1500 cd/m² panel kit is not a weatherproof outdoor monitor without a qualified enclosure.

Projects near windows or exterior openings should validate screen temperature, reflected light, cover-glass losses, ventilation, and continuous operating schedule. Vehicle, medical, payment-terminal, and safety-critical suitability should not be inferred without the relevant qualification documents.

Customization and Procurement Planning

Controller firmware, LVDS mapping, cable length, brightness control, cover glass, optical treatment, touch development, enclosure design, cooling, sealing, mounting, speaker integration, branding, and packaging can be reviewed as project requirements.

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability, and the requested specification. Sample and standard-kit quantities are confirmed separately.

Procurement Checklist

Before sample approval or production release, confirm:

• Native 1920 × 1080 timing and complete 30-pin LVDS assignment.
• Approved panel identification, controller revision, firmware, and cable orientation.
• 5.0 V panel logic rail and 12 V DC controller supply above 5 A.
• LED-driver wiring, enable behavior, dimming method, and backlight connection.
• Active opening of 527.04 × 296.46 mm and panel fit of 543 × 317.4 × 11.7 mm.
• Controller clearance for the 74 × 53 × 12 mm board.
• Front-window optics, reflection target, thermal path, ventilation, and environmental protection.
• Included-accessory scope, sample criteria, project quantity, and annual demand.
