A slim 400×300 SPI E Ink panel for four-color shelf information.

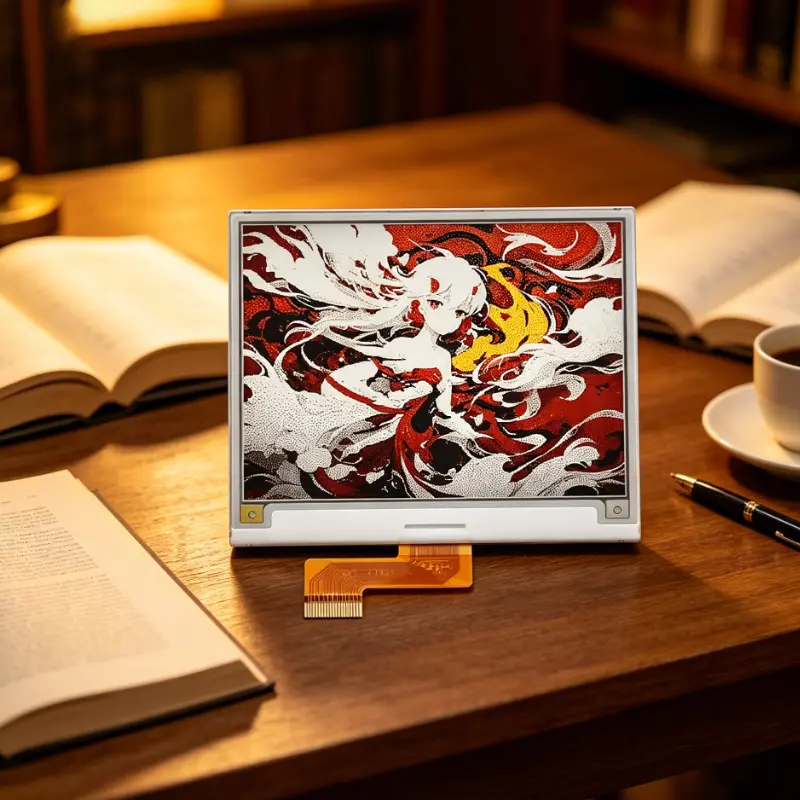

The 4.2 Inch Color Electronic Paper Panel is a reflective 400×300 display component for electronic shelf labels, price cards, promotional tags, inventory signs, and other retail information that changes intermittently. It presents red, yellow, black, and white content within an 84.8 × 63.6 mm active area and uses a slim 91.0 × 77.0 × 1.0 mm panel structure.

This is a bare display panel, not a complete wireless ESL with a battery, radio, controller, enclosure, or retail-management platform.

Key Specifications at a Glance

The electrical limits, connector definition, refresh performance, waveform resources, environmental range, and exact gray-scale implementation must be fixed in the approved module specification.

Product Overview

The 400×300 pixel format gives designers enough room for product names, prices, unit information, promotional blocks, identifiers, barcodes, and suitably sized QR codes. The four-color configuration creates a clearer visual hierarchy than a black-and-white label while retaining the reflective appearance associated with E Ink and electronic-paper products.

Four-color content planning

Black can carry primary text, numbers, barcodes, and outlines. Red and yellow can highlight discounts, promotions, stock warnings, product categories, or priority information. White provides the normal background.

The panel should not be treated as a conventional full-color display. Photographs, gradients, anti-aliased artwork, and unrestricted RGB graphics must be adapted to the available color states.

Native 400×300 artwork

Artwork should be generated at the panel’s native resolution. Font weight, barcode module width, QR-code density, line thickness, and color separation should be validated on physical samples.

Reflective image retention

Electronic paper can retain a static image without continuous display power. Energy is still required during updates and by the finished system’s processor, radio, sensors, memory, and power-management circuits.

Four-Color Retail Label Integration

A 4.2-inch format sits between compact price-only tags and large promotional shelf signs. It can accommodate more descriptive content than a small ESL without occupying the space required by a 7.5-inch or 10.2-inch panel.

The 4.2 Inch Color Electronic Paper Panel can form the visual element of a retail label, but the complete product requires host electronics, power, communications, housing, attachment hardware, software, and a management platform.

Retail content layout

Potential content includes:

• Product and brand names
• Standard and promotional prices
• Unit-pricing information
• Product identifiers
• Barcodes and suitably sized QR codes
• Stock or replenishment status
• Promotional callouts
• Shelf-location information
• Limited-color product graphics

Wireless-system boundary

SPI is a local board-level control interface. It does not establish Bluetooth, Wi-Fi, NFC, RFID, infrared, sub-GHz, or proprietary ESL-network compatibility.

Wireless communications must be provided separately by the completed label design.

Static and intermittent updates

This panel is suited to static or occasionally changing content. It should not be positioned for video, smooth animation, rapidly changing dashboards, or continuous refresh.

SPI Host Compatibility

The SPI designation alone does not prove compatibility with a microcontroller, controller board, connector, or software library.

The host implementation requires the exact pin assignment, supply requirements, serial-clock behavior, chip-select handling, reset and busy signaling, data/command control, image format, waveform resources, and refresh sequence.

Connector and FPC review

Before completing the host board or adapter, confirm:

• FPC pin count and pitch
• Contact side and insertion orientation
• Exact power and signal assignment
• SPI clock and chip-select behavior
• Reset and busy-signal treatment
• Data/command signaling
• Panel-driving voltage requirements
• Ground and unused-pin handling
• Connector location and cable routing

Controller requirement

A suitable microcontroller or electronic-paper controller must generate the panel’s update process. HDMI, MIPI DSI, LVDS, eDP, USB video, and parallel RGB cannot drive the raw panel directly.

Unconfirmed driver boundary

No driver IC is confirmed for this configuration. A driver value from another 4.2-inch panel must not be transferred to this product merely because the size, resolution, or color count appears similar.

Mechanical Fit of the 4.2 Inch Color Electronic Paper Panel

The active display area measures 84.8 × 63.6 mm. The overall panel dimensions are 91.0 × 77.0 × 1.0 mm, providing a thin base structure for compact shelf-label housings.

Enclosure window

The front opening should follow the approved mechanical drawing. Designing the bezel only from the active area may expose border structures or obstruct usable pixels.

Flexible-connector routing

The housing must leave room for the FPC exit, connector insertion, and bend radius. Avoid sharp folds, compression beneath fasteners, or adhesive pressure near the active panel and flexible connection.

Front protection

No cover lens, impact rating, abrasion grade, waterproofing, or cleaning-chemical resistance is confirmed. Retail labels exposed to carts, products, customers, or cleaning procedures require a separately engineered front window and enclosure.

Refresh, Gray Scale, and Power Boundaries

The product image refers to two gray levels, but the available information does not define the color combinations, waveform, controller resources, refresh mode, or test conditions associated with that statement.

The gray-scale capability should therefore be treated as a sample-validation item rather than a guaranteed standard operating mode.

No refresh duration, partial-update capability, ghosting grade, update lifetime, voltage, current, or battery-life figure is confirmed.

The 4.2 Inch Color Electronic Paper Panel may reduce display-hold power compared with continuously driven emissive displays, but finished-device battery performance depends on refresh frequency, wireless activity, host design, battery capacity, temperature, and software behavior.

Recommended Applications

Suitable project directions include:

• Electronic shelf labels
• Smart retail price cards
• Promotion and discount tags
• Warehouse inventory labels
• Reusable logistics labels
• Product-identification signs
• Room or asset-status labels
• Low-update-rate IoT information panels
• Compact counter and shelf signs

Outdoor, freezer, refrigerated, vehicle, medical, and harsh-industrial applications require separate environmental and regulatory qualification.

Customization and Procurement Scope

Project review may cover FPC or connector definition, controller and waveform support, mechanical adaptation, color-artwork preparation, front protection, packaging, branding, and integration with a customer-designed retail-label platform.

Sample terms, production quantities, tooling requirements, material availability, and customization limits are confirmed separately for the requested configuration.

Procurement and Sample Approval Checklist

Confirm:

• Required red, yellow, black, and white version
• Native 400×300 artwork
• SPI host architecture
• Exact FPC pin assignment
• Supply voltage and timing
• Contact side and connector orientation
• Reset, busy, and data/command signaling
• Full and partial refresh requirements
• Gray-scale requirement
• Waveform and controller resources
• Active-area orientation
• 91.0 × 77.0 × 1.0 mm enclosure fit
• Front protection
• Operating environment
• Sample quantity
• Estimated annual demand
• Production timing
