The 5 Inch Round Touch Display gives product designers a large circular interface for premium smart-home controls, appliance command centers and decorative embedded systems. Its 1080 × 1080 resolution supports detailed icons, typography, animated status rings and layered menus without reducing the interface to a simple dial or segmented indicator.

The circular active image area measures 127.008 × 127.008 mm. The LCD module measures 136.531 × 132.208 × 1.98 mm, providing a thin display foundation for recessed wall controls, premium appliance fronts and rotary-style command centers.

The module uses a 50-pin MIPI-DSI display connection and is offered in a touch-equipped configuration. The LCD, touch system and optional control board should be treated as separate integration layers during engineering review.

Key Specifications at a Glance

High-Resolution Circular UI Design

1080 × 1080 Interface Layout

The 1080 × 1080 pixel format provides substantially more detail than lower-resolution circular displays. It supports fine icon edges, smooth radial graphics, detailed appliance settings and dark-themed graphical interfaces.

A smart-home interface can use the central region for the current temperature, operating mode or selected function, while secondary information is arranged around the perimeter. Suitable interface elements include:

• temperature rings;
• lighting controls;
• HVAC modes;
• room-status indicators;
• appliance programs;
• timers;
• audio volume;
• security status;
• energy-use graphics;
• connectivity indicators.

The high pixel count is also useful for multilingual interfaces where smaller characters and longer labels must remain legible.

Circular Safe Area and Edge Content

The display uses a square 1080 × 1080 coordinate system behind a circular viewing form. Interface software should define a safe circular content boundary so that essential information is not positioned near clipped corners or beneath the printed cover border.

Critical text, warning icons and touch controls should remain inside the approved visible area. Background artwork may extend beyond that boundary.

The safe area should be validated with the actual cover lens, printed border and bezel opening rather than estimated from resolution alone.

Smart-Home and Appliance Interaction

Rotary-Style Control Concepts

A circular interface naturally supports products designed around a central knob, ring or dial. The screen can serve as the visual center of:

• wall-mounted HVAC controls;
• smart lighting stations;
• premium ovens and cookers;
• audio control panels;
• air-quality monitors;
• home energy controllers;
• connected appliance interfaces;
• room automation terminals.

The 1300:1 contrast ratio and normally black mode are particularly relevant to dark graphical themes where inactive screen regions blend into a black front surface.

The product is also suitable for display concepts in which the circular form is part of the industrial design rather than merely a mechanical constraint.

Touch-System Qualification

Touch is included as a product configuration, but the available specification set does not confirm the touch technology, controller, communications interface or supported touch-point count.

Before the host board and software are released, confirm:

• capacitive or other touch construction;
• controller part number;
• host communications protocol;
• controller supply voltage;
• reset and interrupt requirements;
• touch-point count;
• coordinate orientation;
• touch FPC pinout;
• cover-lens thickness;
• bonding structure;
• firmware or driver requirements.

Touch functionality should not be inferred from the MIPI-DSI display connector. The display and touch paths are separate.

Integrating the 5 Inch Round Touch Display

50-Pin MIPI-DSI Host Matching

The 50-pin connector is a physical interface detail, not a complete compatibility definition.

A 50-pin connector does not by itself prove MIPI-DSI lane count, link timing or pin compatibility.

The host and display must agree on:

• MIPI lane count;
• D-PHY voltage requirements;
• link rate;
• video or command mode;
• native 1080 × 1080 timing;
• complete pin assignment;
• connector pitch and orientation;
• logic power;
• backlight drive;
• reset and control signals.

Compare the approved panel specification with the host processor’s DSI output before controller-board or FPC release.

LCD, Touch and Control-Board Separation

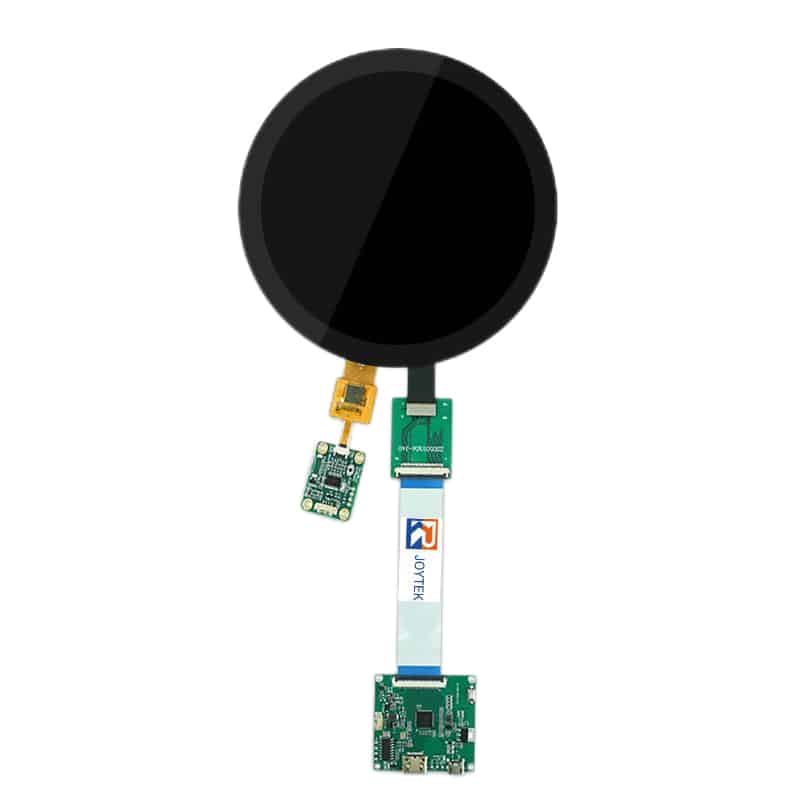

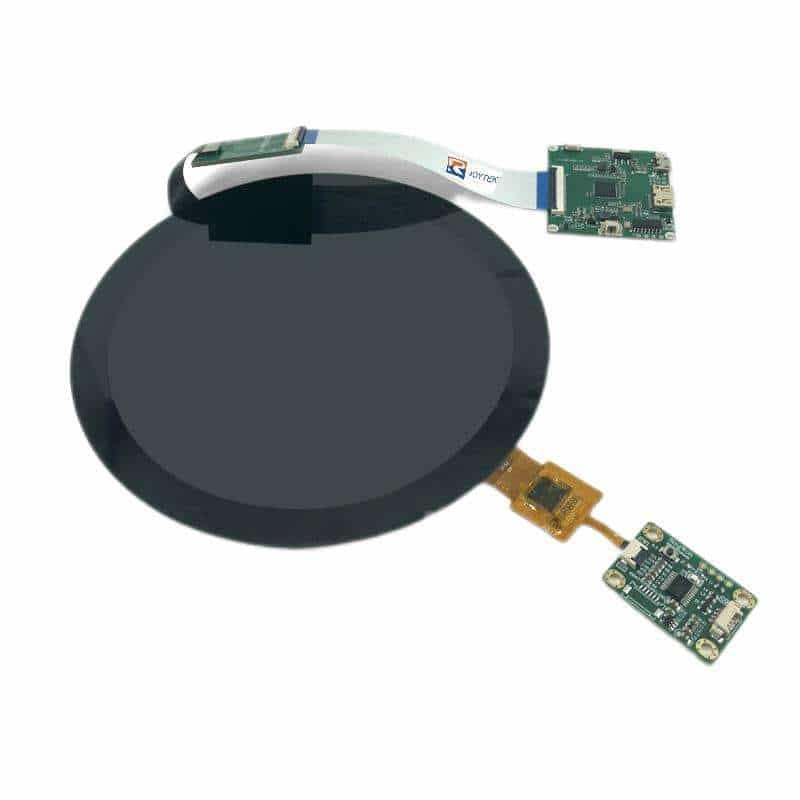

The product may be ordered as an LCD/touch assembly or with an additional control board, depending on the selected configuration.

These routes should be distinguished clearly:

1. Native MIPI module: for hosts with a compatible MIPI-DSI output.
2. MIPI module with touch: adds a separate touch-control path.

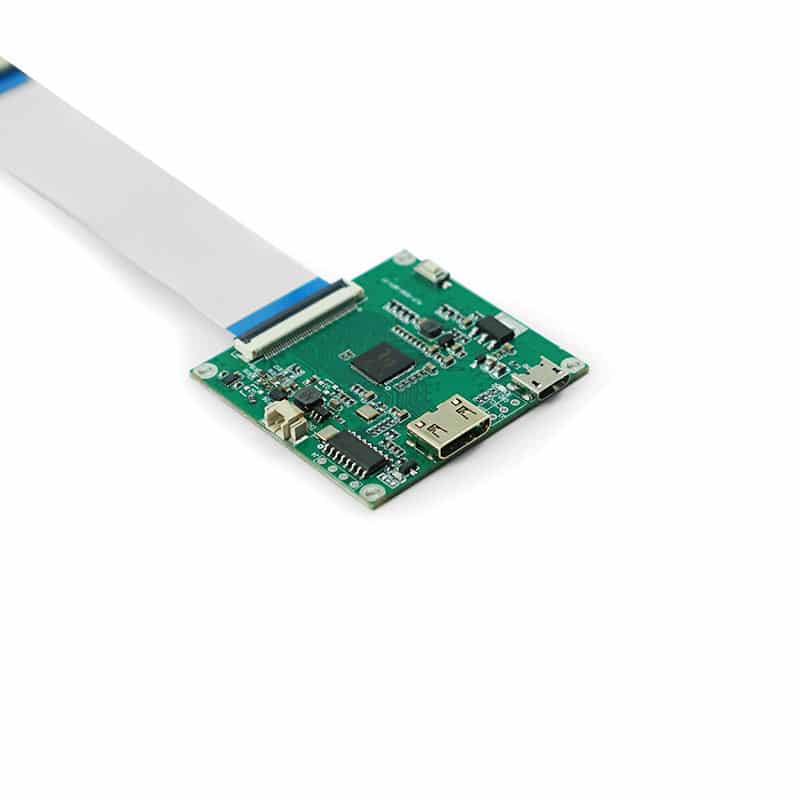

3. Controller-board configuration: may convert HDMI or another source into the required display signals.

An HDMI board should not be assumed to be included with every module. Confirm the exact bill of materials, board input, power requirements, output timing and touch connection in the quotation.

Mechanical and Optical Planning

Active Area and Module Envelope

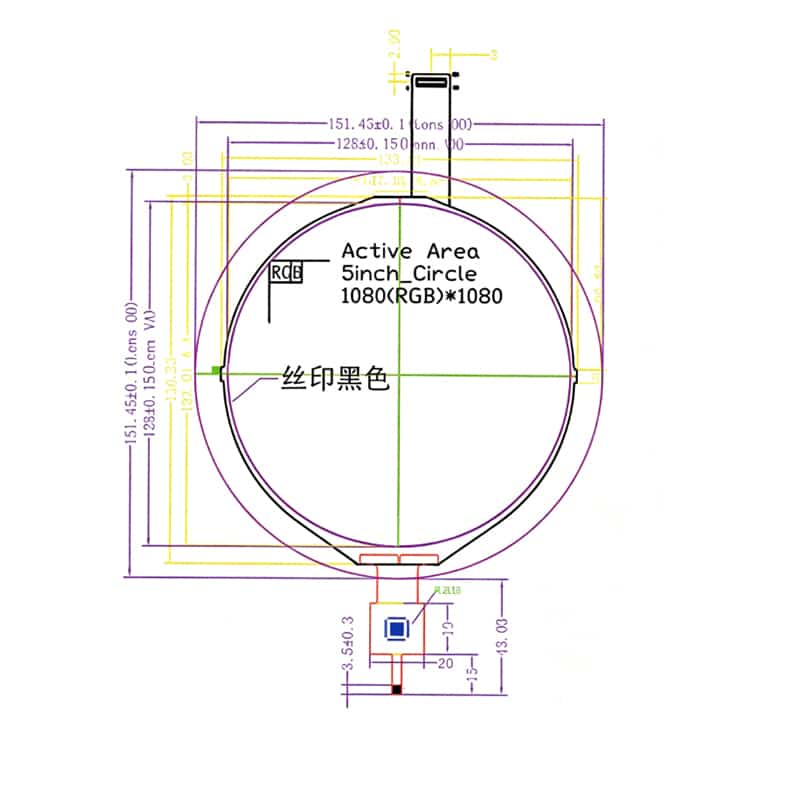

The active image area is 127.008 × 127.008 mm. The module envelope is 136.531 × 132.208 × 1.98 mm.

The enclosure design must distinguish among:

• circular visible area;
• active image area;
• inactive edge;
• LCD outline;
• touch outline;
• cover-lens outer diameter;
• printed border;
• FPC exit;
• connector clearance;
• cable bend radius;
• support structure;
• installed stack depth.

The 1.98 mm figure represents the listed LCD module depth, not necessarily the complete touch or controller-board assembly depth.

Cover Lens and Enclosure Opening

The circular front design should be released against an approved combined drawing. A nominal 5-inch screen size does not define the correct enclosure opening or lens diameter.

Mechanical review should confirm:

• visible circular diameter;
• black-border width;
• touch-sensitive region;
• cover-lens profile;
• adhesive or bonding allowance;
• FPC positions;
• mounting pressure;
• rear-board clearance;
• service and assembly access.

Because brightness is not confirmed in the supplied data, optical approval should be based on a physical sample in the final cover-lens and ambient-light conditions.

Temperature Range and Application Profiles

The display is specified for operation from −20°C to +60°C and storage from −30°C to +75°C. These values support evaluation for professional indoor and protected embedded products.

Suitable project profiles include:

• premium smart-home wall controls;
• HVAC control stations;
• lighting-control interfaces;
• appliance command centers;
• rotary audio controls;
• IoT command terminals;
• room-status displays;
• decorative functional interfaces;
• embedded monitoring controls.

The temperature range does not establish outdoor, waterproof, automotive, medical or safety-certified suitability.

Comparable 5-inch 1080 × 1080 circular MIPI displays are also marketed for smart appliances, embedded dashboards and high-end control interfaces, supporting this application direction.

Procurement and Sample Approval

Before approving the 5 Inch Round Touch Display, confirm the LCD, touch, controller-board, power and mechanical configuration.

Procurement Checklist

• Native 1080 × 1080 UI capability
• Circular safe-area definition
• MIPI-DSI lane count
• Link rate and operating mode
• Complete 50-pin assignment
• Connector pitch and contact orientation
• Panel logic voltage
• Backlight voltage and current
• LCD reset and control requirements
• Touch-controller model
• Touch communications interface
• Touch-point requirement
• LCD and touch FPC drawings
• Cover-lens dimensions
• Bonding or air-gap construction
• Enclosure opening and installed depth
• Control-board or native-MIPI route
• HDMI input requirement
• Operating and storage temperatures
• Sample quantity and validation plan
• Annual demand and production schedule

Touch-panel structure, cover lens, FPC direction, MIPI mapping, control-board selection, brightness and mechanical adaptations are reviewed according to the project. Standard-module and sample quantities are confirmed separately.
