5 Inch TN RGB Embedded Control Screen Capacitive Touch TFT LCD Module
Model P/N
Size
Resolution
Brightness
Viewing Angle
Connector Type
Operating Temp
Overall(mm)
huisoar
HS050R12QE50-T00
Brand
Panel Size (inch)
Model P/N
Resolution
Brightness (nits)
Viewing Angle
Contrast Ratio
Response Time
Overall (mm)
Active Area (mm)
Refresh Rate
Bezel Opening
Display Colors
Panel Type
Connector Type
Operating Temp
Touchscreen Type
Storage Temp
Work Mode
Pixel Format
Input Voltage (V)
Touch Interface
Control Type
Touch Structure
Designed For
800×480 TN TFT LCD with RGB 40-Pin FPC, GT911 I2C Touch, and 20 ms Response
A 5 Inch TN RGB Embedded Control Screen is an 800×480 TFT LCD touch module for compact embedded control products, POS terminals, commercial devices, handheld equipment, and HMI panels that need direct RGB display input with projected capacitive touch. It combines a TN normally white transmissive display, 500 cd/m² luminance, 20 ms typical response, RGB 40-pin FPC, ILI6122 + ILI5960 display control, GT911 I2C touch, G+G 5-point PCAP structure, and -20°C to +70°C operation.
At a Glance: 5-Inch TN RGB Touch Module Highlights
- 5.0-inch 800×480 format supports compact control pages, POS prompts, HMI menus, and equipment status screens.
- TN normally white transmissive TFT structure supports cost-sensitive embedded display integration.
- 20 ms typical response helps UI screens update cleanly for control-button and menu-based interfaces.
- RGB 40-pin FPC gives controller-board teams a direct embedded display signal path.
- GT911 I2C projected capacitive touch supports 5 touch points for tap and basic gesture operation.
- 500 cd/m² typical luminance supports indoor equipment and controlled bright-panel environments.
- 120.7 × 75.9 × 4.48 mm LCM+touch size gives mechanical teams a clear stack-height reference.
Designed For
This module is designed for embedded HMI panels, industrial control units, POS terminals, smart home devices, handheld terminals, kiosks, commercial equipment, and OEM controller products that need an 800×480 RGB display input with capacitive touch.
Product Overview of the 5 Inch TN RGB Embedded Control Screen
The 5 Inch TN RGB Embedded Control Screen is built for products where the display must be large enough for practical touch interaction but still compact enough for a small enclosure. Its 800×480 format supports menu screens, numeric input, configuration pages, operating prompts, icons, and simple dashboards.
This module is differentiated from IPS-based 5-inch display routes by its TN normally white display mode, 20 ms typical response time, and 350:1 contrast ratio. It is not the best choice for installations that demand full IPS viewing from every angle, but it is practical for fixed front-view control products where cost, response, RGB integration, and PCAP touch matter more than premium wide-view optics.
For electrical integration, the RGB 40-pin FPC interface is the main design point. Engineering teams should confirm RGB timing, pinout, FPC direction, voltage levels, display-driver initialization, GT911 I2C touch routing, reset and interrupt pins, and backlight drive before PCB release.
Key Features of the 5 Inch TN RGB Embedded Control Screen
| Feature | B2B Value |
|---|---|
| 800×480 resolution | Provides a practical UI canvas for menus, alerts, buttons, and control pages. |
| TN normally white TFT | Supports cost-sensitive embedded products with front-view display requirements. |
| 20 ms response | Helps menu changes and touch-driven UI updates feel responsive. |
| 500 cd/m² luminance | Supports many indoor and controlled high-light equipment-panel environments. |
| RGB 40-pin FPC | Enables direct embedded display connection for controller-board designs. |
| ILI6122 + ILI5960 driver ICs | Give firmware teams a clear display-control target for bring-up. |
| GT911 I2C touch IC | Supports projected capacitive touch through a standard I2C route. |
| G+G PCAP structure | Provides a durable touch stack with ≥86% transparency and ≥6H hardness. |
| -20°C to +70°C operation | Supports commercial and industrial environments beyond office-only devices. |
Technical Specifications of the 800×480 TN RGB Touch LCD
| Specification | Value |
|---|---|
| Display Size | 5.0 inch |
| Resolution | 800 × RGB × 480 |
| Display Mode | TN, normally white, transmissive TFT |
| Active Area | 108.0 × 64.8 mm |

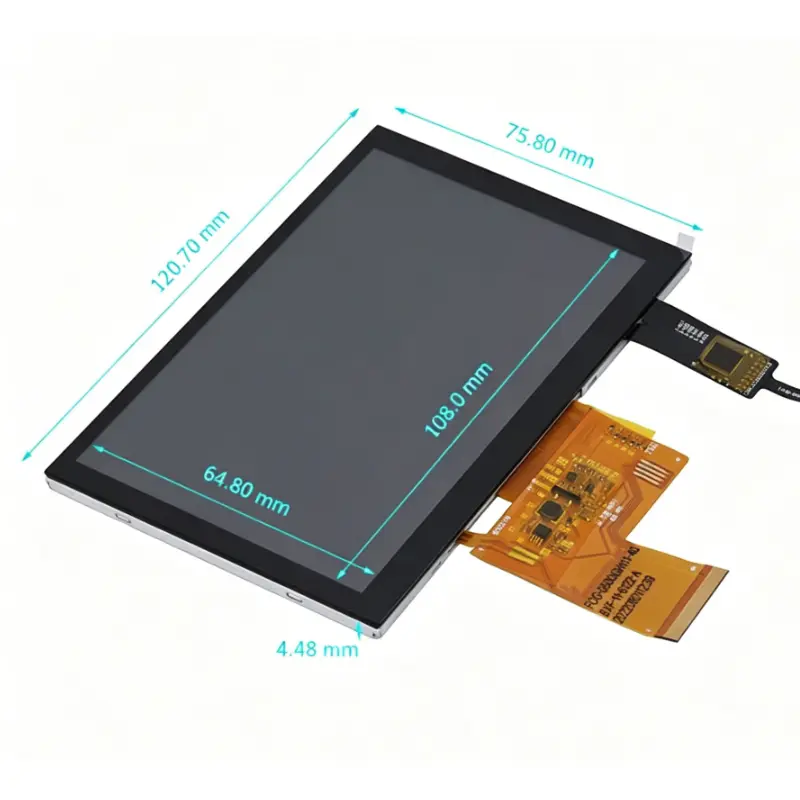

| LCM+Touch Module Size | 120.7 × 75.9 × 4.48 mm |
| Luminance | 500 cd/m² typ. |
| Contrast Ratio | 350:1 typ. |
| Viewing Angle | 70/70/55/70 typ. |
| Color Depth | 16.7M, 70% NTSC |

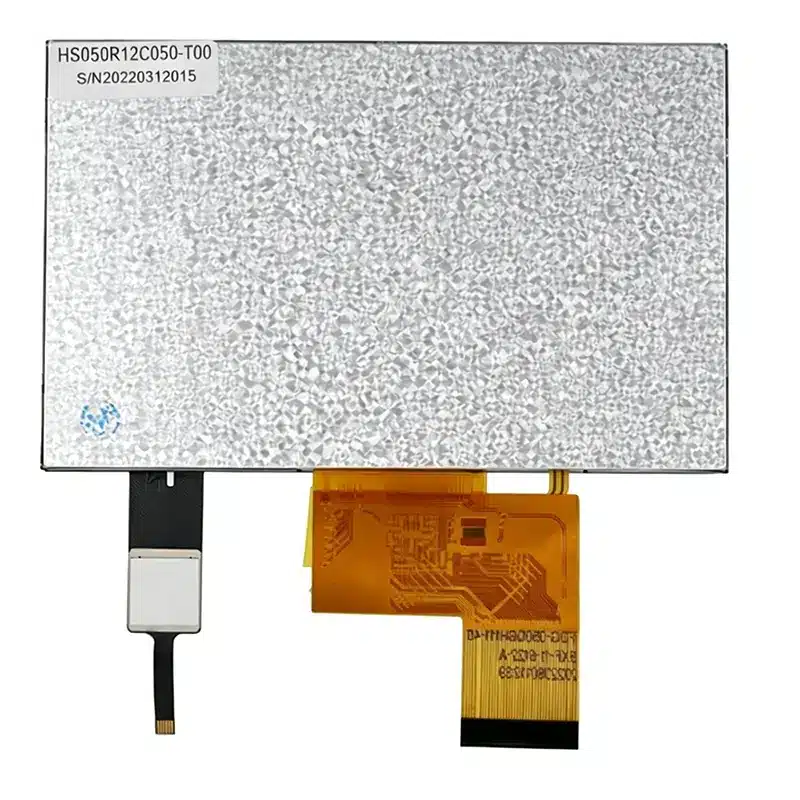

| Interface | RGB, FPC 40 pins |
| TFT Driver IC | ILI6122 + ILI5960 |
| Backlight Type | 12-chip WLED, 19.2V / 40mA |
| Backlight Lifetime | 20,000 hours min. |
| Touch Type | Projected capacitive touch screen |
| Touch IC | GT911 |
| Touch Interface | I2C |
| Touch Points | 5 points |
| Operating Temperature | -20°C ~ +70°C |
These confirmed values define the main engineering checks: 800×480 UI fit, RGB timing, 40-pin FPC pinout, driver initialization, GT911 touch communication, cover-lens stack, backlight drive, module thickness, and enclosure fit. Unknown values are not included in the public specification table.
Why Choose a TN RGB Embedded Control Screen for Compact Devices?
A TN RGB embedded control screen is useful when the product needs a cost-effective color interface with direct controller-board connection and modern capacitive touch. It is especially suitable for front-facing panels where the user normally looks at the screen from a defined operating position.
800×480 Layout for Embedded Control Pages
The 800×480 layout provides enough room for touch buttons, status messages, icons, settings, progress bars, and basic graphics. Compared with smaller 320×240 or 480×272 modules, it gives the UI team more horizontal space while still keeping the product compact.
20 ms Response for Menu-Driven Interfaces
The confirmed 20 ms response time supports menu navigation, button feedback, page switching, and real-time equipment prompts. For POS terminals, control panels, smart home devices, and commercial equipment, this response profile is practical for static or moderately changing UI rather than high-motion video use.
TN Viewing Direction Planning
The module uses TN normally white technology, so viewing-angle planning is important. The confirmed viewing angle is 70/70/55/70 typ. Designers should confirm the final installation height, user eye line, enclosure tilt, and UI contrast before tooling.

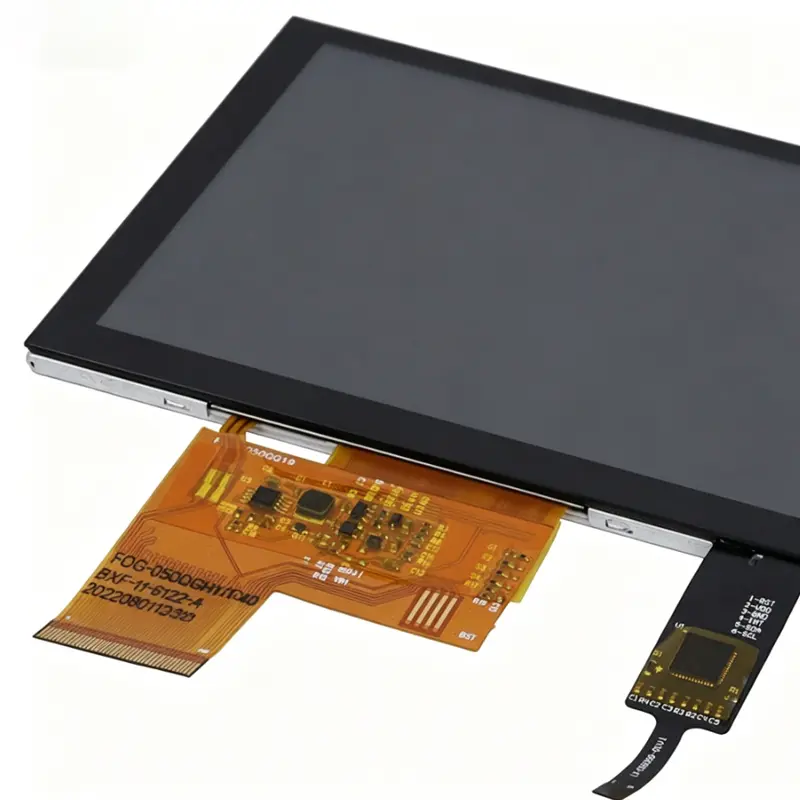

RGB 40-Pin, GT911 Touch, and Backlight Integration
This module should be reviewed as a combined LCD and capacitive-touch component. The display path, touch path, and backlight path each require separate engineering validation.
RGB 40-Pin FPC Host Matching
Before PCB layout, confirm RGB data order, timing, clock, sync pins, voltage levels, 40-pin assignment, FPC insertion direction, and cable route. A mismatch in RGB timing or connector orientation can cause color errors, unstable output, or delayed sample bring-up.
GT911 I2C PCAP Touch Routing
The projected capacitive touch system uses GT911 with I2C communication and supports 5 touch points. Engineers should validate SDA, SCL, reset, interrupt, VDD, grounding, firmware support, edge accuracy, and touch behavior after the module is installed behind the final cover lens.
12-Chip WLED Power Review
The backlight is listed as 12-chip WLED with 19.2V / 40mA operating data. Power engineers should review the LED driver, dimming method, thermal margin, brightness target, and continuous-duty behavior inside the finished enclosure.
Display Performance for POS, HMI, and Commercial Equipment
The module’s 500 cd/m² brightness, 16.7M colors, and 70% NTSC color depth support clear equipment interfaces, payment prompts, product menus, and control graphics. It is suitable for indoor and controlled bright environments, but it should not be marketed as a waterproof or sunlight-readable outdoor display without system-level validation.
500 cd/m² Brightness for Equipment Panels
A 500 cd/m² luminance level is useful for commercial devices, kiosks, POS terminals, and industrial panels under typical indoor lighting. For brighter environments, test the display with the actual cover lens, UI colors, enclosure angle, and ambient light.
350:1 Contrast for Basic UI Readability
The 350:1 contrast ratio is suitable for clear, simple UI design. Strong text contrast, larger touch targets, and simplified graphics will improve readability, especially because TN viewing behavior depends more on installation angle than IPS modules.
G+G Touch Structure for Frequent Interaction
The touch panel uses G+G construction with ≥86% transparency and ≥6H hardness. This supports frequent touch use in commercial and industrial products, but final durability depends on cover glass, bonding, cleaning method, and enclosure protection.
Recommended Applications for Embedded RGB Control Products
The module is suitable for compact devices that need an integrated touch display with RGB controller support.
POS and Payment Terminals
POS systems can use the display for transaction prompts, numeric input, user confirmation pages, and service menus. The 5-inch format gives enough room for button-based UI while keeping the terminal compact.
Industrial HMI and Equipment Panels
Industrial controllers can use the module for settings, alarms, operating modes, and equipment status. The RGB interface supports controller-board integration, while PCAP touch supports modern user input.
Smart Home and Commercial Control Devices
Smart home panels, vending machines, access terminals, kiosks, and appliance controls can use the screen for icons, prompts, menus, and feedback pages. Final design should validate cover lens, viewing angle, and touch sensitivity.
Handheld and Portable Instruments
Portable meters, handheld terminals, and commercial tools can use the screen for measurement data, prompts, and touch operation. Mechanical teams should check the 120.7 × 75.9 × 4.48 mm stack and FPC routing before housing design.
Customization Options for 5-Inch TN RGB Projects
Project evaluation can include FPC customization, RGB timing review, ILI6122 + ILI5960 bring-up support, GT911 I2C touch tuning, backlight and brightness adjustment, PCAP stack review, cover lens selection, air or optical bonding review, mechanical drawing adaptation, packaging, sample validation, and controller-board support. Any waterproofing, certification, special anti-glare treatment, or optical bonding must be confirmed at finished-system level.
Procurement and Engineering Checklist for 5-Inch TFT Touch Selection
- Confirm the 800×480 UI layout, font size, icon spacing, and touch-button area.
- Check RGB 40-pin host support, timing, voltage levels, and FPC direction.
- Validate ILI6122 + ILI5960 initialization, reset sequence, and display test procedure.
- Confirm GT911 I2C touch routing, interrupt/reset pins, grounding, and firmware.
- Review active area, LCM+touch size, touch outline, cover lens, and adhesive frame.
- Test TN viewing angle against the final operating position and enclosure tilt.
- Confirm 12-chip WLED backlight drive at 19.2V / 40mA and dimming plan.
- Validate operating temperature, sample performance, quantity, and application requirements.
FAQ
About 5 Inch TN RGB Embedded Control Screen
What is the minimum order quantity (MOQ) for custom TFT displays with specific touch screen integration?
MOQ for custom TFT displays with specific touch integration is typically negotiated per project. Please contact our sales team with your exact requirements (size, touch type, interface) to receive a tailored quotation and MOQ details.
What is the response time and refresh rate of your TFT displays for dynamic content in industrial HMIs?
For applications requiring faster response, please confirm with engineering if other options are available.
Can you integrate a touch controller and provide a fully assembled display module?
The touch interface is I2C, and the display uses RGB via a 40-pin FPC. For other controller or interface options, please request a datasheet or confirm with engineering.
What are the warranty terms and after-sales service for your display products?
Warranty terms and after-sales service are typically provided per agreement. Standard warranty is usually 12 months from shipment, covering manufacturing defects. For exact terms, please request our standard warranty policy or discuss with your account manager.
What are the brightness levels available for industrial displays, and can you customize beyond 1500 nits?
This module offers 500 cd/m² brightness. Custom brightness levels beyond 1500 nits may be possible but require engineering evaluation. Please provide your target brightness, operating environment, and any optical constraints to receive a feasibility assessment.
Can you customize the mechanical dimensions and mounting holes of a standard LCD panel to fit our specific enclosure design?
Custom mechanical dimensions and mounting holes can be evaluated for this module. Standard dimensions are 108.0 mm (W) × 64.8 mm (H) active area. For custom mechanicals, please share your enclosure drawing and mounting requirements; our engineering team will assess feasibility and provide a custom design proposal.
Is touch integration available (PCAP/resistive)? Which controller and interface (USB/I2C) are typical?
Yes, this module integrates a Projected Capacitive Touch (PCAP) panel. The touch structure is G+G (Glass+Glass) and supports 5-point multi-touch. For procurement, note that the touch interface is I2C, not USB; if a USB interface is required, an external I2C-to-USB bridge may be needed. Exact touch firmware details and any customization options should be confirmed on request.
Do you offer samples for evaluation before placing a bulk order?
Samples for evaluation are typically available. Please contact our sales team to request a sample of the HS050R12QE50-T00. Sample lead time and any associated costs will be confirmed upon request.
What is the typical lead time and production capacity?
For precise lead time and capacity commitments, please contact the supplier directly with your target quantity and delivery schedule.
Can you develop a square LCD screen with a specific resolution and aspect ratio?
We can develop custom LCD screens with specific resolutions and aspect ratios, including square formats. Please provide your target resolution, diagonal size, aspect ratio, and interface requirements. Our engineering team will evaluate feasibility and provide a development timeline and cost estimate.
