55 Inch High Brightness Retail Window Signage Monitor for Storefronts

55 Inch High Brightness Retail Window Signage Monitor for Storefronts

A 55-inch 4K high-brightness window-facing monitor combines a 2000 cd/m² display baseline, optical bonding, smart dimming and semi-outdoor controls for storefront deployment.

The High Brightness Retail Window Signage Monitor is designed for commercial locations where promotional content must be viewed through storefront glass under strong ambient light. The current 55-inch configuration combines 3840 × 2160 resolution, a 1209 × 680 mm display area and 2000 cd/m² luminance with optical bonding and anti-reflection treatment. Smart dimming and intelligent temperature control support retail windows, showrooms and other public-facing installations where brightness and solar heat must be considered together.

Product Summary

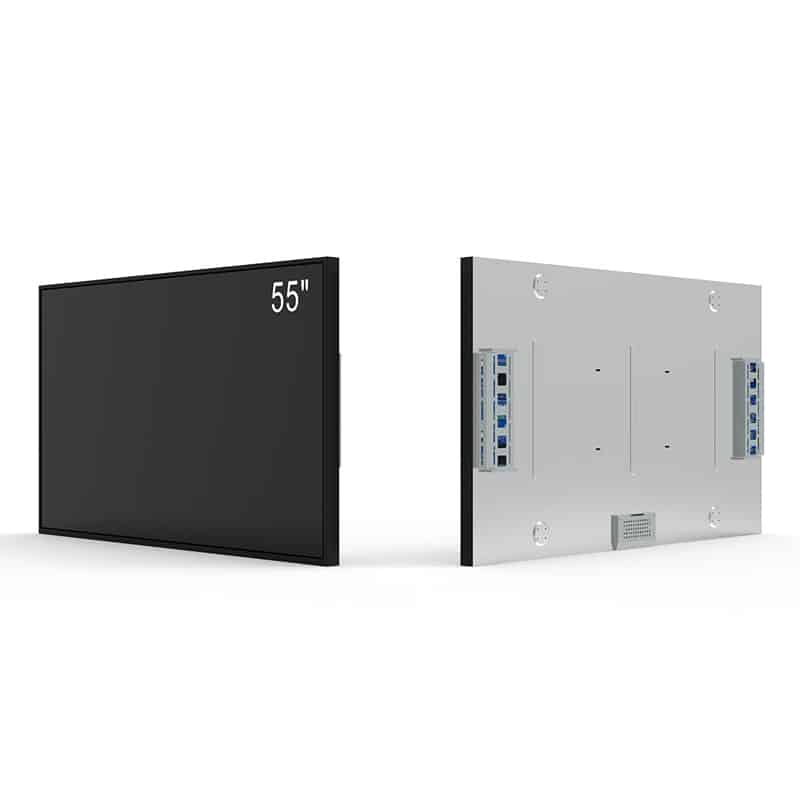

This finished 16:9 monitor uses a sheet-metal enclosure measuring 1255.5 × 726.5 × 90 mm and weighs 34 kg. Its semi-outdoor positioning requires structural support, ventilation and protection from direct weather exposure.

The current product identifies 3840 × 2160, while a 1920 × 1080 route also exists in the family. Lock the ordered resolution before artwork and player output are finalized.

Key Specifications

Optical Performance Behind Storefront Glass

2000 cd/m² Must Be Qualified Through the Final Window

A 2000 cd/m² display provides more luminance than a conventional indoor screen, but final readability depends on storefront-glass transmission, reflections, screen setback, window orientation and direct-sun duration.

A 2000 cd/m² display rating should be evaluated through the actual storefront glass before direct-sun performance is approved.

Optical Bonding and Anti-Reflection Treatment

The optical stack uses full lamination with anti-reflection glass to reduce internal reflections and improve perceived contrast. The building glass still needs separate evaluation because tinted or reflective glazing can change the finished result.

4K Content and Viewing Performance

Native 3840 × 2160 Content Planning

The current 3840 × 2160 configuration provides a 4K canvas for retail video, graphics and public-information layouts. Media players should output the approved native resolution and aspect ratio; a Full HD family route should not be assumed equivalent.

Contrast, Response and Viewing Data

The structured specification gives a 1300:1 contrast ratio and a 6/9 ms typical Tr/Td response grade. Viewing data is 89/89/89/89° minimum at CR ≥ 10, but the directional sequence is not explicitly established. Do not assign those values to specific directions without approved technical documentation.

Integrating the High Brightness Retail Window Signage Monitor

Smart Dimming and Temperature Management

Smart dimming lets the system react to changing ambient light instead of operating at one fixed output throughout the day. Intelligent temperature control is also supported. Thermal planning should still account for solar heat through the window, restricted airflow, player-board heat and the 265 W maximum system power.

Optional Media Architecture and External I/O

Android, PC and HD driver-board routes are optional. The I/O set includes HDMI, VGA, DVI, USB and RJ45, but these ports do not establish which operating system, player board or networking functions are included in a specific order.

A listed HDMI/VGA/DVI/USB/RJ45 port set does not establish a built-in operating system.

Mechanical and Installation Planning

Enclosure Size and Structural Load

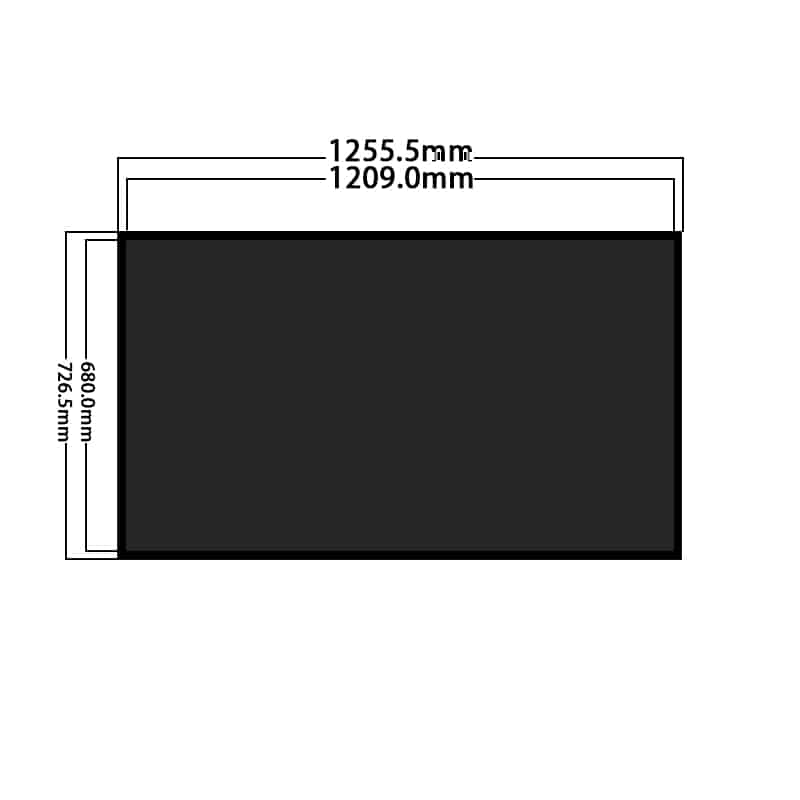

The 1255.5 × 726.5 × 90 mm, 34 kg enclosure must be checked against brackets, wall structures and service clearances. Hanging, landscape and portrait installation are supported; the approved drawing should control fasteners and hole positions.

AC Power and Cable Routing

The finished system is specified for AC 110/220 V at 50/60 Hz with 265 W maximum power. Circuit capacity, cable routing and service access should be planned before the storefront framing is closed.

The 265 W maximum power and 34 kg product weight should be included before electrical and structural release.

Semi-Outdoor Environmental Boundaries

Temperature and Humidity

The use range is 0°C to +70°C with 5%–95% relative humidity. Review these limits together with solar load, enclosure airflow and any separately installed media hardware.

Semi-Outdoor Does Not Equal a Standard IP Rating

Semi-outdoor positioning is appropriate for protected storefront and glass-facing deployment but does not establish protection against rain, dust jets or water ingress.

A semi-outdoor classification does not establish a product-specific IP rating.

Application Fit for Retail and Public-Facing Signage

The 55-inch format fits storefront promotions, real-estate windows, automotive showrooms and protected public-information installations. For a High Brightness Retail Window Signage Monitor deployment, qualify glass reflection, orientation, content resolution, mounting load, electrical supply, internal heat and media architecture before rollout.

Customization and Qualification

Project review may cover ordered luminance and resolution, optical stack, player-board architecture, network requirements, mounting arrangement, enclosure treatment, environmental protection and touch integration when required.

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Samples and standard-display quantities are confirmed separately.

Touch capability, a product-specific IP grade and a fixed operating system should not be assumed unless included in the approved order configuration.

Procurement Checklist

Before sample approval, confirm the production revision; ordered 2000 cd/m² luminance and tolerance; 3840 × 2160 versus 1920 × 1080 resolution; 1209 × 680 mm display area; 1300:1 contrast; 6/9 ms Tr/Td; viewing documentation if directional values matter; DLED and backlight-life definition; optical bonding and front-glass construction; AC 110/220 V, 50/60 Hz supply; 265 W maximum power; 1255.5 × 726.5 × 90 mm enclosure; 34 kg load; semi-outdoor environment; 0°C to +70°C / 5%–95% RH boundary; selected Android, PC or HD board; required I/O; storefront-glass transmission/reflection; thermal exposure; sample criteria; quantity; and annual demand.
