55 Inch Advertising Flexible OLED Display for Curved Signage Projects

55 Inch Advertising Flexible OLED Display for Curved Signage Projects

A 55 Inch Advertising Flexible OLED Display for Curved Signage gives commercial-display integrators a large OLED platform for curved retail, exhibition, showroom, and architectural media concepts. The selected configuration uses a 3840 × 2160 UHD route, 450 cd/m² luminance, 150,000:1 typical contrast, a 1209.6 × 680.4 mm active area, and self-luminous flexible OLED construction. Its ultra-thin structure supports custom visual forms, but curvature, support geometry, signal architecture, and production revision must be qualified before mechanical release.

Key Specifications

Resolution, mechanics, color, and weight must be locked to the approved production revision before tooling or purchasing acceptance.

Flexible OLED Architecture for Curved Signage

Curved form requires an approved mechanical limit

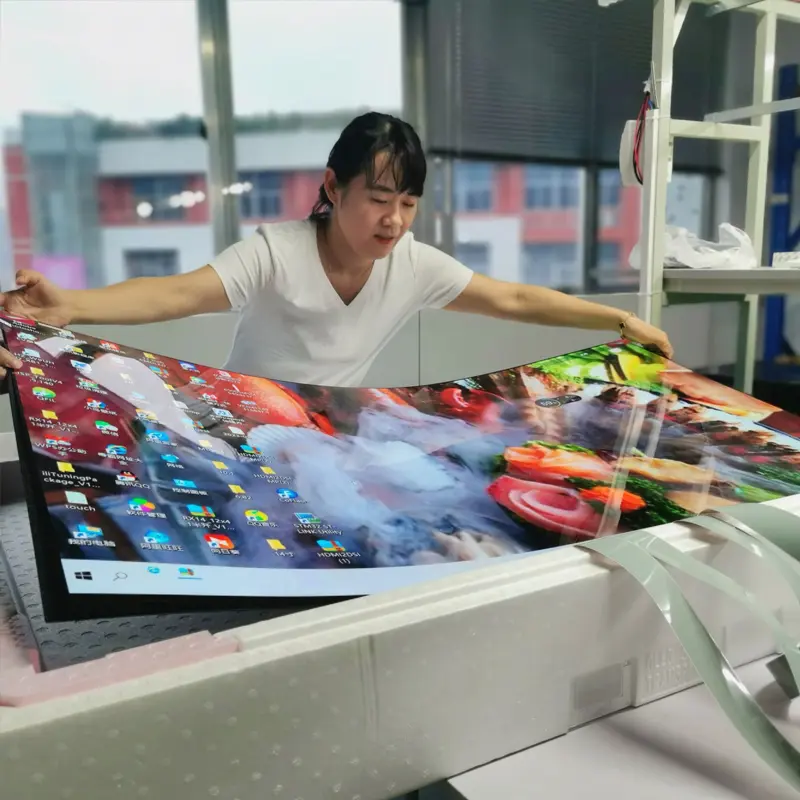

Flexible construction allows concave, convex, and shaped commercial-display concepts, but “flexible” does not define a minimum bend radius or repeated bend-cycle life. Engineering should approve the required radius, bend direction, supported area, backing structure, and whether the panel will remain in a static curve or move during use.

Self-luminous construction supports a thin display stack

The panel is self-luminous and does not use a conventional LCD backlight architecture. Its thin display layer can reduce profile, but support frames, electronics, cable routing, protection, and mounting hardware still add to final system depth.

4K UHD Content and Optical Performance

Selected 3840 × 2160 route for detailed media

The selected 3840 × 2160 configuration supports UHD branded graphics and large-format content. An alternate 1920 × 1080 value is also associated with the family, so artwork, player output, controller settings, and acceptance testing must follow the approved ordered resolution.

450 cd/m² and high contrast for controlled commercial lighting

The 450 cd/m² luminance is suitable for evaluating indoor retail, exhibition, showroom, and other controlled commercial-lighting installations. It should not be promoted as direct-sun or outdoor readable without finished-system testing. The listed 150,000:1 typical contrast supports strong separation between dark and bright content.

Color data must be revision-controlled

Detailed 4K data identifies 10-bit color and 1.07 billion colors, while another field identifies 16.7M colors. These values should not be merged. Confirm the ordered color path, bit depth, signal format, and processing chain before final content mastering.

Integrating the 55 Inch Advertising Flexible OLED Display for Curved Signage

Controller and native signal interface must be defined

The native signal connector and controller interface are not confirmed. A signage player or scaler therefore cannot be approved from resolution and panel size alone. Engineering should obtain the exact interface, connector, timing, voltage rails, cable orientation, and control requirements for the ordered panel.

For the 55 Inch Advertising Flexible OLED Display for Curved Signage, controller qualification should be completed before enclosure and cable tooling so the electronics architecture does not conflict with the curved support design.

Static and dynamic curvature are different requirements

A panel fixed once on a curved support has a different mechanical duty from a screen expected to flex repeatedly. Specify whether the panel will be fixed, repositioned occasionally, or moved during operation. That decision affects support geometry, stress concentration, FPC routing, protective layers, and validation.

Mechanical Planning for a Large Flexible OLED Panel

Active area and outer envelope serve different functions

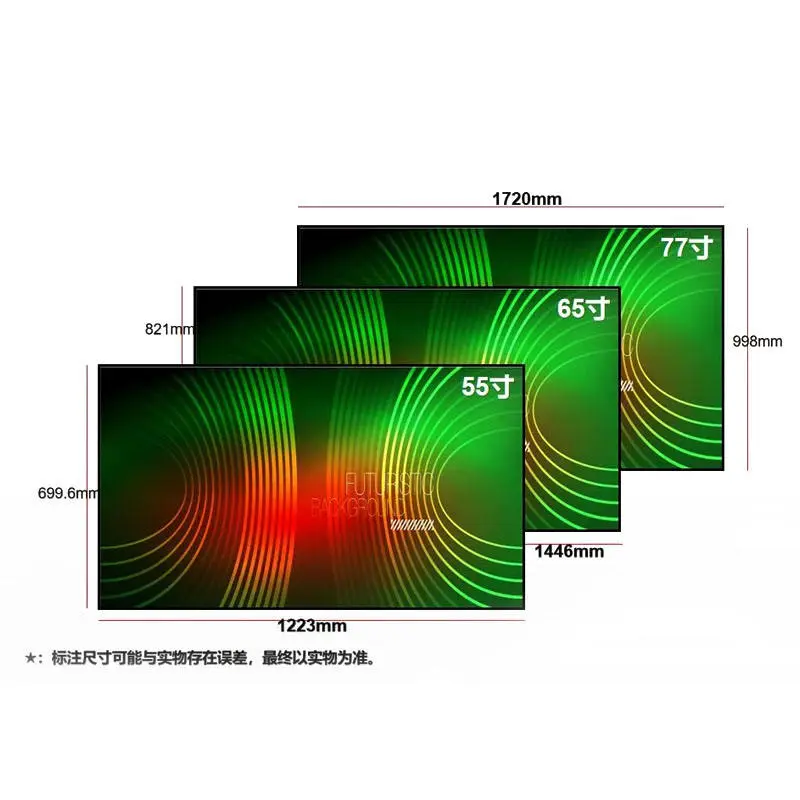

The 1209.6 × 680.4 mm active area defines the visible image surface. Mechanical release should use the approved full outline. One 4K set gives 1221.4 × 695.7 × 0.8 mm typical, while another gives 1217.48 × 693.94 mm with 0.83 mm typical and 3.43 mm maximum depth. Do not average these values.

Weight must be locked before structural release

Two panel-weight values appear: 2.0 kg and 2.4 kg. Support plates, handling fixtures, and curved carriers should use the approved production weight. The 3.0 kg gross package value is not the panel net mass.

Power and Front-Surface Considerations

99.74 W is typical power, not a maximum rating

Detailed data gives 99.74 W typical total power, including 17.34 W logic and 82.4 W EVDD under the stated IEC 62087 reference. This helps early thermal planning, but it does not define maximum power, inrush, input voltage, or the final power-supply architecture.

Surface treatment should be evaluated in the final stack

The panel uses 2H hard coating and anti-reflection treatment on the front polarizer with 2.0% typical reflectance. Added protective material or bonding can change finished optical performance, so the completed stack should be requalified.

Application Direction

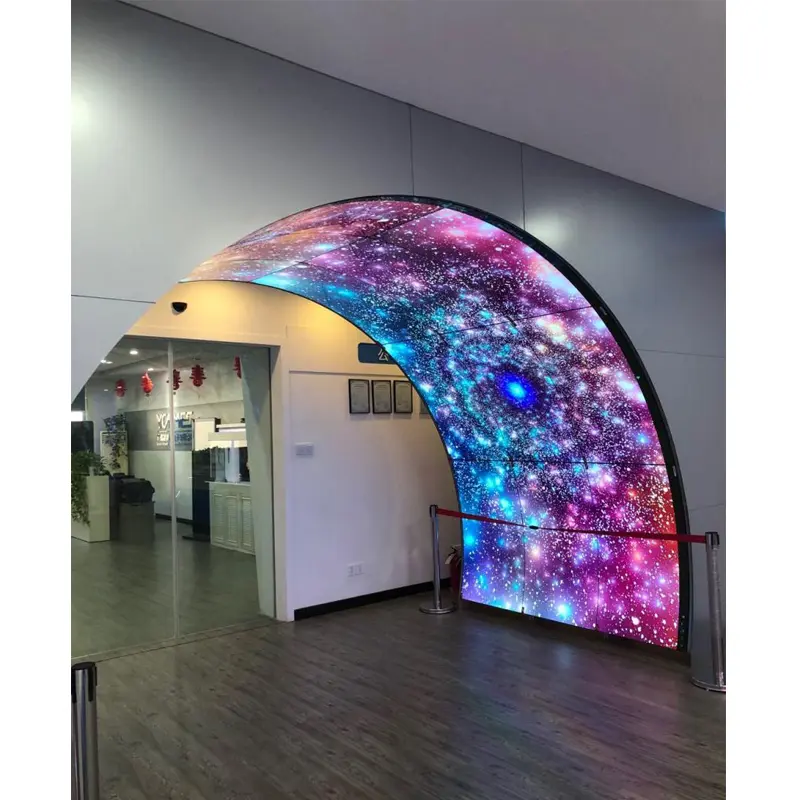

This flexible OLED panel suits controlled indoor commercial installations where screen shape is part of the concept, including curved retail feature walls, exhibition surfaces, showroom brand displays, hospitality interiors, and architectural media structures.

Customization and Procurement

Curvature geometry, support design, controller/interface selection, cable routing, optical target, enclosure adaptation, branding, and packaging can be reviewed by project. Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability, and the requested specification. Sample and standard-panel quantities are confirmed separately.

The 55 Inch Advertising Flexible OLED Display for Curved Signage should be released only after electrical, mechanical, optical, and curvature requirements are tied to one approved production revision.

Procurement Checklist

Before approving the 55 Inch Advertising Flexible OLED Display for Curved Signage, confirm the selected 3840 × 2160 route against the alternate 1920 × 1080 field; 450 cd/m² luminance; 150,000:1 contrast; 1209.6 × 680.4 mm active area; pixel pitch and RWBG arrangement; approved outline/depth drawing; 2.0 kg versus 2.4 kg weight; 10-bit / 1.07B versus 16.7M color data; native signal interface, connector, voltage rails, timing, and controller architecture; curvature direction and minimum bend radius; static versus dynamic use; bend-cycle requirement if applicable; 99.74 W typical power scope and actual maximum/inrush; environmental limits; touch status; mounting design; sample criteria; quantity; and annual demand.
