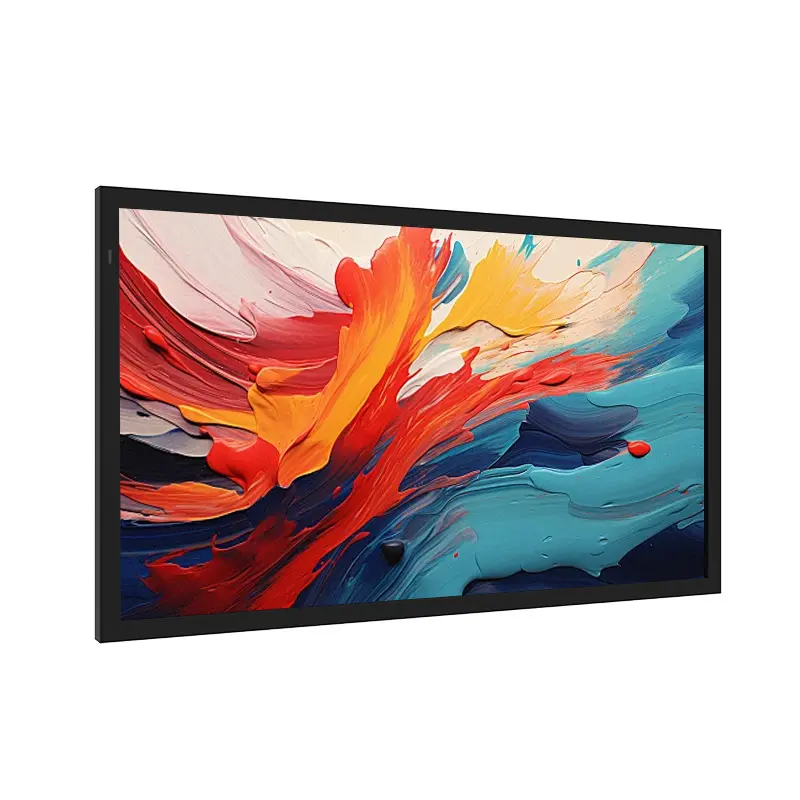

55 Inch Outdoor Digital Signage IP65 4K Display for High-Brightness Public Displays
Model P/N
Size
Resolution
Brightness
Viewing Angle
Connector Type
Operating Temp
Overall(mm)
huisoar
HS550DPY-GD45
Brand
Panel Size (inch)
Model P/N
Resolution
Brightness (nits)
Viewing Angle
Contrast Ratio
Response Time
Overall (mm)
Active Area (mm)
Refresh Rate
Display Colors
Panel Type
Connector Type
Surface Treatment
Operating Temp
Touchscreen Type
Storage Temp
Work Mode
Pixel Format
Input Voltage (V)
Weight (g)
Designed For
4K 500–5000 Nits Outdoor Display Platform for Transit, Retail, QSR, EV Charging, and Smart City Signage
A 55 Inch Outdoor Digital Signage display is a high-brightness 4K public display platform for transportation, retail, QSR, EV charging, and smart-city environments that need sunlight-readable content and outdoor protection. It combines 3840 × 2160 UHD resolution, 500–5000 nits brightness, anti-glare 3H surface treatment, 89-degree viewing, V-by-One 8-lane 51-pin interface, 12.0 V panel supply, and a WLED backlight rated for 50,000 hours. It is suitable for OEM/ODM projects that require a large outdoor display with flexible system customization.
At a Glance: 55-Inch Outdoor Public Display Highlights
- 55-inch screen size gives public signage enough visual area for advertising, guidance, service notices, and brand content.
- 3840 × 2160 UHD resolution supports sharper graphics and readable public information layouts.
- 500–5000 nits brightness range gives integrators flexibility for shaded, semi-outdoor, or stronger daylight-facing locations.
- Anti-glare haze 1% hard coating 3H helps reduce front-surface reflection in high-ambient-light environments.
- V-by-One 8-lane 51-pin interface provides a defined module-level signal path for controller integration.
- IP65 outdoor system direction supports public display projects exposed to dust, humidity, and weather.
- Standard configuration is no-touch, while custom 10-point / 20-point capacitive touch can be evaluated when interaction is required.
Product Overview of the 55 Inch Outdoor Digital Signage
Public displays must remain readable, reliable, and easy to control after installation. The 55 Inch Outdoor Digital Signage platform is designed for projects where ordinary indoor screens do not provide enough brightness, protection, or operating flexibility. It gives system integrators a 4K display surface for outdoor advertising, transportation notices, EV charging information, QSR menu guidance, retail promotions, and smart-city communication.
The 55-inch format is a practical middle ground for outdoor systems. It is large enough for pedestrian visibility and multi-zone content, but easier to install than 75-inch or 86-inch outdoor monitors. Operators can show promotional media, transit schedules, wayfinding, queue information, pricing, alerts, and public-service messages without creating crowded layouts.
The product’s technical value also comes from its integration data. The structured specification lists V-by-One 8-lane 51-pin signal input, 12.0 V typical panel supply, 1209.6 × 680.4 mm active area, 1.07B colors, and WLED 50,000-hour backlight. For full outdoor signage assemblies, the page also describes IP65 protection, smart dimming, remote control, Android or computer motherboard options, and network transmission options. Buyers should confirm the ordered configuration before sampling.
Key Features of the 55 Inch Outdoor Digital Signage
| Feature | B2B Value |
|---|---|
| 55-inch 4K display size | Balances strong public visibility with manageable cabinet and wall-mount requirements. |
| 3840 × 2160 UHD resolution | Supports detailed advertising, maps, menu boards, transit data, and smart-city content. |
| 500–5000 nits brightness | Allows brightness selection for different outdoor and semi-outdoor lighting conditions. |
| 89°/89°/89°/89° viewing | Helps people read the screen from side approaches and varied viewing positions. |
| Anti-glare haze 1%, 3H surface | Reduces reflection risk and supports clearer public-facing display use. |
| V-by-One 8-lane 51-pin interface | Gives engineers a defined high-bandwidth display signal path. |
| WLED 50,000-hour backlight | Supports long-service digital signage lifecycle planning. |
| IP65 outdoor system direction | Helps address weather, dust, and humidity requirements at display-system level. |
| Smart dimming and remote options | Supports energy control and easier signage operation after installation. |
| Custom touch capability | Lets interactive kiosk projects evaluate capacitive touch without claiming it as standard. |
Technical Specifications of the 55-Inch Outdoor 4K Display
| Specification | Confirmed Value |
|---|---|
| Product Type | Outdoor digital signage display |
| Screen Size | 55 inches |
| Resolution | 3840 × 2160 UHD |
| Active Display Area | 1209.6 × 680.4 mm |
| Brightness | 500–5000 nits |
| Surface Treatment | Anti-glare haze 1%, hard coating 3H |
| Contrast Ratio | 1200:1 typical |
| Viewing Angle | 89°/89°/89°/89° typical |
| Display Colors | 1.07B colors, 74% NTSC |
| Signal Interface | V-by-One 8 lane, 51 pins |
| Supply Voltage | 12.0 V typical |
| Backlight | WLED, 50,000 hours, with LED driver |
| Standard Touch | None |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
These confirmed values show that the product can be selected either as a high-brightness display platform or as part of a complete outdoor signage system. The public specification table does not turn optional system features into fixed claims. Touch is none as standard, but custom capacitive touch can be reviewed for interactive display projects.
Why Choose a 55-Inch Display for Outdoor Public Signage?
A 55-inch outdoor display is ideal when a project needs more impact than compact signage but does not require the weight, cost, and structural demands of very large-format monitors.
4K Content Space for Transit, Retail, and QSR Screens
The UHD resolution helps operators present readable public information and high-quality promotional visuals. In transit applications, it can show routes, alerts, and schedules. In retail and QSR locations, it supports menu boards, promotions, campaign media, and queue guidance. For EV charging stations, it can display pricing, station instructions, advertisements, and charging network information.
500–5000 Nits Brightness for Changing Ambient Light
The brightness range gives integrators room to match the display to the site instead of overbuilding every project. A covered shopping center entrance, a roadside pylon, and a sun-facing QSR drive-thru may need different brightness targets. Brightness should be reviewed together with front glass, reflection, content contrast, thermal design, and power planning.
IP65 Outdoor System Direction for Public Environments
The source describes IP65 outdoor protection in the system table and references IP65/IP66 in the outdoor display text. Final protection should be validated at assembly level, including cable exits, rear enclosure, wall mount, service access, glass seal, and ventilation design.
V-by-One Integration, Smart Control, and Custom Touch Planning
The 55 Inch Outdoor Digital Signage platform supports both panel-level and system-level project planning. The best configuration depends on whether the buyer needs a display module, a finished signage monitor, or a customized media/display assembly.
V-by-One 51-Pin Controller Matching
The V-by-One 8-lane 51-pin signal interface should be confirmed before controller selection. Engineers should review pin assignment, cable length, connector orientation, signal integrity, backlight control, power sequencing, and compatibility with the chosen media board or control system.
Smart Dimming, CMS, and Network Options
The source system table lists smart dimming, intelligent temperature control, and remote control support. It also lists Android motherboard, computer motherboard, standalone mode, WiFi, 3G, and 4G options. These options are useful for operators that need scheduled content, remote updates, or brightness adjustment based on ambient light.
Standard No-Touch with Custom Capacitive Touch Options
The standard specification confirms no touch. For interactive wayfinding, EV charging, smart-city kiosks, and public service terminals, HuiSoar can evaluate custom 10-point or 20-point capacitive touch, cover glass, optical bonding, anti-reflective treatment, and enclosure-level front protection according to the application.
Recommended Applications for Outdoor Display Projects
Transportation Hubs and Public Information
Bus stops, rail stations, metro platforms, airports, and public service centers can use this display for route information, service notices, alerts, and advertising. The large 55-inch format helps content remain visible in high-traffic spaces.
Retail, Shopping Center, and QSR Signage
Retail entrances, shopping centers, and QSR drive-thrus need displays that stay readable across changing daylight conditions. This product can support promotions, menu boards, campaign media, queue instructions, and brand messaging.
EV Charging and Smart Energy Displays
EV charging stations and energy-service sites can use the display for station messages, promotional content, pricing, safety instructions, and charging-network information. If user interaction is needed, custom touch integration should be evaluated with glass, bonding, and environmental requirements.
Smart City, Public Square, and Outdoor Advertising
The display fits outdoor advertising networks, city information boards, real estate showcases, and public plaza displays where 4K visuals, brightness, and outdoor reliability matter together.
Customization Options for 55-Inch Outdoor Digital Signage Projects
Project evaluation can include brightness selection, IP-rated enclosure design, 5 mm AR tempered glass, optical bonding, anti-glare or anti-reflective films, custom 10-point / 20-point capacitive touch, Android or computer motherboard, WiFi / 3G / 4G network transmission, remote control, CMS integration, V-by-One cable/controller support, wall mounting, and thermal design.
For outdoor signage programs, customization should be reviewed as a complete system. Brightness, enclosure sealing, front glass, media playback, power, cable protection, mounting, and maintenance access all affect long-term field performance.
Procurement and Engineering Checklist for 55-Inch Signage Selection
- Confirm whether the project needs a panel module or complete outdoor signage system.
- Select brightness target based on installation angle, sunlight exposure, and content contrast.
- Verify V-by-One 8-lane 51-pin controller compatibility and cable plan.
- Confirm 12.0 V panel supply or AC110V/220V system architecture.
- Review IP65/IP66 target, enclosure, glass seal, cable exits, and service access.
- Decide whether standard no-touch is sufficient or custom capacitive touch is required.
- Confirm Android, computer motherboard, WiFi, 3G, 4G, CMS, and remote-control needs.
- Validate active area, cabinet size, mounting structure, thermal path, sample quantity, and application environment.
FAQ
About 55 Inch Outdoor Digital Signage
Is this display suitable for outdoor advertising?
Does the standard configuration include touch?
What interface does the display use?
What brightness should I choose?
Can this display support remote content management?
Is it IP65 or IP66?
What should I send for a quotation?
