7 Inch Field Data Terminal Display Module with Capacitive Touch
Model P/N
Size
Resolution
Brightness
Viewing Angle
Connector Type
Operating Temp
Overall(mm)
huisoar
HS07012001920-1
Brand
Panel Size (inch)
Model P/N
Resolution
Brightness (nits)
Viewing Angle
Contrast Ratio
Response Time
Overall (mm)
Active Area (mm)
Refresh Rate
Display Colors
Panel Type
Connector Type
Operating Temp
Touchscreen Type
Storage Temp
Work Mode
Pixel Format
Input Voltage (V)
Motherboard Type
Designed For

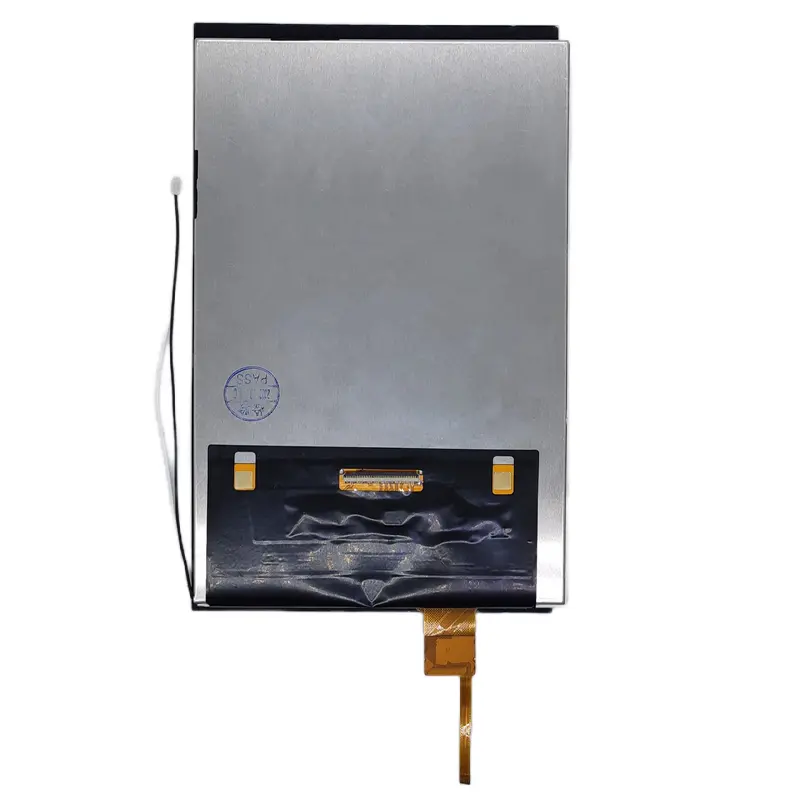

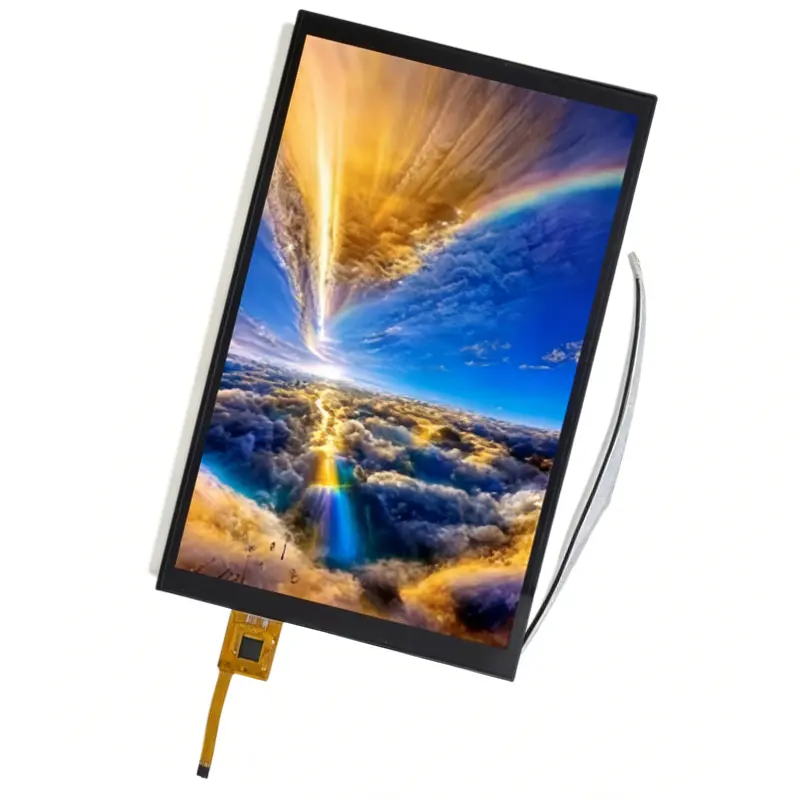

7 Inch Field Data Terminal Display Module with Capacitive Touch
This portrait IPS touch module combines 1200 × 1920 graphics, 2000 cd/m² typical luminance and four-lane MIPI integration for mobile industrial equipment.
Product Summary
The Field Data Terminal Display Module is a 7-inch portrait TFT-LCD assembly for handheld and mobile equipment that must present dense information, detailed graphics and direct touch interaction within a narrow enclosure.
Its native 1200 × 1920 resolution supports inspection forms, equipment status, mapping, technical diagrams, image previews and vertically arranged operating controls. The IPS panel, high luminance and capacitive-touch layer make the configuration relevant to field data terminals, portable controllers and mobile service equipment.
The module is a display component rather than a complete rugged terminal. The host processor, touch controller, cover lens, enclosure, environmental sealing and system qualification must be defined separately.
Key Specifications
| Specification | Value |
|---|---|
| Display size | 7 inch |
| Native resolution | 1200 × 1920 pixels |
| Active area | 94.5 × 151.2 mm |
| Module dimensions | 107.98 × 163.8 × 4.2 mm |
| Panel technology | a-Si IPS TFT active matrix |
| Display mode | Transmissive, normally black |
| Luminance | 2000 cd/m² typical |
| Contrast ratio | 2000:1 typical |
| Viewing angles | 80°/80°/80°/80° |
| Display colors | 16.7M colors |
| Color gamut | 70% typical |
| Response time | 21 ms typical |
| Interface | Four-lane MIPI |
| Connection | 40 pins |
| Touch | PCAP |
| Backlight reference | 9–11 V / 550 mA |
| Operating temperature | −10°C to +60°C |
| Storage temperature | −20°C to +70°C |
High-Density 1200 × 1920 Portrait UI Planning
Field Data and Inspection Layouts
The portrait pixel matrix supports interfaces that must present more information vertically than a conventional low-resolution handheld display.
A field-terminal UI can allocate separate regions for:
- Work-order identification
- Inspection steps
- Measurement values
- Equipment status
- Warning messages
- Location or map details
- Captured images
- Operator notes
- Confirmation controls
- Connectivity and battery state
Preparing graphics at the native 1200 × 1920 resolution helps maintain text edges, icon proportions and alignment across information groups.
Touch-Target and Information Hierarchy
High resolution allows detailed content, but it does not justify making interactive controls physically small. Touch targets should be evaluated using the actual screen dimensions, viewing distance and expected operating conditions.
Interface planning should account for:
- Single-handed use
- Installation orientation
- Operator gloves, when required
- Critical-alert priority
- Accidental-touch prevention
- Day and night themes
- Multilingual labels
- Scrolling behavior
- Edge-control clearance
- Cover-lens thickness
Glove performance and supported touch-point count require confirmation from the approved PCAP specification.
2000 cd/m² IPS Optical Performance
Bright-Ambient Display Headroom
The panel provides 2000 cd/m² typical luminance and 80% minimum luminance uniformity.
This gives the LCD substantial optical headroom for portable equipment used in bright workshops, vehicle-adjacent work areas and outdoor-adjacent field conditions. Current 7-inch high-brightness MIPI touch products are commonly marketed for industrial controllers, imaging systems and portable equipment, although exact luminance and mechanics vary by model.
A 2000 cd/m² panel does not independently prove the readability of the finished device under every direct-sun condition.
Finished Optical-Stack Validation
Final visibility depends on:
- Cover-lens transmission
- Surface reflections
- PCAP sensor transmission
- Optical bonding or air gap
- Printed borders
- Anti-glare or anti-reflective treatment
- Installation angle
- Ambient-light direction
- Backlight temperature
- Automatic brightness control
- UI colors and contrast
The completed optical stack should be tested under representative operating light before a finished-product readability claim is approved.
Field Data Terminal Display Module Integration
The Field Data Terminal Display Module uses a four-lane MIPI interface and a 40-pin connection.
4-Lane MIPI Host Qualification
Before selecting the processor, bridge board or cable, confirm:
- Native 1200 × 1920 timing
- MIPI clock parameters
- Four-lane mapping
- Operating mode
- Complete 40-pin assignment
- Panel supply voltage
- Logic-voltage levels
- Reset and control signals
- Backlight enable
- Dimming control
- Connector pitch
- Contact side
- FPC direction
- Grounding and shielding
A 40-pin four-lane MIPI connector does not guarantee timing, voltage or pin compatibility with another display.
40-Pin and Touch-System Review
The 40-pin drawing identifies the display-side MIPI signals and backlight connections. The available product data does not establish the touch-controller model or touch interface.
The touch integration review must therefore confirm:
- Touch-controller model
- I²C, USB, SPI or other communication path
- Interrupt and reset signals
- Touch supply voltage
- Coordinate orientation
- Supported touch-point count
- Firmware requirements
- Noise immunity
- Cover-lens limits
PCAP confirms capacitive-touch hardware but does not confirm the touch-point count or touch-controller interface.
Mechanical, Backlight and Thermal Design
The active area is 94.5 × 151.2 mm, while the module measures 107.98 × 163.8 × 4.2 mm.
Mechanical planning should include:
- Front opening
- Active-area alignment
- Touch-border overlap
- Rear-component clearance
- FPC access
- Cable bend radius
- Mounting pressure
- Cover-lens support
- Housing stiffness
- Tolerance accumulation
- Thermal clearance
- Service access
The WLED backlight is referenced at 9–11 V and 550 mA. The backlight driver should be sized for the approved operating point, startup behavior, dimming method, thermal load and required luminance range.
The operating range is −10°C to +60°C, with storage from −20°C to +70°C. These component limits do not qualify the battery, processor board, touch controller, enclosure, adhesive or completed field device.
Application Scenarios
Field Data Terminals
The portrait display can support inspections, maintenance records, equipment identification, maps, images and operator input in a portable field terminal.
Mobile Industrial Controllers
Portable machinery controllers can use the high-density interface for process data, alarms, setup menus and detailed status views.
Inspection and Service Equipment
Handheld test and service devices can present measurements, procedures, images, reports and confirmation steps on one vertical interface.
Imaging and Security Equipment
The 1200 × 1920 resolution can support detailed image previews, camera controls and status information where the host architecture matches the module.
Medical-Equipment Integration
The panel may be evaluated as a display component for portable medical equipment. This does not establish diagnostic-display performance, medical certification or suitability for a particular regulated use.
Customization Boundaries
Project review can include:
- MIPI timing and pinout matching
- FPC orientation and cable design
- Touch-controller selection
- Cover-lens geometry
- Printed border
- Optical bonding
- Anti-glare or anti-reflective treatment
- Backlight-driver design
- Brightness calibration
- Enclosure adaptation
- Branding
- Packaging
- Sample validation
Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Samples and standard-module quantities are confirmed separately.
Procurement Checklist
Submit:
- Approved model-specific datasheet
- Approved mechanical drawing
- Native 1200 × 1920 timing
- MIPI operating mode
- Four-lane mapping
- Complete 40-pin pinout
- Panel supply voltage
- Reset and control definitions
- Backlight driver design
- 9–11 V / 550 mA operating target
- Dimming requirement
- Touch-controller model
- Touch-interface definition
- Interrupt and reset signals
- FPC pitch and contact side
- Cable orientation and length
- Enclosure drawing
- Front opening
- Cover-lens stack
- Optical-bonding requirement
- Target finished luminance
- Ambient-light conditions
- Temperature requirement
- Sample quantity
- Annual demand
- Production schedule
FAQ
About 7 Inch Field Data Terminal Display Module
How should content be prepared for the 1200 × 1920 portrait format?
Does PCAP confirm ten-point touch or a particular communication interface?
Does 2000 cd/m² guarantee direct-sun readability?
What information is required before enclosure and backlight-driver release?
What is the typical lead time and production capacity?
Lead time and production capacity depend on order volume, configuration, and current factory loading. Please contact our sales team with your target volume and delivery timeline for an accurate lead time and capacity commitment.
What is the typical response time and refresh rate for your industrial TFT displays?
The HS07012001920-1 module has a specified refresh rate of 60 Hz, which is standard for industrial TFT displays. Response time is For exact response time data, please request the detailed specification sheet. The 60 Hz refresh rate ensures smooth video and GUI updates for field data terminal applications.
What are the brightness levels available for industrial displays, and can you customize beyond 1500 nits?
This display module offers a typical brightness of 2000 nits, which is well above 1500 nits. Customization beyond this level is possible but requires engineering evaluation. Higher brightness may affect power consumption, thermal management, and backlight lifetime. Please provide your target brightness, ambient light conditions, and enclosure constraints so our team can assess feasibility and propose a solution.
Can you integrate a touch controller and provide a fully assembled display module?
Yes, the HS07012001920-1 is supplied as a fully assembled display module that integrates a 7-inch TFT-LCD with a capacitive touch panel (PCAP). The touch controller is part of the assembly, but the specific controller model and interface details are For integration into your system, confirm the touch controller's compatibility and driver support with our engineering team. The module is ready for direct connection to a host processor via the 40-pin MIPI interface.
What are the operating temperature ranges for your industrial control displays, especially for environments below -20°C or above 70°C?
The standard operating temperature range for this display is -10°C to +60°C, with storage from -20°C to +70°C. For environments below -20°C or above 70°C, extended temperature options may be available but require custom design. Factors such as LCD fluid type, heater integration, and component selection affect performance. Please provide your minimum and maximum ambient temperatures, as well as any thermal cycling or humidity requirements, for a feasibility review.
What are the common interface options (e.g., LVDS, eDP, MIPI) for your industrial TFT displays, and what are their pin counts?
The HS07012001920-1 module uses a 40-pin MIPI (4-lane) interface, which is common for high-resolution mobile and industrial displays. Pin counts vary by resolution and manufacturer. For this specific model, only MIPI is specified.
