55 Inch 4K Digital Signage LCD Panel High-Brightness for Public Displays

55 Inch 4K Digital Signage LCD Panel for Public Displays

This 4K Digital Signage LCD Panel combines a 55-inch UHD image area, 700 cd/m² typical luminance and an eight-lane V-by-One connection for large public-information systems.

Product Summary

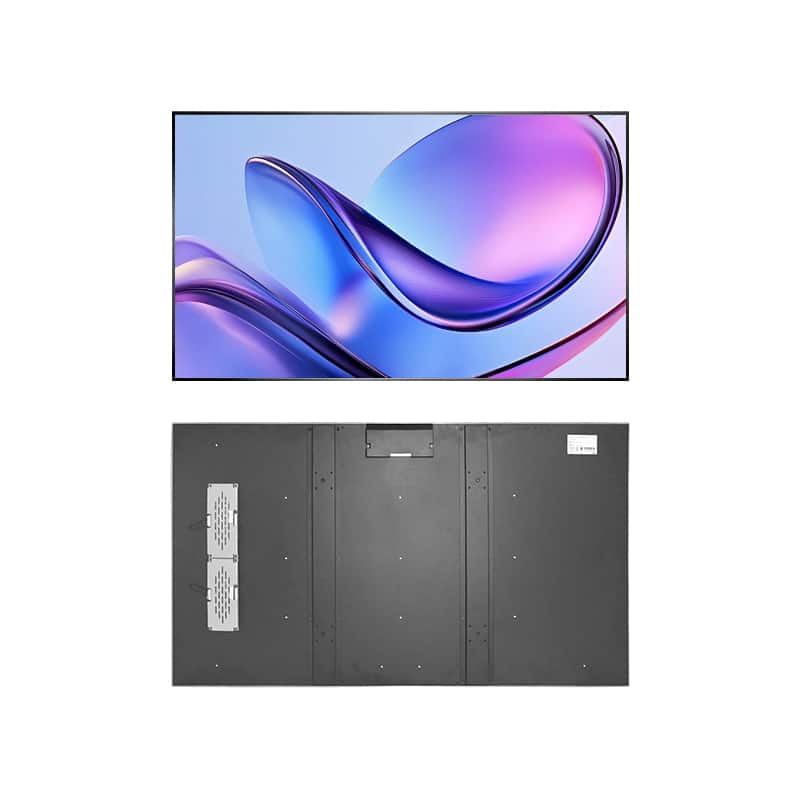

The 55-inch panel provides a native 3840 × 2160 image area for advertising, wayfinding, public information and equipment interfaces that require detailed large-format content. Its 1209 × 680.4 mm active area gives content designers sufficient space for high-resolution images, multiple information zones, maps, schedules and promotional media.

A 700 cd/m² typical luminance level supports bright indoor installations and controlled semi-outdoor systems where the final enclosure, cover glass and ambient-light conditions have been qualified. The standard configuration is a non-touch component panel rather than a complete monitor or weatherproof signage system.

The panel uses an eight-lane V-by-One connection. A matched controller, backlight drive, power architecture and enclosure are therefore required before it can operate as part of a finished display.

Key Specifications

Planning 4K Content for a 55-Inch Panel

Native 3840 × 2160 Asset Preparation

Content should be produced for the native 3840 × 2160 raster whenever possible. Feeding a lower-resolution source can require scaling by the controller, which may soften small text, line graphics and detailed product images.

A practical signage layout should define:

• native canvas resolution
• safe margins
• minimum text size
• image-compression limits
• video frame rate
• color-profile workflow
• horizontal or vertical installation
• content-player output format
• fallback content
• remote-update method

The source player and controller must generate a timing format approved for the panel.

Viewing Distance and Information Hierarchy

A 55-inch screen can carry a large amount of information, but content density should follow the intended viewing distance. Transit information, charging instructions and vending selections require larger text and stronger hierarchy than close-view control-room graphics.

Important content should remain visually dominant through:

• high foreground/background contrast
• limited text per screen
• clear headings
• consistent iconography
• sufficient spacing
• controlled animation
• readable status colors
• tested viewing distances

4K Digital Signage LCD Panel Integration

Qualifying the V-by-One 8-Lane Interface

An eight-lane V-by-One label does not guarantee compatibility with every 4K controller.

Before selecting or releasing a controller board, confirm:

• native resolution and timing
• refresh rate
• lane count
• lane mapping
• per-lane data rate
• color depth
• connector pinout
• connector part number
• panel supply voltage
• enable sequence
• backlight control
• firmware support
• TCON requirements
• cable length and construction

The approved panel specification and controller compatibility list should govern the design.

Separating Panel Input from HDMI Sources

V-by-One is the panel-side input. It is not an HDMI connector.

An HDMI, DisplayPort or media-player source requires a controller that converts the external video format into the timing and V-by-One signal required by the panel. A board advertised only as “4K HDMI” is not sufficient unless it explicitly supports the assigned panel and its eight-lane V-by-One configuration.

A V-by-One 8-lane label does not by itself confirm controller compatibility.

Power and Backlight Validation

The listed 100 W figure should be confirmed against the approved electrical specification to determine whether it represents panel, backlight or combined module power.

System design should establish:

• input-rail requirements
• backlight voltage
• backlight current
• driver efficiency
• inrush current
• dimming method
• standby behavior
• thermal dissipation
• cable ratings
• power-supply margin
• fault protection

The finished display’s total power will also include the controller, media player, fans or thermal system and any network hardware.

Optical Performance and Ambient-Light Boundaries

The standard panel luminance is 700 cd/m² typical. This is a useful level for bright retail, transport, commercial and public-information environments where ambient light is controlled or partly shaded.

It does not automatically establish direct-sun readability.

Finished-system readability depends on:

• cover-glass reflectance
• surface treatment
• air gap or optical bonding
• ambient-light direction
• enclosure shadowing
• UI contrast
• automatic dimming
• panel temperature
• installation orientation
• aging margin

A 700 cd/m² panel does not automatically qualify a finished product for direct-sun outdoor use.

Projects exposed to strong sunlight should define a measured luminance target and conduct a representative optical test with the intended front glass and enclosure.

Mechanical and Thermal Integration

The active area measures 1209 × 680.4 mm, while the panel outline is 1233.8 × 704.6 × 17.7 mm.

Mechanical design should confirm:

• visible opening
• active-area centering
• bezel overlap
• mounting points
• rear clearance
• connector access
• cable bend radius
• backlight-driver location
• ventilation path
• chassis stiffness
• thermal expansion
• handling method
• service access

Large panels require controlled support to avoid frame twist, localized pressure and glass stress. Production tooling should follow the approved dimensional drawing rather than nominal web-page values alone.

Thermal testing should include the actual brightness setting, controller, enclosure, airflow and ambient temperature. The component operating range is 0°C to +50°C; a finished product installed outside that range requires a separately qualified configuration.

Non-Touch System Architecture

The standard panel is non-touch.

Applications requiring interaction can use a separately engineered touch overlay, but the complete assembly must be evaluated for:

• touch technology
• glass thickness
• sensor size
• controller interface
• USB or I²C routing
• optical transmission
• parallax
• bonding method
• bezel design
• EMI behavior
• water rejection
• glove operation
• calibration
• operating-system support

Adding a touch overlay can reduce transmitted luminance and change the thermal, optical and mechanical design.

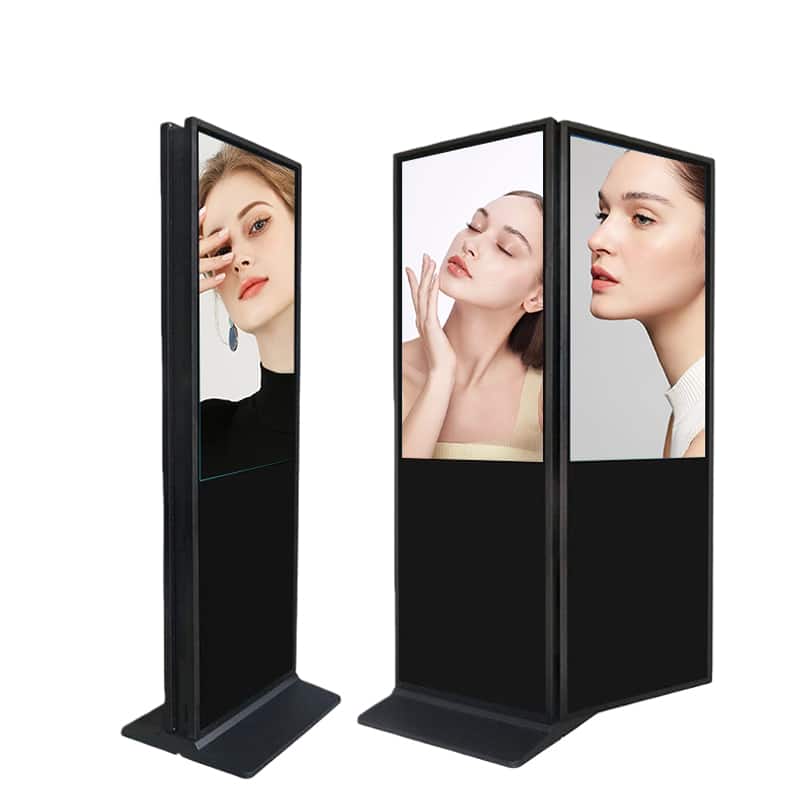

Recommended Public-Display Applications

Bus-Station Information Boards

The 4K raster can present route maps, service alerts, schedules and advertising within a multi-zone layout.

Charging-Station Displays

The panel can support charging instructions, status graphics, promotional content and site information when installed within a qualified enclosure.

Express Cabinets and Vending Machines

Large product menus, collection instructions, advertising and status data can be displayed clearly across the 55-inch active area.

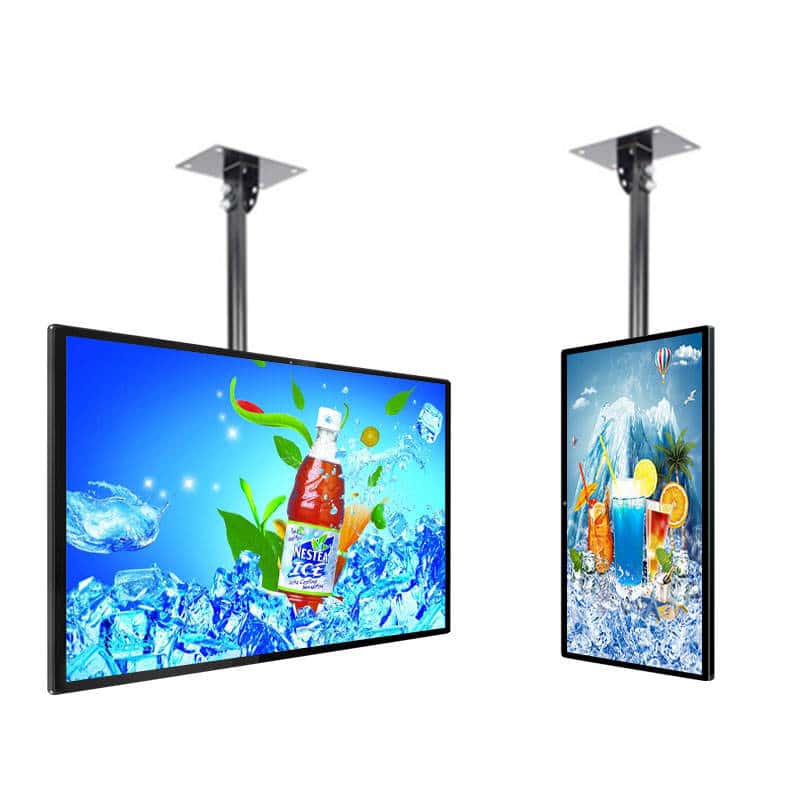

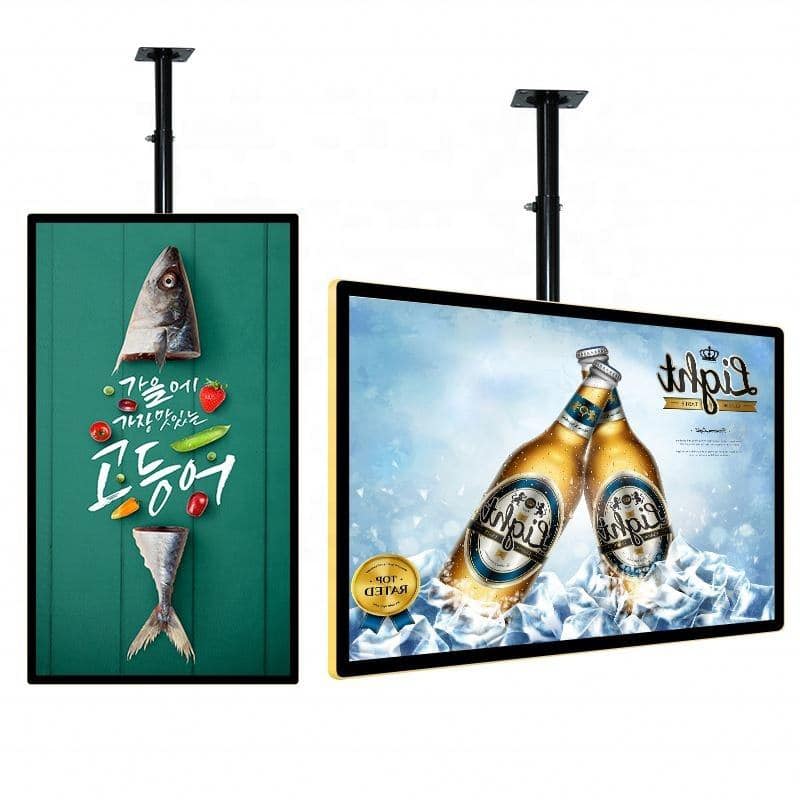

Commercial Advertising Systems

Retail and commercial installations can use the panel for detailed campaigns, branded media and high-resolution promotional imagery.

Attraction and Community Information Terminals

Maps, event listings, public notices and visitor information can be organized into readable large-format layouts.

These applications describe integration routes rather than finished-system certifications. Outdoor, unattended or high-traffic installations require enclosure, glass, thermal, environmental and electrical qualification.

Customization and Project Review

Project-specific review can cover:

• luminance target
• compatible controller board
• HDMI or DisplayPort conversion
• cover glass
• anti-reflection treatment
• optical bonding
• enclosure structure
• cooling method
• automatic brightness control
• touch overlay
• cable and connector selection
• mounting design
• packaging

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, optical targets, material availability and the requested specification. Sample and standard-panel quantities are confirmed separately.

Procurement Checklist

Before approving a sample or production design, confirm:

• 3840 × 2160 native timing
• required refresh rate
• V-by-One lane count
• lane mapping
• link data rate
• color depth
• connector pinout
• cable specification
• controller-board compatibility
• panel supply voltage
• backlight voltage and current
• enable and dimming signals
• 100 W value scope
• power-supply margin
• active area
• outline dimensions
• mounting points
• connector position
• thermal design
• enclosure airflow
• cover-glass specification
• surface treatment
• ambient-light target
• installation orientation
• touch requirement
• operating and storage limits
• compliance documentation
• sample quantity
• annual demand
• production schedule
