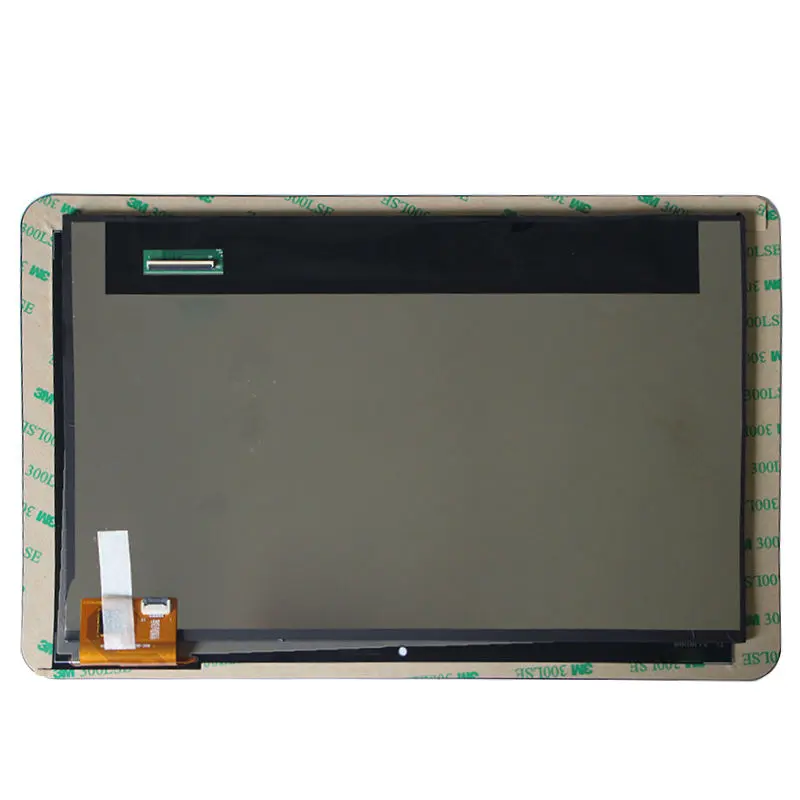

10.1 Inch WXGA TFT Touch Panel for Industrial HMI
A slim 1280×800 IPS display with 40-pin LVDS input and 1000 cd/m² luminance for bright industrial operator interfaces.
The 10.1 Inch WXGA TFT Touch Panel gives equipment designers a practical 16:10 interface for machine controls, dashboards, test systems and smart terminals. Its 1280 × 800 resolution provides more working space than 1024 × 600 panels, while the 216.96 × 135.60 mm active area supports readable text, charts, alarms and touch-oriented controls.
The LCD uses an IPS TFT structure, normally-black mode and a 40-pin LVDS connection. A touch panel is part of the product description, but the touch technology, controller and electrical interface must be confirmed for the ordered assembly.
Key Specifications
| Parameter | Value |
|---|---|
| Screen size | 10.1 inch |
| Resolution | 1280 × 800 pixels |
| Aspect class | WXGA, 16:10 |
| Panel type | IPS TFT LCD |
| Display mode | Transmissive, normally black |
| Viewing description | Free viewing |
| Luminance | 1000 cd/m² |
| Active area | 216.96 × 135.60 mm |
| LCD outline | 229.2 × 149.8 × 2.50 mm |
| Display interface | LVDS |
| Connector | 40-pin FPC |
| Backlight | WLED |
| Backlight electrical reference | 21.6–26.4 V / 225 mA |
| Operating temperature | −20°C to +70°C |
| Storage temperature | −30°C to +80°C |
| Touch status | Touch panel stated; TP specification requires confirmation |
WXGA Layout for Industrial Interfaces
The 1280 × 800 format gives interface designers a balanced landscape canvas.
More room for operating data
The native pixel format can support:
- Machine-state graphics
- Process-value grids
- Alarm and event lists
- Trend charts
- Maintenance menus
- Equipment configuration pages
- Building-control dashboards
- Test and measurement readouts
- Compact POS operator interfaces
- Multi-panel status screens
A 16:10 layout also leaves more vertical space than a similarly wide 16:9 panel, which can help when a screen combines navigation controls with detailed operating data.
Native timing matters
The host should output the panel’s required 1280 × 800 timing. Scaling from a different native format can reduce text sharpness and alter touch-coordinate alignment in the finished system.
Matching resolution alone does not establish electrical compatibility.
IPS Optics and 1000 cd/m² Luminance
The IPS panel description and free-viewing statement support equipment that may be observed from changing operator positions.
Bright-environment positioning
The 1000 cd/m² luminance makes the LCD relevant for:
- Bright factory floors
- Equipment near windows
- High-ambient-light indoor terminals
- Semi-exposed operator stations
- Illuminated commercial equipment
- Service equipment used across varied indoor conditions
The value should not be converted automatically into a sunlight-readable claim. Cover-glass transmission, reflection, optical bonding, enclosure shading and thermal management all affect final readability.
Touch-cover impact
A touch stack can reduce transmitted luminance and introduce additional reflections. Optical validation should therefore use the complete touch assembly rather than the bare LCD alone.
40-Pin LVDS Interface Compatibility
The native LCD image path uses LVDS through a 40-pin FPC.
Host information to verify
Engineering review should cover:
- Native pixel timing
- LVDS channel configuration
- Bit mapping
- Clock frequency
- Data polarity
- Logic voltage
- Ground arrangement
- Panel-enable signals
- Backlight-enable signals
- PWM input, when applicable
- Connector pitch
- FPC contact side
- Cable direction
A 40-pin connector does not guarantee compatibility with another 40-pin LVDS panel.
Non-LVDS sources
HDMI, DisplayPort, eDP, MIPI DSI, parallel RGB and USB video cannot drive the native LVDS input directly unless a suitable conversion or controller board is provided.
10.1 Inch WXGA TFT Touch Panel Integration
The display and touch functions should be treated as separate electrical subsystems.
Touch details requiring confirmation
Before controller-board release, obtain:
- Touch technology
- Touch-controller model
- Touch communication interface
- Touch supply voltage
- Interrupt and reset signals
- Touch FPC pin assignment
- Supported touch-point count
- Coordinate orientation
- Driver or firmware requirements
- Cover thickness
- Touch-active area
- Touch-panel outer dimensions
Do not assume capacitive touch, USB touch or I²C touch from the product title alone.
Coordinate validation
Touch-coordinate scaling should be verified against the native 1280 × 800 image orientation. Rotation, mirrored installation or host-side scaling can cause position errors unless the touch controller and user interface are configured together.

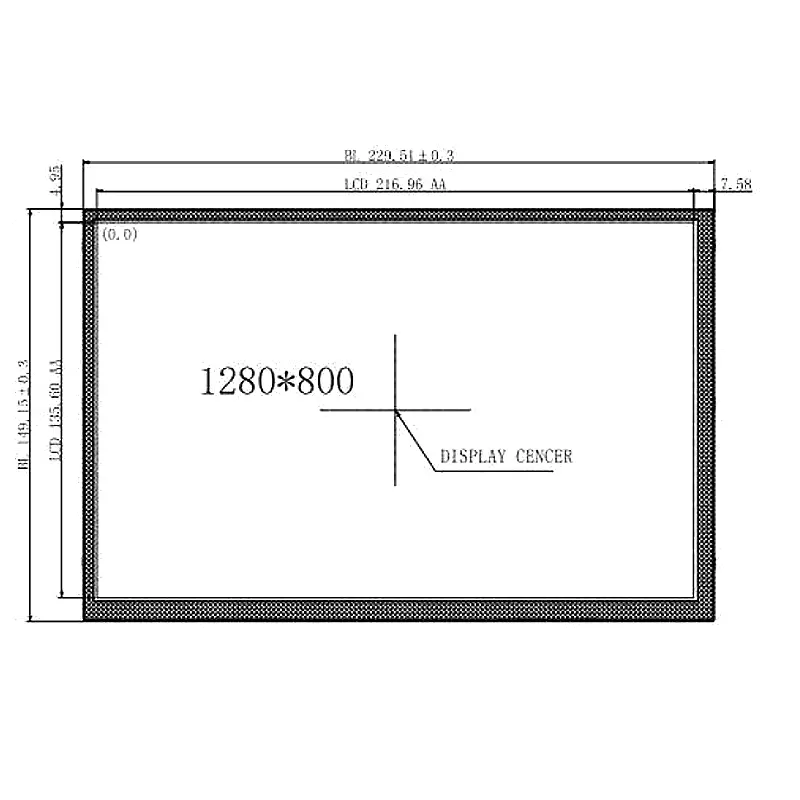

Slim Mechanical Structure
The bare LCD outline is 229.2 × 149.8 × 2.50 mm, with a 216.96 × 135.60 mm active area.
Enclosure planning
The housing design should account for:
- Visible-window size
- LCD outline tolerance
- Touch-cover outline
- Border printing
- Bonding thickness
- FPC exit direction
- Cable bend radius
- Rear-component clearance
- Mounting or adhesive area
- Service-removal access
The final touch assembly may be larger and thicker than the bare LCD drawing. Release the front enclosure only after the touch-panel drawing is approved.
Backlight and Power Integration
The WLED backlight has an electrical reference of 21.6–26.4 V / 225 mA.
Driver selection
The backlight system may require:
- A constant-current LED driver
- Adequate voltage headroom
- Thermal protection
- Brightness control
- Startup-current margin
- Cable-loss allowance
- Backlight enable coordination
The electrical reference should be checked against the production drawing before finalizing the driver. The value does not establish a particular dimming method or lifetime grade.
Temperature and Application Fit
The LCD is specified for operation from −20°C to +70°C and storage from −30°C to +80°C.
Suitable project categories include:
- Industrial HMI panels
- Automation controllers
- Machine dashboards
- Test and measurement instruments
- Smart terminals
- Building-control interfaces
- High-ambient-light indoor displays
- Portable test and service equipment
- Equipment monitoring panels
- Commercial operator interfaces
Application approval must also consider touch grade, condensation, enclosure design, backlight temperature, shock, vibration and required certifications.
Customization and Project Review
Project evaluation can include:
- LVDS mapping
- FPC layout
- Touch-panel selection
- Touch controller and interface
- Cover glass
- Border printing
- Optical bonding
- Brightness target
- Backlight driver
- Mechanical adaptation
- Packaging
- Branding
- Controller-board matching
Graphic, packaging and logo customization are generally reviewed from 1,000 pieces, subject to tooling, material availability and the requested specification. Sample and standard-module quantities are confirmed separately.
Procurement Checklist
Confirm before sample approval:
- Native 1280 × 800 timing
- LVDS channel count and mapping
- LVDS color-depth mode
- Full 40-pin assignment
- FPC pitch
- FPC contact side
- Cable orientation
- Panel logic voltage
- Backlight-driver requirements
- Backlight voltage and current
- Backlight enable and brightness control
- Touch technology
- Touch-controller model
- Touch interface
- Touch-controller voltage
- Interrupt and reset signals
- Touch FPC pinout
- Touch-point requirement
- Coordinate orientation
- Driver or firmware requirement
- Active area: 216.96 × 135.60 mm
- LCD outline: 229.2 × 149.8 × 2.50 mm
- Final touch-cover dimensions
- Enclosure opening
- FPC bend clearance
- Mounting or bonding method
1000 cd/m²lighting target- Required operating temperature
- Sample quantity
- Annual demand
- Production schedule
- Controller-board requirement
FAQ
About 10.1 Inch WXGA TFT Touch Panel
What is the minimum order quantity (MOQ) for custom display modules with integrated touch and controller boards?
For custom display modules with integrated touch and controller boards, please contact our sales team to discuss your specific requirements and we will provide a tailored MOQ based on your project needs.
Can you provide high brightness displays with 1000+ nits that maintain performance in direct sunlight for outdoor industrial applications?
The product description mentions a luminance of 1000 cd/m², which is suitable for bright industrial environments. For outdoor applications requiring 1000+ nits, please confirm with our engineering team if higher brightness options are available for this model or if a custom solution can be provided.
What are the packaging options for shipping and handling of fragile LCD panels?
The product information does not detail packaging options. For fragile LCD panels, we typically use anti-static bags, foam padding, and sturdy cartons to ensure safe shipping. Please contact us to confirm the specific packaging method for your order.
Can you integrate touch controllers (resistive/capacitive) into custom display modules with specific firmware requirements?
The product includes a capacitive touch panel, but the touch controller and electrical interface must be confirmed for the ordered assembly. For custom modules with specific firmware requirements, please contact our engineering team to discuss integration options.
What are the available interface options (e.g., LVDS, eDP) and connector types for your industrial LCD panels, and do you offer compatible controller boards or driver solutions?
We offer compatible controller boards or driver solutions; please contact us to confirm availability and specifications for your application.
Can you customize the mechanical dimensions and mounting holes for a specific industrial enclosure?
For custom mechanical integration, please contact our engineering team to discuss your enclosure requirements and feasibility.
Do you offer displays with wide viewing angles (e.g., 85/85/85/85)?
However, the panel uses IPS TFT technology, which typically provides wide viewing angles. For exact specifications, please request the datasheet from our sales team.
What are the common interface options (e.g., LVDS, eDP, MIPI) for your industrial TFT displays, and what are their pin counts?
For this specific 10.1-inch WXGA panel, only LVDS is specified.
Can you customize the mechanical dimensions and mounting holes of a standard LCD panel to fit our specific enclosure design?
For custom modifications to fit your enclosure, please contact our engineering team to evaluate feasibility and provide a solution.
What is the lead time for standard TFT display modules in your inventory?
For standard TFT display modules in inventory, please contact our sales team to check current stock and provide an estimated lead time for your order.
