12.1 Inch USB Touch TFT Panel for Industrial Controls

12.1 Inch USB Touch TFT Panel for Industrial Controls

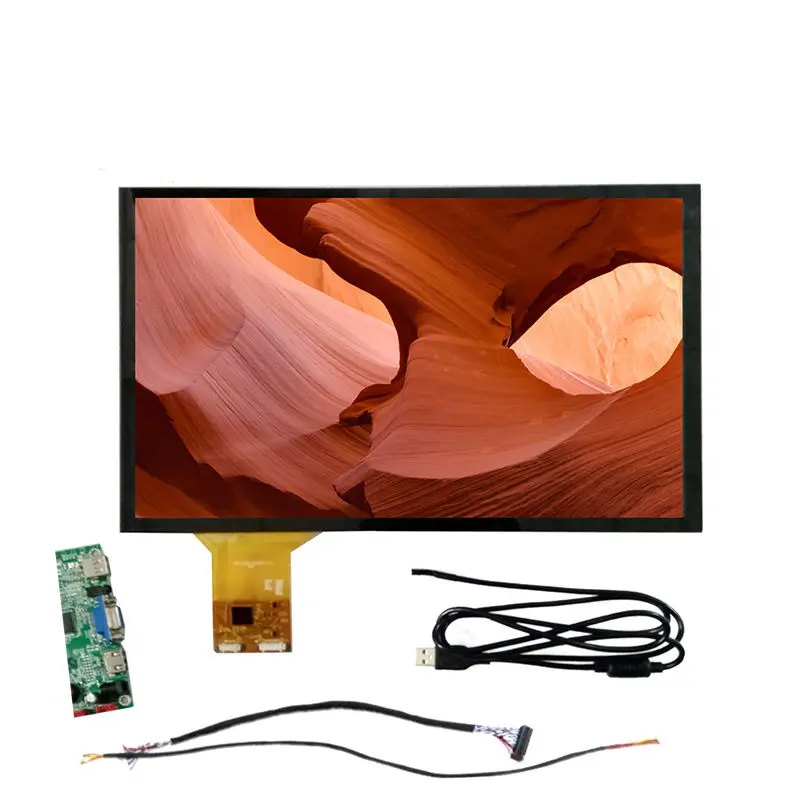

The 12.1 Inch USB Touch TFT Panel combines a 1280 × 800 TFT image area, LVDS video connectivity and a capacitive-touch assembly for industrial control systems. Its 261.12 × 163.20 mm active area provides a 16:10 workspace for operator pages, status displays, diagnostics and equipment controls.

The display and touch functions should be treated as separate electrical paths. LVDS is used for the image connection, while USB is associated with the touch-control route in this configuration. The complete pinout and touch-controller specification must be approved before controller-board or cable release.

Product Summary

This 12.1-inch module is designed for embedded systems that need a medium-size interactive display with WXGA resolution and a wider temperature range than standard commercial panels.

The confirmed module outline is 277.70 × 180.60 × 12.2 mm. The 450 cd/m² luminance provides more output than many basic indoor panels, but the completed optical assembly must still be evaluated behind the final cover lens and under the actual installation lighting.

A 40-pin connector does not guarantee compatibility with another LVDS display.

Key Specifications at a Glance

The panel provides 1280 × 800 pixels across a 261.12 × 163.20 mm active area. Its 16:10 format supports interface layouts that need additional vertical space for alarms, navigation, status bars or parameter lists.

The system interface is identified as LVDS/USB. For integration planning, LVDS should be qualified as the LCD image path and USB as the touch path. Comparable 12.1-inch assemblies commonly separate the video and touch interfaces in this way, although the exact controller and pin assignment remain model specific.

WXGA Display Area for Industrial Interfaces

1280 × 800 Workspace

A 1280 × 800 resolution gives equipment designers enough space for multiple information zones without requiring a Full HD graphics platform. It is suitable for menus, machine-state graphics, trend views, service pages and touch controls.

The host must support the required native timing and LVDS mapping. Matching only the resolution or connector count does not establish panel compatibility.

450 cd/m² Lighting Position

The standard luminance is 450 cd/m². This output can support indoor factories, equipment rooms and sheltered interfaces where ambient light is stronger than a typical office environment.

It should not be described as sunlight readable. Cover-lens transmission, glare, printed borders, bonding layers and installation angle can change the finished system’s apparent brightness and reflections.

The final optical stack should be tested under the intended lighting before production approval.

LVDS Video and USB Touch Integration

LVDS Host Compatibility

LVDS qualification should include:

• pixel timing;
• channel mapping;
• bit-depth configuration;
• clock polarity;
• panel supply rails;
• enable and control signals;
• backlight requirements;
• complete 40-pin assignment;
• connector pitch and contact side;
• FPC orientation.

LVDS panels with the same size and resolution can still have incompatible pin assignments, power requirements or channel mappings.

A matching 40-pin connector does not guarantee LVDS timing or pin compatibility.

USB Touch Qualification

The USB connection should be validated separately from the LVDS display path. Engineering review should confirm:

• touch-controller part number;
• USB device implementation;
• supply requirements;
• touch connector and pinout;
• supported touch-point count;
• host operating-system support;
• cover-lens construction;
• touch FPC orientation.

A working LVDS image does not prove that the touch path is correctly connected or supported by the host.

The LVDS connector carries the LCD image path, while USB is used for the touch-control path in this configuration.

ILI2511 Identification Boundary

ILI2511 is identified in the product information, but the available material does not establish whether it is the touch controller, a display-related IC or part of a larger assembly definition.

Its presence alone does not prove host initialization, register programming, firmware requirements, touch-point count or operating-system compatibility. Those details require the complete controller specification and interface documentation.

Mechanical Integration of the 12.1 Inch USB Touch TFT Panel

Active Area and Module Outline

The active image area measures 261.12 × 163.20 mm. The complete outline is 277.70 × 180.60 × 12.2 mm.

These dimensions should be used to plan:

• bezel opening;
• internal depth;
• support locations;
• FPC clearance;
• cable bend radius;
• connector access;
• touch-panel edge protection.

The 12.2 mm overall thickness is especially important for compact enclosures and recessed panel installations.

40-Pin FPC and Cable Orientation

The complete connector drawing should be reviewed before the host PCB or cable is released. A 40-pin count does not identify the pitch, contact side, pin-1 location or signal allocation.

The FPC should not be folded sharply at its exit from the display assembly. Mechanical support should avoid pulling, twisting or compressing the cable during enclosure installation.

Wide-Temperature Operating Boundaries

The confirmed operating-temperature range is −20°C to +70°C. Storage is specified from −30°C to +80°C.

These values provide a useful basis for industrial and sheltered equipment, but they do not by themselves establish automotive, outdoor, vibration, humidity or condensation qualification.

System validation should include:

• cold start;
• high-temperature image stability;
• touch behavior at temperature extremes;
• backlight operation;
• enclosure heat buildup;
• cable retention;
• condensation controls where relevant.

Recommended Application Routes

The module may be evaluated for:

• industrial control panels;
• operator terminals;
• production equipment interfaces;
• test and service equipment;
• smart terminals;
• indoor automation consoles;
• sheltered equipment-monitoring systems.

These are integration routes rather than certification claims. Final suitability depends on LVDS compatibility, USB touch support, enclosure fit, optical performance and environmental qualification.

Customization and Sample Qualification

Project-specific review may cover:

• interface and pin definition;
• FPC shape and material;
• touch cover lens;
• printed borders;
• bonding structure;
• brightness target;
• cable orientation;
• mechanical adaptation;
• packaging;
• controller-board matching.

Custom production scope is confirmed according to the requested configuration. Sample and standard-module quantities should be confirmed separately from logo, packaging or graphic-customization quantities.

A representative sample should be tested for image output, touch enumeration, coordinate accuracy, cable alignment, cover-lens performance, enclosure fit and temperature behavior.

Procurement Checklist

Provide the following before sample or production approval:

• native 1280 × 800 timing;
• LVDS channel and mapping requirements;
• complete host and panel pin assignments;
• connector pitch, contact side and FPC orientation;
• panel and backlight power requirements;
• USB touch-controller information;
• required operating-system support;
• active-area and outline drawings;
• bezel opening and internal depth;
• cover-lens and bonding structure;
• target ambient-light conditions;
• operating and storage temperature requirements;
• sample quantity;
• annual demand;
• compliance and validation requirements;
• production schedule.
