12.1 Inch Touch Display Module for Industrial HMI

12.1 Inch Touch Display Module for Industrial HMI

A capacitive-touch TFT LCD with 1280 × 800 resolution, LVDS video input and 500 cd/m² luminance for integrated operator interfaces.

Product Overview

The 12.1 Inch Touch Display Module combines a WXGA TFT LCD and capacitive-touch input in a format suited to integrated operator terminals. Its 1280 × 800 resolution provides a 16:10 workspace for status panels, process graphics, menus, tables and touch controls without forcing the interface into a narrow widescreen layout.

The display area measures 261.12 × 163.20 mm, while the confirmed module outline is 277.7 × 180.6 mm. These dimensions give mechanical designers a defined starting point for enclosure openings, bezels and internal clearances. Final integration should still be based on the approved mechanical drawing because module thickness, mounting features and touch-tail routing require confirmation.

This module uses an LVDS video interface and includes a capacitive touch panel. The video and touch paths must be evaluated separately: LVDS carries display data, while the touch-controller interface and connector details must be confirmed for the production configuration.

Key Specifications at a Glance

Optical Performance for Operator Interfaces

1280 × 800 Workspace

The 1280 × 800 pixel format provides more vertical content space than a same-width 16:9 display. This can reduce page switching in control applications that combine live values, trend graphics, alarms and touch controls on the same screen.

A 1280 × 800 user interface should be evaluated at the intended viewing distance. Font size, button spacing and data density should be tested on the physical sample rather than approved solely from a desktop simulation.

500 cd/m² Luminance and AG25 Surface

The module is specified at 500 cd/m² typical luminance. That level is appropriate for many indoor and controlled-light operator interfaces, but it does not establish sunlight readability. Final perceived brightness depends on the cover lens, air gap or bonding structure, surface coatings, enclosure geometry and ambient illumination.

The AG25 surface treatment is intended to reduce distracting reflections. Its appearance should be reviewed with the final cover construction because additional glass, adhesive and coatings can alter haze, contrast and reflected-light behavior.

The 500 cd/m² luminance must be validated behind the final cover lens and under the project lighting conditions.

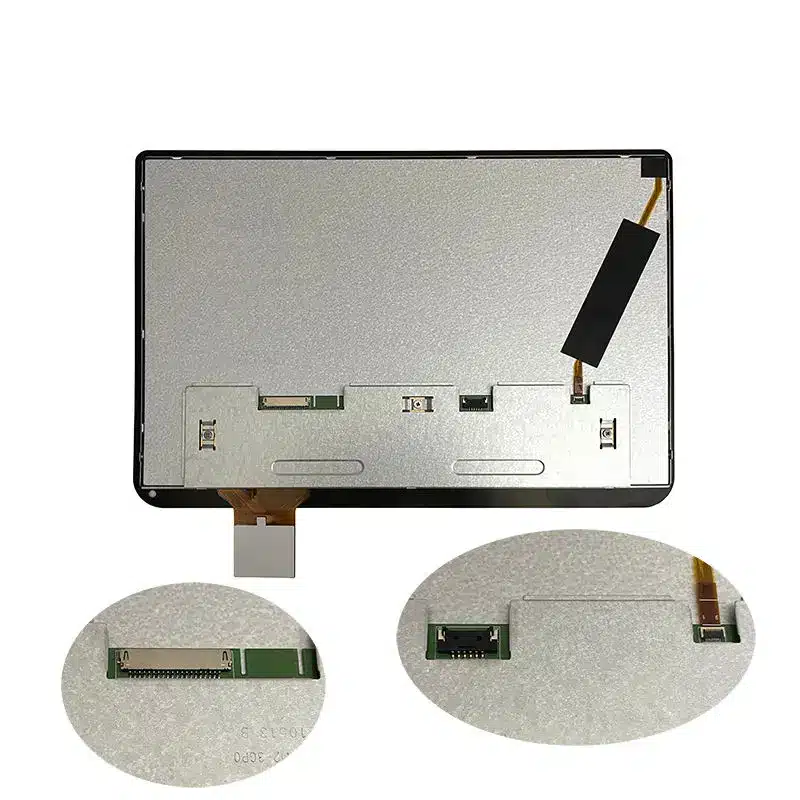

Integrating the 12.1 Inch Touch Display Module

LVDS Host Compatibility

The LVDS interface supports display-data transmission between the host electronics and LCD module. Interface name alone, however, is not a complete compatibility specification. The host and module must agree on pixel clock, data-lane configuration, mapping, voltage levels, timing, connector, pin assignment and power sequence.

A matching connector does not by itself prove LVDS timing or pin compatibility.

The EK79202 identifier may be recorded in the component documentation, but the identifier alone does not prove a host initialization, register-programming or controller-board requirement. Those requirements must be determined from the complete electrical and timing specification.

Capacitive-Touch Interface Confirmation

Capacitive touch supports direct interaction for buttons, menus and graphical controls. The touch-controller part number, communications interface, supply requirements, connector and supported touch-point count remain configuration items that must be confirmed.

The host design should reserve a separate connection path for touch control rather than treating the LVDS cable as a combined display-and-touch interface. Request the touch-panel drawing and interface document before finalizing the controller PCB or cable assembly.

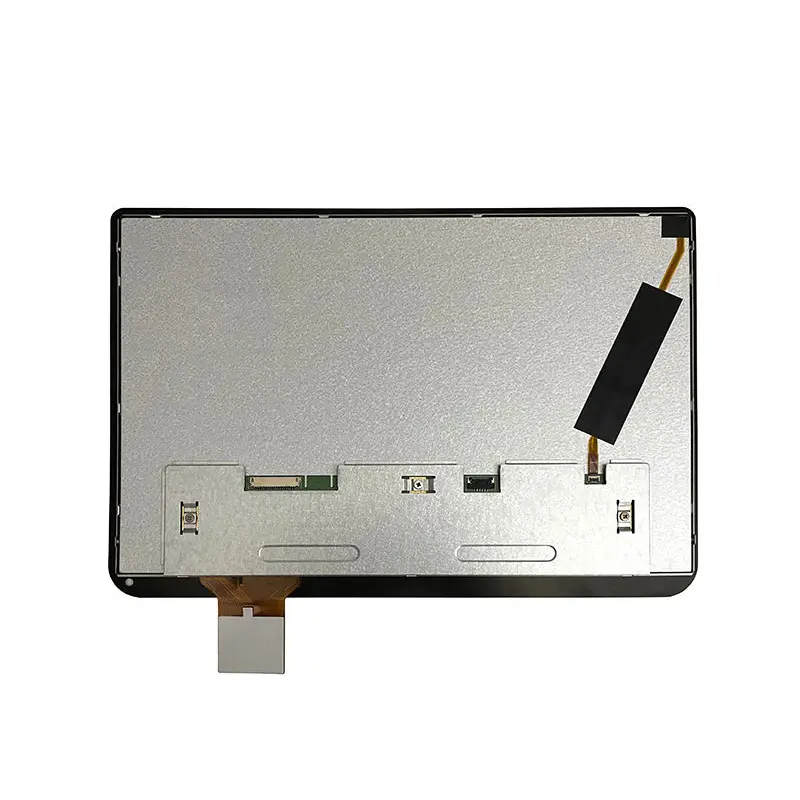

Mechanical and Power Planning

Active Area and Module Outline

The active image area is 261.12 × 163.20 mm. The confirmed two-dimensional module outline is 277.7 × 180.6 mm. These measurements allow an initial enclosure assessment, but they do not define the complete installed envelope.

Mechanical approval should cover:

• final module thickness;
• bezel opening and overlap;
• touch-panel overhang;
• display and touch-tail orientation;
• connector access;
• cable bend radius;
• mounting points;
• cover-lens dimensions;
• adhesive or bonding allowance.

The module is identified for landscape orientation. A portrait installation should not be assumed without confirming optical orientation, mechanical support and application behavior.

System Power Budget

Maximum module power is specified as 8.11 W. This value should be included in the system power and thermal budget, while the detailed rail requirements and backlight-driver conditions are verified separately.

The host power design must account for startup behavior, steady-state display consumption, touch-controller consumption and any losses introduced by conversion or driver circuitry. Do not select the final power architecture from the maximum-wattage value alone.

Recommended Application Profiles

This capacitive-touch TFT LCD can be evaluated for:

• industrial HMI terminals;
• machinery and process-control panels;
• test and service equipment;
• smart-terminal operator interfaces;
• production-monitoring consoles;
• building-control interfaces;
• POS operator displays;
• embedded data-entry panels.

Application approval should reflect actual ambient light, duty cycle, temperature, vibration, ingress-protection and compliance requirements. The available specifications do not establish outdoor, automotive, medical, waterproof or safety-certified suitability.

Procurement and Sample Approval

Before approving the 12.1 Inch Touch Display Module, confirm the complete electrical, optical, mechanical and touch configuration.

Procurement Checklist

• LVDS timing and lane configuration
• Connector part number and full pin assignment
• Logic voltage and power sequence
• Backlight voltage, current and driver requirements
• Touch-controller model and touch interface
• Touch connector and cable drawing
• Touch-point requirement
• Final module thickness
• Cover-lens and bonding structure
• Bezel opening and enclosure drawing
• Ambient-light and brightness target
• Operating and storage temperature requirements
• Sample quantity and qualification plan
• Annual demand and production schedule
• Required compliance documents

Custom touch, cover-lens, cable, bonding and mechanical configurations require separate engineering review. Sample and production quantities should be confirmed for the selected configuration.
