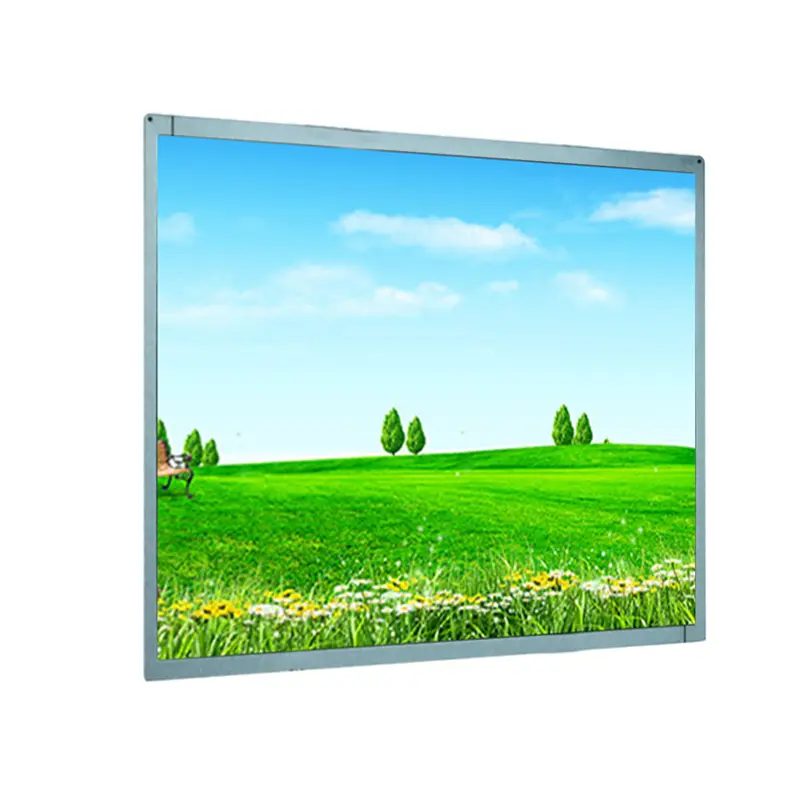

17 Inch High Brightness Industrial Outdoor Signage Screen for Kiosks

17 Inch High Brightness Industrial Outdoor Signage Screen for Kiosks

A 17-inch 1280×1024 IPS TFT-LCD module with 1000 cd/m² typical luminance and a 30-pin LVDS interface for bright kiosk enclosures.

Product Summary

The High Brightness Industrial Outdoor Signage Screen is a 17-inch a-Si TFT-LCD component for industrial controls, kiosk equipment, and public-information systems using a native 1280×1024 interface. Its IPS panel provides a 337.92 × 270.336 mm active area, 1000 cd/m² typical luminance, 1000:1 typical contrast, and 16.7 million colors.

A matching 30-pin connector does not guarantee LVDS timing, voltage, channel mapping, bit width, or pin compatibility.

The module is non-touch, so interactive use requires a separately qualified touch assembly.

The 1000 cd/m² panel rating must be tested behind the final front stack before finished-system outdoor readability is approved.

Key Specifications at a Glance

Native SXGA Content and 5:4 Layout

Preserve the 1280×1024 Raster

The native SXGA canvas provides more vertical workspace than a widescreen format of similar width. It suits process dashboards, alarm lists, equipment diagrams, public notices, pricing layouts, and advertising compositions with stacked content zones.

Prepare graphics directly at 1280×1024. Scaling 16:9 content can create borders, distortion, or reduced text clarity. Confirm the controller output and application software before final UI approval.

IPS Viewing Geometry

The viewing-angle order is 85° left, 85° right, 80° up, and 80° down. IPS construction supports multiple operator and audience positions, but mounting height, tilt, cover reflections, and ambient illumination still affect perceived contrast.

Validate viewing geometry with the intended enclosure, graphics, and site lighting.

High Brightness Industrial Outdoor Signage Screen LVDS Integration

30-Pin Host Compatibility

The module has a 30-pin LVDS connection. Compatibility requires more than matching connector count and resolution.

Confirm the complete pin assignment, connector pitch, contact side, insertion direction, LVDS channel count, bit width, differential-pair mapping, clock arrangement, grounds, panel supply, and backlight-control signals. Another 30-pin display may use a different definition.

LVDS Timing and Mapping

Approve the pixel clock, horizontal and vertical timing, polarity, color mapping, and VESA or JEIDA convention for the ordered configuration. Do not infer dual-channel, eight-bit, or a specific supply voltage without the approved electrical document.

A bridge or controller board may be required when the host provides HDMI, DisplayPort, MIPI DSI, eDP, or another input.

1000 cd/m² Optical Performance

Panel Luminance Versus Finished Readability

For the High Brightness Industrial Outdoor Signage Screen, 1000 cd/m² provides optical headroom for bright indoor spaces, shaded outdoor installations, and protected kiosks. It does not independently establish direct-sun readability.

The result is affected by cover glass, touch layers, bonding material, air gaps, printing, contamination, enclosure shadows, and ambient reflections. Measure front-of-screen luminance and contrast with the actual stack.

Cover Glass and Reflection Control

Optical bonding, anti-reflective or anti-glare treatment, enclosure shading, and automatic brightness control may be evaluated as separate system options. Compare clarity, contrast, thermal load, and serviceability.

Higher backlight output increases electrical and thermal demand. A sealed kiosk needs a thermal path that maintains performance within panel and LED limits.

WLED Backlight and Power Design

Separate Panel and Backlight Requirements

The module uses a WLED backlight, but its voltage, current, string arrangement, driver topology, and power rating are not confirmed. Obtain these values before selecting the backlight driver or power supply.

Treat panel logic and LED-backlight power as separate paths unless the approved electrical document states otherwise.

Thermal and Dimming Validation

Confirm enable logic, dimming method, operating current, inrush behavior, cable definition, and thermal limits. Evaluate PWM frequency where cameras, scanners, or machine-vision systems may view the screen.

Backlight lifetime requires a defined current, temperature, luminance-decay threshold, and duty cycle before it becomes a procurement requirement.

Mechanical Fit for 17-Inch Signage Enclosures

Active Area Versus Module Outline

The 337.92 × 270.336 mm active area controls the visible opening. The 358.5 × 296.5 mm outer dimensions control the enclosure cavity and support structure.

Allow for the non-active border, cable routing, connector access, mounting clearance, tolerances, and service access. The diagonal size alone is insufficient for tooling release.

10.3 mm Module Thickness

The confirmed maximum thickness is 10.3 mm. It excludes a project-specific touch sensor, cover glass, adhesive, gasket, protective front, controller board, and external frame.

Avoid point loading, twisting, and unsupported edges. Supports should distribute force without pressing against the active image area.

Environmental and Application Boundaries

The operating range is 0°C to +50°C, while the storage range is −20°C to +60°C. Storage limits do not expand the qualified operating range.

The High Brightness Industrial Outdoor Signage Screen can be evaluated for industrial control panels, production-monitoring terminals, protected advertising kiosks, digital-signage equipment, and public-information interfaces. Outdoor deployment requires a protective enclosure, thermal management, moisture control, suitable cover optics, and environmental review.

The module does not establish waterproofing, dust protection, vibration resistance, ultraviolet durability, continuous-duty grade, or an IP rating.

Customization and Procurement

Brightness review, LVDS cable and controller matching, connector definition, cover-lens design, optical bonding, touch integration, WLED control, enclosure adaptation, branding, and packaging may be evaluated by project.

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability, and the requested specification. Sample and standard-module quantities are confirmed separately.

Procurement Checklist

Confirm before sample approval:

• Native 1280×1024 timing and required refresh rate.
• LVDS channel count, bit width, mapping, and VESA or JEIDA convention.
• Complete 30-pin assignment, connector pitch, contact side, and orientation.
• Panel input voltage, current, inrush, and power-sequence requirements.
• WLED voltage, current, string topology, enable, dimming, and thermal limits.
• 337.92 × 270.336 mm active area and visible opening.
• 358.5 × 296.5 × 10.3 mm module fit and tolerances.
• Cover transmission, reflection target, and required front-of-screen luminance.
• Standard non-touch configuration or separately specified touch assembly.
• Operating environment, enclosure protection, sample criteria, quantity, and annual demand.
