The Embedded Side Control Interface Display Module combines a native 480 × 1280 IPS panel, 550 cd/m² luminance and a 40-pin MIPI connection for narrow vertical HMIs.

Product Summary

The Embedded Side Control Interface Display Module provides a portrait display area for equipment status, operating menus, warnings and control information in products with limited front-panel width. Its elongated geometry allows designers to create a structured top-to-bottom interface without increasing the width of the enclosure.

The 6.86-inch module offers a 60.22 × 160.59 mm active area inside a 76.69 × 190.94 × 6.6 mm outline. It combines IPS viewing, 550 cd/m² typical luminance, a 1200:1 typical contrast ratio and a 40-pin MIPI connection. The standard configuration is non-touch.

Key Specifications

Native 480 × 1280 Vertical Interface Design

Side-Control Content Zones

The portrait raster supports information arranged in a clear top-to-bottom sequence. An embedded side-control interface can divide the screen into areas for:

• operating mode
• equipment status
• temperature or timing
• alarm messages
• navigation controls
• function menus
• connectivity status
• maintenance prompts
• power or energy data
• branded graphics

The narrow format can fit beside physical buttons, rotary controls, handles or mechanical assemblies without requiring the width of a standard landscape panel.

Native-Raster Software Preparation

The interface should be designed directly for the native 480 × 1280 raster.

Before approving the software, validate:

• portrait orientation
• native panel timing
• font scaling
• icon dimensions
• list spacing
• warning-message placement
• content-safe margins
• language expansion
• boot-screen geometry
• animation behavior

Rotating a completed landscape interface without redesign may create inconsistent spacing, unused areas or difficult-to-read controls.

IPS Optical Performance for Embedded Equipment

550 cd/m² Luminance Boundary

The panel is specified at 550 cd/m² typical luminance. This supports indoor equipment, smart controls and controlled environments with moderate or elevated ambient lighting.

A 550 cd/m² panel is intended primarily for indoor or controlled-light equipment after front-glass losses are considered.

Finished visibility also depends on:

• cover-lens transmission
• surface reflections
• air-gap construction
• optical bonding
• installation angle
• room lighting
• enclosure shading
• operator viewing position

The luminance value does not independently establish direct-sunlight or outdoor readability.

Viewing Angle, Contrast and Color

The panel provides 80/80/80/80 viewing angles in the left, right, upper and lower directions. This supports equipment viewed from standing, seated or off-center positions.

The 1200:1 typical contrast ratio supports separation between background graphics, menu labels, icons and warning information. The RGB-stripe arrangement and 16.7M-color capability provide a suitable foundation for graphical HMIs, but they do not establish calibrated color accuracy or a defined color gamut.

40-Pin MIPI Host Integration

Lane, Mode and Pinout Qualification

A 40-pin MIPI connector does not guarantee lane, timing, voltage, initialization or pin compatibility with another panel.

Before fabricating an FPC or applying power, confirm:

• MIPI DSI lane count
• video or command mode
• lane rate
• native 480 × 1280 timing
• complete 40-pin assignment
• connector pitch
• connector contact side
• FPC orientation
• panel logic voltage
• reset and control signals
• backlight voltage and current
• backlight enable and dimming
• cable length and routing

Another 6.86-inch 480 × 1280 MIPI display may use a different connector count, mapping, driver or initialization package.

Initialization and Power Documentation

The approved engineering package should include:

• initialization commands
• native timing
• reset timing
• power sequence
• sleep and wake behavior
• orientation settings
• backlight-control definition
• electrical limits

Initialization data from another 480 × 1280 MIPI panel should not be copied without verification.

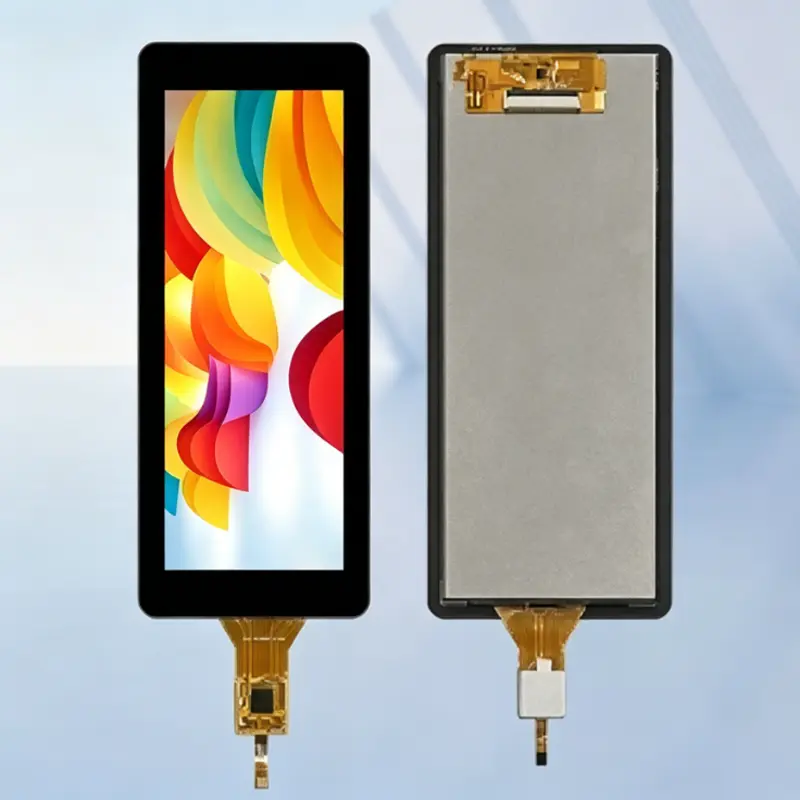

Embedded Side Control Interface Display Module Mechanics

Active Area and Front Opening

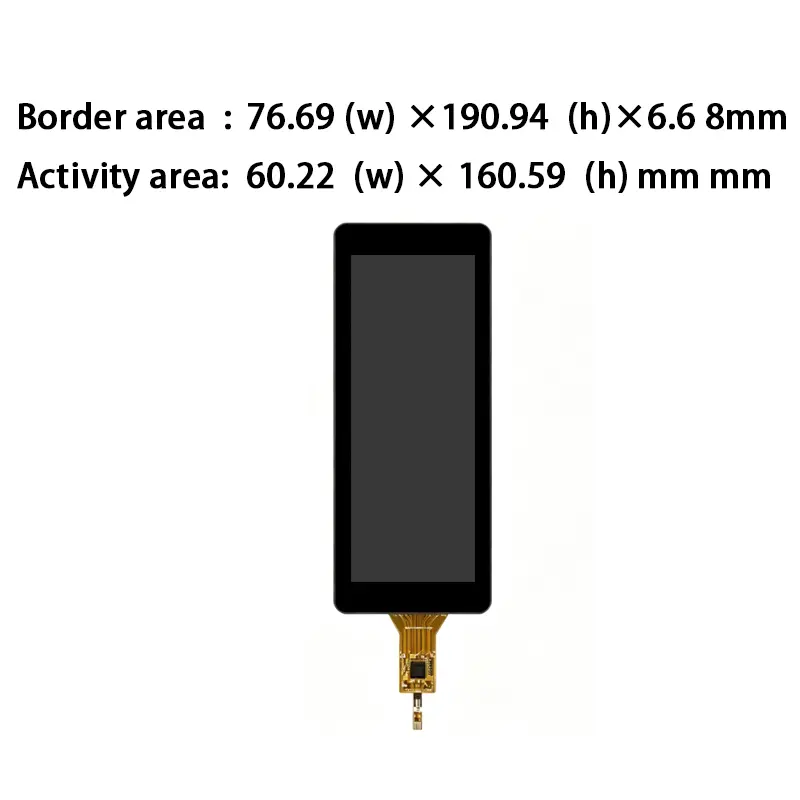

The active image area is 60.22 × 160.59 mm. This dimension should guide:

• visible bezel opening
• cover-lens window
• printed black mask
• display alignment
• UI-safe margins
• menu-column width
• warning-icon placement

Critical status information should remain inside the approved visible opening after bezel overlap and assembly tolerances are included.

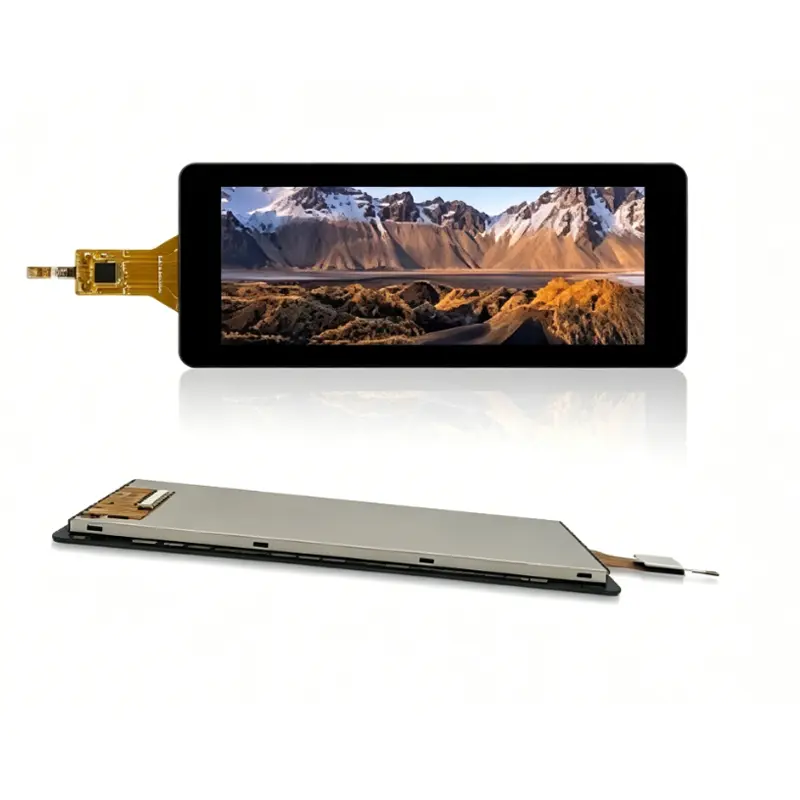

Outline, FPC Routing and Rear Clearance

The complete module measures 76.69 × 190.94 × 6.6 mm.

Mechanical review should confirm:

• complete panel outline
• active-area position
• FPC exit
• connector position
• cable bend radius
• rear clearance
• mounting support
• cover-lens overlap
• enclosure tolerances
• service access

This module is wider and thicker than several mechanically similar 6.86-inch bar panels, so its precise outline must control enclosure release.

Temperature Qualification

The module is specified for operation from −20°C to +70°C and storage from −30°C to +80°C.

These limits support evaluation in industrial controls, appliances, vehicle information areas and other embedded equipment, but they do not independently establish certification for a specific market.

System qualification should consider:

• cold startup
• high-temperature image behavior
• backlight output across temperature
• controller temperature
• enclosure heat
• condensation
• FPC flexibility
• repeated thermal cycling
• vibration requirements where applicable

Testing should use the final controller, cover lens and enclosure.

Non-Touch Control Architecture

The standard module is non-touch. It is suitable where input is provided through:

• physical buttons
• rotary controls
• membrane keys
• external capacitive keys
• remote software
• system-side controls
• a separately developed touch assembly

Potential applications include:

• industrial side-control panels
• smart-appliance interfaces
• equipment status displays
• vehicle information zones
• multimedia terminals
• vertical instrument panels
• compact monitoring systems
• narrow embedded HMIs

A non-touch configuration avoids the optical loss, touch-controller integration and added thickness of an integrated touch stack.

Custom Integration Options

Project review may include:

• MIPI host matching
• custom 40-pin FPC
• timing and initialization verification
• cover-lens sizing
• anti-glare or anti-reflection treatment
• optical bonding
• enclosure adaptation
• FPC routing
• branding
• brightness evaluation
• optional touch development
• packaging and labeling

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Sample and standard-module quantities are confirmed separately.

Customization for the Embedded Side Control Interface Display Module should begin after the complete MIPI definition and approved mechanical drawing are available.

Procurement Checklist

Before requesting samples or production approval, submit or confirm:

• native 480 × 1280 timing
• MIPI DSI lane count
• video or command mode
• lane rate
• complete 40-pin assignment
• panel logic voltage
• backlight voltage and current
• backlight enable and dimming
• initialization package
• reset and power sequence
• connector pitch
• contact side and FPC orientation
• 76.69 × 190.94 × 6.6 mm enclosure fit
• 60.22 × 160.59 mm active-area position
• front-glass stack
• 550 cd/m² lighting target
• operating-temperature requirements
• non-touch or optional-touch architecture
• sample quantity
• annual demand
• production schedule

Sample approval should precede controller release, FPC manufacture, cover-lens tooling and enclosure production.
