6.86 Inch MIPI Bar TFT Display Module for Appliance Panels

6.86 Inch MIPI Bar TFT Display Module for Appliance Panels

This narrow IPS display provides a native 480 × 1280 canvas and 1000 cd/m² typical luminance for appliance and instrument interfaces.

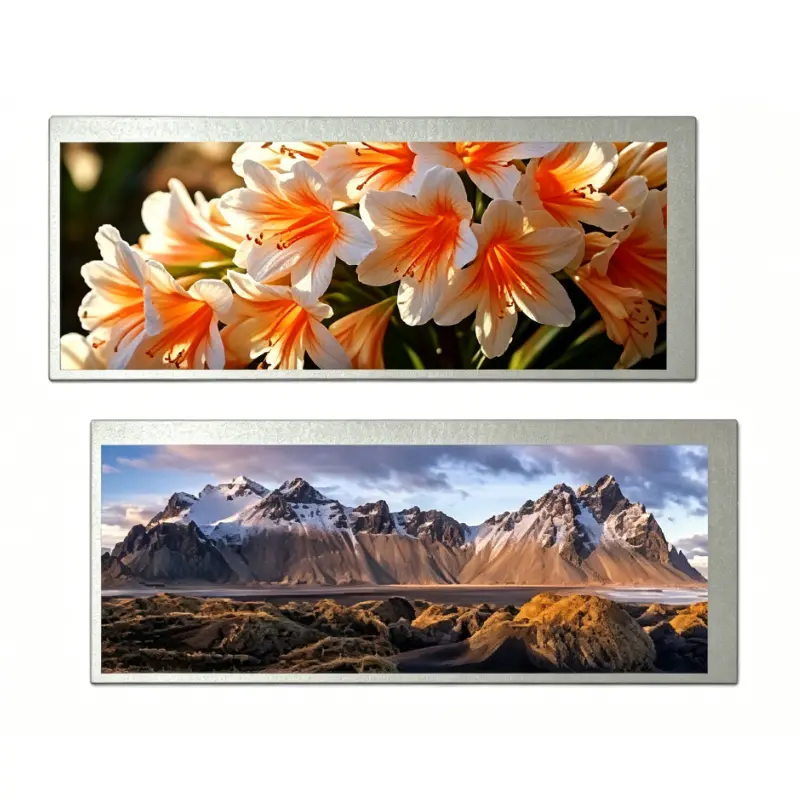

Product Summary

The MIPI Bar TFT Display Module is designed for products that need a tall viewing area without the width of a conventional landscape panel. Its 480 × 1280 native resolution supports stacked menus, status indicators, numeric values, operating modes and branded graphics in a narrow front-panel opening.

The non-touch module combines IPS viewing, a 30-pin MIPI interface and a 72.42 × 173.79 × 6.50 mm outline. It can be evaluated for appliance panels, instrument displays, secondary vehicle interfaces and embedded equipment that use buttons, rotary controls or another external input method.

Key Specifications

480 × 1280 Vertical Interface Design

Native UI Layout

The 480 × 1280 raster is well suited to vertical information flow. Interface designers can divide the display into dedicated areas for:

• Temperature or speed values
• Operating modes
• Timer information
• Progress graphics
• Status and warning icons
• Menu selections
• Connectivity indicators
• Service messages
• Brand graphics

Driving the module at its native resolution helps preserve text clarity, icon geometry and line thickness. Scaling a conventional landscape interface into the narrow panel may create undersized text or inefficient empty regions.

Text and Icon Scaling

The active area measures 60.22 × 160.59 mm. UI assets should therefore be validated at the actual viewing distance rather than only on a desktop design canvas.

Important labels, status colors and symbols should remain readable under the intended lighting and mounting angle. Localization should also be checked early because translated labels may require more vertical or horizontal space.

IPS Viewing and 1000 cd/m² Luminance

Bright Indoor Visibility

The panel provides 1000 cd/m² typical luminance and a 1000:1 typical contrast ratio. This gives engineering teams a strong basis for bright indoor appliances, equipment panels and controlled commercial installations.

A 1000 cd/m² panel does not by itself establish finished-system sunlight readability behind front glass.

Actual visibility depends on:

• Front-glass transmission
• Air-gap or bonding structure
• Decorative printing
• Surface reflections
• Anti-glare or anti-reflective treatment
• Mounting angle
• Ambient lighting
• Enclosure shadowing
• Backlight control

The complete front assembly should be evaluated under the target lighting environment.

Front-Glass Optical Losses

Protective glass, adhesive and decorative ink can reduce the luminance seen by the user. A dark printed mask or reflective front surface can also affect perceived contrast even when the bare panel specification is high.

Optical review should therefore cover the full display stack, not only the nominal LCD luminance.

MIPI Bar TFT Display Module Integration

30-Pin Host Qualification

The MIPI Bar TFT Display Module uses a 30-pin connection.

A 30-pin MIPI connector does not guarantee lane, timing, voltage, initialization or pin compatibility with another panel.

Before PCB, FPC or cable release, confirm:

• MIPI DSI lane count
• Clock-lane position
• Data-lane mapping
• Command or video mode
• Native timing
• Pixel format
• Link frequency
• Low-power and high-speed behavior
• Panel supply rails
• Reset and enable signals
• Backlight control
• Complete 30-pin assignment
• FPC pitch
• Contact side
• Pin-1 orientation
• Approved initialization command package

Matching the resolution, connector size or number of pins is not sufficient for compatibility.

Initialization and Timing Package

The native 480 × 1280 raster should be used to preserve vertical menu geometry and text detail.

The host-development package should include the approved timing and initialization data for the exact module revision. A driver-IC name from another 6.86-inch display must not be used as a substitute for model-specific commands, voltage requirements or MIPI settings.

Mechanical Fit and FPC Planning

Module and Active-Area Dimensions

The module outline is 72.42 × 173.79 × 6.50 mm, while the active area is 60.22 × 160.59 mm.

Enclosure design should confirm:

• Front opening
• Visible-area alignment
• Bezel overlap
• Rear-component clearance
• FPC exit
• Connector position
• Mounting support
• Flatness
• Tolerance accumulation
• Thermal expansion
• Service access

Use an approved mechanical drawing before releasing the housing, bezel, adhesive or tooling.

Rear Clearance and Cable Routing

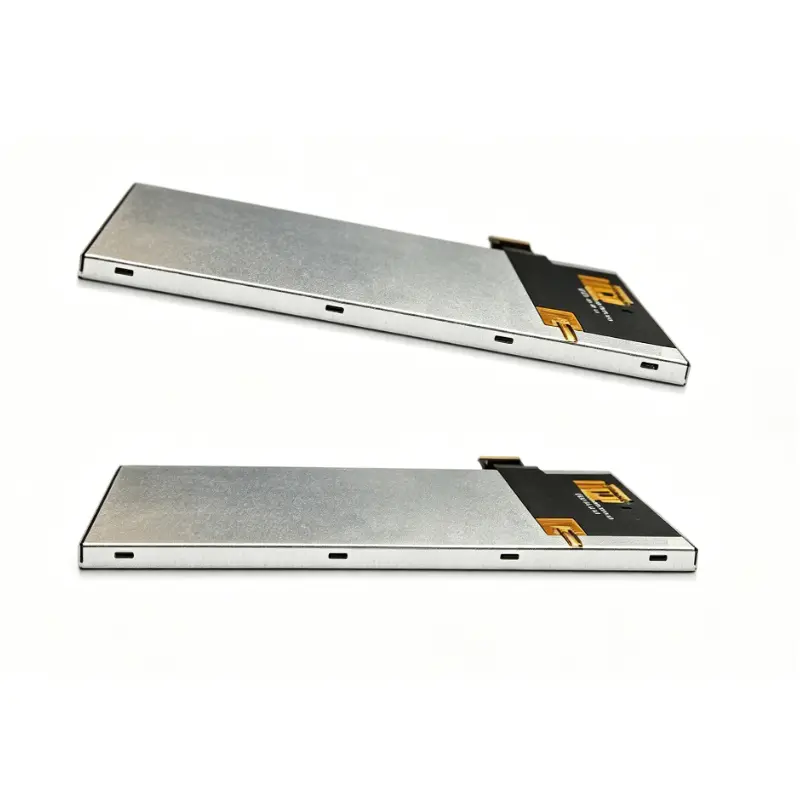

The rear product view shows a bottom connection structure that requires controlled cable routing. The FPC should not be sharply bent, compressed or loaded at the bonded region.

Prototype review should check:

• FPC bend radius
• Contact-side orientation
• Pin-1 location
• Connector retention
• Strain relief
• Housing interference
• Rear cover clearance
• Assembly repeatability

Appliance and Instrument Applications

This module can be evaluated for:

• Refrigerator display panels
• Washing-machine interfaces
• Kitchen-appliance control areas
• Instrument and meter displays
• Secondary vehicle information panels
• Narrow industrial HMIs
• Equipment-status interfaces
• Multimedia control panels

For appliance projects, the completed product should be qualified for electrical safety, EMC, temperature, moisture, cleaning exposure, mechanical loading and expected user interaction.

Vehicle application wording does not establish automotive qualification. Any transport project requires the appropriate environmental, reliability, optical and regulatory validation at the completed-system level.

Medical-equipment wording does not establish medical certification. Regulated equipment requires device-level risk management, electrical-safety review, software validation, usability assessment and applicable regulatory documentation.

Non-Touch Product Selection

The standard module is non-touch. It is a practical choice when the final system uses:

• Physical buttons
• Rotary encoders
• Membrane keys
• Remote controls
• External touch surfaces
• Display-only status presentation

A non-touch display can simplify the optical stack and preserve more of the panel’s front luminance. It also avoids adding a touch-controller bus and sensor stack when direct screen interaction is unnecessary.

Touch integration, when required, should be treated as a separately engineered configuration with an approved touch drawing, controller, communication interface, cover lens and optical stack.

Customization and Qualification Boundaries

Project review can include:

• MIPI host matching
• Complete 30-pin definition
• FPC layout and orientation
• Initialization-package review
• Brightness target
• Front-glass design
• Anti-glare or anti-reflective treatment
• Air or optical bonding
• Enclosure adaptation
• Connector-board development
• Optional touch development
• Branding and packaging
• Sample validation

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Sample and standard-module quantities are confirmed separately.

Procurement Checklist

Submit:

• Host processor or controller model
• Native 480 × 1280 timing requirement
• MIPI DSI lane count and mode
• Required pixel format
• Full 30-pin assignment
• Panel and logic power requirements
• Reset and enable requirements
• Approved initialization package
• Backlight-driver requirements
• Dimming requirement
• FPC pitch and contact side
• Pin-1 orientation
• Mechanical drawing
• Front-window drawing
• Front-glass or cover-lens plan
• Optical bonding requirement
• Target finished-front luminance
• Input method for the non-touch design
• Operating environment
• Sample quantity
• Annual demand
• Production schedule
