MG2381B01-2 ES7 TCO8 VA Monitor LCM CSOT

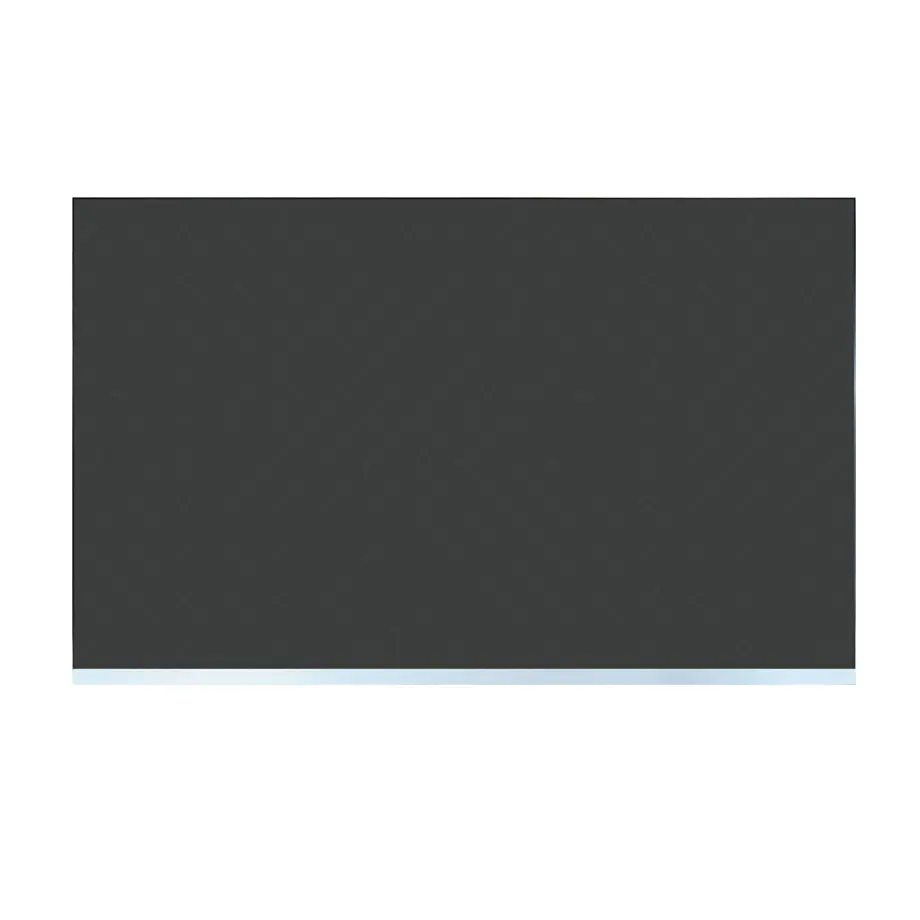

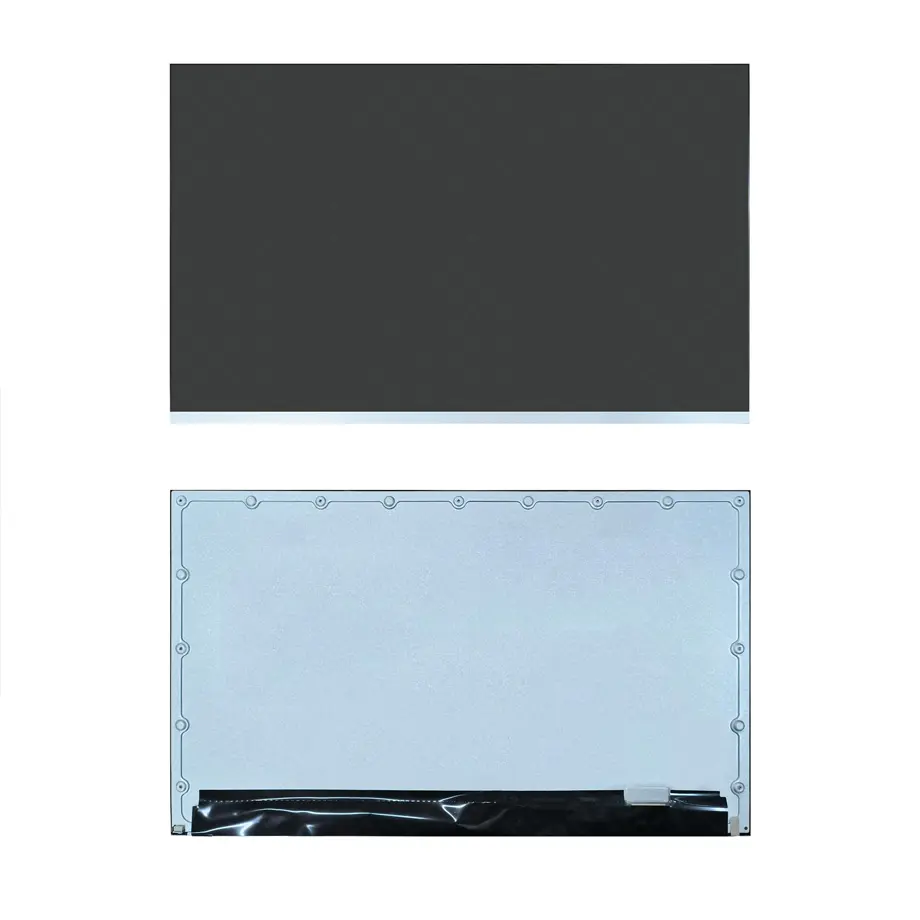

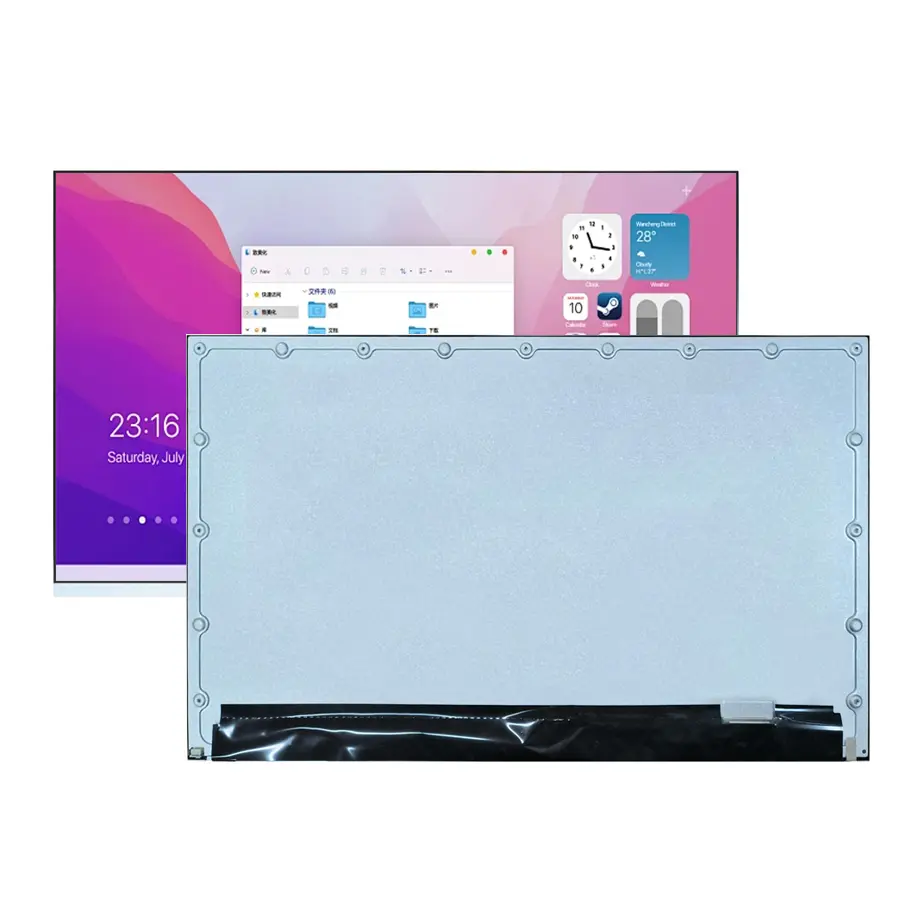

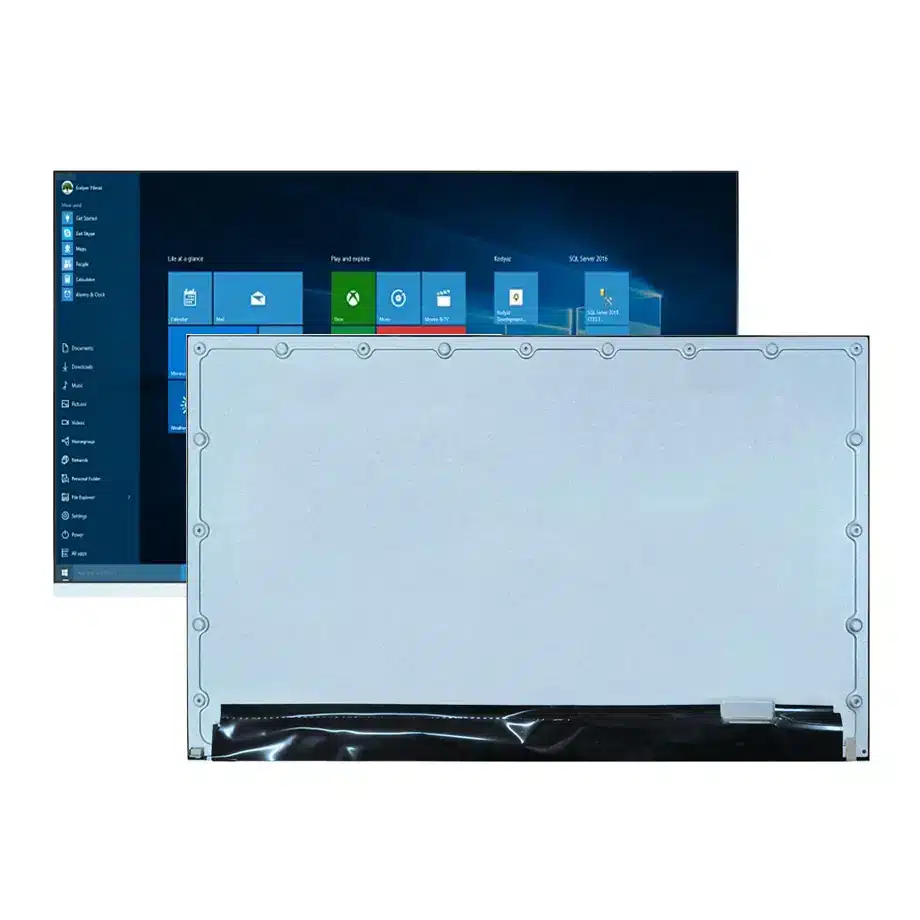

Product Overview

MG2381B01-2 ES7 TCO8 VA Monitor LCM is a 23.8-inch CSOT a-Si TFT-LCD module for desktop-monitor integration. The exact user-supplied configuration is MG2381B01-2 Ver.2.1 with 1920(RGB)×1080 FHD resolution, a 527.04 × 296.46 mm active area and a 534.74 × 313.26 × 13.56 mm physical envelope. Typical panel mass is 2.08 kg. The front polarizer uses 25% haze antiglare treatment with 3H hard coating.

The panel uses VA normally-black transmissive operation with 4000:1 typical contrast, 250 cd/m² typical luminance and 89/89/89/89 typical viewing at CR≥10. It supports 16.7M colors with 97% sRGB and operates at 75 Hz. The user source shows “16.4 (Typ.)(G to G) mm” in the response field; because response is a time quantity, the approved record normalizes this to 16.4 ms typical G-to-G without changing the numeric value.

The module includes a 15S4P WLED backlight rated at 30,000 hours and explicitly does not include a backlight driver. The panel-side interface is two-channel 8-bit LVDS through a 30-pin 1.0 mm connector with a 5.0 V typical supply. The exact-model source identifies desktop-monitor use and lists 3-side-borderless, Reverse I/F, matte, ES7.0 and TCO8.0 feature context. TCL CSOT's official product portfolio separately confirms monitor displays as a core product category.

Three Core Buyer Value Propositions

1. 4000:1 VA contrast gives desktop monitors a strong native black-level baseline

The 4000:1 typical contrast ratio is the most distinctive optical specification in this module. For office, productivity and general-purpose desktop monitors, deeper native black can improve dark UI, video and mixed-content presentation compared with lower-contrast LCD technologies. Finished black level still depends on backlight leakage, front reflection and monitor settings, so the panel number should remain a component target rather than a complete monitor guarantee.

2. 97% sRGB and 75 Hz support balanced office and mainstream visual use

The exact model provides nearly full sRGB coverage with a modest refresh increase over 60 Hz. That combination fits productivity, web, business and mainstream home-monitor use where standard-gamut color and smoother desktop motion are useful but esports-class refresh is unnecessary. It should not be marketed as a wide-gamut creator or high-refresh gaming panel unless the project has additional evidence.

3. LVDS plus a separate backlight driver creates a clear legacy-monitor integration boundary

The video interface is two-channel 8-bit LVDS and the WLED system has no integrated driver. Monitor designers therefore need both a suitable scaler/LVDS output and external LED-drive electronics. That architecture can fit established monitor controller designs, but it requires disciplined cable, power and backlight-driver matching rather than assuming a modern eDP-style module boundary.

Key Specifications at a Glance

How Should 4000:1 VA Contrast Be Evaluated?

VA technology can provide strong native contrast, but a finished monitor should still be measured after the production backlight, optical films and enclosure are fixed. MG2381B01-2 ES7 TCO8 VA Monitor LCM should be evaluated with dark desktop themes, video, black-level test patterns and off-axis content. Compare center black level and bright-scene output rather than relying on the headline ratio alone.

Uniformity also matters. A panel can meet center contrast while showing edge glow or backlight variation that affects perceived quality. The first article should therefore include center/corner luminance checks and dark-room review after thermal stabilization.

Contrast is not HDR certification

A 4000:1 native ratio can improve dark content, but the source does not establish HDR certification, local dimming or a peak-luminance class. Keep the product positioned as a high-contrast FHD monitor module unless separate exact-model evidence supports additional claims.

What Does ES7.0 and TCO8.0 Feature Context Mean?

The same-model source lists ES7.0 and TCO8.0 among its general features. Those labels should be retained as reference context, not transformed into an unsupported certification statement for every finished monitor using the panel. Certification programs often apply to complete products or defined configurations and may include power, materials, ergonomics and other criteria beyond the LCD module.

If an OEM plans to market a monitor under a specific environmental or TCO-related certification, the complete monitor must follow that program's current requirements. The panel feature listing can help part selection but should not substitute for product-level documentation.

How Should the Separate WLED Driver Be Designed?

The module contains a 15S4P WLED light source but no integrated driver. The monitor electronics must provide a compatible LED current source, dimming behavior and protection. Verify the exact string voltage/current requirements from the CSOT specification before selecting the driver. Brightness control should be qualified from low user settings to the intended maximum output.

Thermal performance matters because LED lifetime depends on current and temperature. The 30K-hour light-source figure should be interpreted according to CSOT's test basis rather than converted directly into monitor lifetime. Measure the backlight and driver temperature in the production enclosure during sustained operation.

What Must Match on the 30-Pin LVDS Interface?

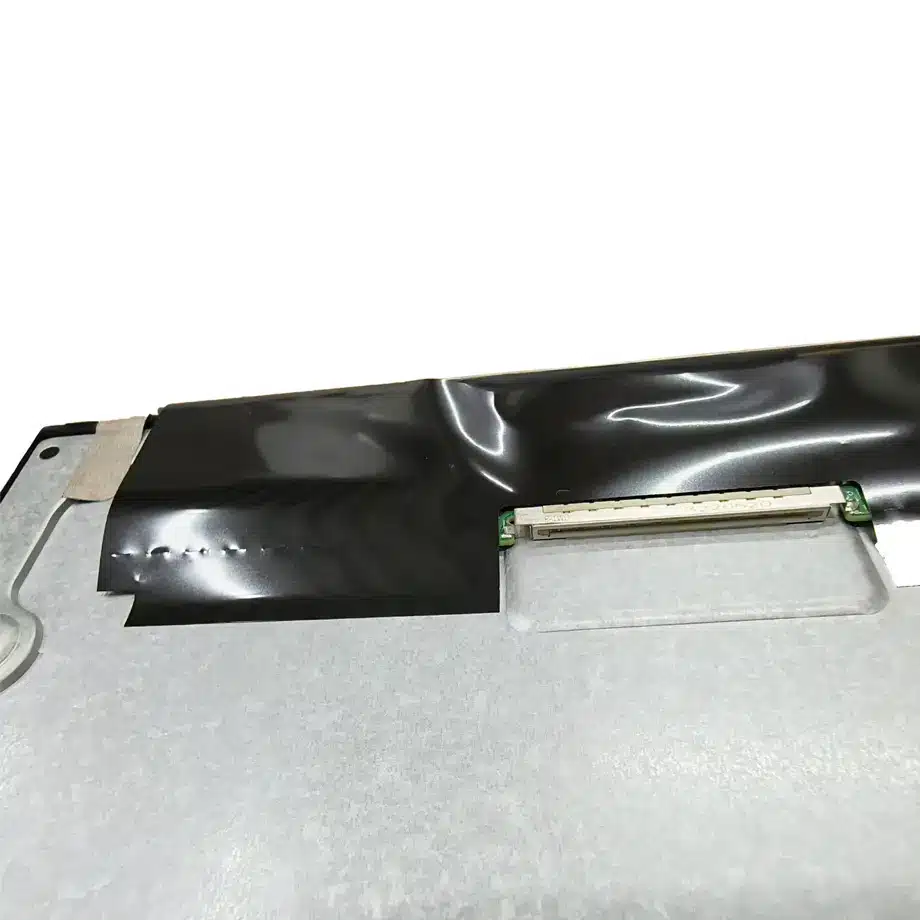

The panel uses two-channel 8-bit LVDS through a 30-pin connector. Verify pin assignment, clock/data pair mapping, power, grounds and panel-enable behavior from exact-model documentation. A 30-pin connector from another monitor panel is not proof of compatibility because LVDS bit mapping and control pins can vary.

The 5.0 V panel rail is also a meaningful boundary. Bring up native FHD at 75 Hz with the production scaler board and cable, then test input switching, sleep, wake and no-signal recovery. Keep controller firmware and cable part numbers in the approved record.

How Should the 25% Haze Surface Be Reviewed?

Twenty-five-percent haze creates a distinctly matte surface that can reduce sharp reflections from office lamps and windows. It can also soften very fine image detail compared with a low-haze treatment. Evaluate spreadsheets, text rendering, dark UI and photographic content at normal monitor viewing distance rather than judging the polarizer only under a handheld light.

The 3H hard coating is a surface specification, not a guarantee against scratching or impact. Cleaning procedures and any front cover should be chosen to avoid damaging the antiglare layer.

Where Does MG2381B01-2 Fit Best?

The supplied application is Desktop Monitor. MG2381B01-2 ES7 TCO8 VA Monitor LCM fits 23.8-inch FHD office monitors, general productivity displays, business terminals and mainstream home-monitor products that value high VA contrast, 97% sRGB and a 75 Hz refresh target. Same-model reference information also supports a three-side-borderless product concept.

The panel is non-touch and operates from 0 to 50 °C, so it should remain in the TFT-LCD desktop-monitor class rather than being reclassified as industrial, outdoor or touch. The exact version suffix matters because other MG2381B01-2 versions can differ in refresh, gamut or lifecycle status.

Why Does the Version Suffix Matter?

This record is specifically MG2381B01-2 Ver.2.1. Public sources show other suffixes such as Ver.2.2, Ver.2.4 and Ver.6.2 with different properties or production status. Those family variants cannot replace the user-locked Ver.2.1 facts. Procurement should record the exact version on the label and purchase order.

If a supplier proposes another version, compare brightness, refresh, color gamut, response, interface, mechanics and current lifecycle separately. Do not accept a family-name match as proof of equivalence.

How Should First-Article Approval Be Structured?

Record the MG2381B01-2 Ver.2.1 label, controller board, LVDS cable and external LED-driver design. Verify 5 V panel power, native FHD timing at 75 Hz and stable backlight control. Exercise power cycling, input switching and sleep/wake before optical sign-off.

After assembly, measure 250 cd/m²-class luminance, 4000:1 contrast behavior, visible uniformity and sRGB coverage as required by the monitor program. Check the 25% haze surface under the actual workplace lighting. Preserve the approved sample and controller configuration for incoming-lot comparison.

How Should Incoming Lots Be Controlled?

Incoming inspection should verify the exact Ver.2.1 label, 30-pin connector, 534.74 × 313.26 × 13.56 mm envelope and surface condition. Sample panels should be tested at 75 Hz with the approved scaler and LED-driver system. Another MG2381B01-2 version should remain on hold until the changed parameters are reviewed.

Stock and production information from public databases is time-sensitive. Use it only as sourcing context, and confirm current revision/change information directly with CSOT or an authorized supply channel before volume commitments.

Procurement Checklist

• Confirm MG2381B01-2 Ver.2.1, not only the family model string.
• Match the 534.74 × 313.26 × 13.56 mm outline and 2.08 kg typical mass.
• Verify two-channel 8-bit LVDS and the exact 30-pin mapping.
• Use 250 cd/m², 4000:1 contrast and 97% sRGB as optical acceptance points.
• Design an external driver for the 15S4P WLED backlight.
• Preserve 75 Hz as the native refresh target.
• Keep the 16.4 ms response unit correction traceable to the source.
• Confirm version-specific lifecycle information before volume sourcing.

MG2381B01-2 ES7 TCO8 VA Monitor LCM is a version-specific CSOT FHD monitor module with strong VA contrast, a matte 25% haze surface and a conventional LVDS architecture. Its production value comes from controlling the exact Ver.2.1 electrical, optical and backlight configuration rather than treating every MG2381B01-2 suffix as equivalent.
