10.1 Inch LCD Screen Kit for Embedded Signage Outdoor Digital Advertising

10.1 Inch LCD Screen Kit for Embedded Signage Outdoor Digital Advertising

This compact WXGA kit combines a 1000 cd/m² TN panel with VGA, AV and USB control electronics for protected commercial display integration.

Product Summary

The LCD Screen Kit for Embedded Signage combines a 10.1-inch WXGA panel with the control electronics required for prototype evaluation and custom equipment integration. Its 1280 × 800 resolution provides a practical 16:10 workspace for advertising graphics, information layouts, menu content, and embedded media interfaces.

The panel delivers 1000 cd/m² typical luminance and connects to the supplied T.SK105A.03 controller through a 20-pin, single-channel, 8-bit LVDS path. VGA, AV, and USB video functions give integrators several ways to connect media and legacy signal equipment. The kit also includes an inverter board, converter board, and wired keypad for on-screen adjustment.

This is a component-level assembly rather than a finished monitor. The buyer must provide the enclosure, mounting structure, power distribution, front protection, thermal design, and any required environmental sealing.

Key Specifications

Optical Performance for Bright Commercial Interiors

1000 cd/m² for high ambient light

The 1000 cd/m² typical luminance provides greater visibility headroom than a conventional office-grade screen. It is appropriate for bright indoor counters, entrance areas, protected advertising equipment, and window-adjacent installations where ambient illumination can reduce perceived contrast.

Brightness alone does not determine readability. Front-glass reflection, viewing distance, content colors, installation angle, internal temperature, and the surrounding enclosure can all affect the final result. Sample testing should reproduce the intended lighting and front-window structure.

WXGA content planning in a 16:10 format

The 1280 × 800 resolution provides more vertical workspace than a comparable 16:9 layout. This can help when arranging product images, status information, menu sections, control icons, or mixed media and text.

Content should be prepared at the native panel resolution whenever possible. Small labels and fine graphic elements should be checked at the actual viewing distance rather than approved only on a desktop design screen.

TN viewing behavior and installation angle

The panel uses a TN, normally white, transmissive structure. Its listed viewing angles are 85° left, 85° right, 85° up, and 85° down at the stated contrast criterion.

The mounting angle should still be validated with real content. TN panels can respond differently to vertical and horizontal viewing changes, so the production enclosure should be reviewed from the expected user positions before the mechanical design is frozen.

Integrating the LCD Screen Kit for Embedded Signage

Parallel LVDS panel path

The panel receives a 20-pin, single-channel, 8-bit parallel LVDS signal. Correct operation depends on more than connector count.

A 20-pin LVDS connector does not establish compatibility without verified mapping, timing, bit width, voltage, cable orientation, and controller firmware.

Before powering the sample, confirm the complete panel pin assignment, connector contact direction, cable orientation, native 1280 × 800 timing, and the firmware programmed into the T.SK105A.03 controller.

VGA, AV, and USB input route

The controller accepts VGA, AV, and USB video functions. This gives system designers several integration paths for legacy computers, analog media sources, and supported USB playback.

The USB function should be qualified against the final content workflow. File systems, media containers, codecs, maximum resolution, storage capacity, and autoplay behavior are not defined by the phrase “USB video” alone.

AV compatibility is listed with PAL support. Projects using other analog-video formats should confirm the controller revision and firmware before release.

Separate panel and controller power domains

The panel logic requires 3.3 V typical, while the controller uses a 12 V DC supply rated above 2 A.

The 3.3 V panel logic rail and the 12 V controller input are separate power domains.

Do not apply the controller input voltage directly to the panel logic connection. The wiring review should identify the controller input, panel-voltage output, inverter or backlight path, ground references, enable signals, and cable polarity.

The controller also provides OSD functions for brightness, contrast, automatic adjustment, and language selection. The wired keypad should remain accessible during prototype testing and service qualification.

Mechanical and Accessory Planning

Panel and controller-board envelope

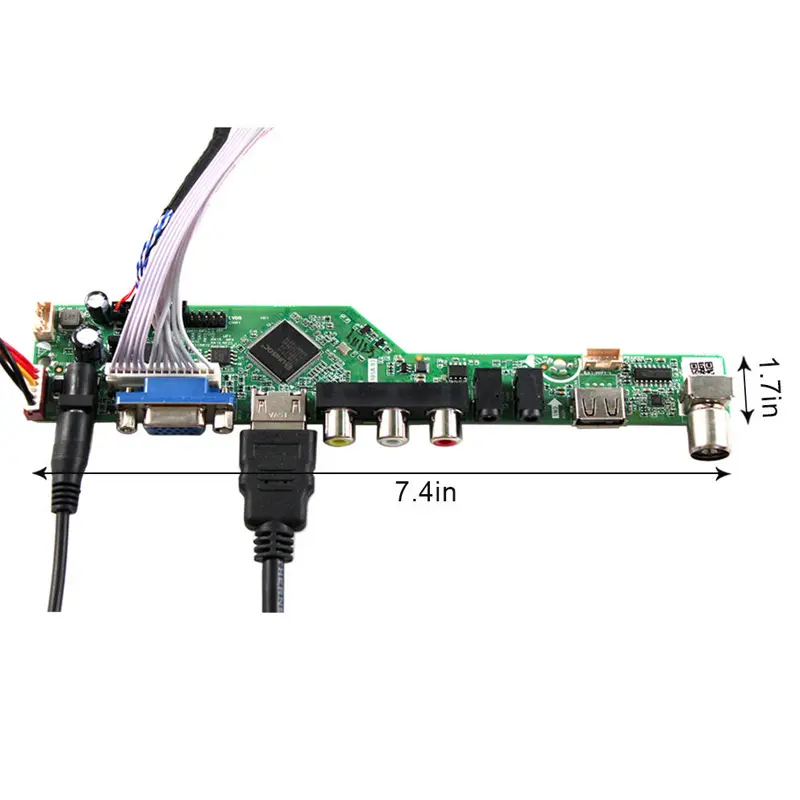

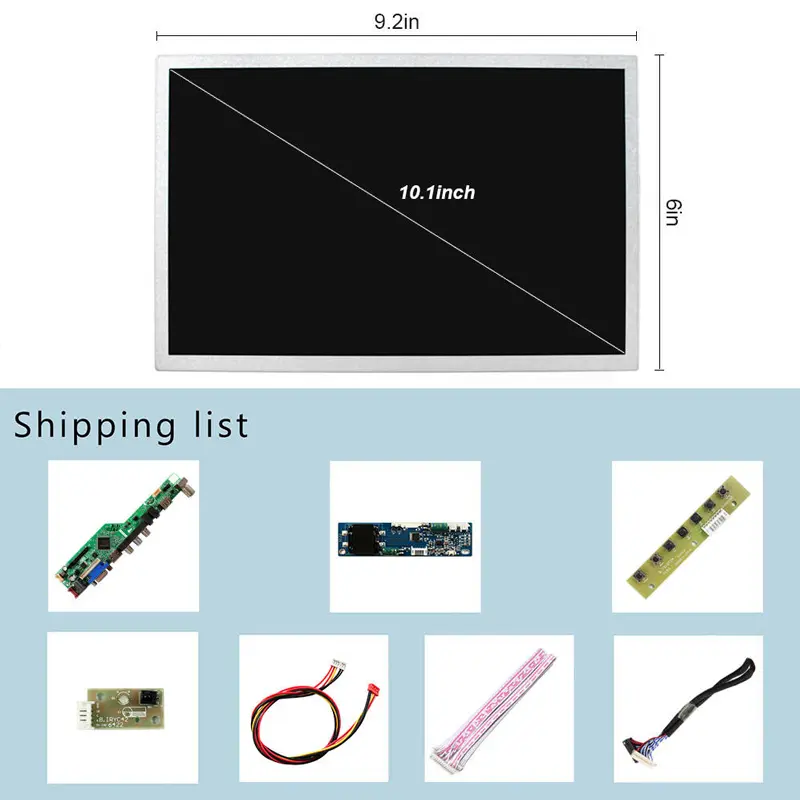

The panel measures 233.2 × 152.9 × 10.4 mm, with an active area of 216.96 × 135.6 mm. The controller board measures 188 × 43 × 17 mm.

These values should be transferred into the enclosure drawing with additional allowance for:

• Connector access
• Cable bend radius
• Board standoffs
• Inverter and converter-board placement
• Ventilation and heat dissipation
• Keypad mounting
• Speaker wiring
• Service access
• Strain relief

The panel connector and circuit boards should not carry structural loads. Mechanical support should be provided independently of signal and power cables.

Included control hardware

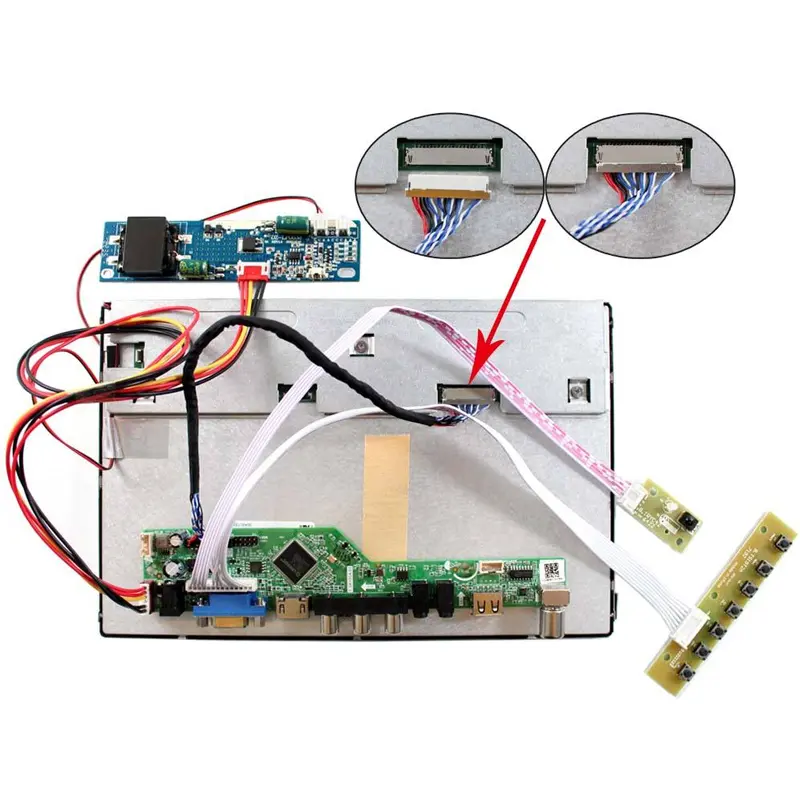

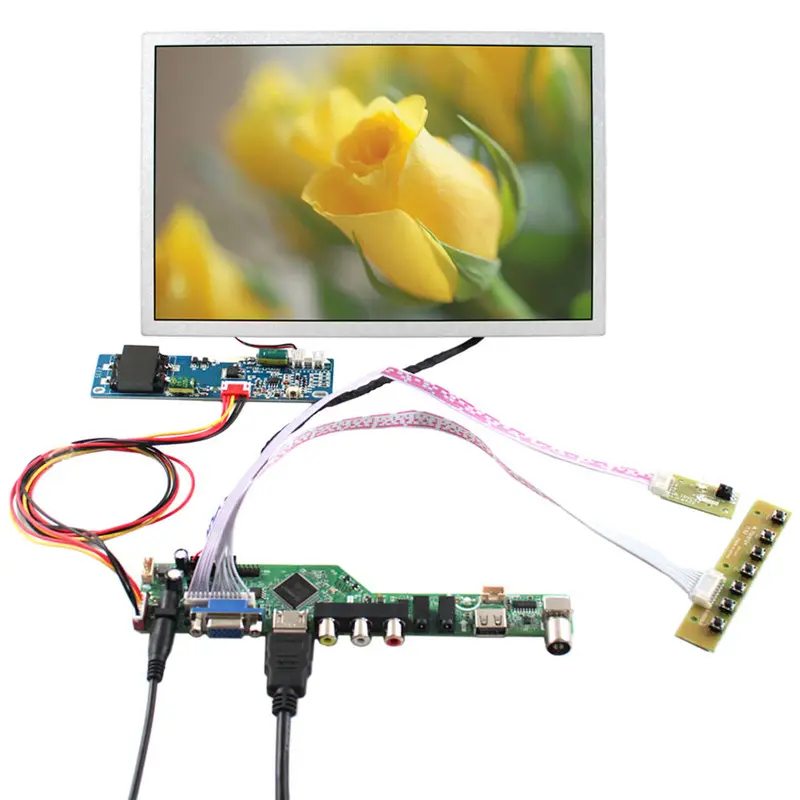

The confirmed package contains:

• T.SK105A.03 LCD controller board
• 10.1-inch LCD screen
• Inverter board
• Converter board
• Wired keypad

A power adapter, speaker, finished housing, mounting frame, touch sensor, front glass, media player, and environmental sealing are not confirmed as standard included components.

Application Fit and Environmental Boundaries

The LCD Screen Kit for Embedded Signage is suitable for compact advertising equipment, embedded media displays, branded counters, information terminals, sheltered commercial displays, and custom equipment interfaces after electrical, optical, and mechanical qualification.

Its 1000 cd/m² luminance can support bright indoor and protected window-adjacent installations. It does not by itself establish direct-sun performance.

A 1000 cd/m² panel-and-board kit is not a weatherproof outdoor display without a qualified enclosure.

Outdoor deployment requires an appropriate housing, front protection, ingress sealing, thermal management, condensation control, cable protection, and operating-temperature validation. No IP rating or environmental certification is confirmed for the supplied kit.

Customization and Procurement Planning

Project review may include:

• Controller firmware
• LVDS cable and pin mapping
• Input-board revision
• USB media support
• Cable length
• Brightness adjustment
• Cover glass
• Anti-glare treatment
• Optical bonding
• Touch development
• Enclosure design
• Cooling and sealing
• Mounting
• Speaker integration
• Branding and packaging

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability, and the requested specification. Sample and standard-kit quantities are confirmed separately.

Procurement Checklist

Before sample approval or production release, confirm:

• Approved panel reference and label
• Resolution and native timing at 1280 × 800 pixels
• Complete 20-pin, single-channel, 8-bit LVDS assignment
• Connector pitch, contact direction, and cable orientation
• 3.3 V panel logic configuration
• T.SK105A.03 revision and firmware
• VGA, AV, and USB functions
• USB file-system and media-format support
• 12 V DC controller supply above 2 A
• Inverter, converter, and backlight wiring
• Speaker and keypad connections
• 216.96 × 135.6 mm visible opening
• 233.2 × 152.9 × 10.4 mm panel fit
• 188 × 43 × 17 mm controller clearance
• Front-window optics and reflection target
• Enclosure, cooling, sealing, and service access
• Sample criteria, order quantity, and annual demand
