15 Inch Industrial HMI XGA Display Panel for Vending Machines
Model P/N
Size
Resolution
Brightness
Viewing Angle
Connector Type
Operating Temp
Overall(mm)
huisoar
HS150LW-NE07
Brand
Panel Size (inch)
Model P/N
Resolution
Brightness (nits)
Viewing Angle
Contrast Ratio
Response Time
Overall (mm)
Active Area (mm)
Refresh Rate
Display Colors
Panel Type
Connector Type
Operating Temp
Touchscreen Type
Storage Temp
Work Mode
Input Voltage (V)
Operating Environment
Designed For

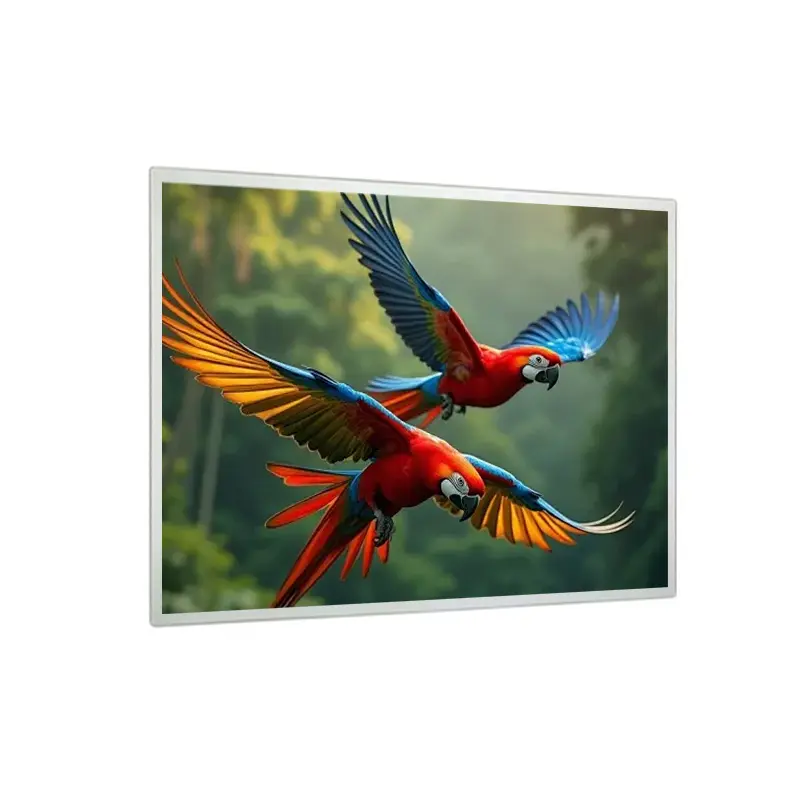

15 Inch Industrial HMI XGA Display Panel for Vending Machines
This 15-inch IPS XGA panel combines 700 cd/m² luminance and 20-pin LVDS for vending-machine and industrial-control integration.
Product Summary
The Industrial HMI XGA Display Panel provides a 15-inch 4:3 image area for vending machines, charging equipment and established industrial interfaces. Its confirmed configuration combines 1024 × 768 resolution, 700 cd/m² typical luminance, IPS wide-view positioning, 1500:1 typical contrast and a 20-pin LVDS interface.
This is a panel-level component rather than a finished monitor. The controller, LVDS cable, backlight circuit, enclosure, front window and optional touch architecture must be selected for the complete equipment design.
A 20-pin LVDS connector does not guarantee timing, voltage, channel mapping, bit depth or pin compatibility with another controller.
Key Specifications at a Glance
| Parameter | Confirmed value |
|---|---|
| Display size | 15 inches |
| Resolution | 1024 × 768 pixels |
| Aspect ratio | 4:3 |
| Panel structure | a-Si TFT-LCD |
| Optical designation | IPS wide-view, transmissive |
| Active area | 304.128 × 228.096 mm |
| Module outline | 326.5 × 253.5 × 10.1 mm |
| Luminance | 700 cd/m² typical |
| Contrast ratio | 1500:1 typical |
| Viewing angle | 85/85/85/85° (L/R/U/D) |
| Display colors | 16.2M colors |
| Interface | 20-pin LVDS |
| Panel input | 3.3 V typical |
| Backlight | WLED |
| Touch | Non-touch |
| Operating temperature | 0°C to +50°C |
| Storage temperature | −20°C to +60°C |
XGA Interface Design for Established Equipment
Preserving 4:3 Software Layouts
The 1024 × 768 XGA raster supports established industrial menus, status screens, product-selection pages and operator controls without forcing a widescreen software redesign. This is useful for equipment platforms whose graphics, enclosure opening and controller architecture were developed around a 4:3 panel.
A replacement project should confirm native timing, scaling behavior and the exact visible area. Using the same nominal resolution does not guarantee that two panels have identical timing or mechanical characteristics.
IPS Viewing and Contrast
The IPS wide-view designation and 85/85/85/85° L/R/U/D viewing specification support equipment that may be approached from different operator positions. The 1500:1 typical contrast ratio provides a useful basis for text, status indicators and menu-driven interfaces.
Final appearance also depends on controller processing, calibration, front-window reflection and ambient illumination.
Bright-Ambient Optical Performance
700 cd/m² Use Boundary
The 700 cd/m² typical luminance offers more optical headroom than a conventional low-brightness indoor panel. It can support vending machines, charging interfaces and protected terminals exposed to strong indoor lighting or indirect daylight.
A 700 cd/m² panel can improve visibility in bright ambient light, but finished readability still depends on front-window reflection, tint, viewing angle and thermal conditions.
The exact installation should be tested at the brightest expected time rather than evaluated only from the bare-panel luminance value.
Front-Window Reflection
A transparent protective window can reduce delivered luminance and introduce reflections from the operator, sky or nearby lighting. Tinted glass may further reduce the light reaching the viewer.
Product teams should define window transmission, surface reflection, air-gap distance, panel angle and target viewing position. AR treatment or optical bonding may be evaluated when reflection control is important, but neither is confirmed as part of the standard module.
Integrating the Industrial HMI XGA Display Panel
20-Pin LVDS Qualification
LVDS is a familiar embedded display interface, but the interface name and connector count do not define a complete electrical match. Controller approval should cover:
- Native 1024 × 768 timing
- LVDS channel count
- Bit mapping
- Pixel-clock requirements
- Complete pin assignment
- Connector pitch and contact side
- Cable orientation and length
- Panel-enable and control signals
- Grounding and shielding
Manufacturer pages for comparable 15-inch XGA panels commonly identify 20-pin LVDS as an integration feature while still requiring model-specific controller and pinout validation.
Panel and Backlight Power
The confirmed panel input is 3.3 V typical. This value should not be treated as the complete equipment input voltage or assumed to define the WLED backlight supply.
Backlight voltage, current, control method and connector definition require separate electrical documentation. The available model data confirms WLED but does not establish an exact lifetime, integrated-driver status or power figure.
Mechanical Replacement Planning
Active Area and Module Outline
The active image area measures 304.128 × 228.096 mm. The complete module measures 326.5 × 253.5 × 10.1 mm.
The active area controls the illuminated opening, while the complete outline controls enclosure clearance. Production drawings should also define mounting points, connector position, rear-component clearance, tolerance and cable bend space.
A nominally similar 15-inch XGA panel can still require enclosure or cable changes when its outline, connector position or thickness differs.
Non-Touch Front Structure
The standard module is non-touch, so touch requires a separately engineered sensor, controller and front stack.
Touch integration can alter:
- Overall thickness
- Front-window opening
- Optical transmission
- Reflection
- Cable routing
- Controller interfaces
- Environmental sealing
The LCD image path and touch-control path should be approved independently.
Recommended OEM Applications
The Industrial HMI XGA Display Panel is suitable for:
- Vending-machine operator displays
- Charging-station interfaces
- Access-control and gate terminals
- Industrial HMI panels
- Equipment dashboards
- Protected information terminals
- 4:3 display retrofit programs
The panel should not be described as a weatherproof outdoor display without a qualified enclosure, front window, thermal design and environmental test record.
Customization and Project Qualification
Project evaluation may include:
- LVDS controller matching
- Custom cable definition
- Front-window and reflection review
- AR or AG treatment
- Optical bonding
- Backlight-driver selection
- Touch-overlay development
- Enclosure adaptation
- Mounting support
- Branding and packaging
Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Sample and standard-module quantities are confirmed separately.
Procurement Checklist
Confirm these items before sample or production approval:
- Native 1024 × 768 timing
- LVDS channel count and bit mapping
- Complete 20-pin assignment
- Connector pitch, contact side and cable orientation
- 3.3 V panel rail
- WLED voltage, current and control method
- 304.128 × 228.096 mm active opening
- Approved 326.5 × 253.5 × 10.1 mm outline
- Mounting points and rear keep-out zones
- Front-window transmission and reflection
- 700 cd/m² lighting target
- Operator viewing position
- Non-touch standard or separate touch architecture
- 0°C to +50°C operating limit
- −20°C to +60°C storage limit
- Compliance-document requirements
- Sample quantity and annual demand
FAQ
About 15 Inch Industrial HMI XGA Display Panel
What must be checked before connecting a 20-pin LVDS controller?
Is 700 cd/m² sufficient behind a vending-machine front window?
When should this 4:3 XGA panel be selected instead of a widescreen model?
What information is required to add touch?
