17 Inch Parking Payment Terminal LCD Display Module for Kiosks

17 Inch Parking Payment Terminal LCD Display Module for Kiosks

A Parking Payment Terminal LCD Display Module gives parking and self-service equipment a 17-inch 5:4 interface without requiring a finished monitor. It combines native 1280 × 1024 graphics, 700 cd/m² typical luminance, TN transmissive TFT-LCD optics and a 30-pin LVDS connection. The 337.92 × 270.336 mm active area supports payment steps, status information and user guidance, while the standard non-touch architecture leaves the front window and input method to the equipment designer.

Product Summary

This 17-inch module uses the SXGA 1280 × 1024 format for payment prompts, identification status, machine instructions and service information. Its a-Si TN TFT-LCD structure provides 700 cd/m² typical luminance and a 1000:1 typical contrast ratio.

The specified viewing geometry is 85°/85°/80°/80° for left, right, up and down, with a preferred viewing direction of 6 o’clock. That orientation should be checked against the expected user eye line before the kiosk front structure is released.

Key Specifications

Optical Fit for Parking and Payment Equipment

700 cd/m² Bright-Ambient Baseline

The 700 cd/m² typical luminance provides a stronger baseline for brightly illuminated parking lanes, payment cabinets and semi-protected self-service locations than a low-luminance indoor panel. It is not a guarantee of direct-sun readability. Final performance depends on front-glass transmission, reflection, enclosure angle and site lighting.

TN Viewing and 6 O’Clock Orientation

The panel uses TN technology with 85°/85°/80°/80° viewing for left, right, up and down. Its preferred 6 o’clock direction matters when the screen is mounted at a height or angle different from the user’s eye line.

Validate orientation in the real cabinet before mechanical release.

30-Pin LVDS and Power Integration

Native 1280 × 1024 Timing

The host should drive the panel at its native 1280 × 1024 raster. Native output preserves text geometry, button placement, QR guidance and status graphics without unnecessary scaling.

30-Pin LVDS Matching

The display uses a 30-pin LVDS interface. A matching pin count is not sufficient to establish compatibility. Timing, channel mapping, bit convention, electrical levels, connector orientation and the complete pin assignment must be checked against the intended controller.

A matching 30-pin LVDS connector does not establish timing, voltage, channel mapping, bit width or pin compatibility.

WLED Electrical Boundary

WLED is the confirmed backlight type, but voltage, current, enable, dimming and driver requirements should be locked against the approved electrical documentation before the power architecture and cable harness are released.

Parking Payment Terminal LCD Display Module Integration

5:4 UI for Payment and Status Workflows

A Parking Payment Terminal LCD Display Module with a native 5:4 format can present transaction steps, parking-fee information, face-recognition status, mobile-payment guidance and service prompts in a compact cabinet opening. The display itself does not provide payment processing, recognition or payment-security functions; those belong to the finished terminal system.

The native 1280 × 1024 raster should be used to preserve 5:4 payment and status layouts without unnecessary scaling.

Mechanical Fit: Active Area vs Module Outline

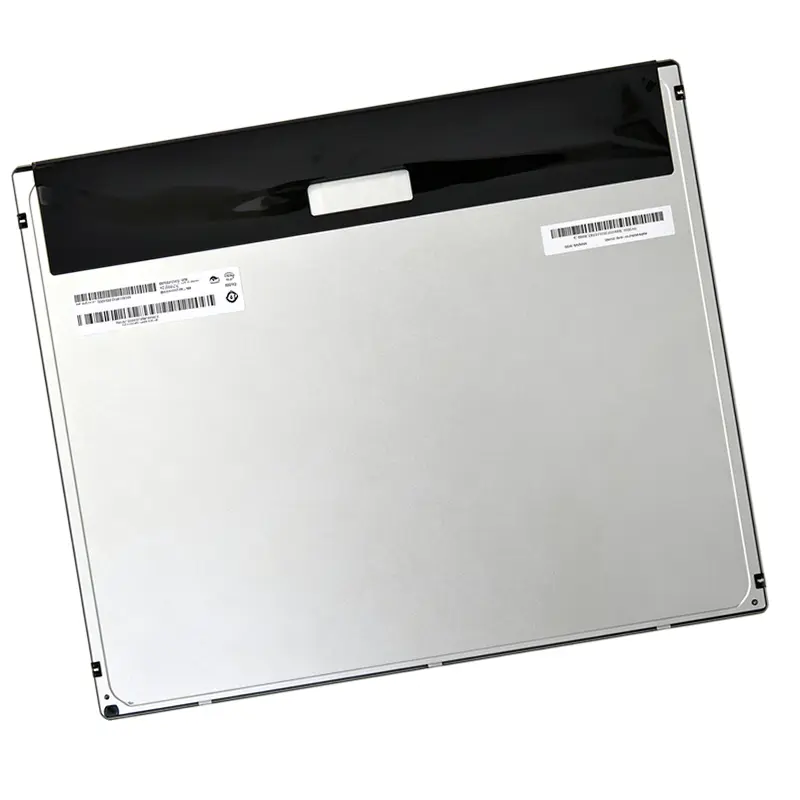

The visible active area is 337.92 × 270.336 mm, while the complete module envelope is 358.5 × 296.5 × 10.8 mm. Use the active area for the viewing window and the full outline for enclosure clearance, support and cable space.

The approved mechanical drawing should control mounting points, connector position and rear-component clearance.

Non-Touch Front Structure and Interaction Planning

Separate Touch Stack if Interaction Is Required

The standard module is non-touch.

If direct screen interaction is required, qualify the touch sensor, controller, interface, cover lens, bonding method and combined mechanical stack separately. Adding touch can change optical transmission, reflection, thickness and cable routing.

Front-Window Reflection

The 700 cd/m² panel rating should be validated behind the final front window under actual parking-site lighting.

Front-glass reflection can reduce perceived contrast, so optical treatment and cabinet angle should be reviewed together.

Environmental Qualification

0°C to +50°C Operating Boundary

The confirmed operating range is 0°C to +50°C, with storage from −20°C to +60°C. These component limits do not establish waterproofing, UV resistance, condensation resistance or an outdoor IP grade.

For parking equipment exposed to seasonal changes or solar heating, keep the internal panel environment within the approved range.

Application Fit

The Parking Payment Terminal LCD Display Module is suited to parking barrier payment equipment, parking kiosks, face-recognition payment terminals, vending-machine interfaces and other self-service systems that need a 17-inch SXGA display component. The 700 cd/m² typical luminance, 30-pin LVDS interface and 5:4 format provide a defined integration baseline.

Customization and Procurement

Project review can cover LVDS controller and cable matching, complete 30-pin definition, cover glass, anti-glare or anti-reflective treatment, optical bonding, enclosure adaptation and separately engineered touch.

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Sample and standard-module quantities are confirmed separately.

Procurement Checklist

Before approval, confirm native 1280 × 1024 timing; complete LVDS mapping and 30-pin assignment; connector orientation and electrical levels; panel and WLED electrical requirements; 337.92 × 270.336 mm active area; 358.5 × 296.5 × 10.8 mm module fit; 700 cd/m² luminance tolerance; 85°/85°/80°/80° viewing geometry; 6 o’clock orientation; non-touch status; front-window stack; temperature conditions; sample criteria; quantity and annual demand.
