This 4:1 IPS panel combines a native 1920 × 480 canvas, 600 cd/m² typical luminance and a four-lane MIPI connection for compact embedded interfaces.

Product Summary

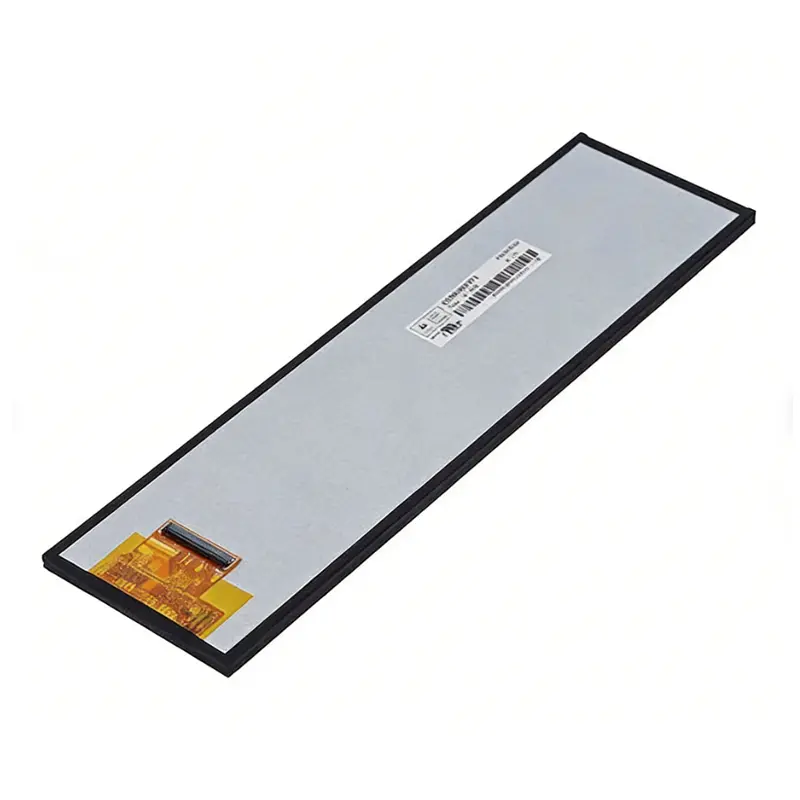

The Ultra Wide MIPI TFT Module is an 8.8-inch bar-format display component for control panels, equipment status strips and embedded interfaces that need a long horizontal canvas without the height of a conventional 16:9 screen.

Its native 1920 × 480 pixel matrix provides a 4:1 format within a 218.88 × 54.72 mm active area. The complete listed panel outline is 231.3 × 64.3 × 6.4 mm.

This is a direct-interface TFT module rather than a finished HDMI monitor. The host must provide compatible MIPI DSI signaling, display timing, rail generation, reset control and backlight management.

Key Specifications

A four-lane MIPI label does not establish compatibility without lane rate, video timing, pixel format, pin mapping and electrical requirements.

Designing a Native 1920 × 480 Interface

Build for the 4:1 Canvas

The native display area is four times wider than it is high. It works best when the application is designed specifically for a panoramic information hierarchy rather than adapted from a conventional desktop screen.

Suitable interface structures include:

• process stages arranged from left to right
• machine-state summaries
• charging or battery-status bars
• production-line indicators
• alarm and maintenance strips
• compact navigation or mode selectors
• transaction or order-status summaries
• multiple small data zones displayed simultaneously

Use native 1920 × 480 artwork wherever possible. Scaling a 1920 × 1080 interface into the bar format can make controls too small, crop important content or leave unusable space.

Check Orientation and Scaling

The product may be mounted in landscape or rotated into a narrow vertical format, but the host and application must agree on:

• framebuffer orientation
• active width and height
• rotation method
• touch-coordinate rotation, when touch is added
• font scaling
• icon dimensions
• video timing
• boot-screen orientation

The specification is commonly written as either 1920 × 480 or 480 × 1920 depending on physical orientation. The native pixel matrix remains the same, but the software configuration must match the installation direction.

IPS Optical Performance and Visibility

Use the 600 cd/m² Rating Correctly

The panel has a listed typical luminance of 600 cd/m². This provides a stronger optical starting point than many lower-luminance embedded panels for well-lit indoor equipment and protected operator interfaces.

The panel value must still be evaluated with the actual system stack:

• cover glass
• air gap or bonding layer
• antiglare treatment
• internal reflections
• front-bezel shadowing
• mounting angle
• ambient light
• backlight drive level

A 600 cd/m² panel rating does not by itself establish finished-system sunlight readability.

Plan for the 30 ms Response Grade

The listed response time is 30 ms typical. This grade is generally more aligned with status data, control graphics, equipment information and moderate interface animation than with fast-motion video.

Use sample testing when the application contains:

• rapidly scrolling text
• moving maps
• continuous camera video
• fast gauges
• animated transitions
• frequently changing fine lines

The response grade should be reviewed together with operating temperature because liquid-crystal response can vary across the environmental range.

Ultra Wide MIPI TFT Module Host Integration

Qualify Four Data Lanes

The display uses four MIPI data lanes. MIPI DSI is designed as a high-speed serial link between a host processor and display, but host support must be evaluated at the complete configuration level.

Confirm:

• four-lane DSI availability
• D-PHY support
• maximum lane rate
• video or command mode
• burst or non-burst mode
• RGB pixel format
• horizontal active timing
• vertical active timing
• blanking intervals
• frame rate
• clock-lane behavior
• low-power state handling
• reset and enable controls

Lane count alone is not sufficient. MIPI controller configuration depends on active pixels, blanking, frame rate, pixel format and lane bandwidth.

Verify the Complete 40-Pin Definition

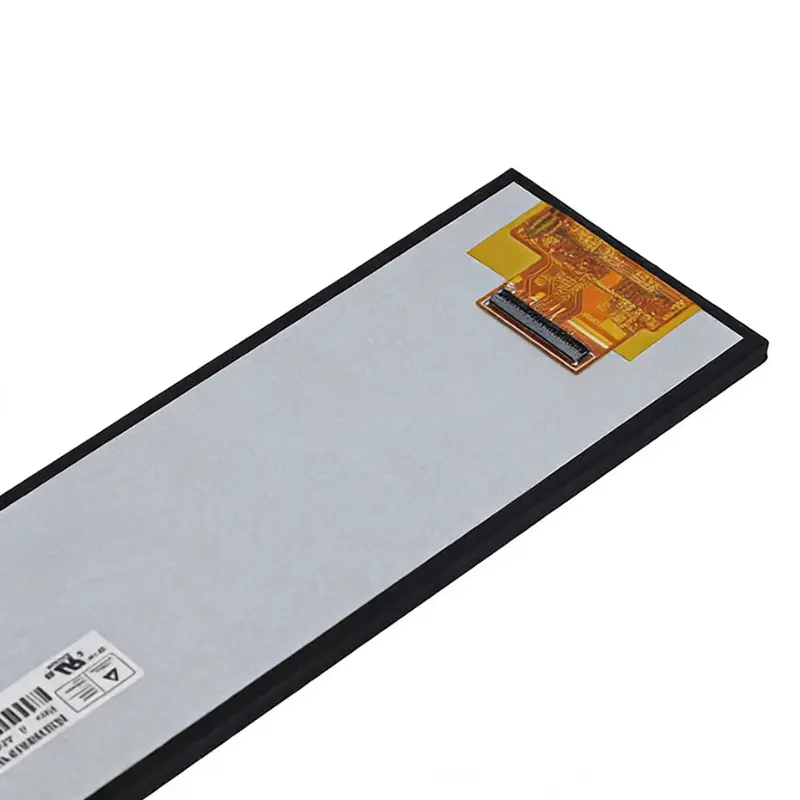

The connector has 40 pins, but the complete pin assignment is required before schematic or PCB release.

The approved documentation should define:

• MIPI lane polarity
• clock-lane polarity
• lane order
• grounds
• panel supply rails
• reset
• enable
• backlight control
• identification or test pins
• unused pins
• connector contact side
• FPC insertion direction
• connector manufacturer and part number

Do not assume compatibility with another 40-pin MIPI display. Pin count is a mechanical attribute, not an interoperability guarantee.

Multi-Rail and Backlight Engineering

Treat Listed Voltages as Rail References

The technical table lists 3.3 V, 12.0 V, 20.0 V and −10.0 V for VDD, AVDD, VGH and VGL.

These rail references indicate that panel integration may require more than a single logic supply. Before hardware approval, obtain:

• nominal voltage
• allowable tolerance
• startup order
• shutdown order
• current demand
• ripple limits
• discharge timing
• enable behavior
• fault handling

The listed rail set must not be converted into an assumed power sequence.

Control the WLED Backlight Separately

The module uses a WLED backlight with a listed 30,000-hour typical lifetime. The available information does not confirm the LED string arrangement, drive current, forward voltage or whether a backlight driver is included.

Review:

• LED string topology
• driver output range
• dimming method
• PWM frequency
• minimum stable brightness
• startup surge
• thermal behavior
• cable and connector definition
• backlight enable timing

The lifetime figure is a typical backlight grade, not a complete system-life guarantee.

Mechanical Fit and Optional Touch

Use the Panel Outline for the Standard Version

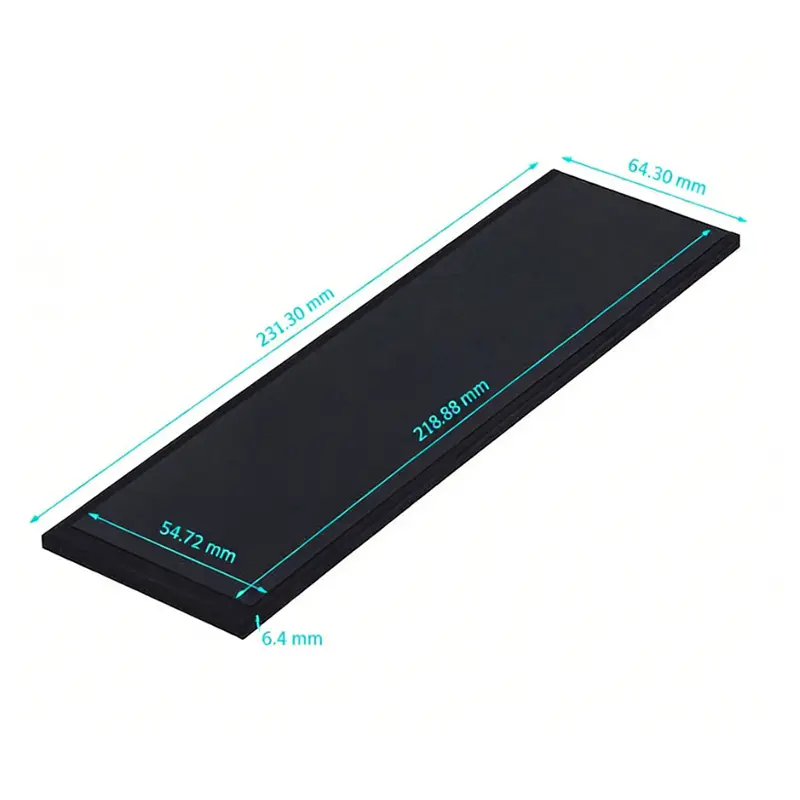

The standard module dimensions are:

• active area: 218.88 × 54.72 mm
• outline: 231.3 × 64.3 × 6.4 mm
• active-area ratio: 4:1

The enclosure design should also reserve space for:

• FPC and connector
• backlight structure
• rear component clearance
• panel tolerances
• mounting support
• bezel overlap
• cover-glass opening
• assembly tools
• cable strain relief

The mechanical drawing should control the design rather than a simplified product-page thumbnail.

Requalify the Touch Configuration

Touch is optional, but the evidence does not establish the standard touch technology, controller, interface, glass thickness or bonded outline.

A touch version may change:

• total thickness
• outer dimensions
• visible opening
• connector count
• power demand
• firmware
• coordinate mapping
• cover-glass design
• optical performance
• environmental behavior

Optional touch must be qualified as a separate mechanical and electrical configuration.

Suitable Application Directions

Industrial control panels

The long format can present process stages, alarms, operating modes and status values without consuming the vertical space of a conventional HMI.

Equipment status strips

The 1920 × 480 canvas can divide machine information into several left-to-right zones for rapid scanning.

Charging interfaces

The bar shape supports charging progress, battery status, user prompts and system-state messages in compact housings.

Embedded HMI bars

The module can serve as a secondary information surface beneath switches, controls or a larger primary display.

POS operator interfaces

The display may be evaluated for order status, operator prompts, product information or queue data. It should not be described as a certified payment display.

Long-format information panels

The panel can support indoor information strips where a conventional screen is mechanically too tall, subject to host and enclosure qualification.

No automotive, medical, marine, aerospace, outdoor or safety-critical grade is implied by these application directions.

Customization Scope

Project review may include:

• optional touch
• cover-glass dimensions
• surface treatment
• FPC geometry
• connector orientation
• pin-definition adaptation
• backlight configuration
• luminance target
• cable set
• controller-board support
• enclosure integration
• logo and packaging

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Sample and standard-module quantities are confirmed separately.

Procurement Checklist

Submit:

• host processor or SoC
• MIPI DSI controller details
• four-lane confirmation
• required lane rate
• video or command mode
• burst/non-burst mode
• pixel format
• complete horizontal timing
• complete vertical timing
• frame rate
• 40-pin assignment
• rail voltages and tolerances
• startup and shutdown requirements
• reset and enable handling
• WLED driver plan
• dimming method
• FPC orientation
• connector choice
• enclosure drawing
• active-area opening
• touch or non-touch version
• ambient-light target
• operating-temperature requirement
• sample quantity
• annual demand
• production schedule
