15.6 Inch Wide Temperature 1000 Nits LCD Panel for Fuel Dispensers

15.6 Inch Wide Temperature 1000 Nits LCD Panel for Fuel Dispensers

This Wide Temperature 1000 Nits LCD Panel combines Full HD resolution and 30-pin LVDS with −30°C to +70°C operation for industrial equipment.

Product Summary

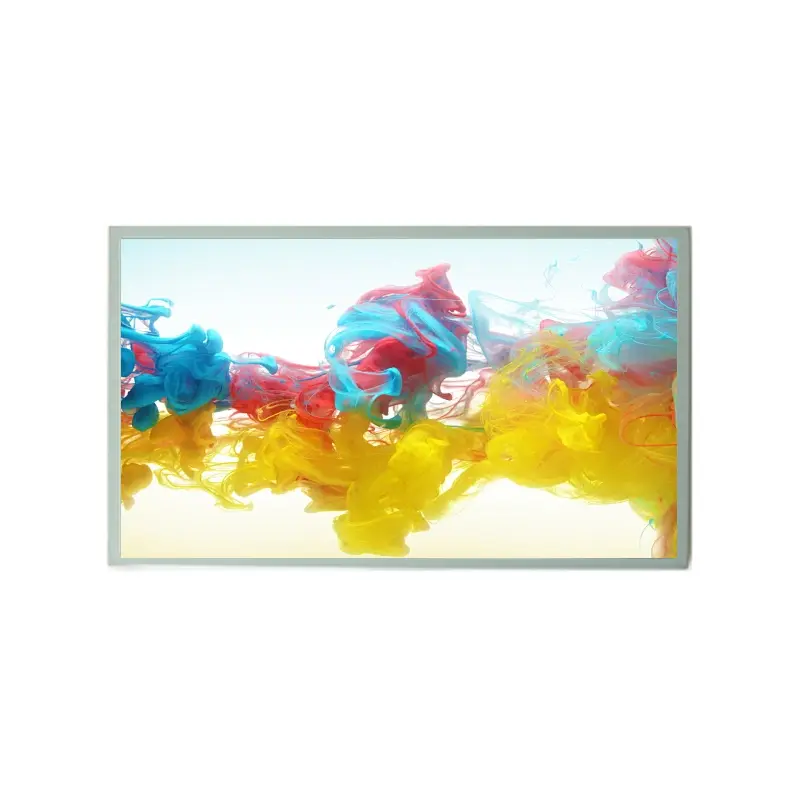

The Wide Temperature 1000 Nits LCD Panel is a 15.6-inch Full HD TFT-LCD component for fuel dispensers, charging equipment, vending systems, access terminals, and other industrial equipment that must operate across a broad temperature range. Its 1920 × 1080 resolution provides a native 16:9 canvas for status information, machine graphics, advertising content, operating instructions, and equipment interfaces.

The panel uses a transmissive TN TFT-LCD structure with 1000 cd/m² typical luminance, a 3000:1 minimum contrast ratio, WLED backlighting, and a 30-pin LVDS signal connection. The standard detailed configuration is non-touch, allowing equipment designers to treat the LCD, front window, input system, and enclosure as separate engineering layers.

Key Specifications

Bright-Ambient Optical Performance

1000 cd/m² and Front-Window Losses

A 1000 cd/m² panel provides a stronger luminance base than conventional indoor displays, but finished readability depends on more than the bare LCD rating. Cover-glass transmission, surface reflection, air gaps, bonding structure, installation angle, and ambient illumination all influence the contrast that a user actually sees.

For a fuel dispenser or other outdoor-facing machine, the final front-window stack should therefore be evaluated under representative lighting before direct-sun readability is approved. This approach keeps the 1000 cd/m² specification useful without treating luminance alone as a finished-system guarantee.

TN Viewing Geometry and 80-Degree Four-Way Angles

The confirmed viewing specification is 80°/80°/80°/80° for left, right, up, and down. That provides system designers with a defined viewing envelope for equipment where operators or customers may approach from different positions.

Viewing height and cabinet tilt should still be checked during mechanical development. A panel mounted significantly above or below the normal eye line can produce a different real-world viewing experience from a laboratory front view, even when the nominal viewing-angle values meet the project requirement.

Integrating the Wide Temperature 1000 Nits LCD Panel

30-Pin LVDS Host Qualification

The module uses a 30-pin LVDS connection. Connector count alone does not establish compatibility with another 30-pin display. Native 1920 × 1080 timing, channel configuration, bit mapping, connector pitch, contact side, pin assignment, voltage requirements, cable orientation, and backlight control all need to be confirmed against the intended controller or mainboard.

For replacement projects, this check is particularly important. A panel can share the same resolution and connector count with another product while still using different electrical assignments or timing requirements.

Full HD Mechanical Fit

The active image area measures 344.232 × 193.536 mm, while the LCD module footprint is 363.8 × 215.92 mm with a maximum thickness of 9.8 mm.

These dimensions serve different design purposes. The active area defines the visible image region, while the full module dimensions control cabinet clearance, bracket position, cable routing, and front-window sizing. Enclosure tooling should be released only after the complete mechanical drawing and connector location are approved.

Wide-Temperature Operation for Industrial Equipment

Operating and Storage Boundaries

The operating range is −30°C to +70°C, with storage from −30°C to +80°C. This gives equipment developers a broader thermal design window than a conventional office display and supports evaluation for fuel dispensers, charging equipment, industrial terminals, and other systems exposed to seasonal temperature variation.

These numbers describe the LCD component rather than the complete machine. Internal cabinet temperature, solar loading, ventilation, heater requirements, condensation, humidity, vibration, and enclosure sealing still need to be addressed at system level.

A wide-temperature panel does not automatically establish waterproofing, UV resistance, an IP rating, or compliance for a finished outdoor product.

Non-Touch Architecture and Interface Planning

Separate Touch Development When Interaction Is Required

The detailed configuration is non-touch. For applications that only need advertising, equipment status, instructions, pricing information, or machine output, this can simplify the front structure.

If a project requires direct screen interaction, the touch layer should be treated as a separate assembly requiring its own controller, interface, cover-lens dimensions, optical transmission target, bonding strategy, grounding plan, and mechanical tolerances. The LCD should not be presented as an integrated touchscreen unless the ordered configuration has been separately qualified.

Application Fit

This 15.6-inch display format is suitable for fuel-dispenser status screens, gas-pump media areas, charging-pile displays, vending-machine interfaces, gate and access equipment, industrial HMI panels, and digital-signage equipment where Full HD content, higher luminance, and wide-temperature capability are useful.

The 16:9 raster supports modern graphical layouts without requiring an unusually large front-panel opening. For equipment manufacturers, this can make it easier to combine machine status, operating instructions, advertising content, and diagnostic information in one native Full HD interface.

For buyers comparing a Wide Temperature 1000 Nits LCD Panel, the most important qualification questions are not limited to brightness. Controller compatibility, the final optical stack, enclosure fit, internal operating temperature, and the decision between non-touch and separately engineered interaction should all be fixed before production release.

Customization and Project Qualification

Project evaluation may cover LVDS cable and controller matching, complete connector definition, cover-glass structure, anti-reflective or anti-glare treatment, optical bonding, enclosure adaptation, cable routing, and separately engineered touch requirements when supporting drawings and electrical specifications are available.

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability, and the requested specification. Sample and standard-module quantities are confirmed separately.

Procurement Checklist

• Confirm the assigned 15.6-inch product revision before final qualification.
• Use native 1920 × 1080 timing.
• Obtain the complete 30-pin LVDS assignment and mapping.
• Confirm connector pitch, contact side, and cable orientation.
• Confirm panel input voltage and current requirements.
• Obtain WLED voltage, current, enable, dimming, and driver requirements.
• Approve the 344.232 × 193.536 mm active area.
• Approve the 363.8 × 215.92 mm module footprint and 9.8 mm maximum thickness.
• Validate 1000 cd/m² behind the intended front-window stack.
• Confirm the 3000:1 minimum contrast specification for the approved revision.
• Verify the 80°/80°/80°/80° L/R/U/D viewing geometry against installed viewing position.
• Keep the standard configuration identified as non-touch unless a separate touch assembly is approved.
• Confirm −30°C to +70°C operation and −30°C to +80°C storage against cabinet conditions.
• Define humidity, sealing, vibration, UV exposure, and compliance requirements at equipment level.
• Specify sample criteria, project quantity, annual demand, and production timing.
