43 Inch Wide Temperature High Brightness Storefront Display for Retail

43 Inch Wide Temperature High Brightness Storefront Display for Retail

A 43-inch Full HD window-facing display delivers 2500 cd/m² with HDMI, DVI and VGA for bright retail-window installations.

The Wide Temperature High Brightness Storefront Display is designed for commercial window-facing installations where strong ambient light can reduce the impact of ordinary indoor screens. Its 43-inch 1920 × 1080 format combines 2500 cd/m² luminance, a 1200:1 contrast ratio, 16.7M colors and broad viewing-angle data. For retail integrators, conventional video inputs, AC mains input and a 400 × 400 mm mounting pattern provide clear optical, electrical and mechanical checkpoints before installation.

Product Summary

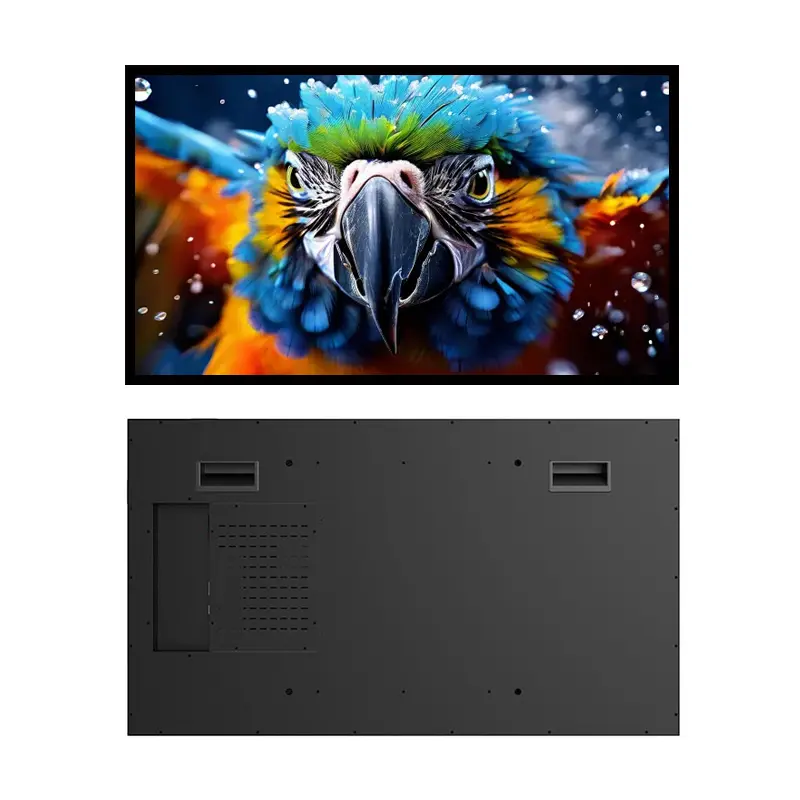

This 43-inch display is intended for storefront advertising and other glass-facing commercial messaging. The 940.1 × 529.4 mm active image area supports Full HD graphics in a 16:9 layout, while the enclosure measures 966 × 554.5 × 50 mm and weighs 17.5 kg. These values help teams evaluate window setback, bracket position, cable clearance and visible content area before rollout.

A 2500 cd/m² display rating provides a strong basis for bright-window evaluation, but final visibility still depends on glass transmission, reflections, sun angle, screen setback and content design.

Key Specifications at a Glance

Optical Performance Behind Storefront Glass

2500 cd/m² for Bright Window-Facing Content

The fixed 2500 cd/m² luminance gives promotional graphics, pricing and brand content more visual headroom in high-ambient retail windows than low-brightness indoor screens. The final result should still be checked at the actual site because glazing, reflections, solar direction and screen-to-glass spacing can change perceived contrast.

A 2500 cd/m² panel rating should still be validated through the actual storefront glass and site lighting.

Full HD Image Area and Viewing Geometry

The 1920 × 1080 raster provides a native Full HD canvas for video, graphics and text. A 1200:1 contrast ratio and 16.7M-color specification support commercial content presentation. Viewing-angle data is stated as 89/89/89/89° minimum at CR ≥ 10, but the directional order is not assigned here; verify the approved specification if directional labeling is required.

AV and Power Integration

HDMI, DVI and VGA Input Planning

The display provides HDMI, DVI and VGA inputs, plus PC Audio In and Earphone Out. This supports newer digital players and legacy commercial playback equipment. The host should still be checked for the intended 1920 × 1080 output mode, cable length, connector access and audio architecture.

The presence of HDMI, DVI and VGA does not remove the need to verify the media player's output format and approved Full HD timing.

AC Mains and 180 W Planning

The unit accepts AC 100–240 V and has a listed power consumption of 180 W. Electrical planning should cover the branch circuit, isolation, cable routing, heat rejection and operating schedule. Use 180 W as a planning reference rather than calling it a confirmed maximum unless the approved electrical document establishes that grade.

Integrating a Wide Temperature High Brightness Storefront Display

Mechanical Fit and Mounting Load

The enclosure measures 966 × 554.5 × 50 mm and weighs 17.5 kg. Mounting uses a 400 × 400 mm pattern with four M8 points and a maximum thread depth of 10 mm. These values should be checked together because hole spacing alone does not establish bracket suitability.

A 400 × 400 mm mounting pattern does not remove the need to verify the 17.5 kg structural load and 10 mm maximum M8 thread depth.

Operating and Storage Temperature Boundaries

The operating range is −20°C to +70°C, and storage is −30°C to +80°C. This thermal range is relevant near storefront glass, where solar load and seasonal conditions can create a demanding internal environment. It does not establish rain protection, ingress protection or exposed-outdoor suitability. The exact product table does not define an IP rating.

The −20°C to +70°C operating range does not establish an IP rating or exposed-weather suitability.

Retail Window Applications and Deployment Fit

The Wide Temperature High Brightness Storefront Display fits fashion and electronics storefronts, shopping-mall windows, brand showrooms, real-estate promotion windows and other protected glass-facing commercial locations. The 43-inch format provides useful promotional area without the mounting footprint of larger window displays. Window-facing and storefront digital-signage terminology is widely used for this application class.

For multi-site deployment, standardize the content raster, player output, glass conditions, mounting hardware and power assumptions before repeating the installation. This makes sample approval more representative of the final network.

Configuration Boundaries and Customization Review

The standard technical data does not define an embedded operating system, touchscreen, protective glass or product-specific IP rating. Those functions should not be assumed from broader OEM options. If a project requires touch, optical bonding, a different enclosure, additional communications, weather protection or an embedded media architecture, treat it as a separately reviewed configuration.

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Sample and standard-display quantities are confirmed separately.

Procurement Checklist

Confirm the native 1920 × 1080 playback path; HDMI, DVI or VGA source; storefront glass and reflection conditions; screen setback; AC 100–240 V supply and 180 W planning reference; 966 × 554.5 × 50 mm enclosure fit; 17.5 kg structural load; 400 × 400 mm mounting with four M8 points and 10 mm maximum thread depth; temperature targets; touch or embedded-player requirements; sample quantity; and annual demand.
